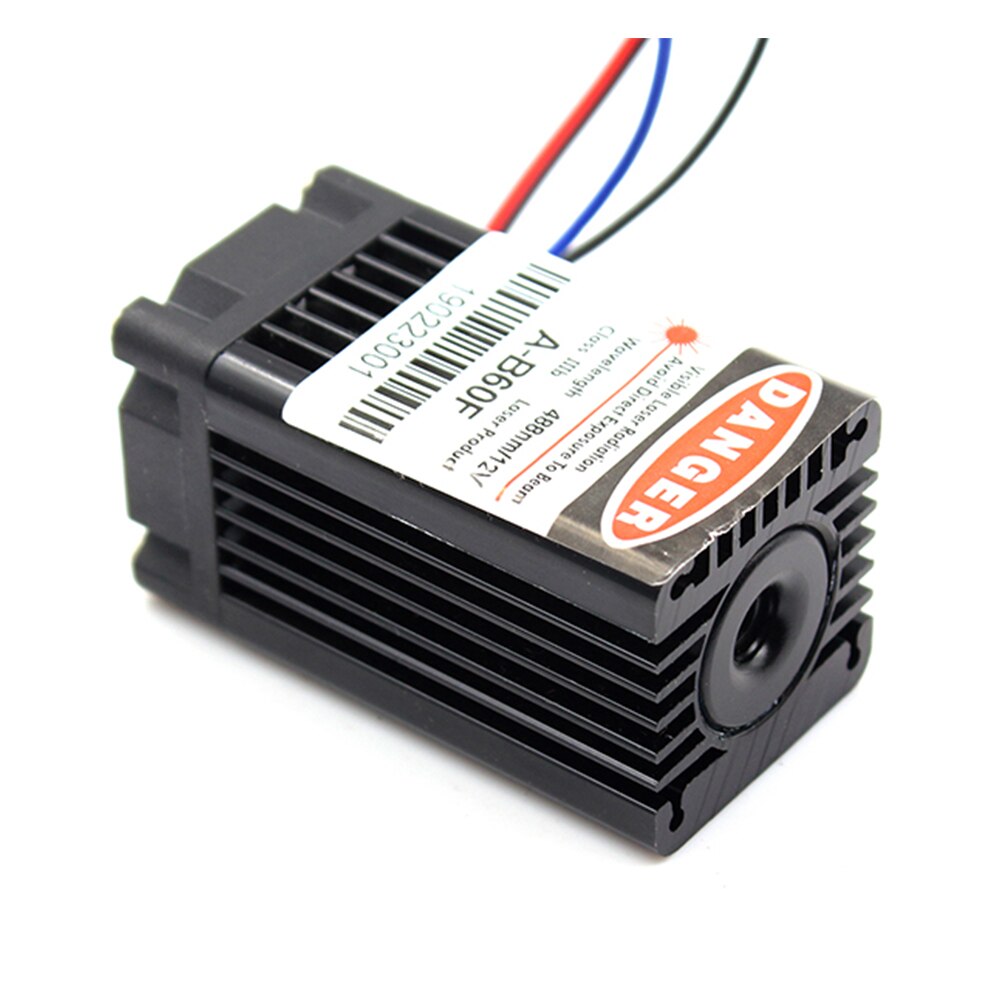

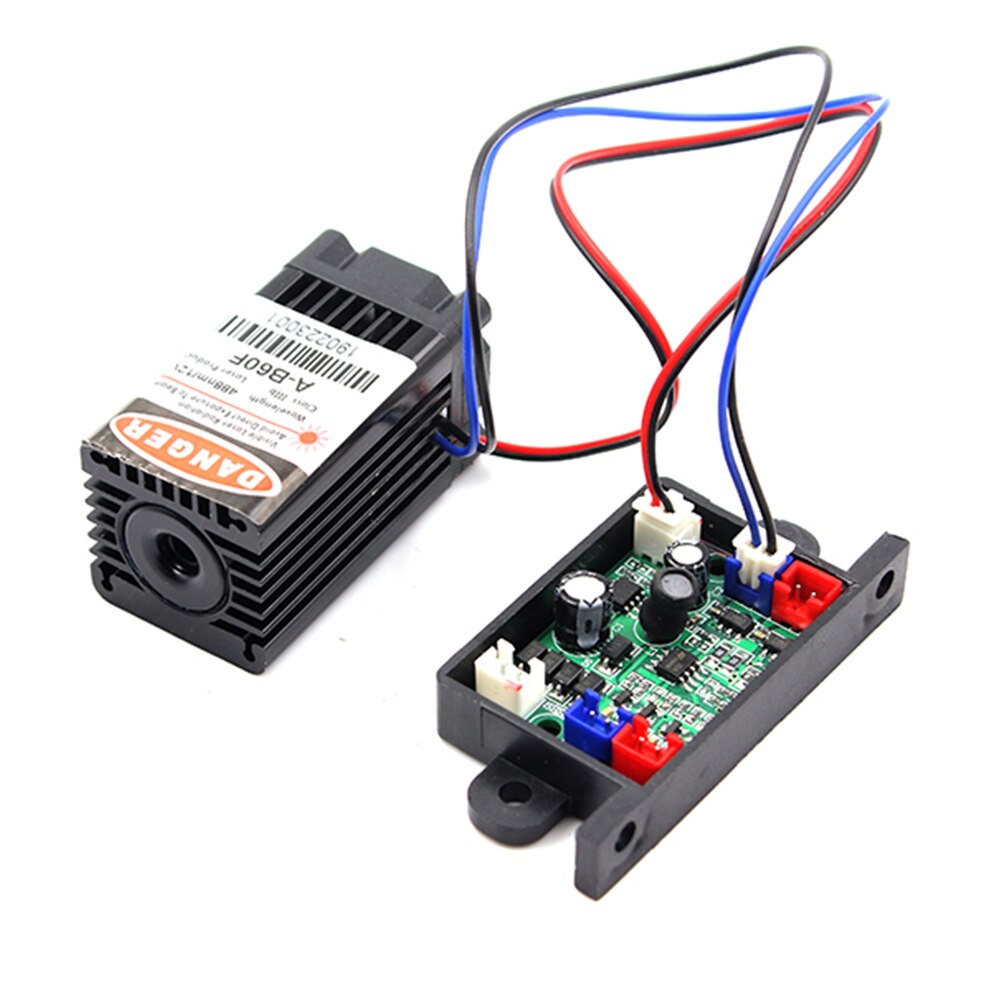

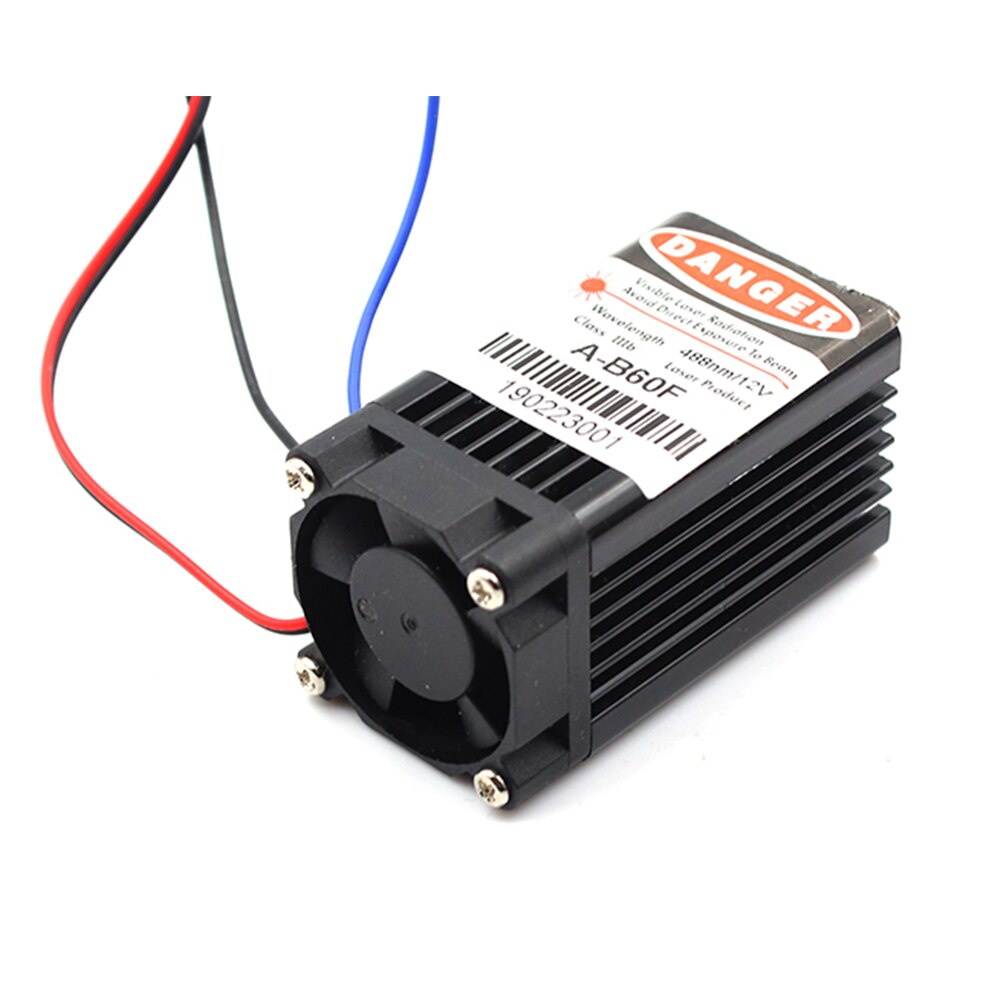

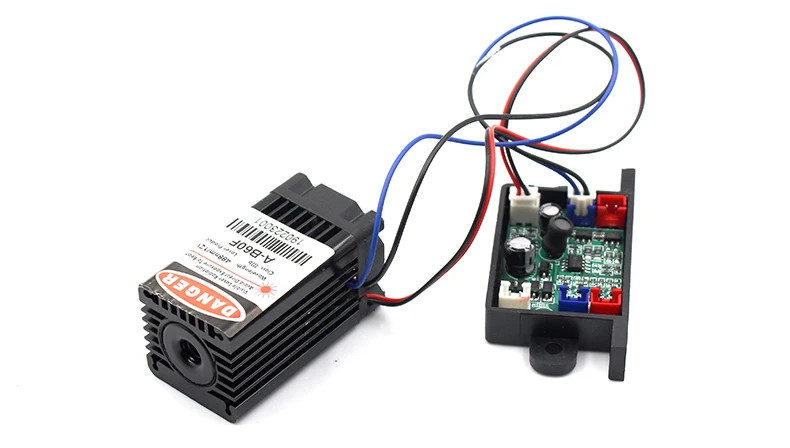

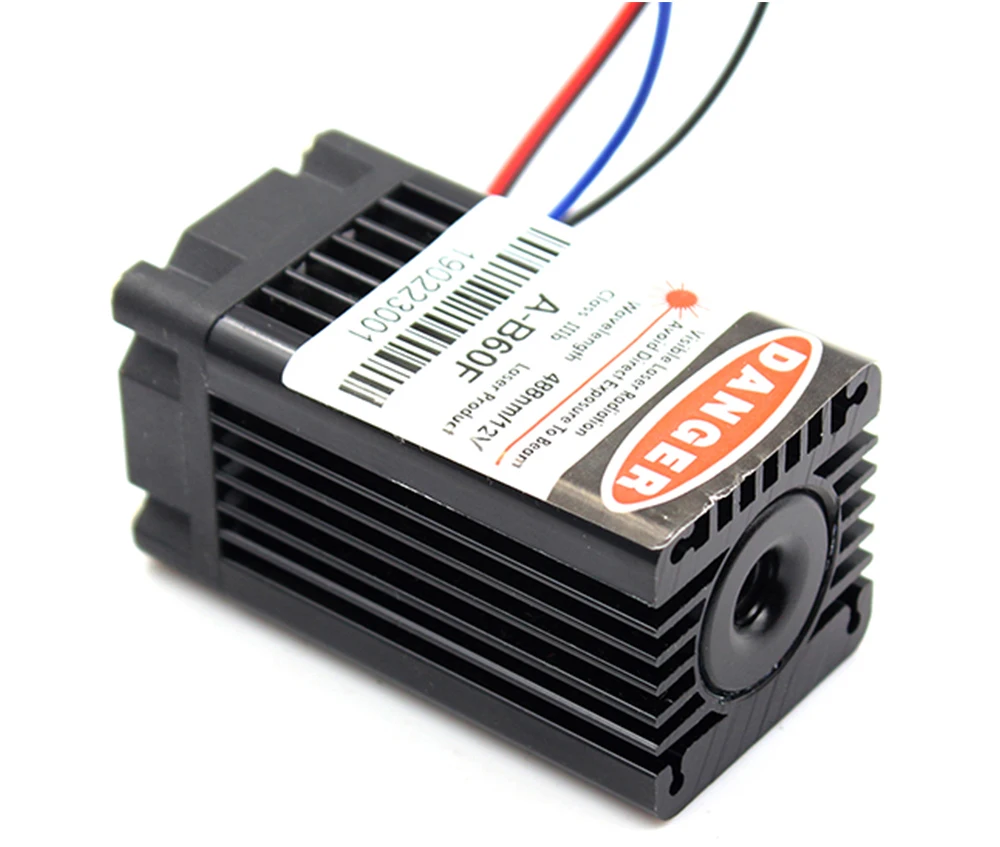

488nm 100mW 12V 30*30*45mm DOT Cyan Blue Laser Head Module Scientific Research Medical Laser with Fan TTL Modulation Adapter

Parameters:

● Wavelength: 488nm
● Output power: 80-100mW
● Spot mode: round spot
● Divergence angle: ≤1mrad
● Laser class: Class 3

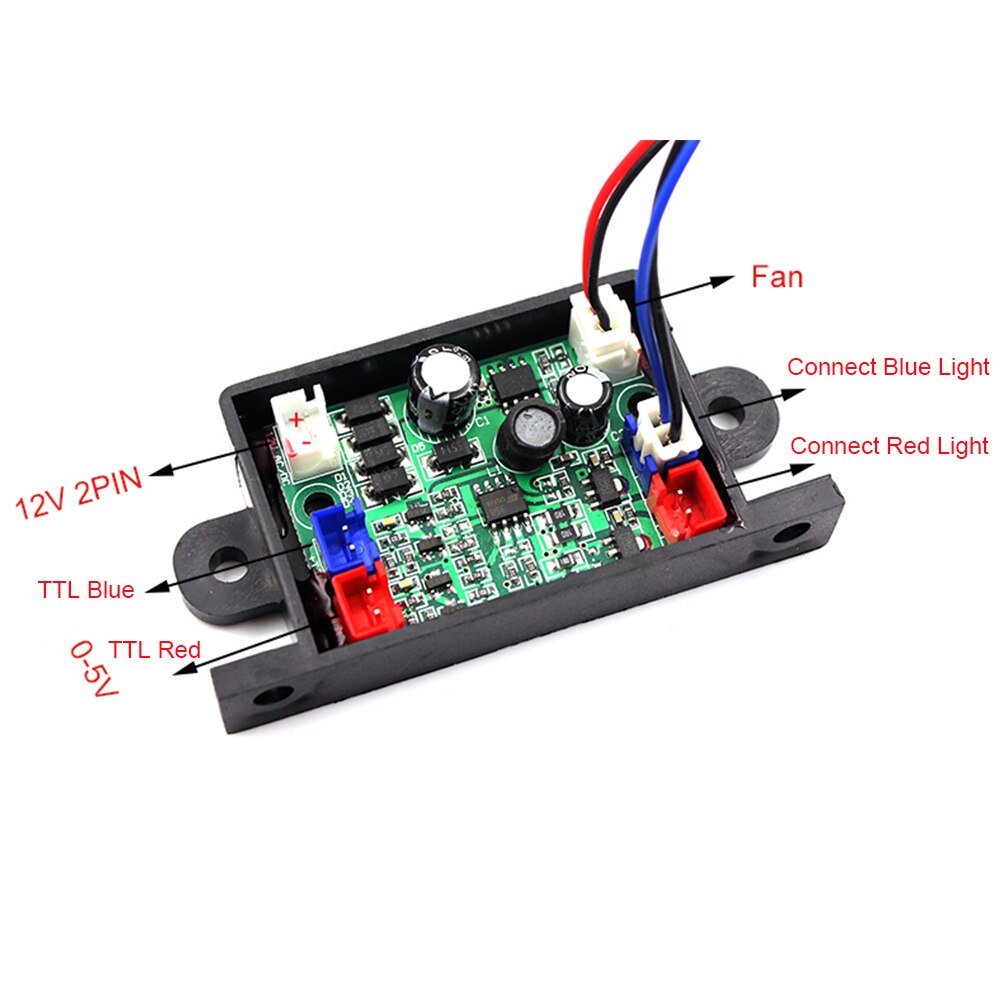

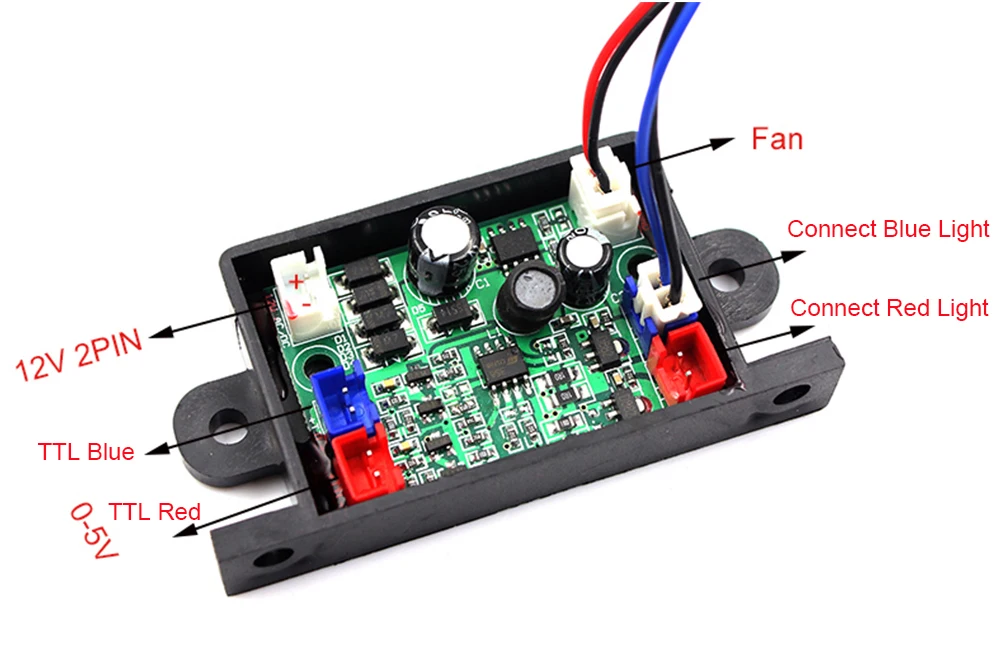

● Modulation mode: TTL modulation
● Input stability: ± 5%
● LD input voltage: 7V
● LD input current: 180mA
● Rated power consumption: 2.1W
● Recommended ambient temperature: -10℃ ~ 40 ℃
● Life: 10000h
● Wire length: 100mm

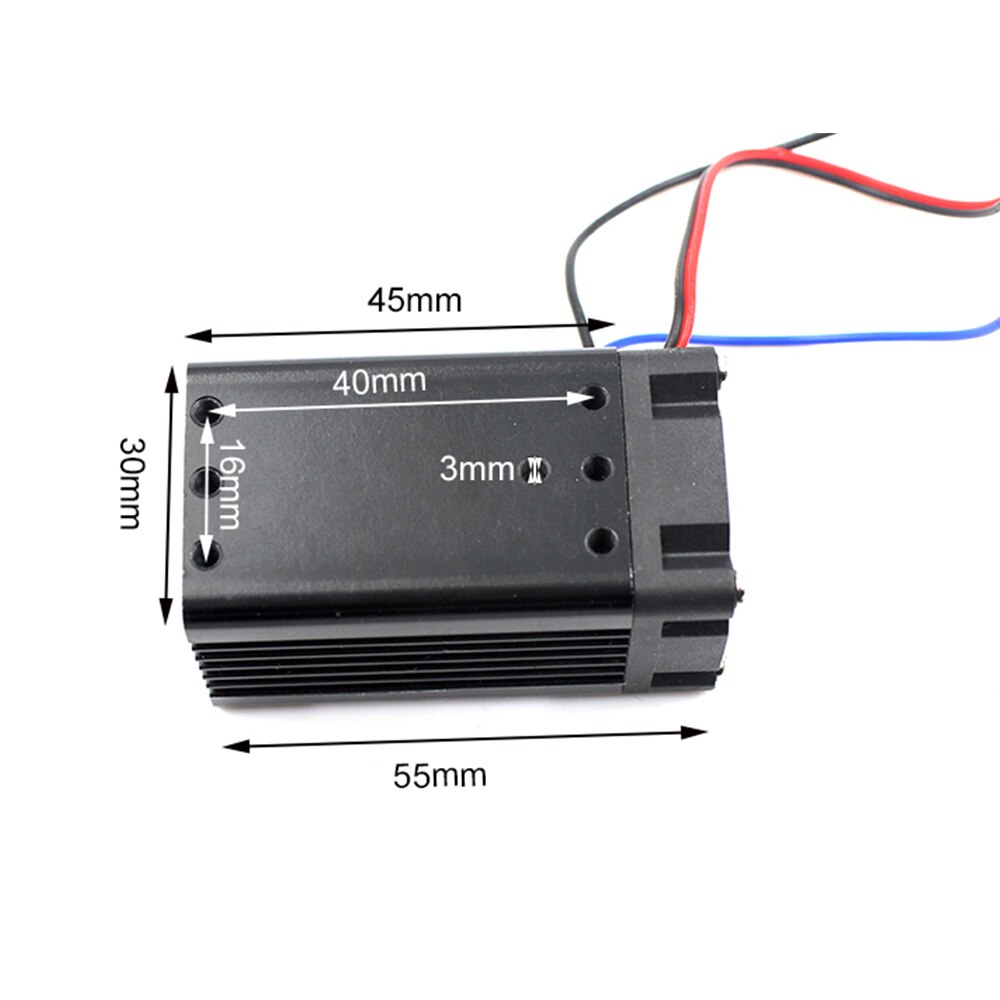

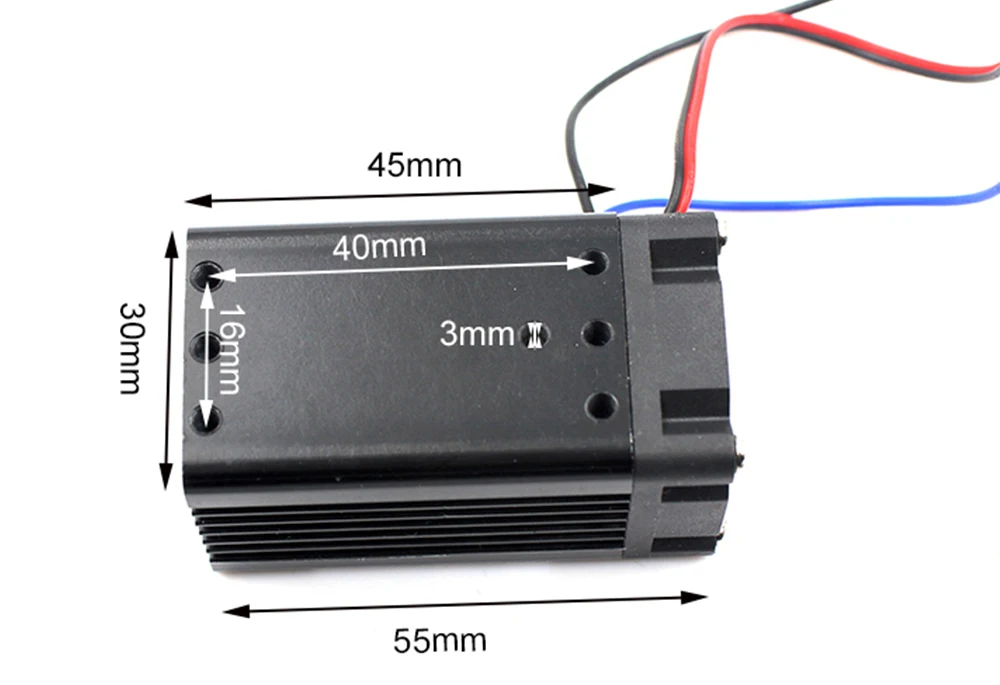

● Size: 30 * 30 * 45mm

Note:

● The laser power module is relatively large, eye contact is prohibited, otherwise it will cause permanent blindness.

● Do not use in flammable and gaseous environments to avoid fire and explosion.

● Children are not allowed to touch this laser product.

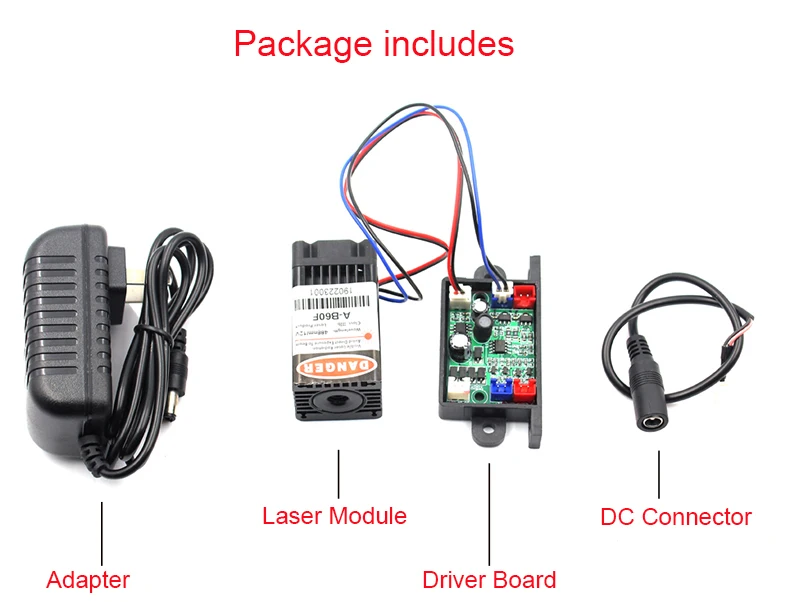

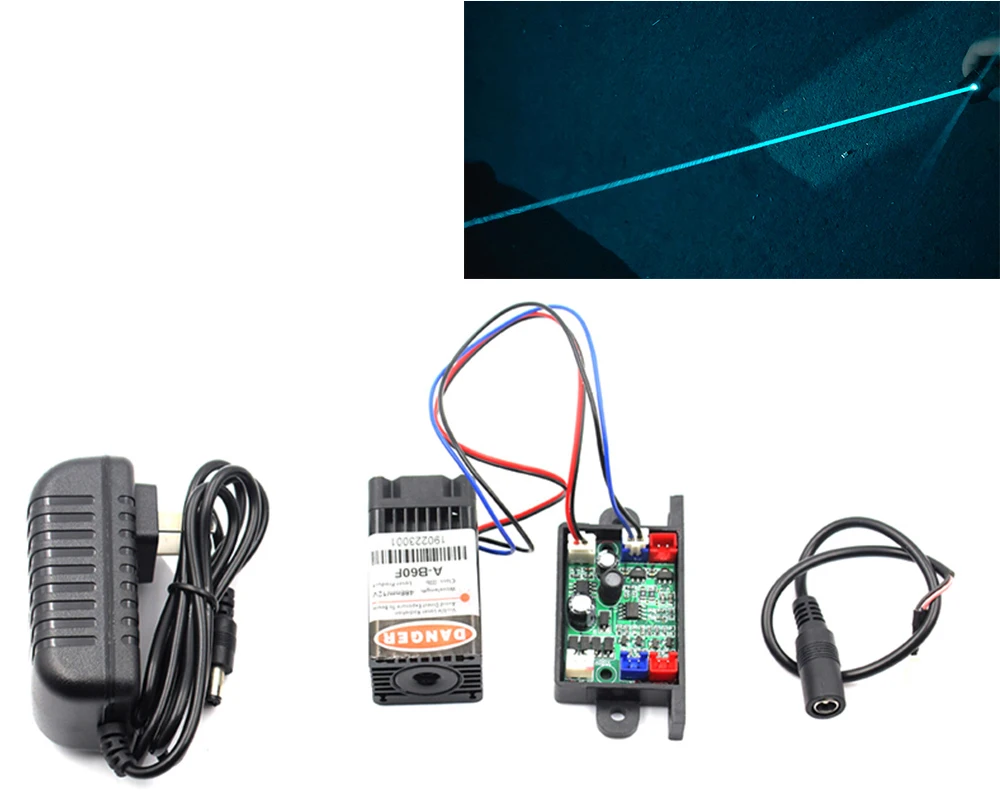

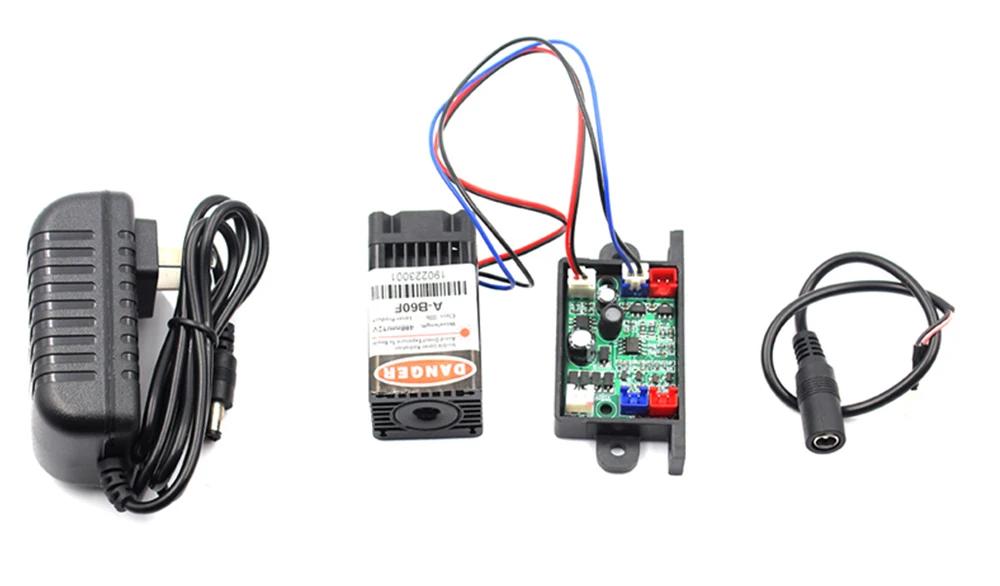

The package includes:

1pcs 488nm 100mW Laser Module
1pcs12V Adapter
1pcs DC Connector
