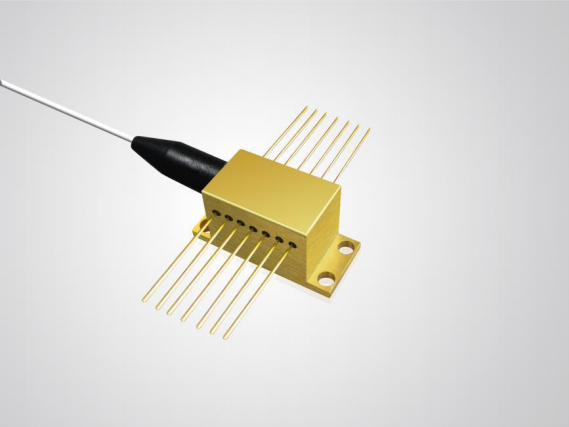

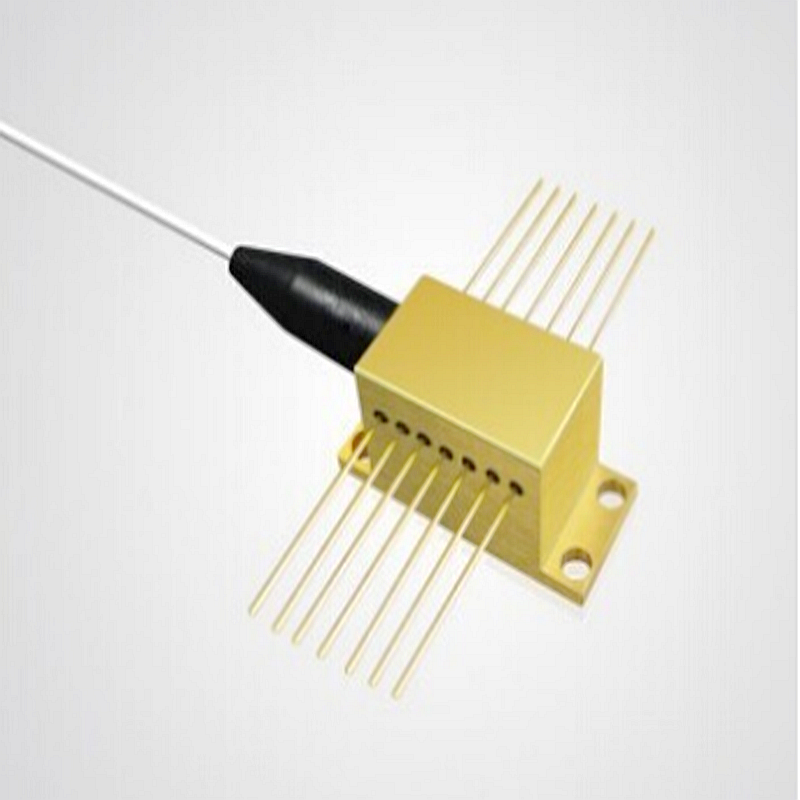

450nm 800mW Butterfly Packaged Diode Laser

Description

450nm 800mW Butterfly Packaged Diode Laser

Features:
450nm wavelength
800mW output power
105µm fiber core diameter
0.22N.A.

Parameter:

CW Output Power: 800mW

Threshold current: 250mA

Operating current: 1000mA

Operating voltage: 4.8~6V

Reverse Voltage: 6V

Slope Efficiency: 0.8W/A

Electrical-to-Optical Efficiency: 20%

Center wavelength: 440nm~450nm

Spectral width(FWHM): 6nm

Wavelength Shift with Temperature: 250nm/℃

Fiber Data:

Buffer diameter: 125μm

Cladding diameter: 105μm

Core diameter: 0.22μm

Numeric aperture: 1NA

Fiber length: 10±3%/3477m

TEC Data:

Max. Current: 2.2A

Max. Voltage: 8.7V

Others:

ESD:  500V

Storage Temperature(Non-operating): -20~70

Lead Soldering Temp: 260℃

Lead Soldering Time: 10sec

Operating Case Temperature: 15~35℃

Relative Humidity: 15~75%

Please kindly check the datasheet:

450nm 800mW Butterfly Packaged Diode Laser
