Description

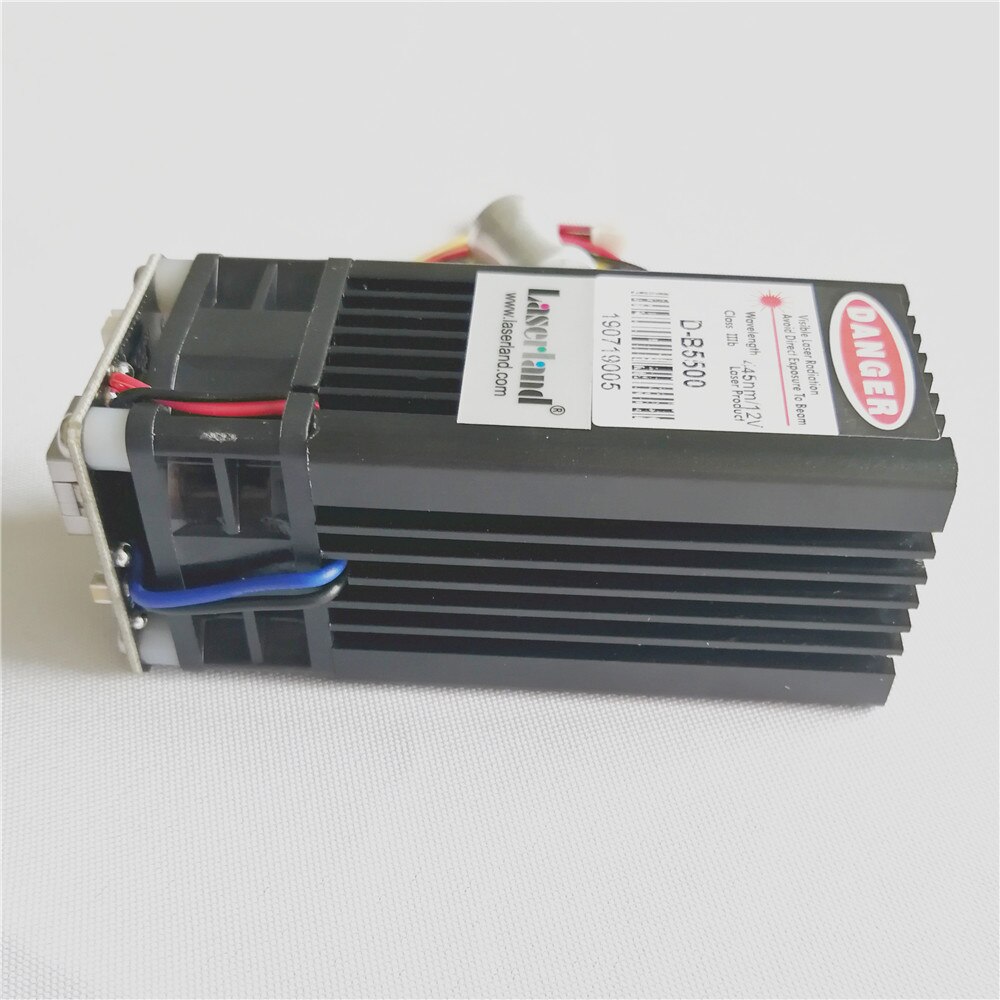

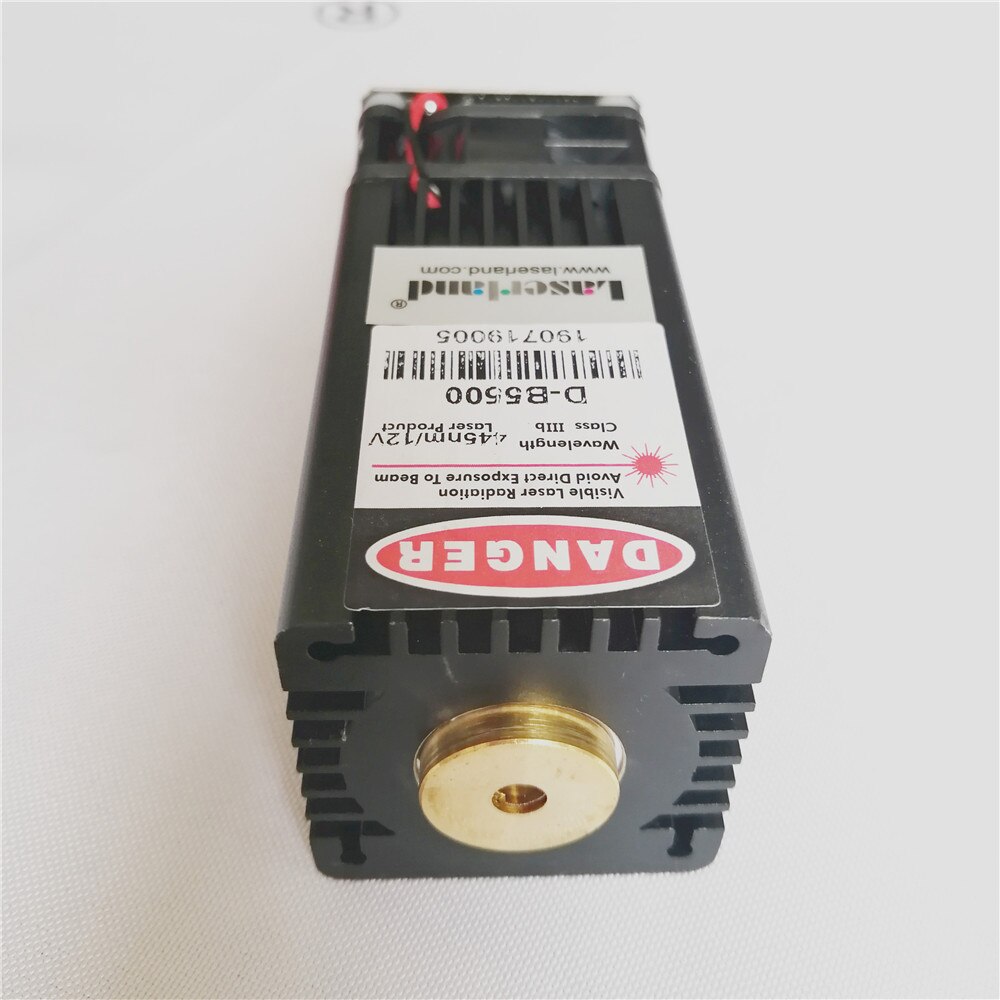

450nm 5.5w Engraving Marking Engraver/Marker Cutting for wood/plastic/stainless steel
|
序号 |
项目 |
技术参数 |
|
1 |
激光波长Wavelength | 445±5nm |
|
2 |
输出功率CW Output | ＞5200mW |
|
3 |
激光等级Class | Class 4 |
|
4 |
TTL/PWM输出功率TTL/PWM output | ＞1K HZ工作时输出功率=连续功率x 40% 2.12W when work with >1kHz |
|
5 |
输出稳定性Stability | ±5% |
|
6 |
光斑模式Beam Mode | 方形光斑 Square beam |
|
7 |
焦点距离FL | 22mm |
|
8 |
聚焦光斑尺寸Beam diameter | ≦0.2mm |
|
9 |
镜片材质 Lens | 专业聚焦光学玻璃 Z-DK3 |
|
10 |
电源板输入电压Working Vol. | DC 12V ★ |
|
11 |
LD输入电压 LD input vol. | 5V |
|
12 |
LD输入电流 LD input current | 4.2A |
|
13 |
调制模式 Working mode | TTL/PWM |
|
14 |
触发方式 | 高电平有效（>DC 2.0V） |
|
15 |
工作频率Working frequency | <30KHz |
|
16 |
工作温度Working Temp. | 15℃–50℃ |
|
17 |
使用寿命Working Life | >8000小时 |
|
18 |
产品尺寸Diameter | 40*40*75mm |
|
19 |
产品重量Net weight | 245g |
|
序号 |
项目 |
技术参数 |
|
1 |
输入电压Working vol. |
DC 12V |
|
2 |
输入功率Input Power |
50.4W（12V/4.2A） |
|
3 |
输出电流Output Current |
LD>4A |
|
4 |
恒流精度Precision of constant current | 输出电流稳定小于1%，输出纹波小于100mV output current stability <1%, output wave <100mV |
|
5 |
驱动与电源连线Cable |
22#AWG |
|
6 |
TTL/PWM输入最大电压TTL/PWM max Vol. |
DC 5V |
|
7 |
TT/PWML输入响应电压Input response Vol. |
DC2.0V |
|
8 |
LD输出波形 LD output wave |
FL of it is 22mm, it is normally used for engraving, wook/plastic is recommended it can even be used on stainless steall marking, it can be marked for thin marks.
