Description
450nm 2000mW Laser Module Focusable Blue light 445nm 2W Laser Diode Module 12V Cutting Engraving DIY Lighting with Goggles
Description:
1,Wavelength:445nm~450nm
2,Output Power:2000mW
3,Adjust the focus:Yes(By fingers),<0.5mm at 1CM~30CM;
4,Working Voltage:12V
5,Power supply:>2A;

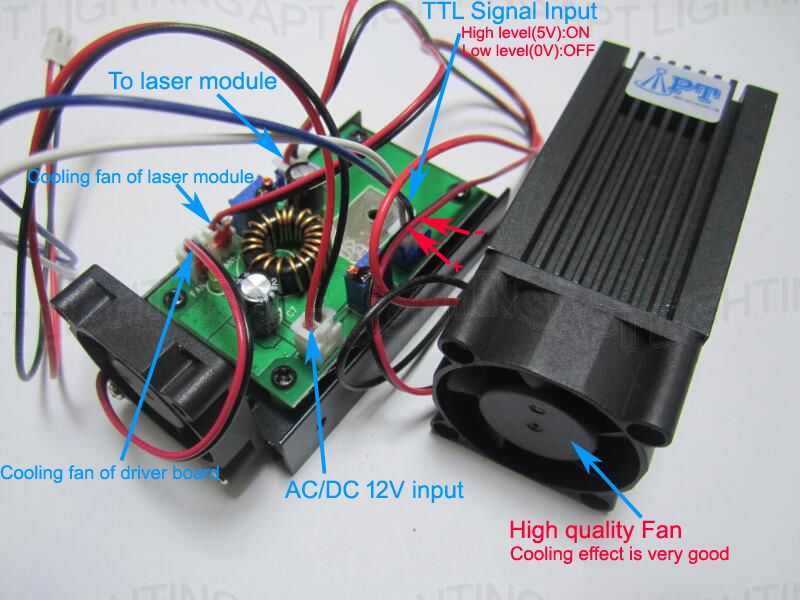

6,TTL:Yes,White cable at + and Blue cable at -;
7,TTL signal input 0~5V input.(0V OFF/5V ON)(TTL Modulation control the output beam OFF / ON )
please make sure the TTL input vlotage does not exceed 5V.othrewse it will brun the driver board.
8, Frequency for TTL control:0-20KHz;
9,Duty cycle:input 1%-100%;
10,Cooling mode:Heatsink and Fan
11,Material:Metal
12,Lens:Glass
13,Red cable at “+”,Black cable at “-“;
14,Size:Laser Module:80*40*40mm;Driver board:80*42*35mm;
Features:
It can adjust the focus(By Fingers),smallest dot <0.5mm at 1CM~30CM;
Can carving wood (so easy);
Can be use for CNC;
It can burn plastic,paper,balloons,,wood and so on;
Pointer distance >5000M;
Can work continuousely >12 hours;
Package:

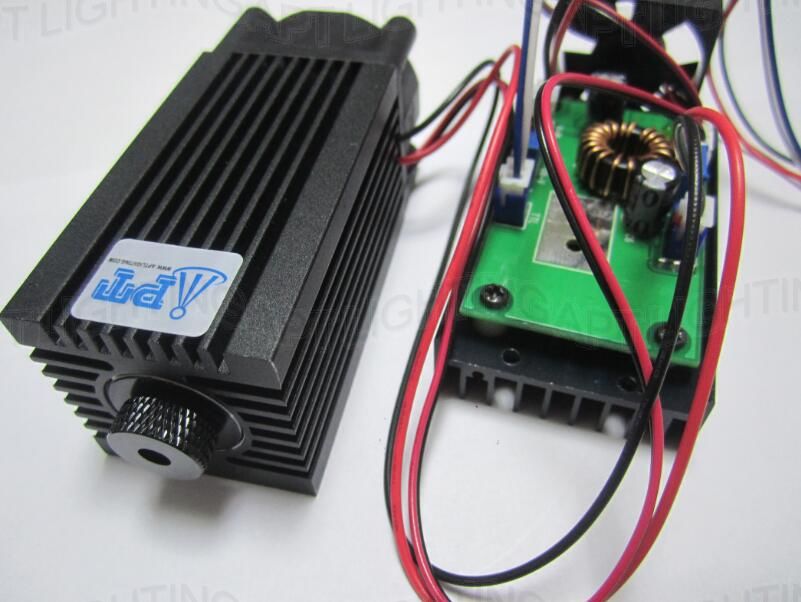

1 X 450nm 2000mW laser module with TTL Driver board
1x Safety glasses
