Description

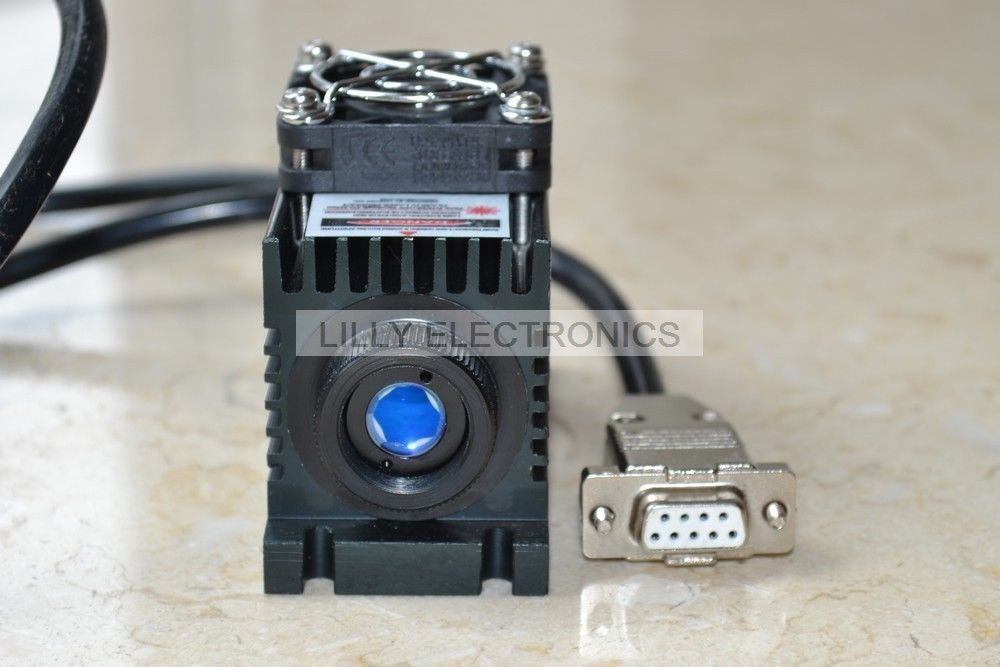

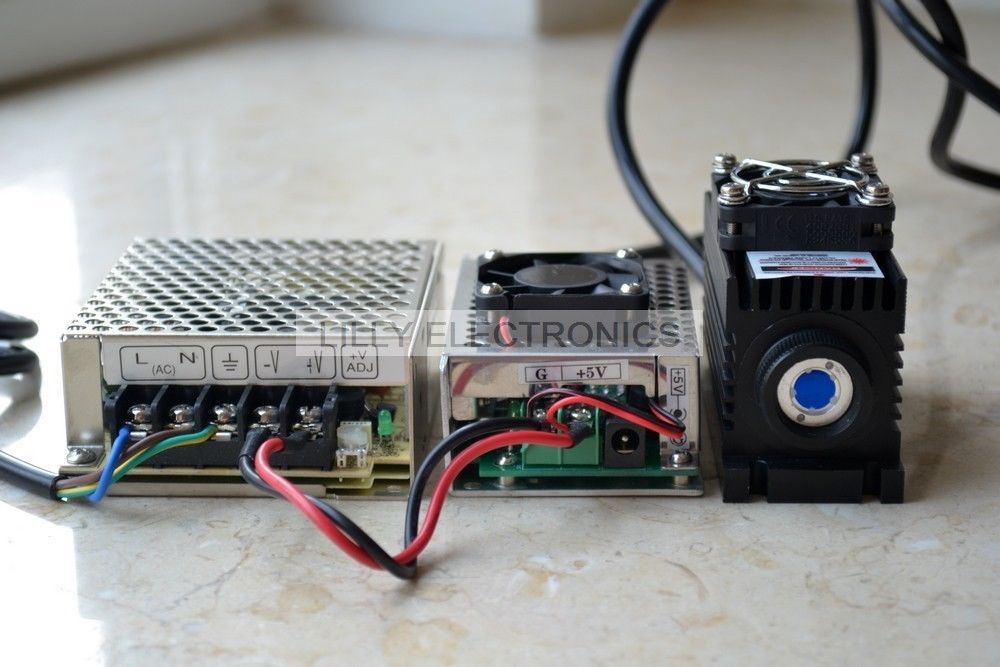

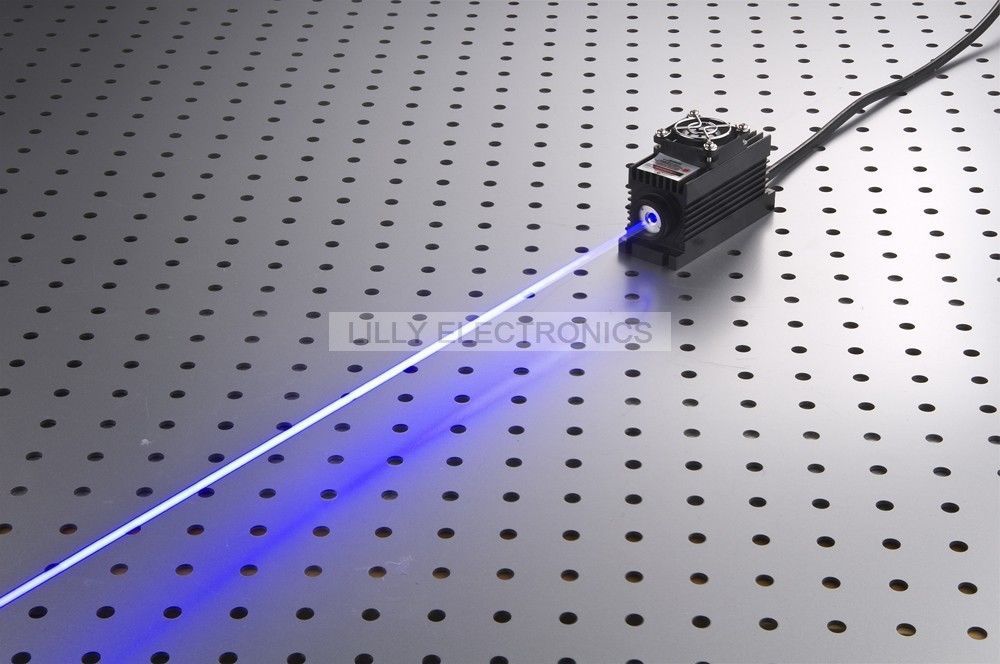

50mW 445nm Blue Laser Dot Module + TTL/Analog 0-30KHZ + TEC Cooling + 85-265V
Specifications:
| Model No. | LSR445NL |
| Wavelength | 445±5 nm |
| Spatial Mode | TEM00 |
| Output Power | 50mW |
| Operation Mode | CW or Modulation |
| Modulation | 0~30khz Analog or TTL |
| Laser dot Size | 2×4 |
| Beam Height | 25mm |
| Beam Divergence(full angle) | <3×0.5 mrad |
| Power Stability | <3% over 4 hrs |
| Temperature Stabilizing | TEC |
| Warm Up Time | <1 minute |
| Life Span(MTTF) | 10,000 hrs |
| Working Temp | 20-30degree |

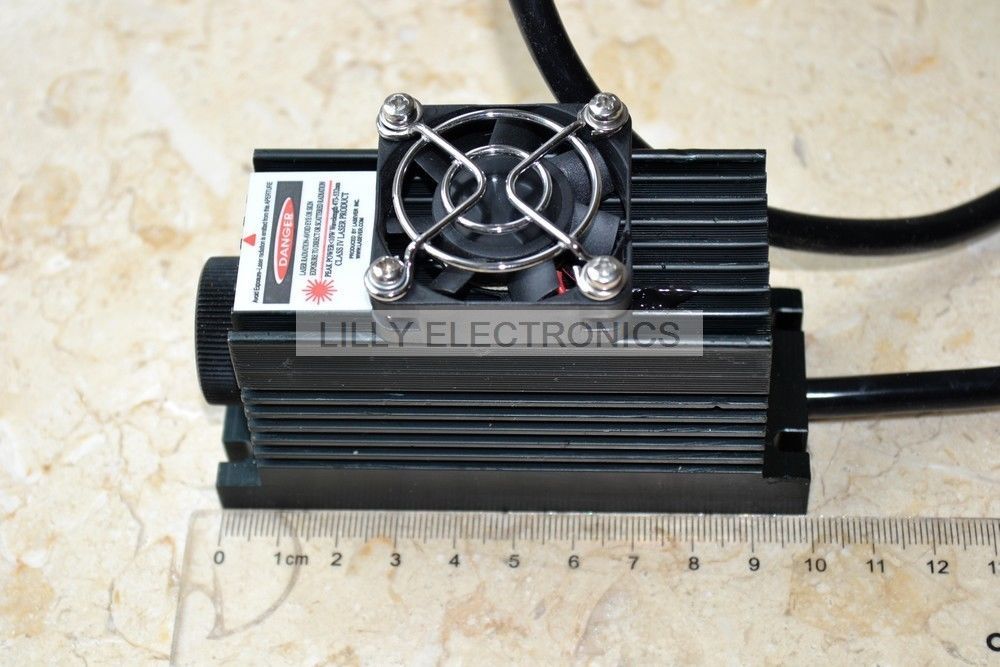

| Laser head dimensions |
100(L)x40(W)x50(H)mm3 (fan adds 15mm height) |

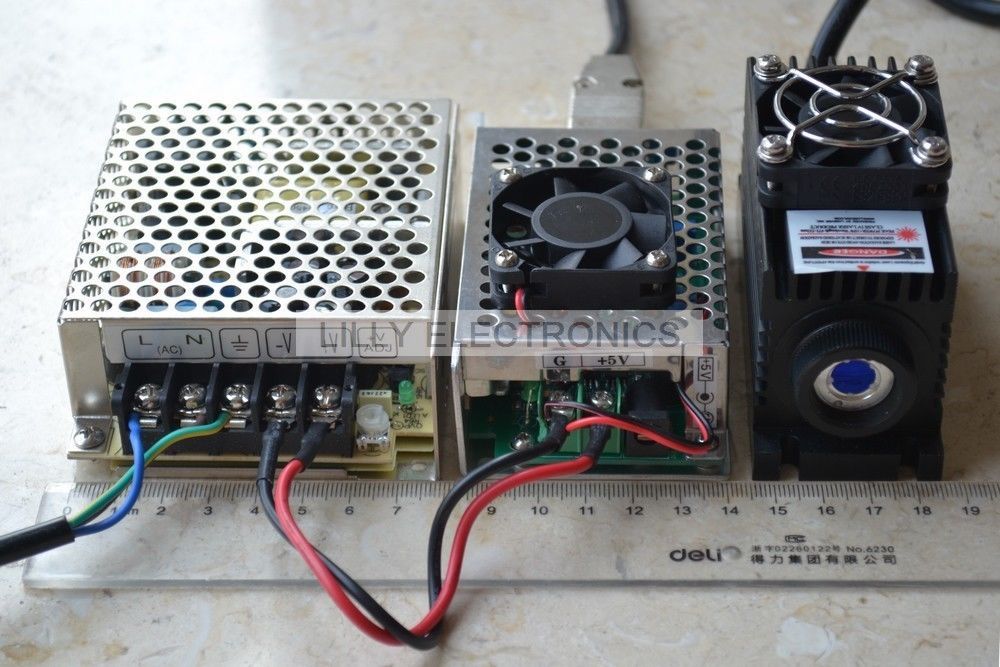

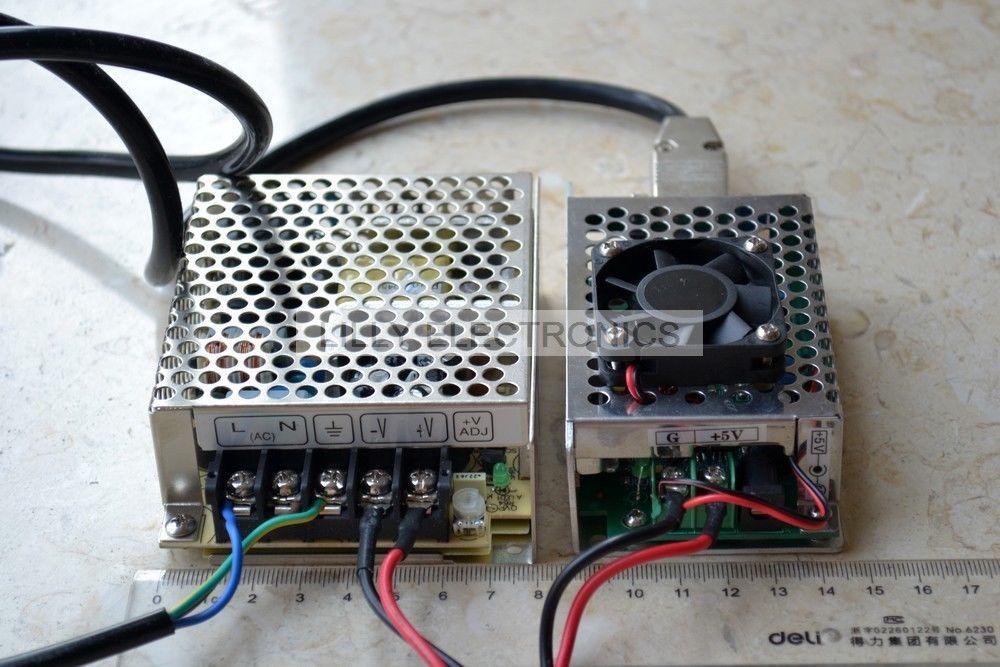

| Power Supply | A. OEM type
LSR-PS-I:100(L)x58(W)x32(H)mm3 AC/DC PSU: 85~265V 50/60Hz input |
| B. Lab type
LSR-PS-IIS: 104(W)x128(D)x89(H)mm3 85~265V 50/60Hz input |
|
| C. Lab Adjustable type
LSR-PS-IIS: 179(W)x148(D)x56(H)mm3 85~265V 50/60Hz input |
A. OEM type power supply LSR-PS-I+5V PSU (The power supply type in the bid)
B. Lab type power supply LSR-PS-IIS (For additional cost of $35)
C. Lab Adjustable power supply LSR-PS-II (For additional cost of $65)
Application:
Laser show
Display
Laser Alignment
Scanning Biochemistry
Material Inspection Lidar
Pakage:
1 X 50mW 445nm Blue Laser Dot Module + TTL/Analog 0-30KHZ + TEC Cooling + 85-265V
