Description

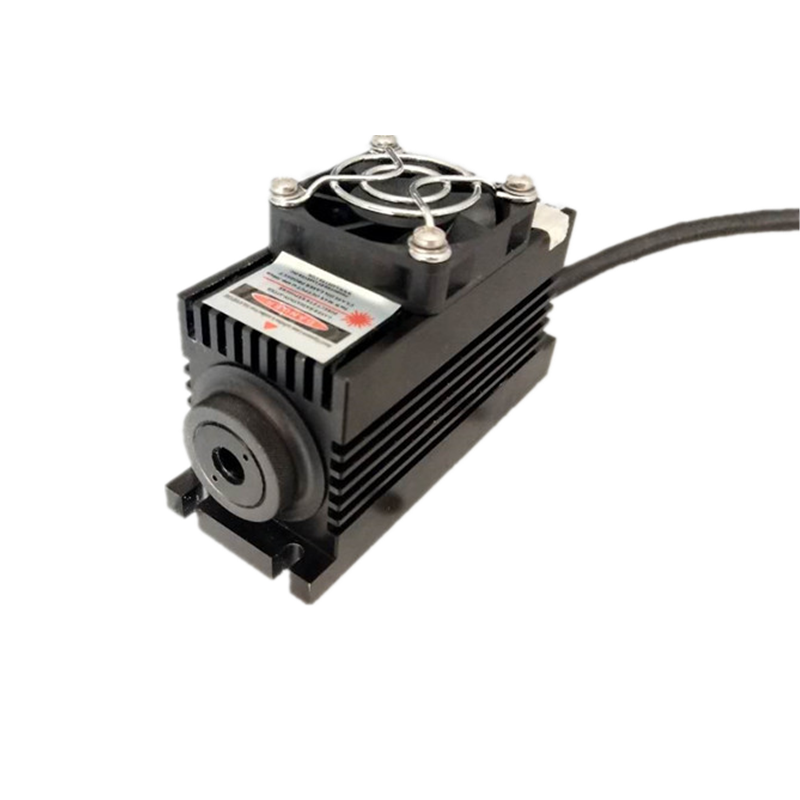

444nm Blue Violet DPSS Laser Compact Machine 6W . The max output power is from 6W to 30mW, it’s customized according to customers requirements. The price is for 6W output power version.

Compact size
Long lifetime
High reliability

Wavelength:444 +/-1 nm
Spatial Mode: Multimode
Output Power: 6W
Operation Mode:CW or Modulation
Beam Height 34mm
Beam Size:<6mm
Beam Divergence(full angle):<1.2mrad
Beam diameter at the aperture (mm): <3.5
Power Stability:<3% per 4 hrs
Warm Up Time:<1 minute
MTTF:10,000 hrs
Transverse mode: Near TEM00
Modulation 0~30khz Analog or TTL

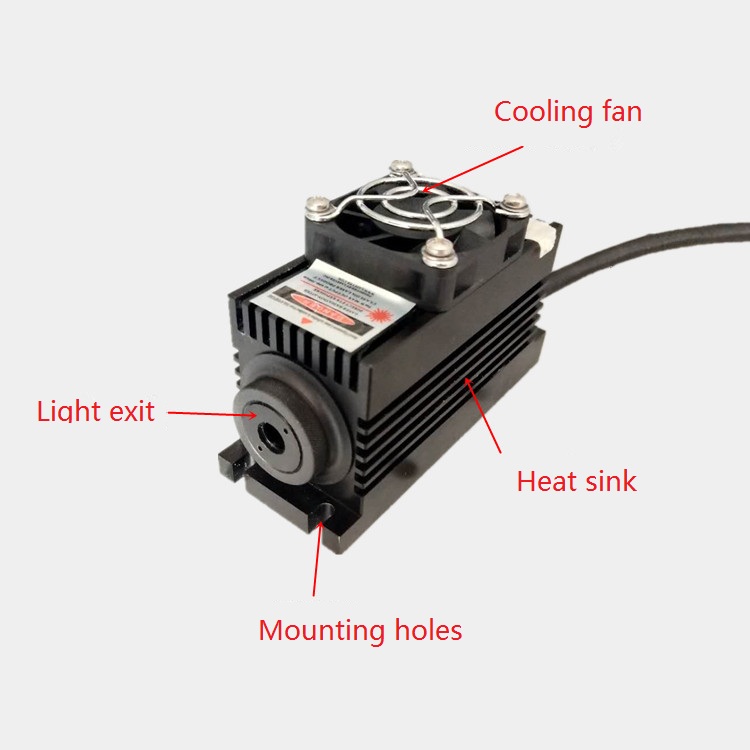

Laser head dimensions:211(L)x151(W)x50.5(H)mm3
Expected lifetime (hours): 10000
Warranty period: 1 year

Datasheet for this laser
