Description

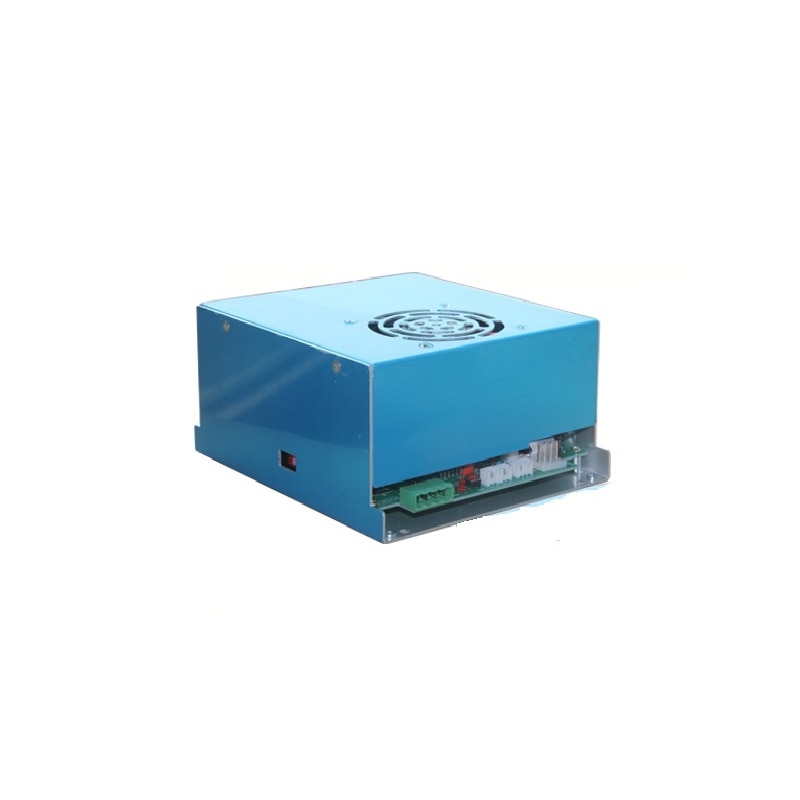

New MYJG 220V/110V 40W CO2 Laser Power Supply PSU Equipment For DIY Engraver/ Engraving Cutting Laser Machine K40 3020 3040
1. Good compatibility: it can be applicable to 35-50W Laser Tube manufactured by various factories.
2. Quick Response Speed and Effect, High performance, It also can Prolong Laser Tube Service Life.

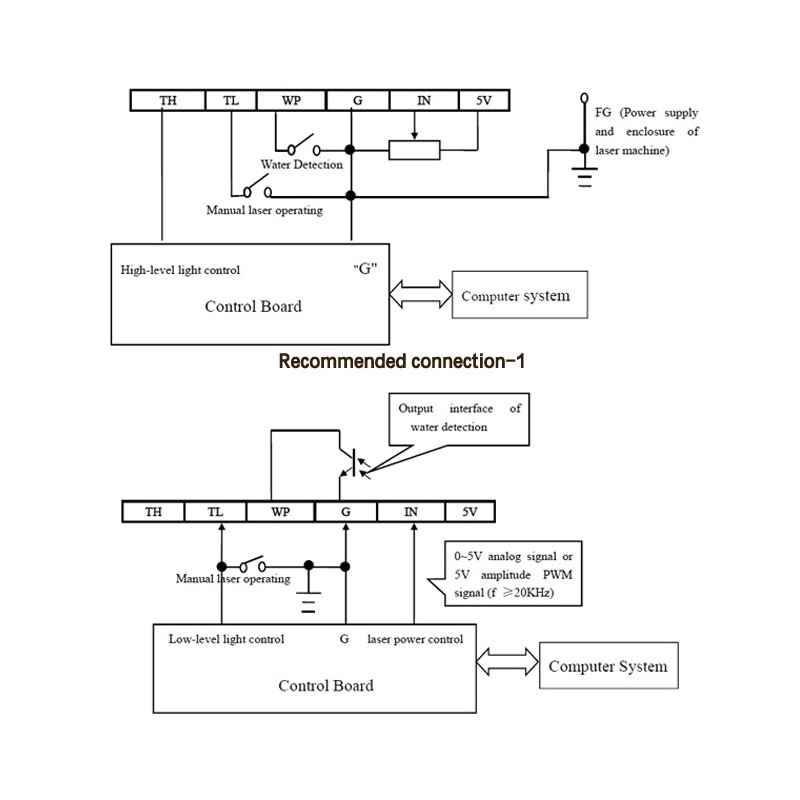

3. Easy control: the start and stop of laser can be easily controlled by TTL level.
4. The power supply has output open circuit protection.
5. The power supply has TTL signal indication, water through signal indication and laser output indication.
6. This power supply has the Buttonto test output laser manually.
7. Application: Sculpture and cut acrylic,fabric,double color sheet and rubber etc.
|
Input |
Input Voltage |
AC 220V / AC 110V (Adjust with Switch) |
||
|
AC frequency |
47 – 440HZ |
|||
|
Max Input power |
250W |
|||
|
Max Input current |
3A |
|||
|
Output |
Max output voltage |
DC23KV |
DC5KV |
DC24V |
|
Max output current |
DC20mA |
DC1A |
DC2A |
|
|
Efficiency |
>/=90%(Full load) |
|||
|
MTBF |
>/=10000 Hours |
|||
|
Response speed |
≤ 1ms (Time from the TTL Signal is given to the output current up to 90% pre-setting current) |
|||
|
Withstand Voltage |
Input-Output, Input-Enclosure: AC1500V 10mA 60S, Output cathode is connected with enclosure. |
|||
|
Environment |
Operating temperature: (-10-40)degree Celsius,Relative humidity: ≤90% |
|||
|
Cooling |
Force-Air Cooling(FAC) |
|||
