Description
- Brand Name: CRONOS
- Origin: CN(Origin)
- Certification: NONE
- Condition: New
- Model Number: 40w laser
- CNC or Not: CNC

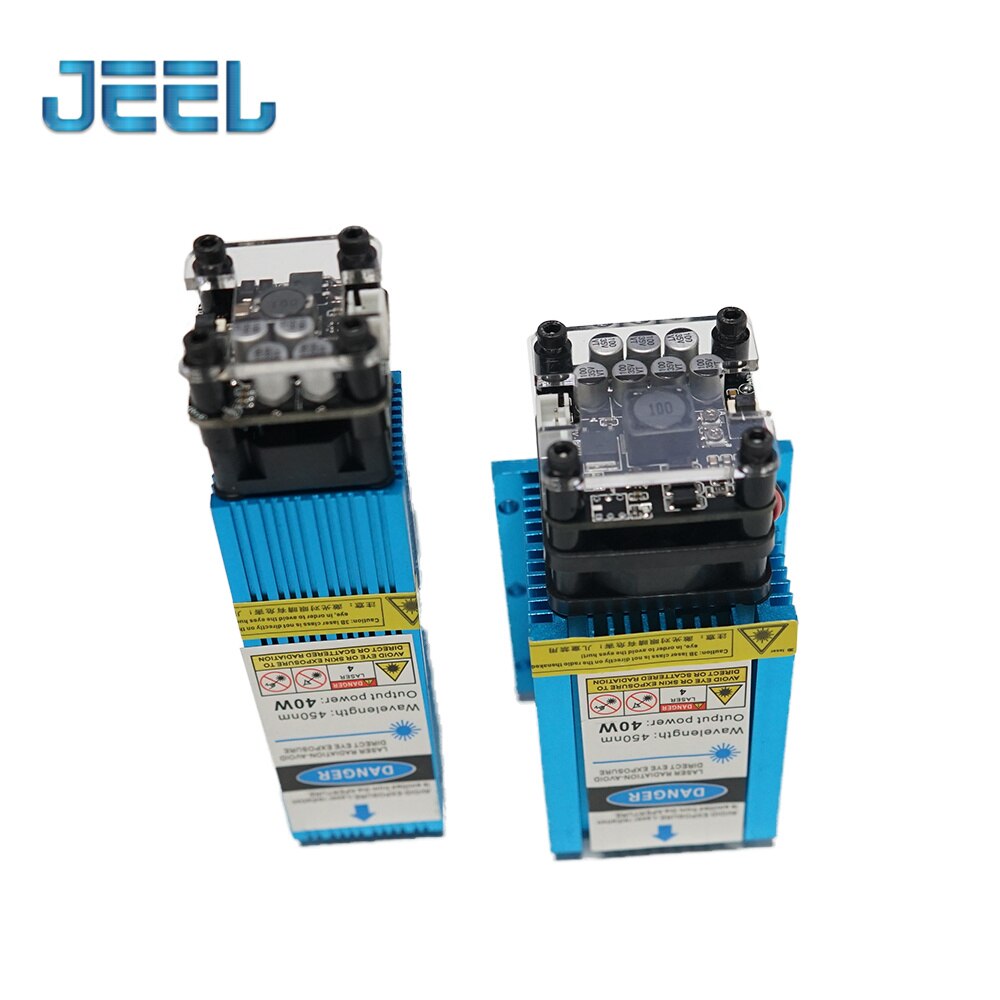

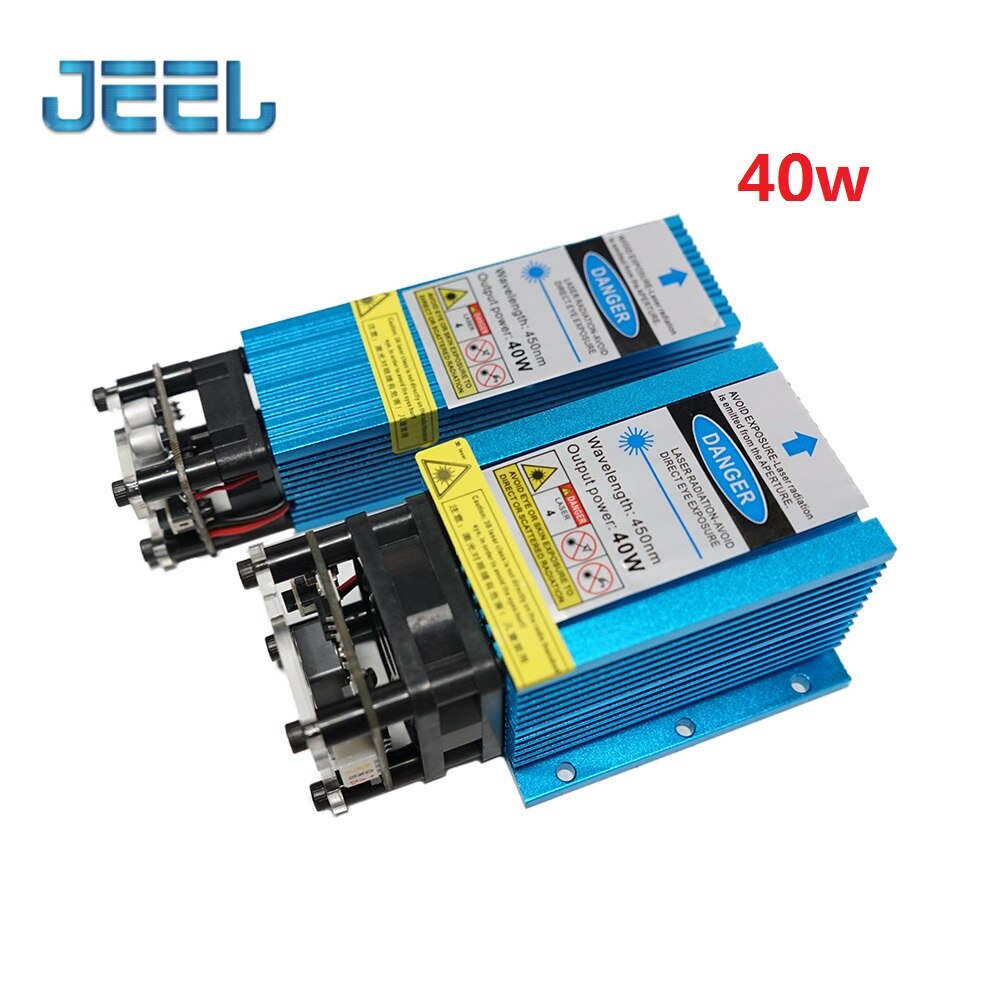

40W Laser Module 12/24V 450nm Laser with PWM TTL Blue Light Module for Wood Cutting Engraving Machine Cutting Tool
- Module Input:40W
- Optical power output:6-7W
- Wavelength:450nm
- Beam Shape:Dot(fixed focues)
- Working Voltage:DC 12V/24V
- TTL&PWM Modulation:YES, Compatible with Both TTL & PWM Modulation
- Input Voltage:DC12V 3-4A
- PWM/TTL Input:DC 5V
- Input Interface:3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
- Safe temperature range:<60 ℃
- Module weight:202g ( The lighter the weight, the smaller the move inertia, the better the performance )
- Life Time:10000-20,000 hours
- Heatsink Material:Aircraft Aluminum +Blue Shell
- Luminous Color:Blue
- Cooling Mode:Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

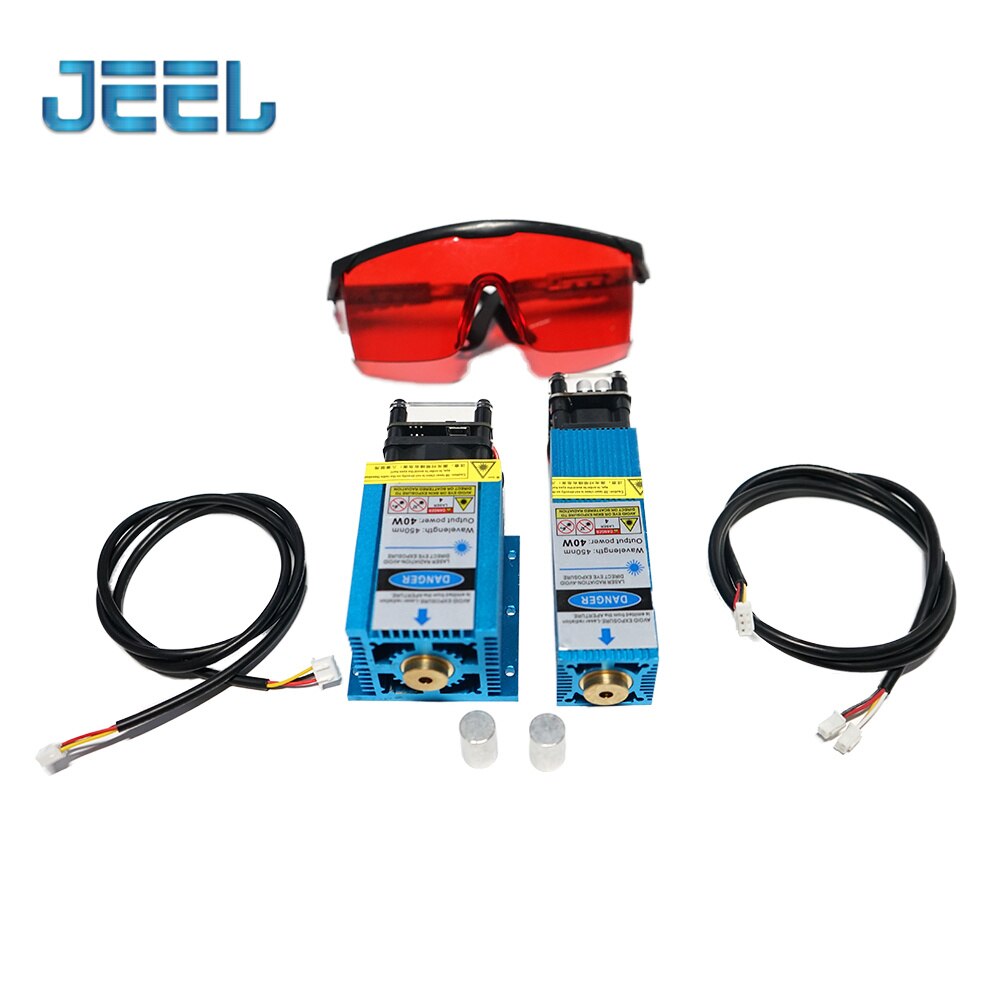

Packing List 1:40W laser module +Goggles+2pin-2pin cable+3pin cable+Focusing column
Packing List 2:40W laser module +Goggles+2pin-2pin cable+3pin cable+Focusing column+Heat Sink (Gift
Acrylic+Wrench)+Test Laser Cable (Can be directly connected to 12V 3A power supply)
![](https://beamqus.com/wp-content/uploads/H38da2008348247a098d761969b4d383cz.jpg)
2Pin-2Pin laser connection diagram:

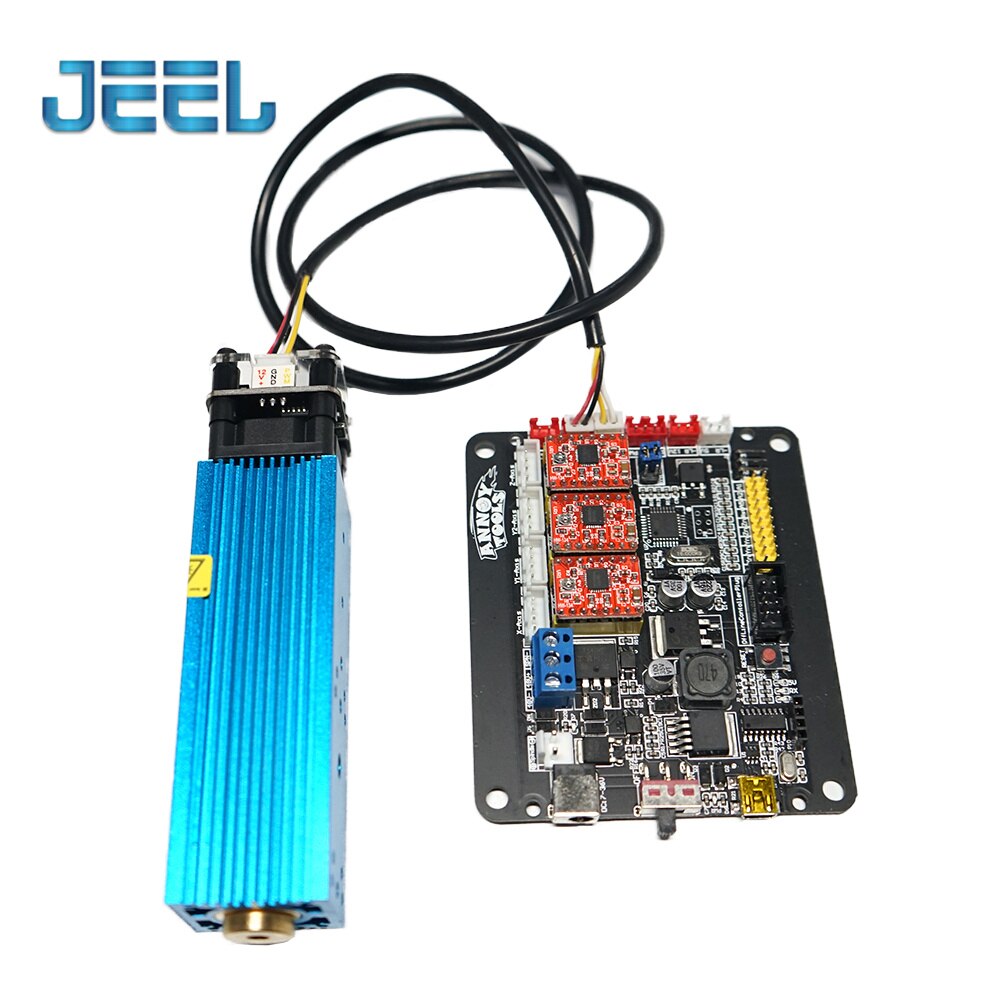

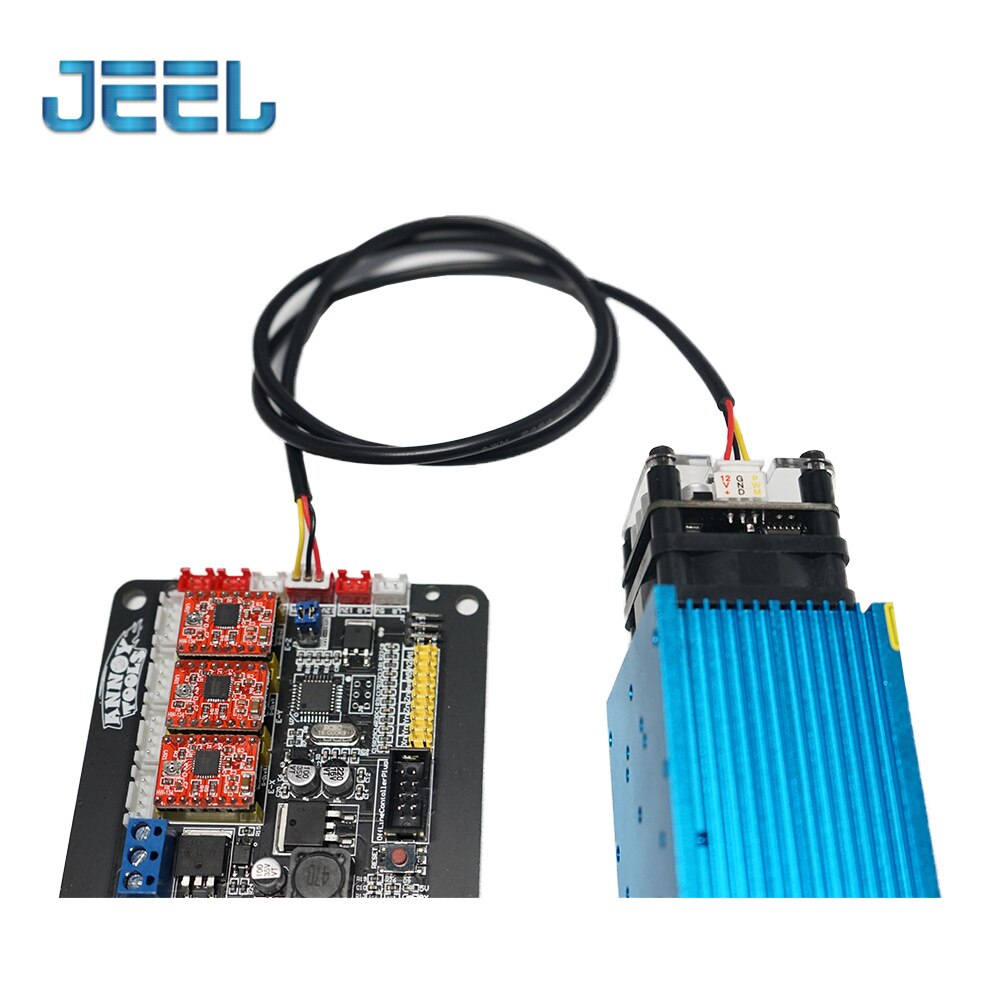

3Pin laser connection diagram:
