Description
(OEM compatible production services, enterprise customized solutions,)
(Our company is a laser module manufacturer, actual power, actual wattage, high technical content, stable quality)
(To determine whether the store is a laser module manufacturer, you can check the store’s company business license information in the commercial information on the product page, and you can know the actual business of the store)

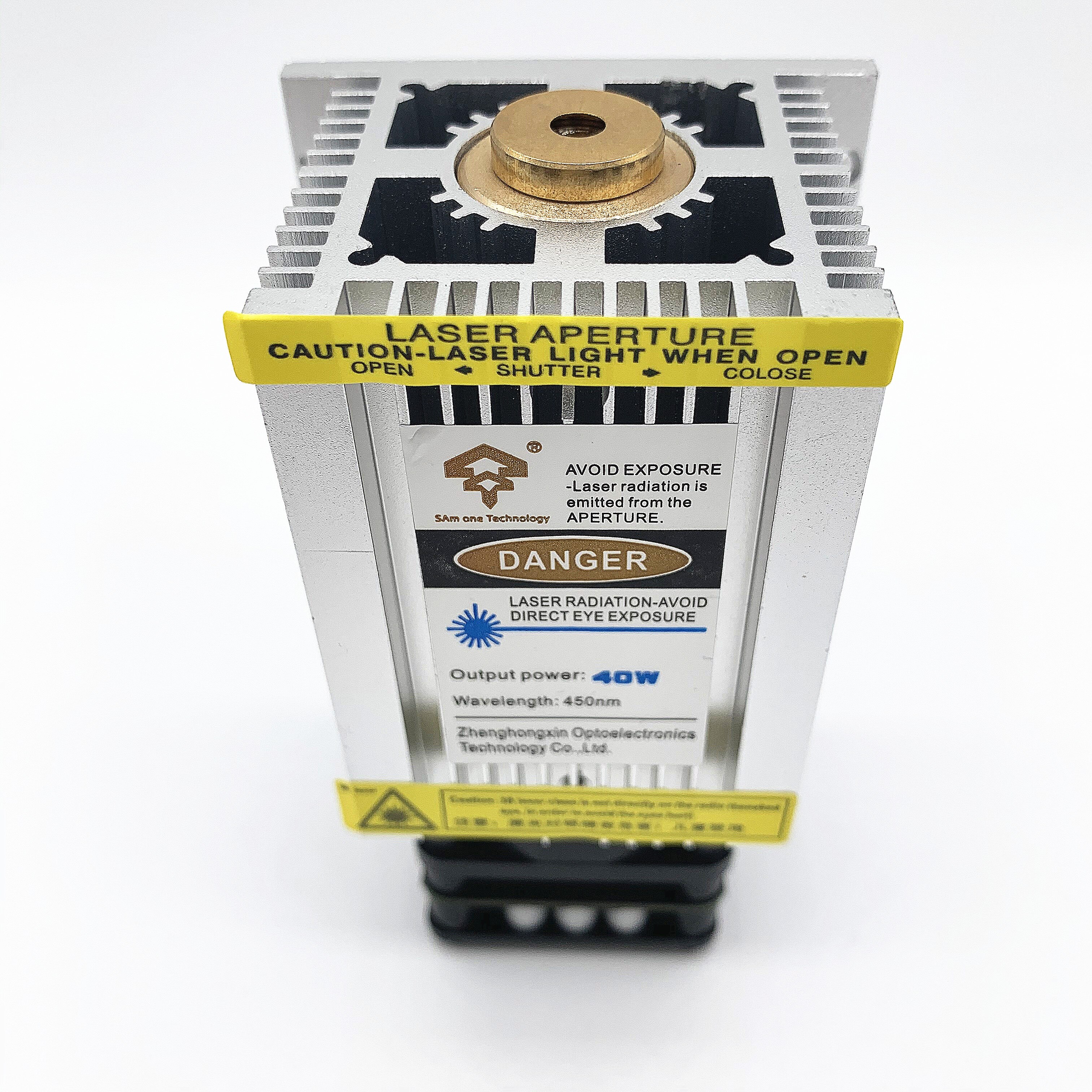

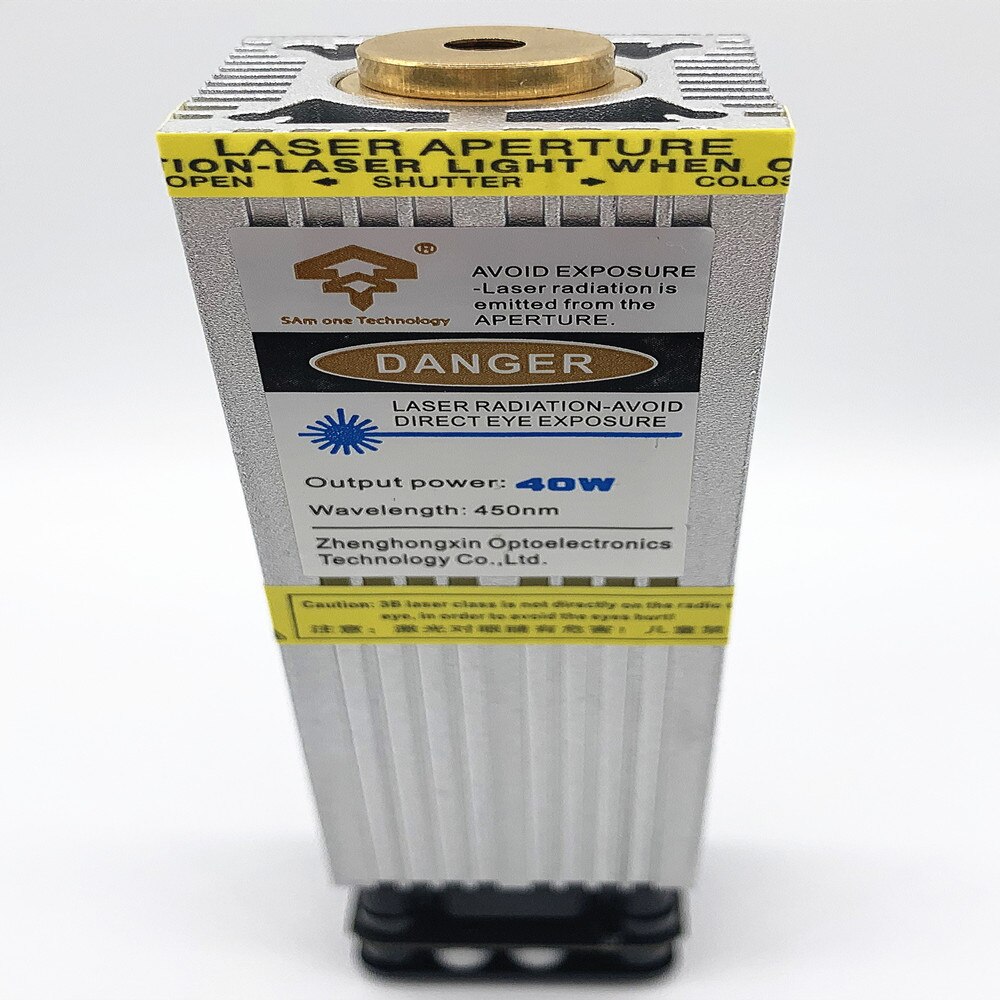

The newly upgraded 40W laser module is powerful, the engraving speed is 6-7 times faster than the traditional laser module, and the engraving effect of stainless steel is better.
The laser engraving accuracy is 3-4 times higher than the traditional laser module, faster and finer conversion, more refined and precise. (15W engraving stainless steel depth 60%) (newly upgraded 40W engraving stainless steel depth 10%)
The laser power and wattage are calculated according to international standards, and the actual power is normal. Actual wattage. (The product parameters and product information we describe are the results of rigorous testing (not exaggerated))
40W technical parameters
Laser light source: semiconductor blue light
Shell material: aviation aluminum
Color: polar oxygen silver
Module center material: copper

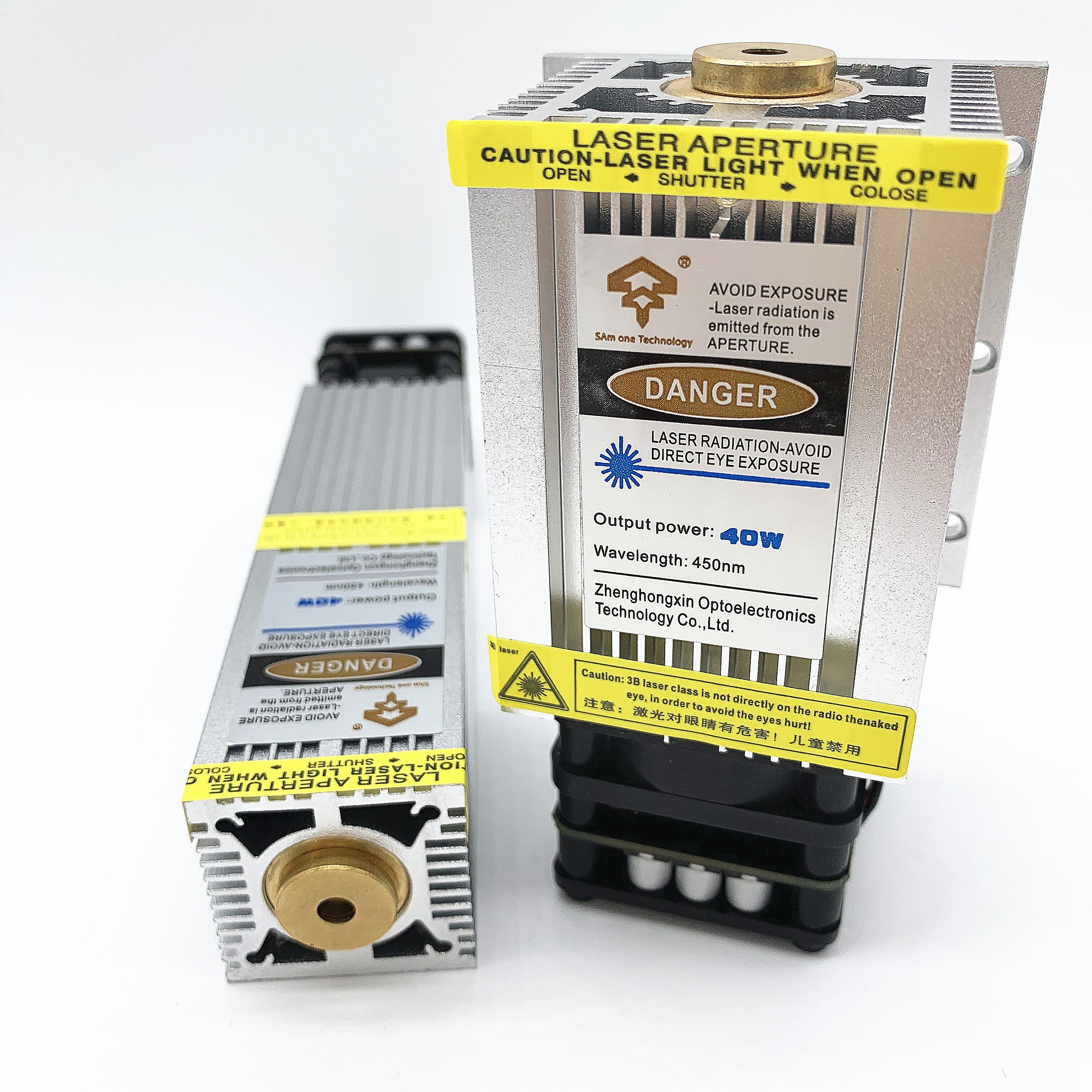

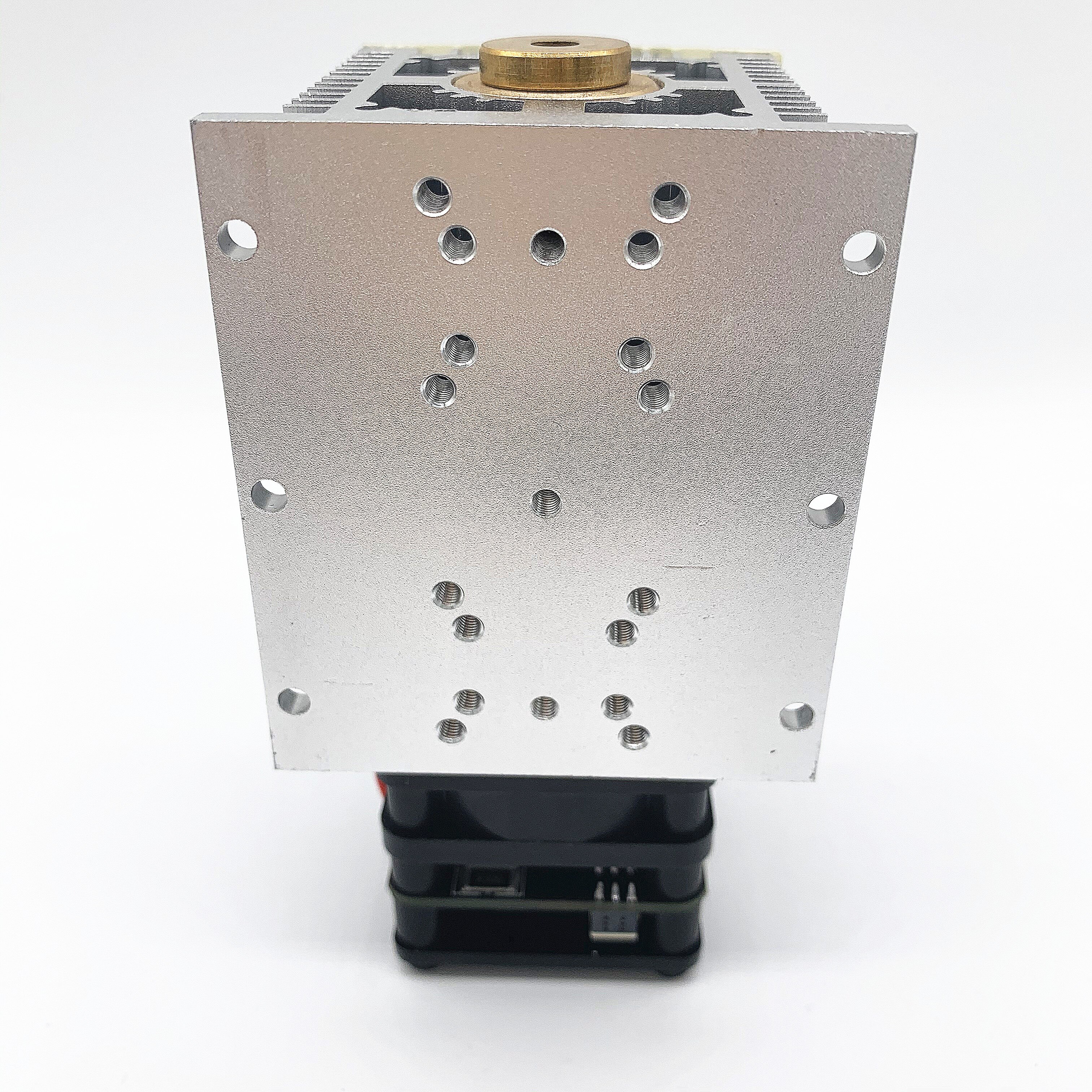

Shell size: 60✖️ 60✖️ 70mm (this size is the same size as 40✖️ 40✖️ 70mm)

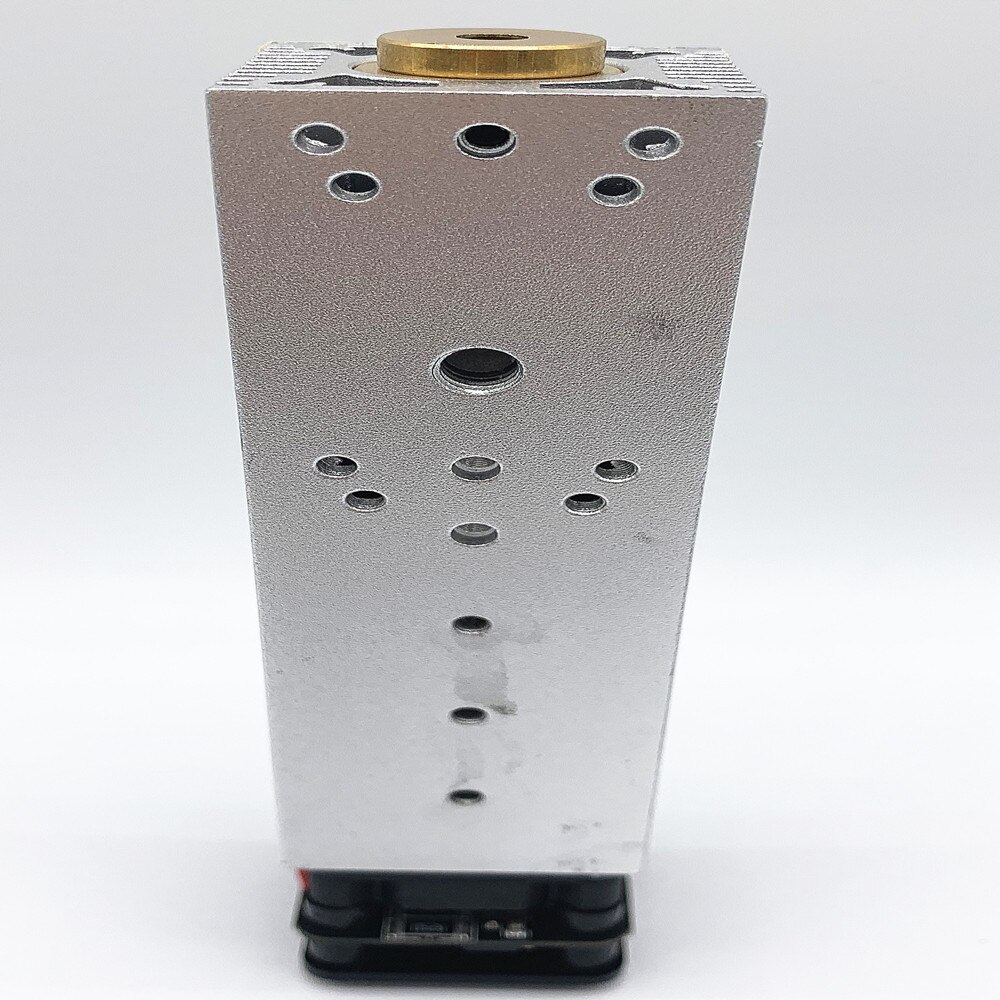

Shell size: 33✖️ 33✖️ 120mm (this size is the same size as 33✖️ 33✖️ 70mm)
Optical power output: 40W
Focus power: 25W
Laser wavelength: 450nm
Supply voltage: 12V
Power control: PWM/TTL (signal control voltage 0-5V)
Supply current: 4A
Interface specifications: 3pin 2.54 /4pin 2.54
Light shape: point-shaped fixed focus (according to the equipped fixed focus column, the best focal length of the laser is 20mm)
The list includes: 4P line*1, 3P line*1, short line DC*1, focal length column*1, glasses*1, laser module*1. (The color of the glasses is delivered randomly)
The life span is 16800 hours. (If the smoke is blurred, please add a fan when engraving or cutting)
Buyers read: Please pay attention to the sequence of wires: 3P wire link mode, red wire 12v+, black wire GND -, yellow wire pwm+, if you need to replace, please check carefully
Buyers read: Please pay attention to the sequence of wires: 4P wire link mode, red wire 12V+, black wire 12V-, yellow wire TTL+, white wire TTL- please check carefully
Note: Only for industrial use, eye contact is forbidden, children are prohibited from contacting this laser product, and you are responsible for the consequences.
Paint and oxide layers can be carved, stainless steel can be carved, aluminum raw materials and copper raw materials cannot be carved. It can be understood that metals with carbon content can basically be carved, and metals without carbon content cannot be carved.
It can engrave 201/304 stainless steel, titanium steel and anodized aluminum, stone, MDF, Balsa, wood, fabric, plastic, PCB, paper, bamboo, horn, leather, sponge paper, etc.
Not engravable: copper raw materials, aluminum raw materials, steel raw materials,
Cutting materials: cutting plywood, cutting black acrylic board, leather, paper, etc.
Cutting just proves whether the laser module has actual wattage. actual power. Frequent cutting can easily lead to power drop.
Engraving must know: Engraving reflective objects must be blacked before engraving, otherwise the reflective light will easily damage the laser lens, or the engraving will not be effective.
If you don’t know whether this laser head can use your engraving machine, you can send me a picture of your engraving motherboard. If you take a clear picture, you can see the letters displayed on the interface between the engraving motherboard and the laser module.
