Description

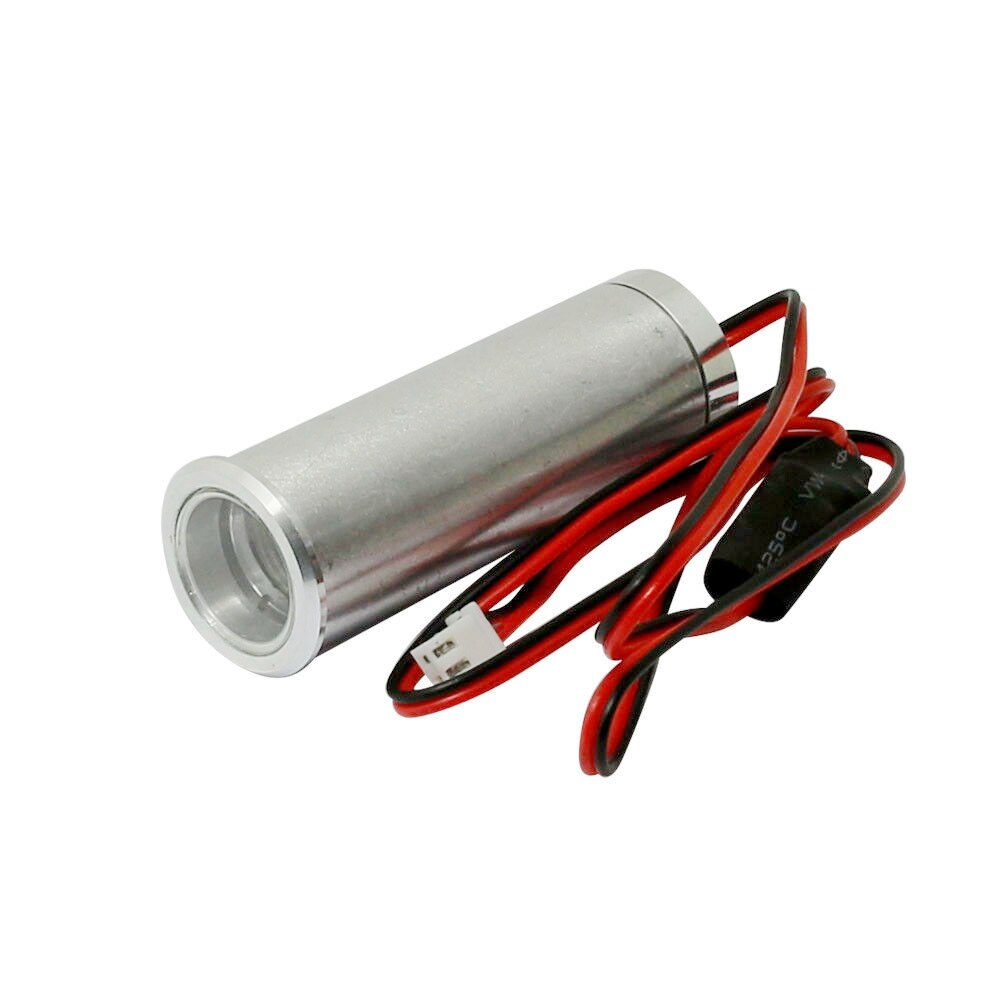

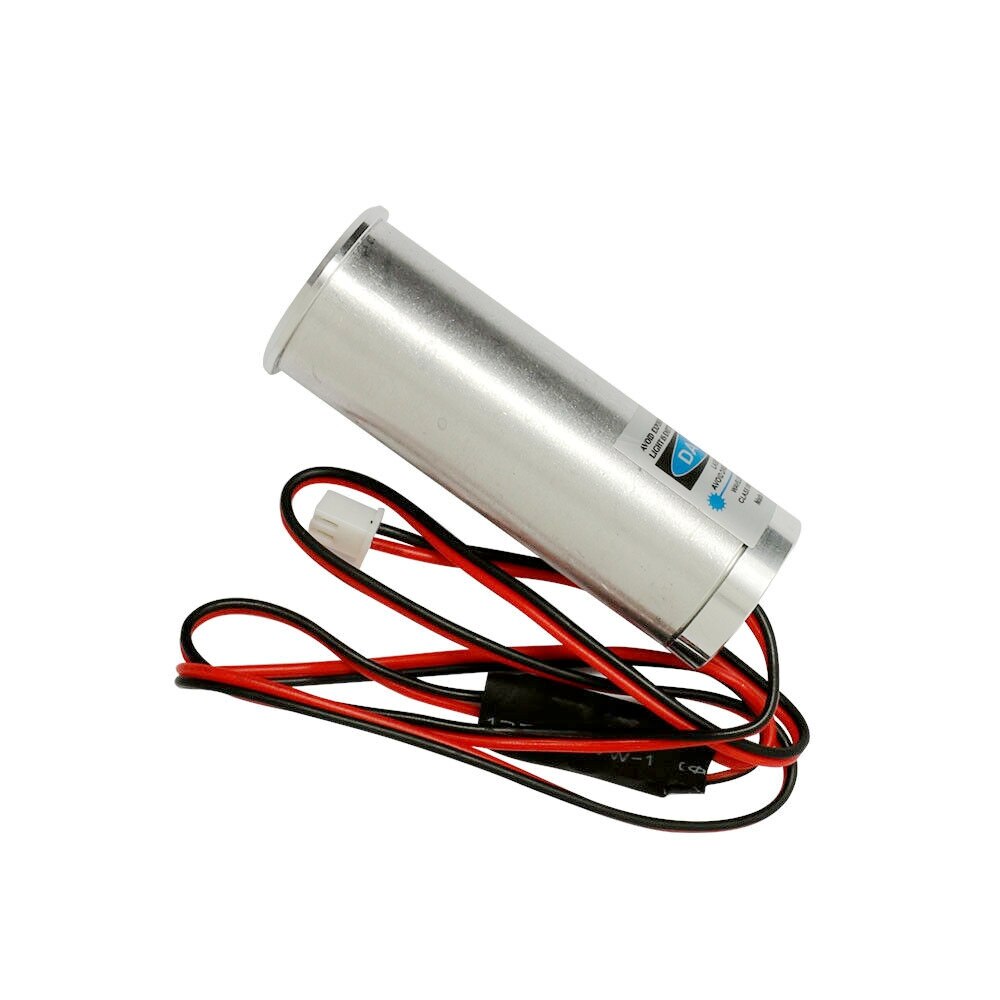

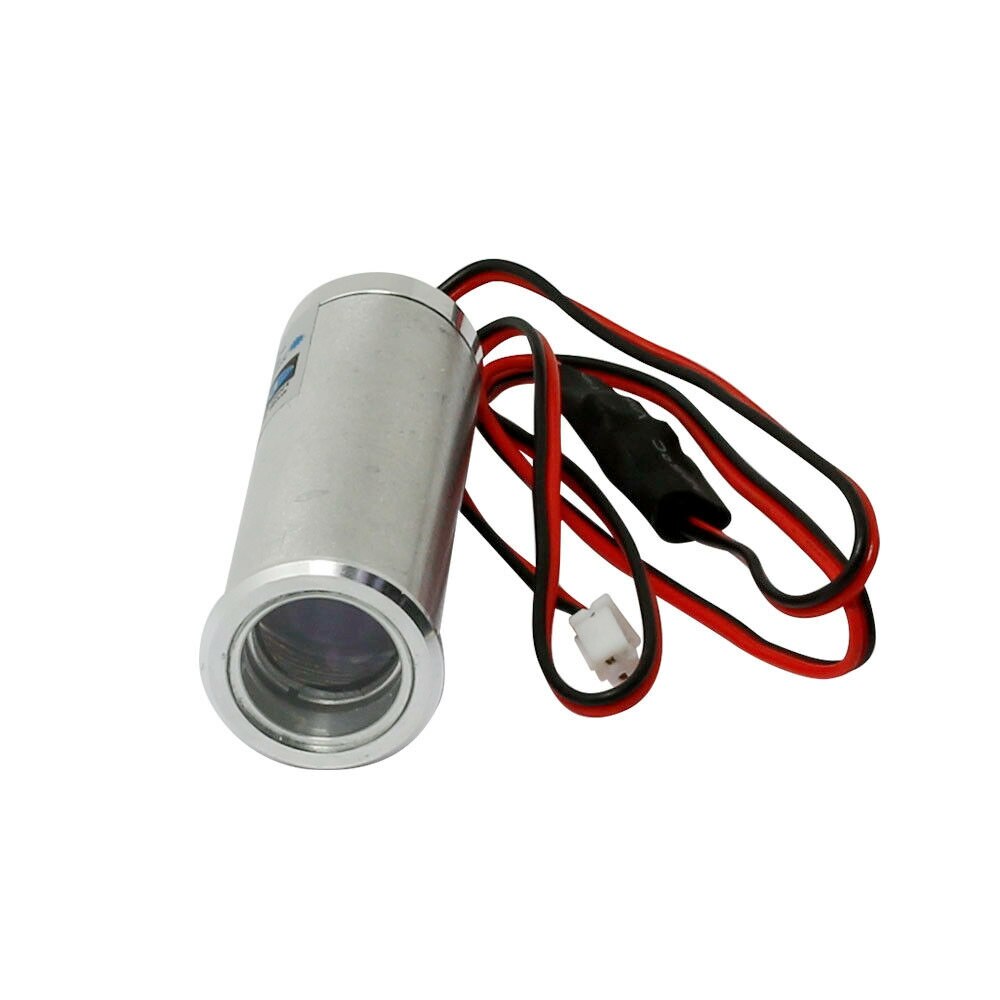

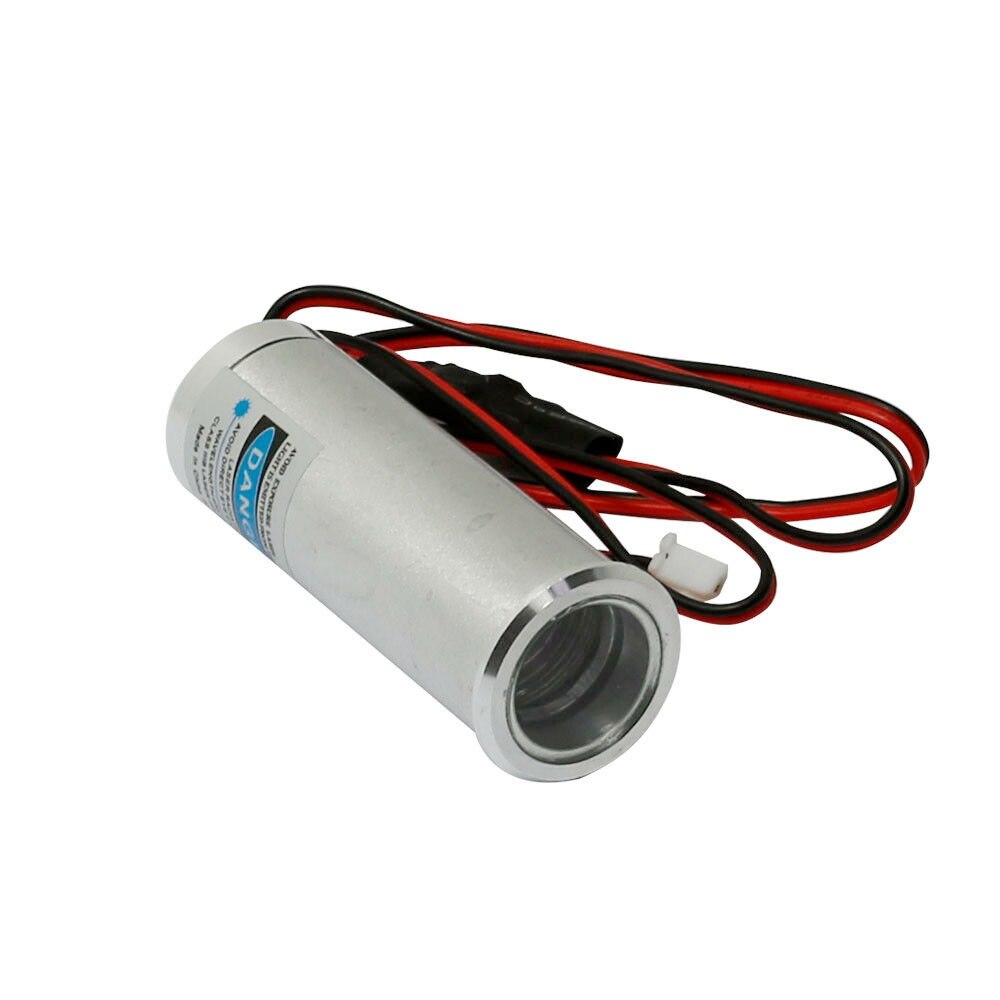

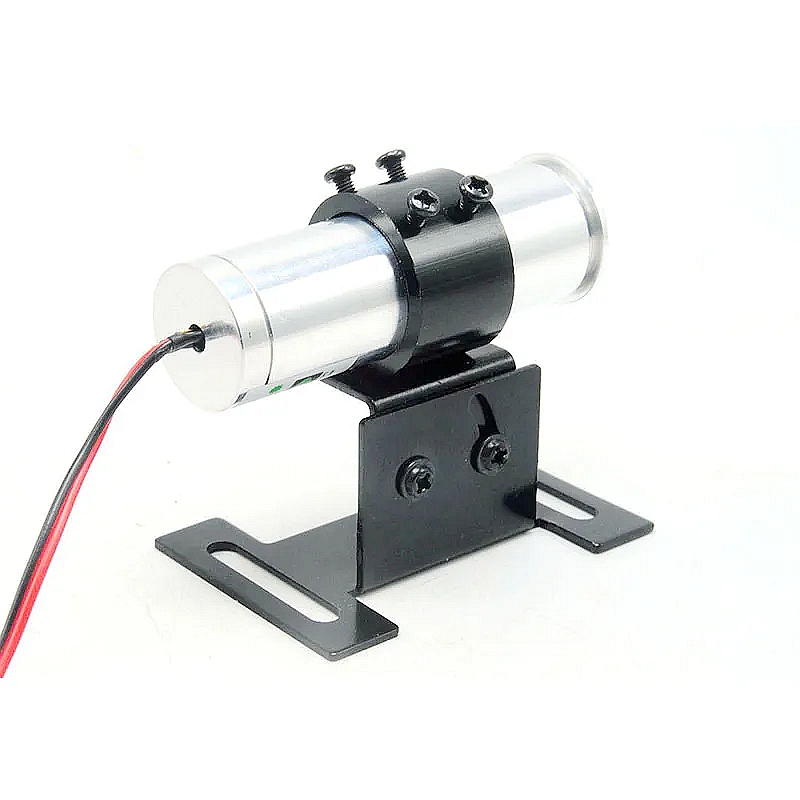

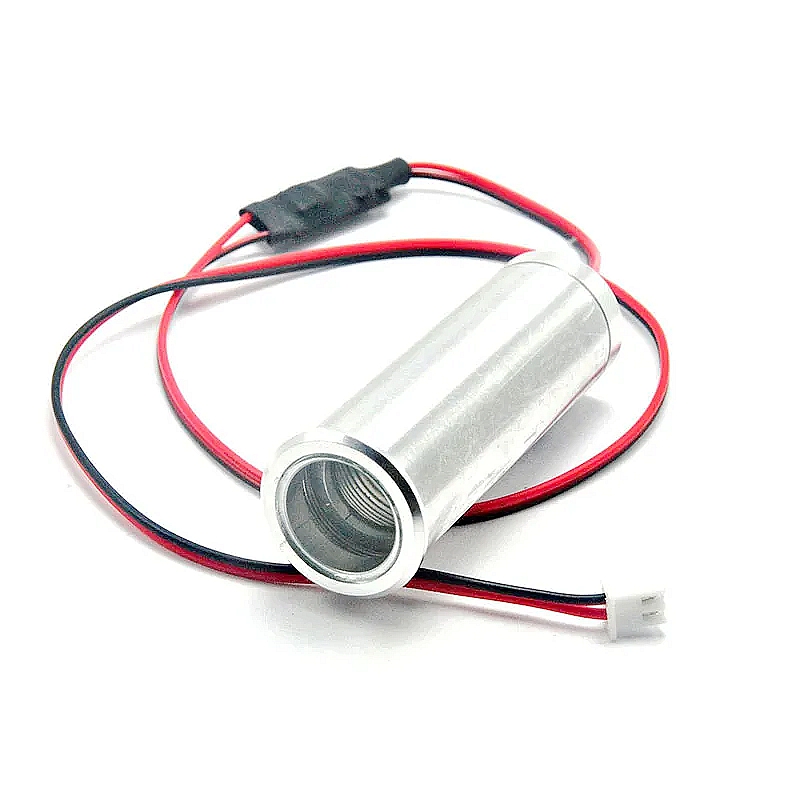

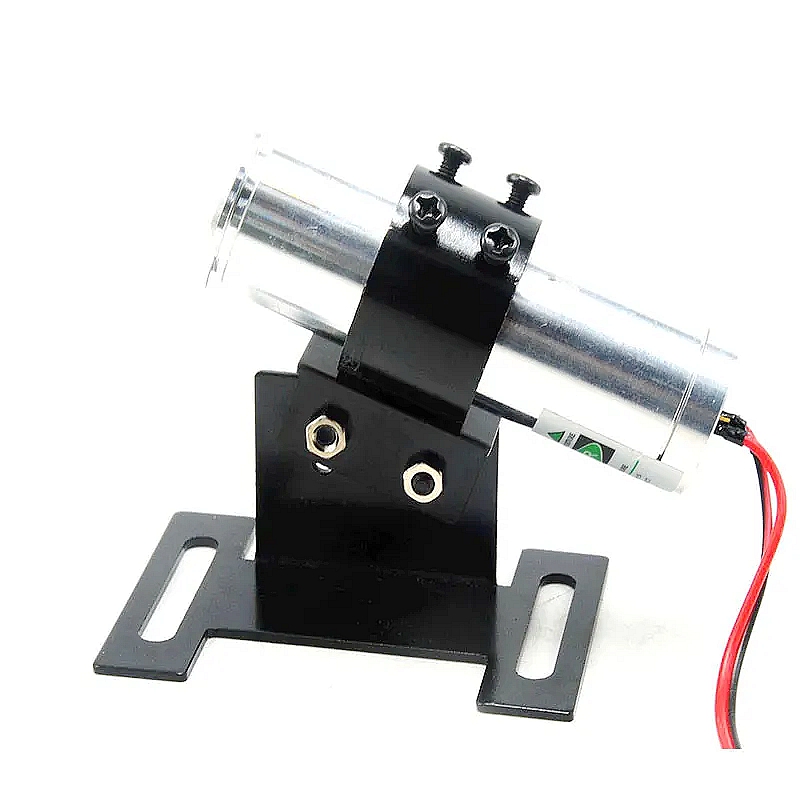

405nm 250mW Violet/Blue Laser Diode Module Fat Beam for KTV Bar DJ Stage Lighting
Specifications:
Wavelength 405nm
Output 250mW after the beam expanded, the output must be reduced to 100-150mw
Working voltage 3.6-4.2V can work with one pc 18650 li-on battery
Diameter of the beam 14-16mm
Size 22*70mm
Working current 300mA
Id NDV4512 Nichia
Storage temp. -40℃~80℃
Duty cycle 4-8hr on you can prolong it by adding heatsink
Features:
Wavelength 405nm, blue-violet light has a bright effect on white
Output power 250mW can work continuously for 2 hours
Power supply voltage 3.7-5V can use a single 18650 or other 3.7V lithium battery
Spot diameter dotted 14-16mm rough light
Storage temperature ± 50 ℃
Dimensions 22mm * 70mm installation opening 22mm mirror waterproof
Working current 300mA such as: 4 lamps 4 * 300mA, power consumption per hour 1200mA 2400mA battery available for 2 hours
Laser Class 3B Note: Spot light with a power above 50mW cannot be directed at the naked eye
Working life 8000 hours
Material Aluminum
Main uses Bar supplies, wine display racks, laser wine seats, stage laser effects, escape in the back room, etc.
Main features In sprinkling bar or KTV room environment, the light spot is gorgeous, the mirror surface is waterproof, and it can work for a long time.
Circuit characteristics: the industry’s unique single-chip microcomputer control circuit, with anti-surge, power-off protection, secondary purification, LDO technology, etc.
Features: stable
Package:
1pc 405nm 250mW Violet/Blue Laser Diode Module for KTV Bar DJ Stage Lighting
NOTE:
all fat beam lasers normally used in fog or smoke area, so that in those areas, the beam can be seen. if you use it in open and bright area, you man cannot find the laser beam
