Description

1.100% Brand new
2.can measure 8 standdard wavelengths 850/980/1300/1310/1490/ 1550/1625 , test range: -70dBm~+6dBm, 10mw red light source.
3.Support lighting,Support automatic shutdown,Support backlight selection, Support wavelenghth memory function,Support user calibration.

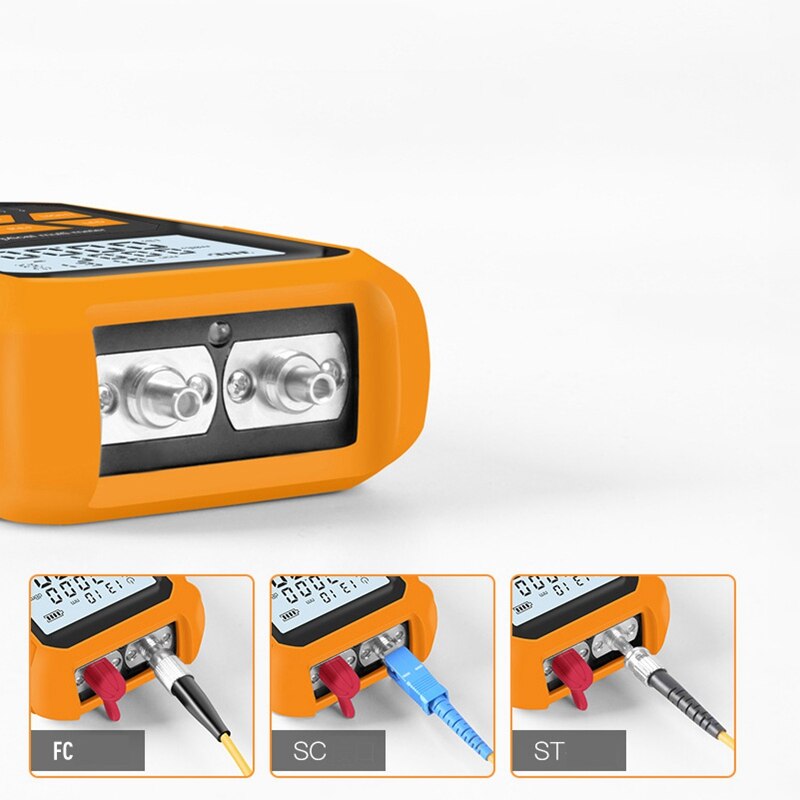

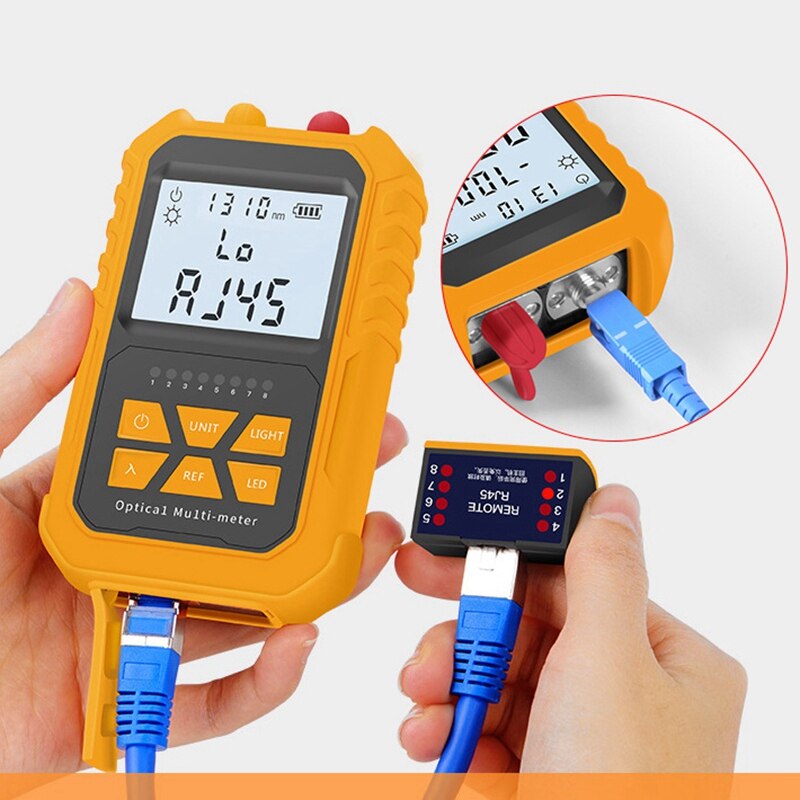

4.Support FC/SC/ST 2.5mm universal interface,Support RJ45 testing,Support simultaneous disply of linear mW and non-linear index dBm.

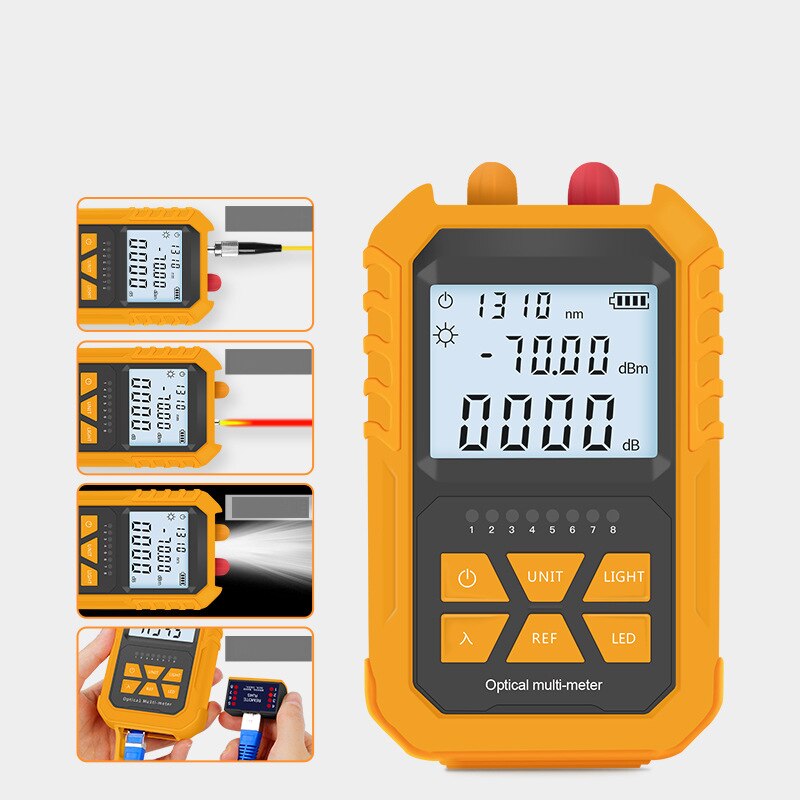

5.The light power meter & VFL ,Test precision, fine workmanship, easy to carry,completely replace the optical power meter and red pen 2 products.
Specifications:
Material: plastic
Size: 11.8 x 6.5cm
Color: Yellow
Calibration Wavelength: 800~1700nm
Optical Connector: FC/SC/ST universal interface
Detector Type: InGaAs
Measurement Range: -70 ~ 3dBm
Accuracy: ±0.2dB
Standard wavelength: 850, 980, 1300, 1310, 1490, 1550, 1625nm
Display resolution: mW: 0.1% ,dBm: 0.01dBm
VFL: 1mW 650nm light source
Working temperature: -10~+60℃
Storage temperature: -25~+70℃
Auto off time: 10Min
Red light power: Greater than 5mW
Power: 2 x 7# Battery(without battery)
Battery continuous operating time: greater than equal 48h
Package Contents:
1 x Fiber Optical Power Meter
1 x Rope
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
