Description
- Brand Name: Turmera
- Certification: None
- Accessory Type: Battery Accessories
- Origin: CN(Origin)
- Model Number: Inductive energy transfer equalization board
- Balance current: High Current
- board: Inductive energy transfer equalization board
- Model Number: Inductance Switching
- name: 1.2A Balance Li-ion Lipo Lifepo4 LTO Lithium Battery Active Equalizer
1.2A Balance Li-ion Lipo Lifepo4 LTO Lithium Battery Active Equalizer Balancer Energy Transfer BMS 2S 3S 4S 6S 7S 10S 12S 13S 16S 17S
If you want documents or have any other questions , contact us ~
for drop shipping / Dropshipping , we accpet this .
Lithium battery active balance energy transfer board Lithium battery active equalizer High efficiency energy transfer equalization
Inductive energy transfer equalization board (current 1.5A equalization current, slightly lower precision)
Technical Parameters
Working voltage 2.2V-4.5V, Li-ion Lipo Lifepo4 LTO Lithium battery universal
Working principle, the inductor converts the transfer charge carrier. When the battery error voltage is above 0.1V, the balance work is started until the error is stopped at 30mv. The built-in improved ultra-low internal resistance MOS, the balance current is 0-1.2A, and the battery voltage difference is smaller. The smaller the current, the static power consumption does not exceed 20uA! With balance instructions!
Balanced voltage accuracy within 30mv!
Wiring line length 40cm pure copper 22awg terminal wire!
High-precision energy transfer balance, exclusive balanced IC!

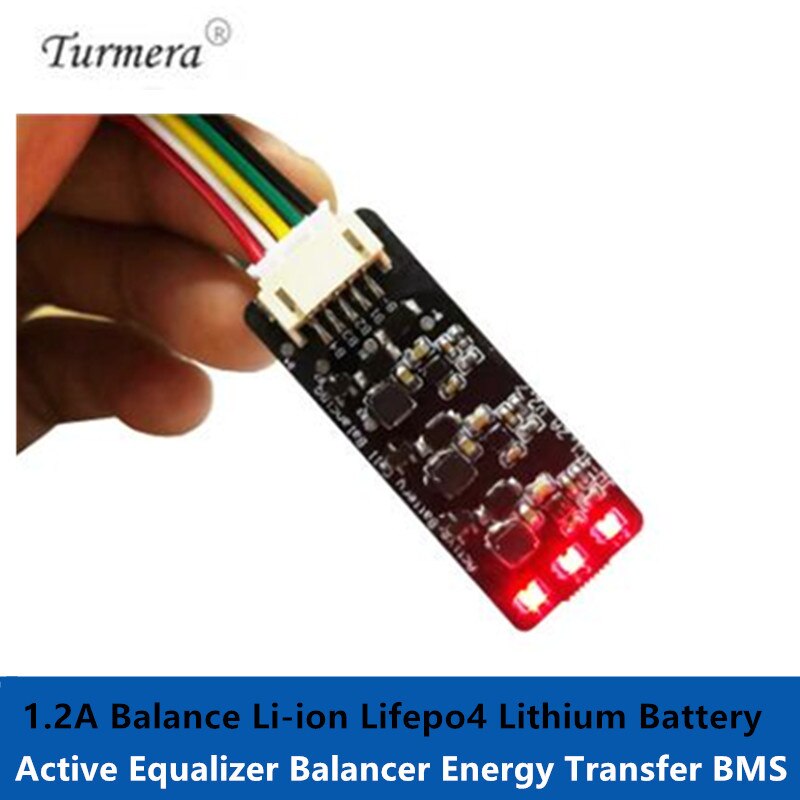

Balance indication:
1. When the balance indicator is on, the balance work is turned on.
2. The balance indicator goes out, the balance circuit sleeps,
3. The balance indicator flashes, it drop cells, or the circuit is faulty.
3S version can use for 1S ~3S
4S version can use for 1S ~4S
6S version can use for 1S ~6S
7S version can use for 1S ~7S
13S version can use for 1S ~13S
16S version can use for 1S ~16S
17S version can use for 1S ~17S
Package List: shpping by Choose different bundle .

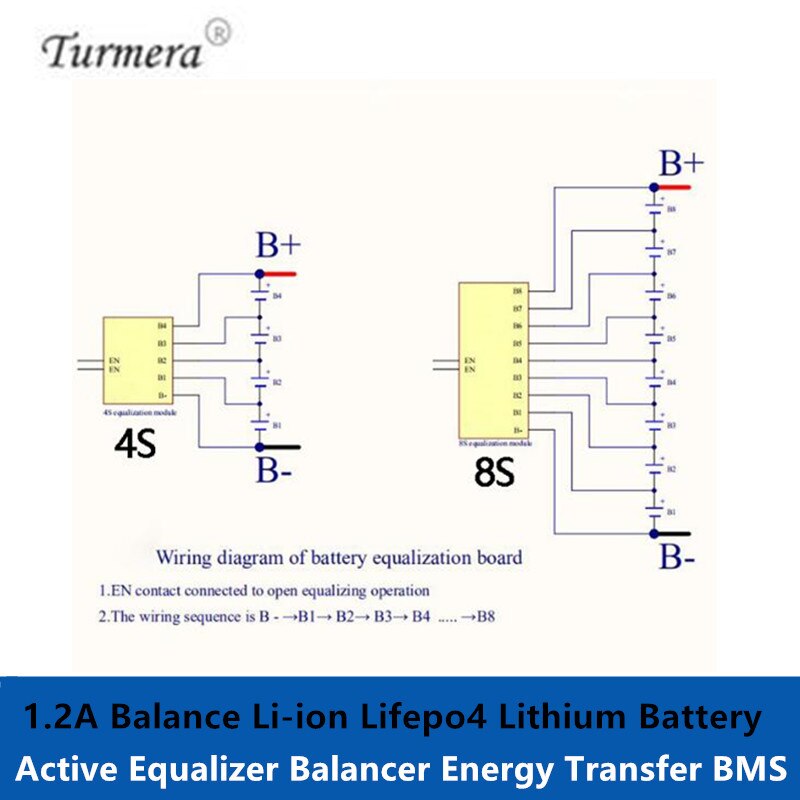

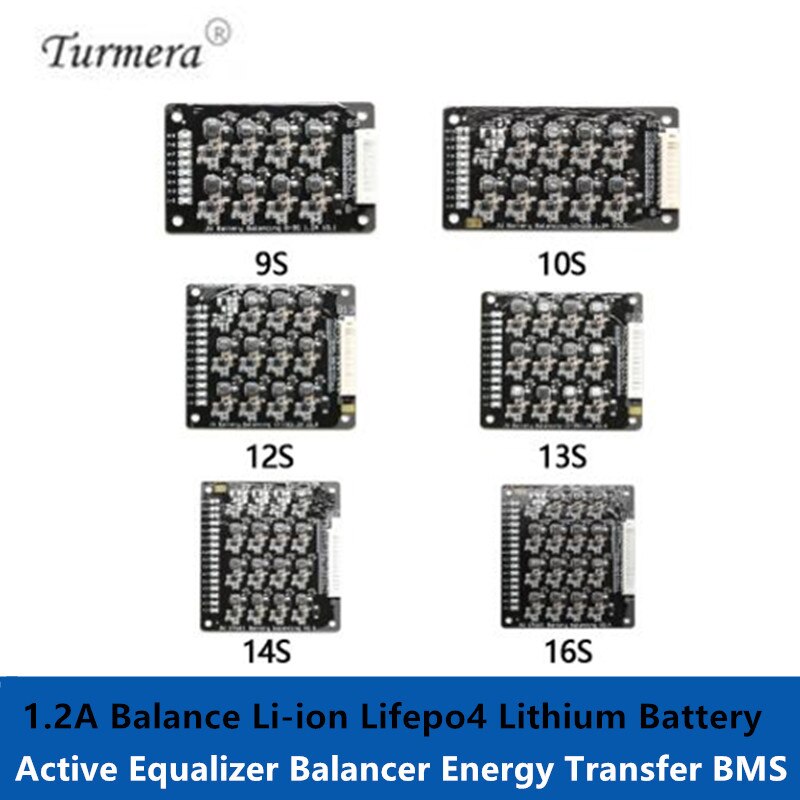

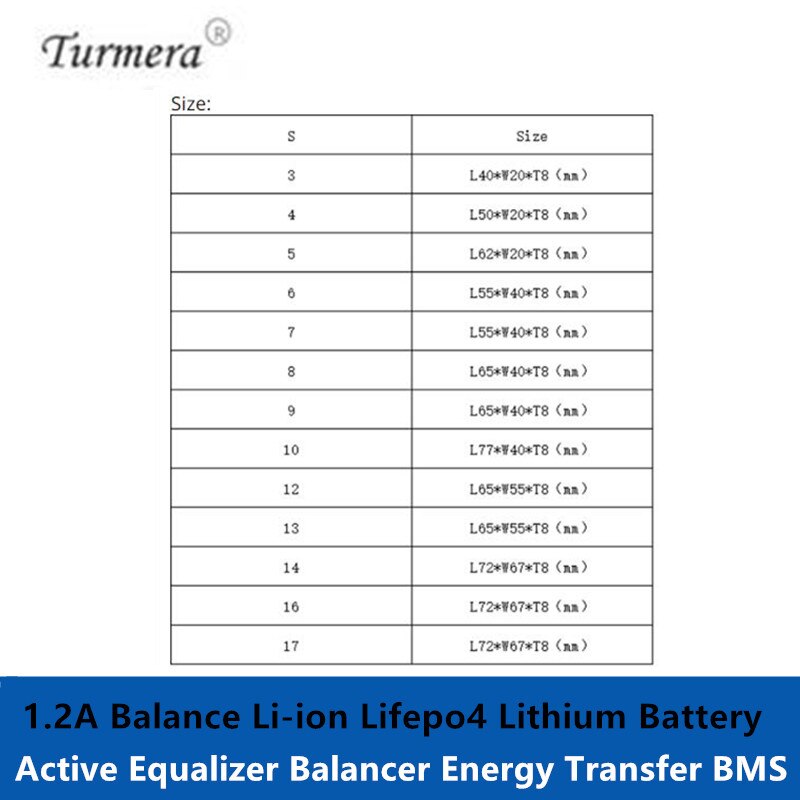

Picture show:
