Description
- Brand Name: QDHWOEL
- Structure: Other
- Material: Other
- Usage: Optical
- Shape: Plano
- Model Number: 30mm
- Diameter: 30mm
- Thickness: 3mm
- Function: Co2 Laser Spare Parts
- Material: Silicon
- Laser type: Co2
- Wavelength: 10.6um
- Reflectivity: OVER 98.9%
- Under power: 30w-200w
- Note: Please chose the model that you want
- Used: Co2 Laser Engraving Cutting Machine

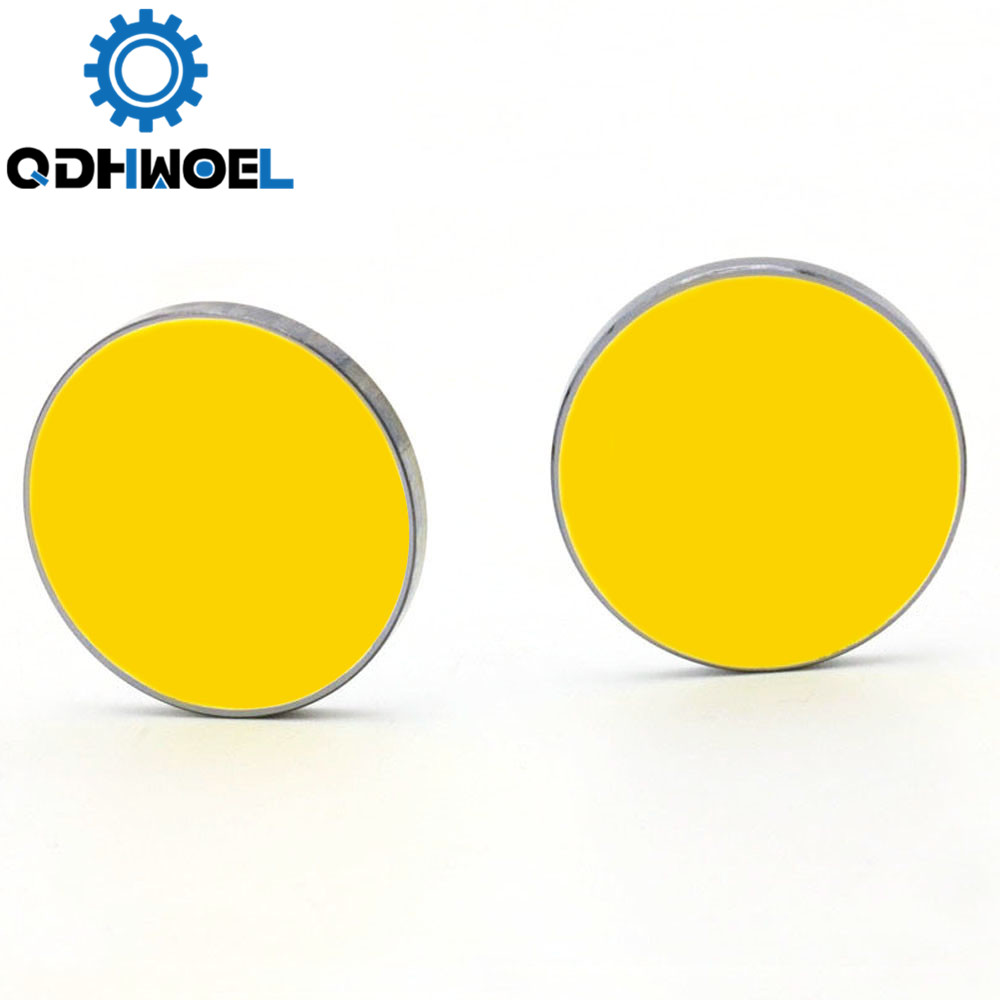

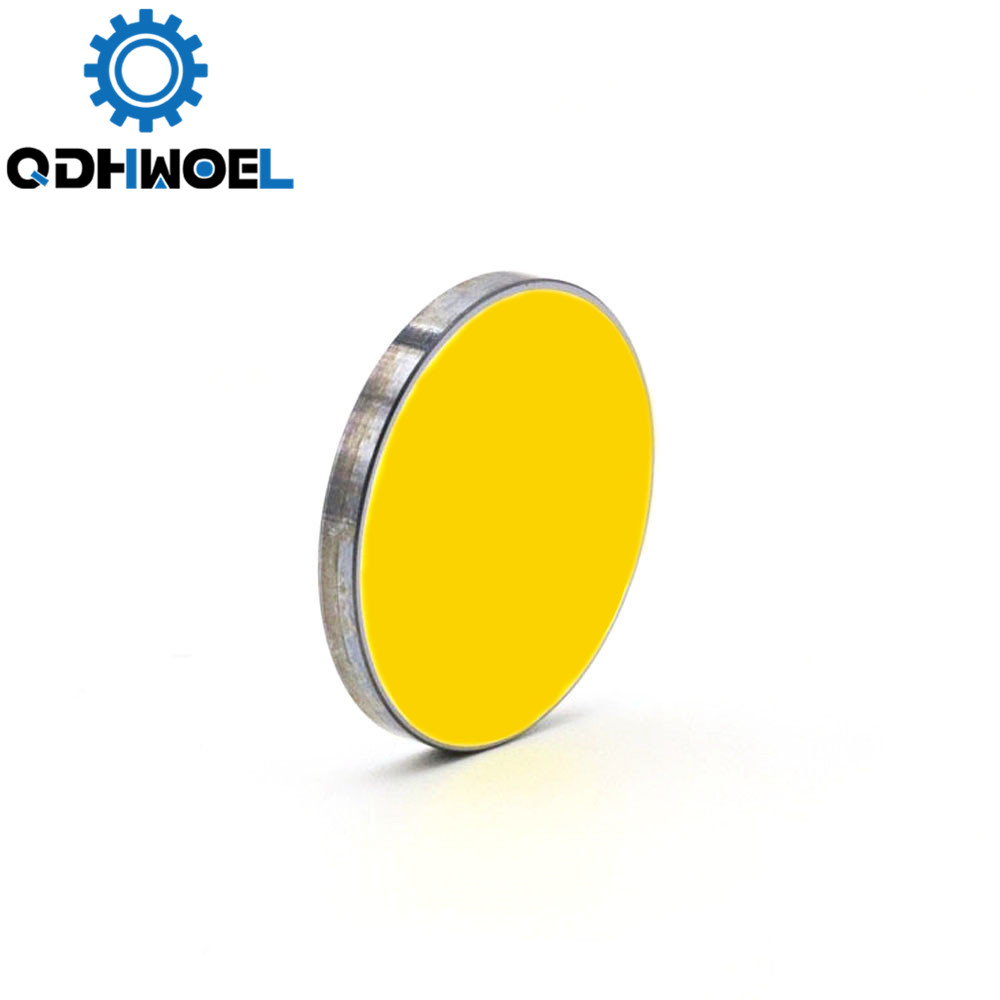

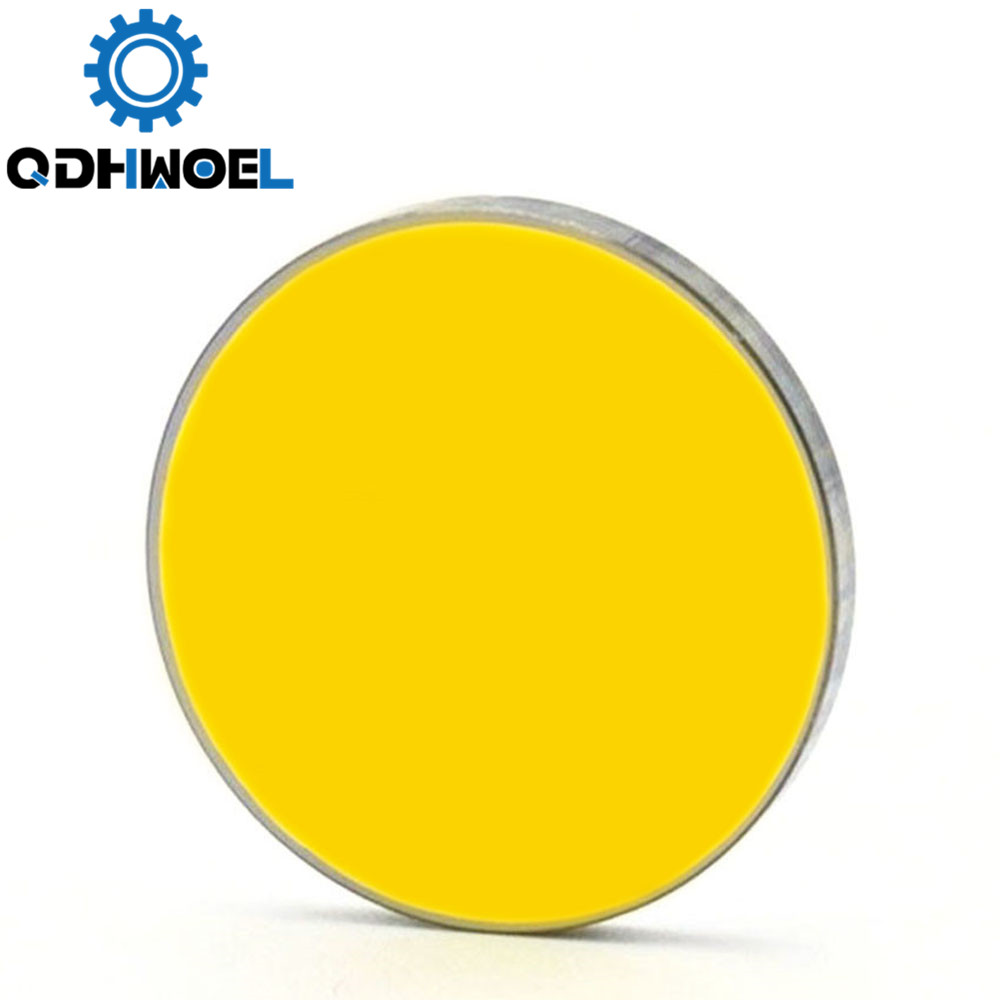

3pcs Co2 Laser Si reflective Mirrors 25mm for Laser Engraver Gold-Plated Silicon Reflector Lenses
Packaging List: Si Laser Reflecting Mirror 25mm*3pcs
High Reflectivity:>99%
(The best high quality with the most reasonable price,under power 30w-500w)
|
Material |
Silicon mirror reflecting |
|
|
Diameter Tolerance |
+0.0/-0.1mm |
|
|
Thickness Tolerance |
±0.1mm |
|
|
Clear Aperture |
>= 90% Diameter |
|
|
Surface Flatness |
lamda/4 at 632.8nm |
|
|
Scratch/Dig |
S1:40-20,S2: |
|
|
Parallelism |
<1′ |
|
|
Bevelling |
<0.2×45° |
