Description
Parameter:
Output wavelength:780nm / + 5nm
Output power:3MW-5mW
Size:φ 5.6 mm TO18
Service life:> 6000 hours
Working voltage:2Vdc
Working current:< 40mA
Working temperature:- 10 ℃ ~ + 50 ℃
Storage temperature:- 40 ℃ ~ + 80 ℃
Application:
This Infrared laser diode is an industrial electronic component and used for as Industrial testament, Lab, DIY.
The laser diode is and precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing. and Don’t operate when the power is connected.
Package:

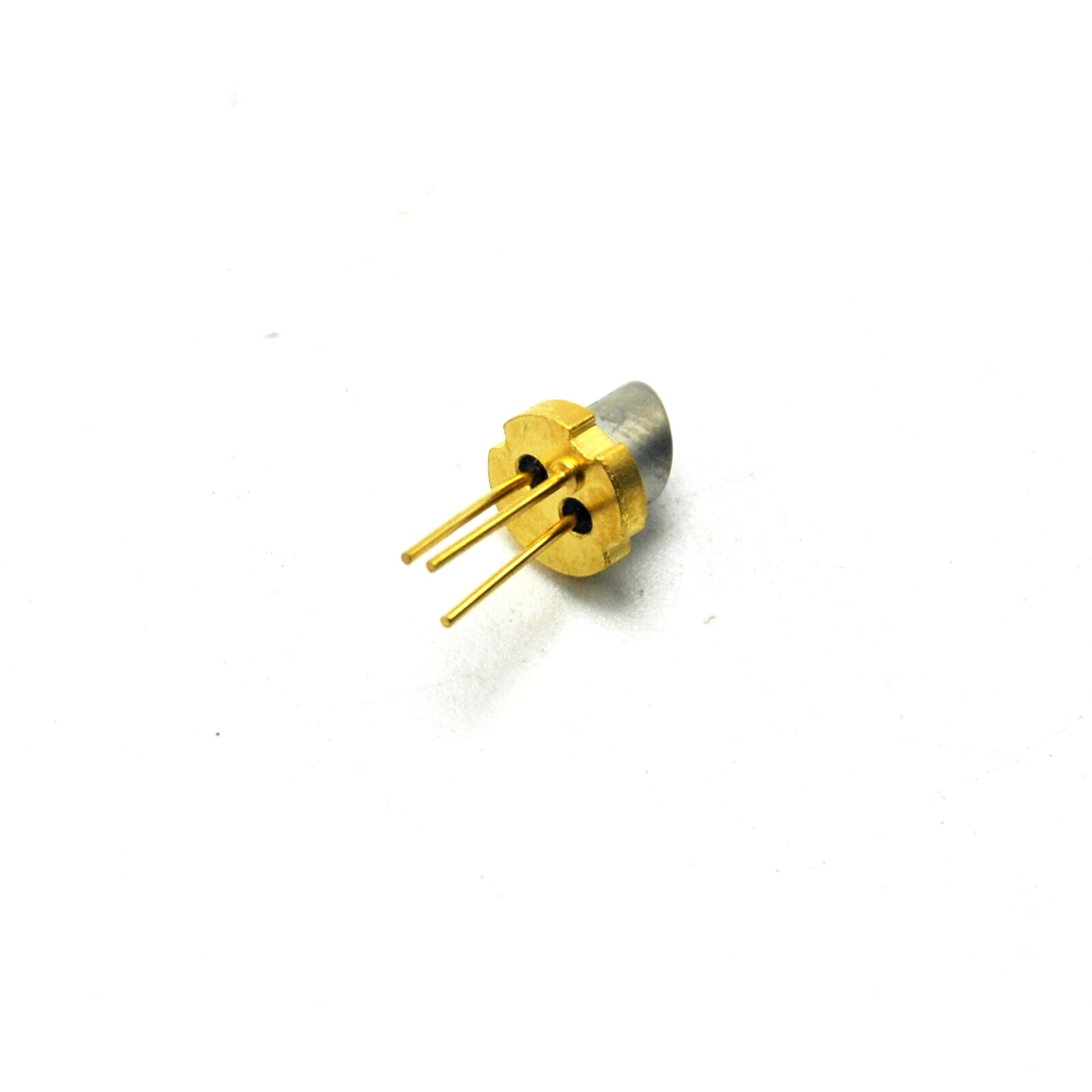

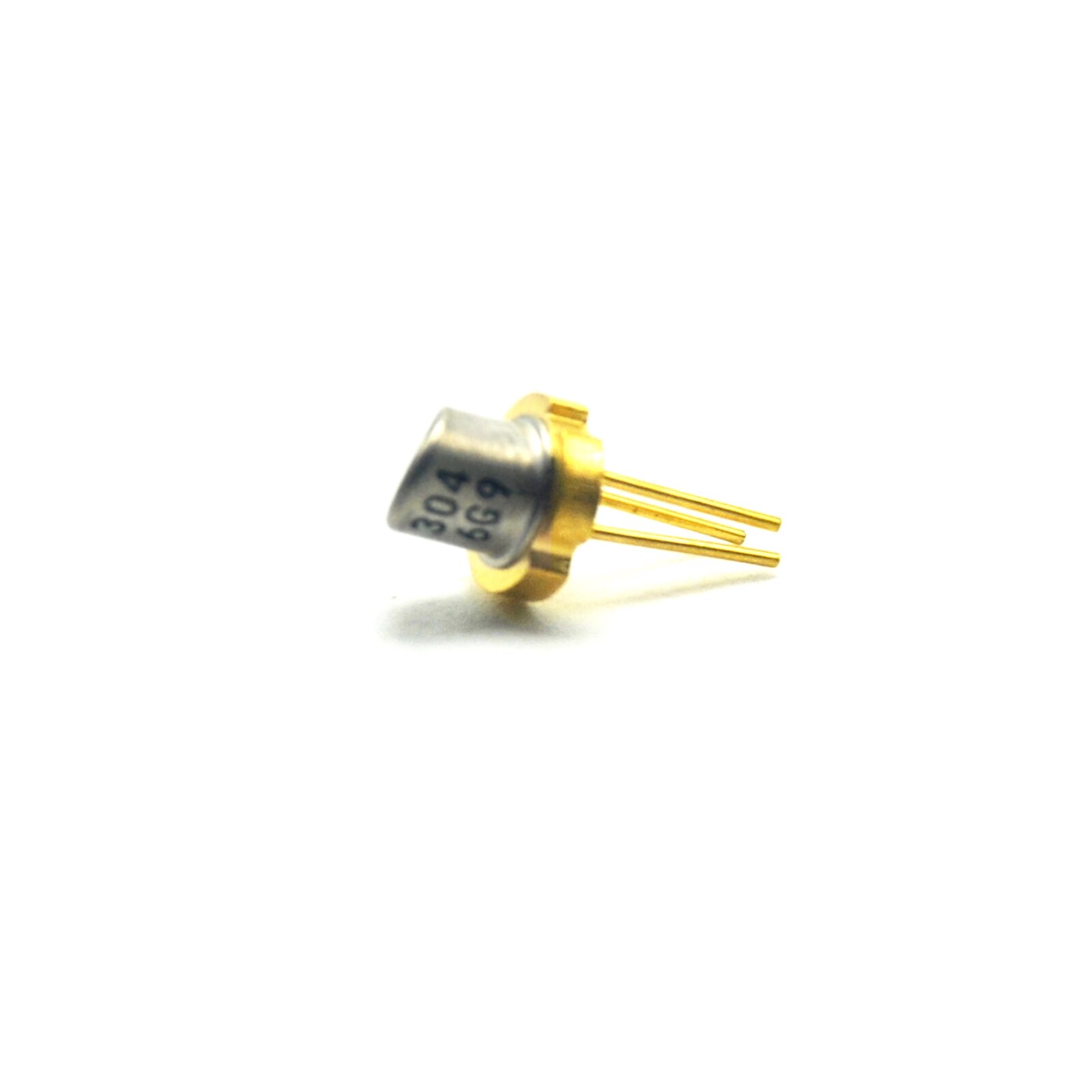

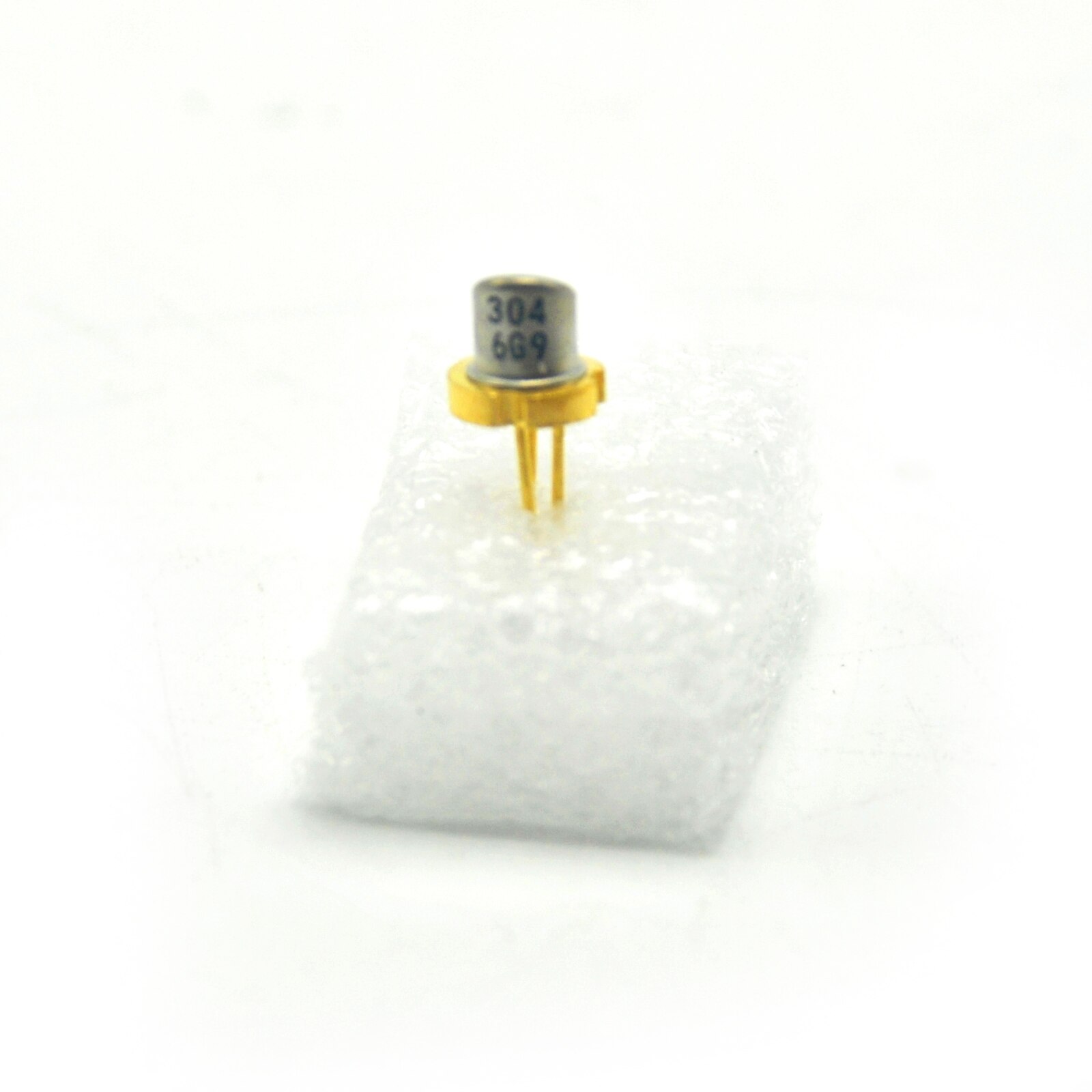

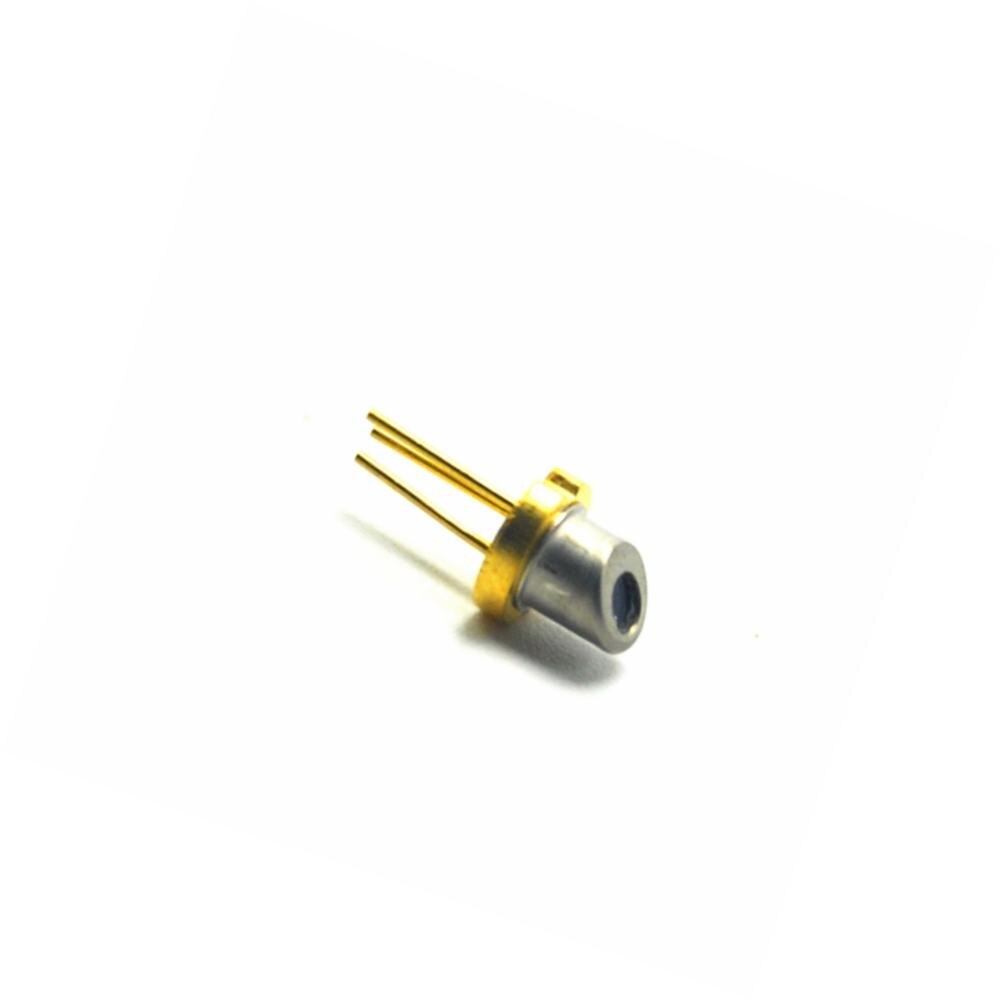

1pc x KSS-151A 3mw-5mW 780nm 5.6mm TO18 Infrared IR Laser/Lazer Diode LD
