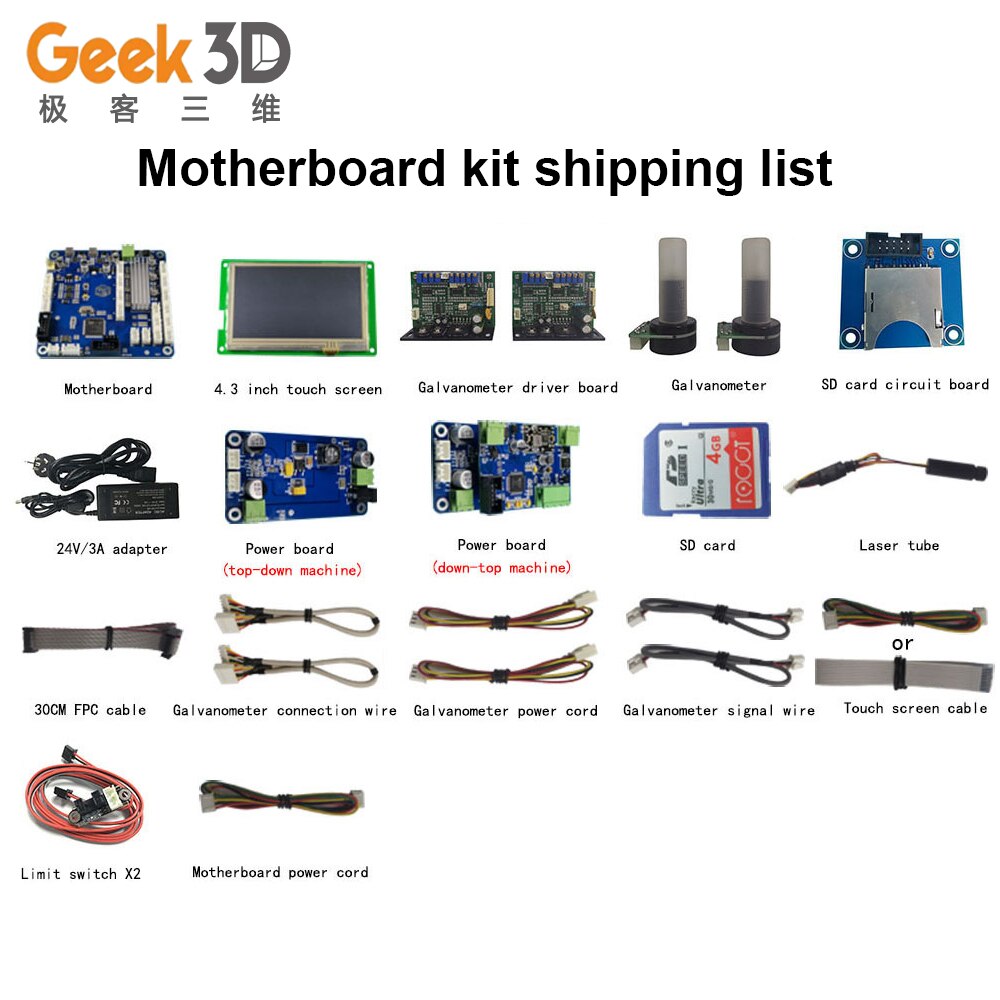

3D Printer parts SLA motherboard Laser curing galvanometer scanning Touch screen Matt Control board

XY axis accuracy: 25 microns

Print size:110*110 to 130*130mm

Laser power:150mw (300mw can be customized)

Spot size:80 microns (adjustable)

Laser wavelength:405nm

Laser interface:PWM (adjust laser power)

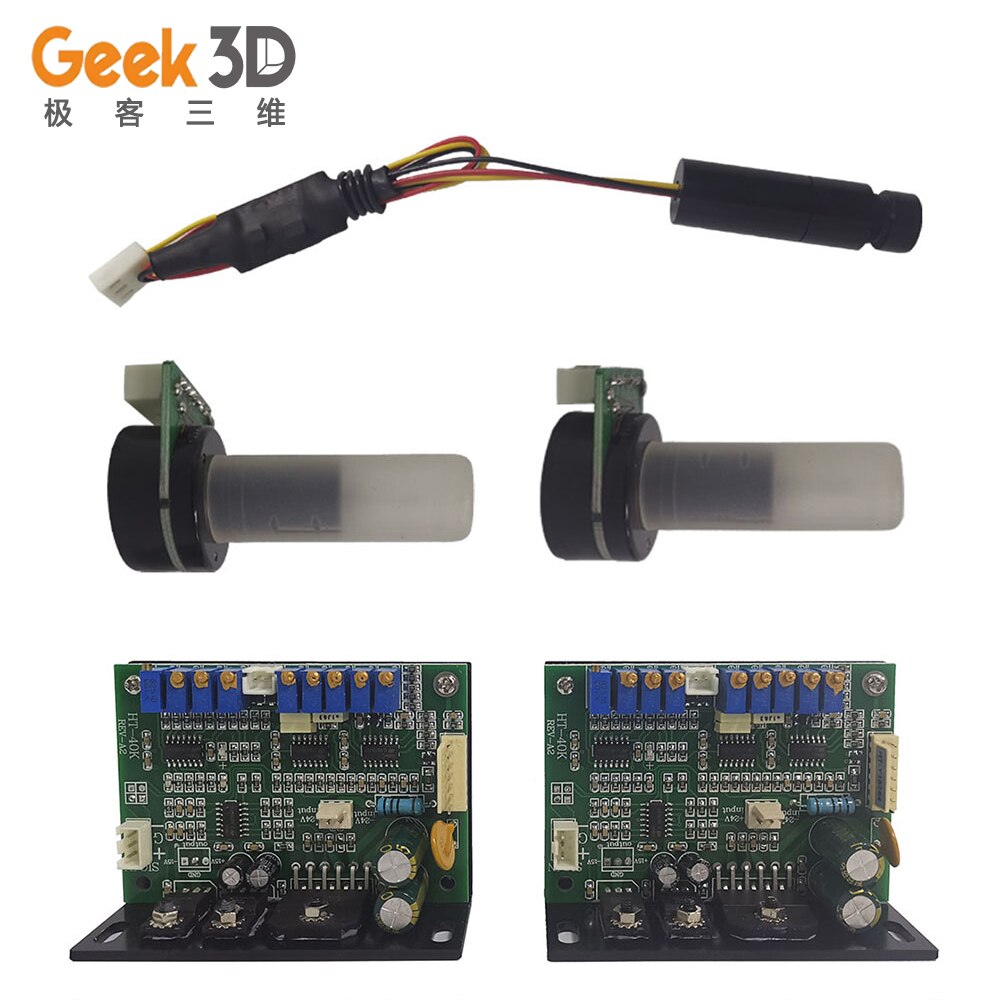

Galvanometer calibration:fixed pattern calibration

Scanning speed:2000mm/s (maximum)

Vibrating mirror signal:analog signal

Main control chip:STM32F407 (168mHz working frequency)

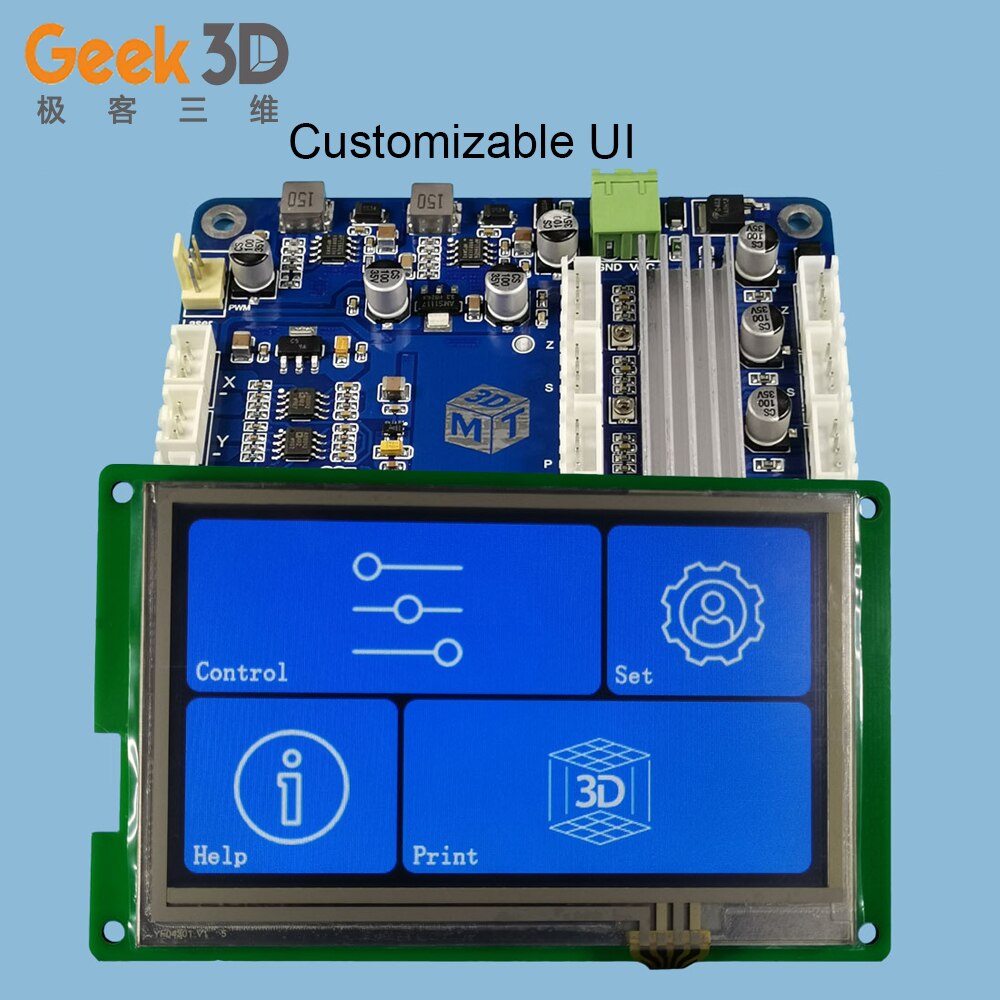

Color touch screen:4.3 inch resistive touch

input voltage:DC24V/3A or DC15V/3A

Firmware update:SD card update

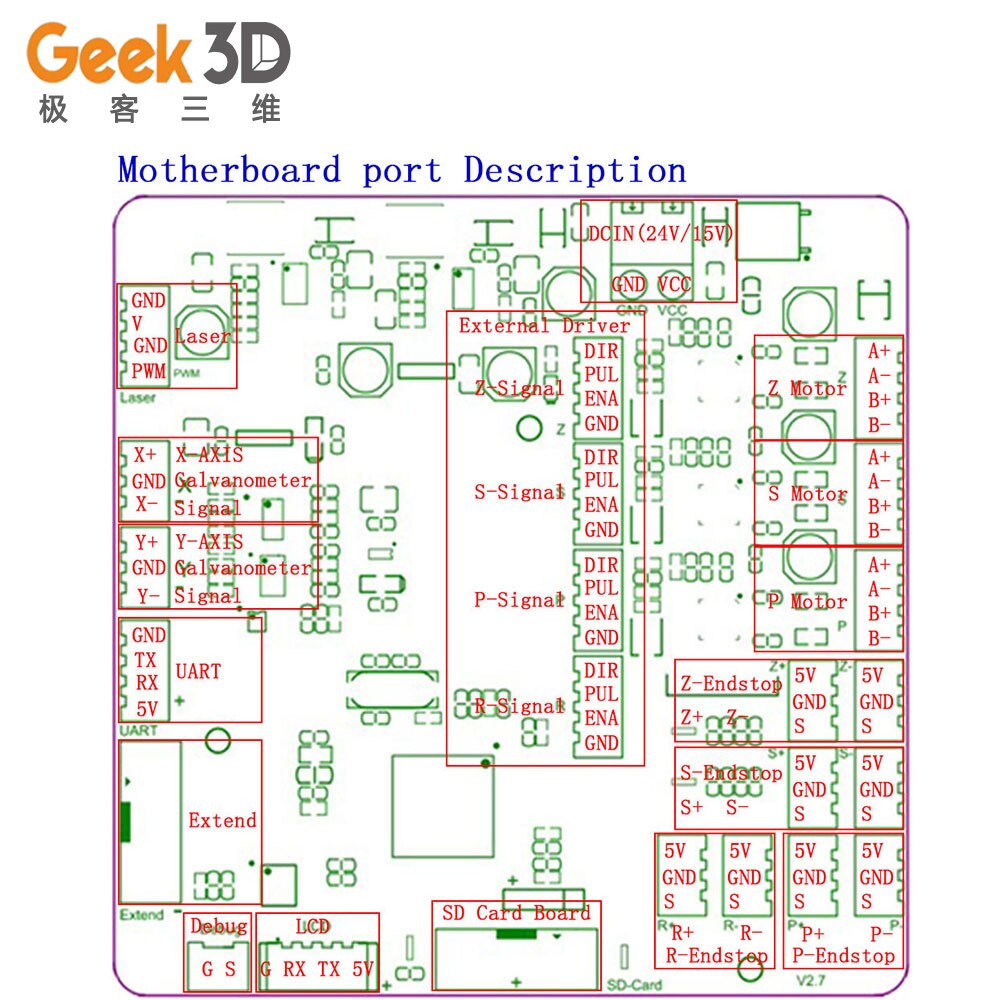

Motor interface:3 onboard 16 subdivision drivers, 4 external expansion

File format:G-code

slicing software:3DMatt (independent research and development)
