Description

Parameters:
Voltage: AC 220V
Maximum Power: 3800W
Voltage Regulator: 0-220V AC

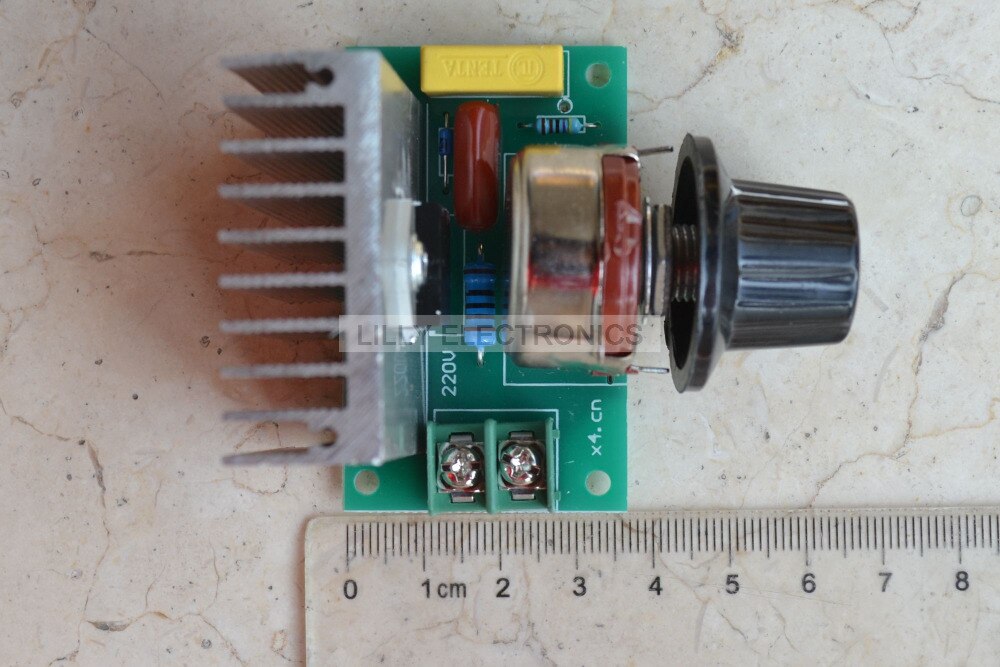

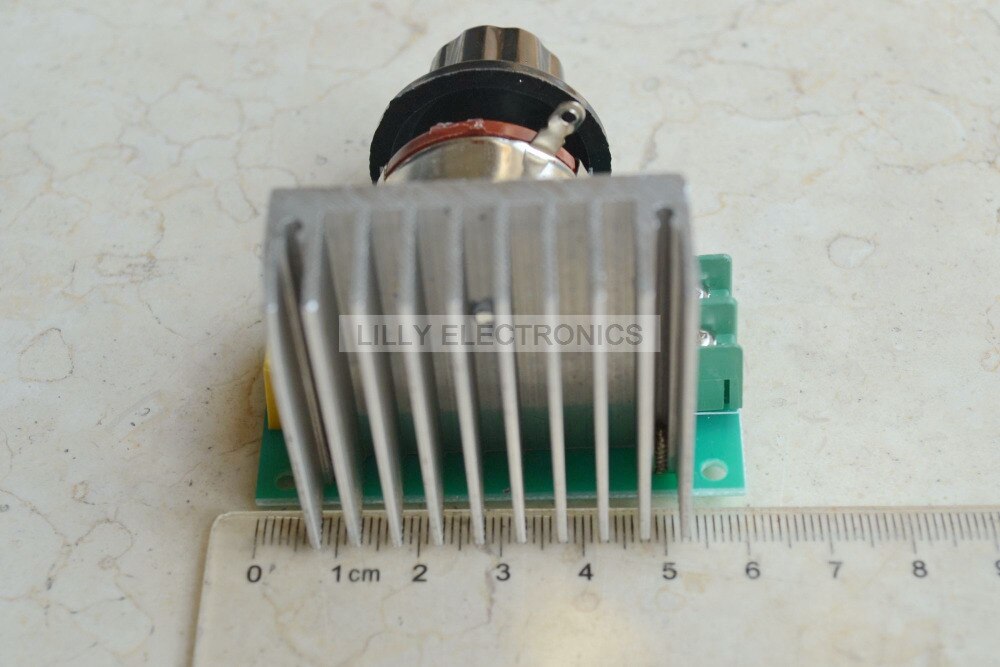

Size: high temperature FR-4 circuit board 60*40*45mm total 6mm diameter rod of high spin

Usage:
This product series with the lamp or appliance in the circuit, (ie the lamp, firing off electrical appliances such as any one or zero line to the “product” of the two wires connected to both) rotary potentiometer Rotating rod, you can play a brightness adjustment, speed, pressure, temperature control effect; use very convenient.
This product applies to: the use of new two-way high-power thyristor, as the current up to 40A, a good solution to the heating wire resistance in the case of cooling is too small to cause over-current problems; can easily adjust the electricity The output voltage between 0 and 220 volts —- any adjustment for the use of electrical appliances. Such as: furnace, water heaters, heat transfer, light dimming, small motor speed, electric iron thermostat and so on. So as to achieve dimming, thermostats, pressure effect. Less than 3,800 watts of electrical power for large-scale electrical power has been used as much, so the home appliances in general, sufficient, or small factories. (Inductive or capacitive load power should be reduced, the voltage regulator is equipped with two-way high-power thyristor, potentiometers are with nuts, do not add any components to use, very convenient and practical.
Package:

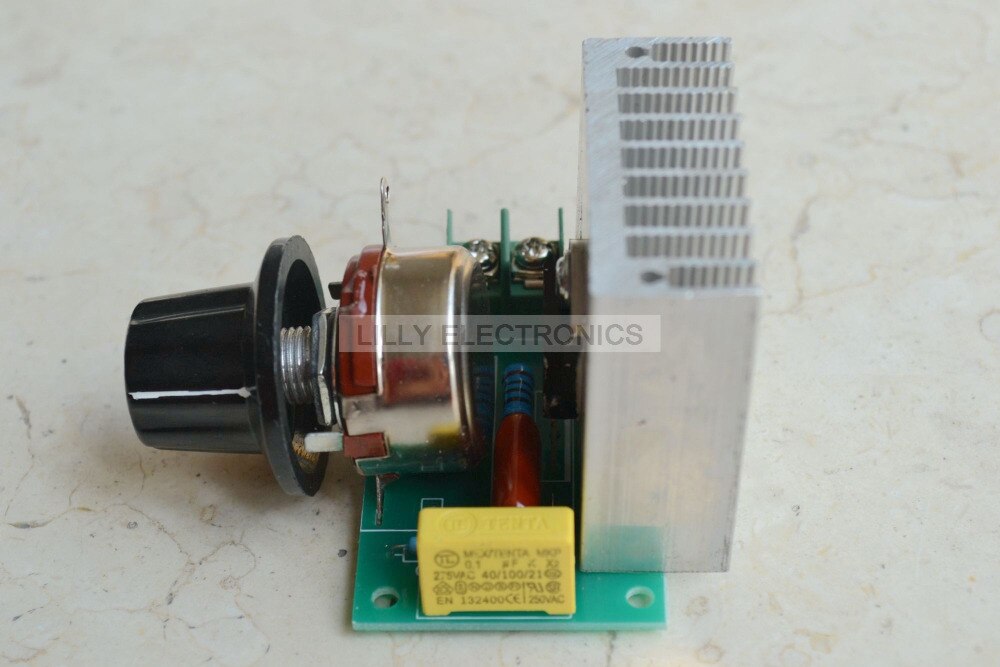

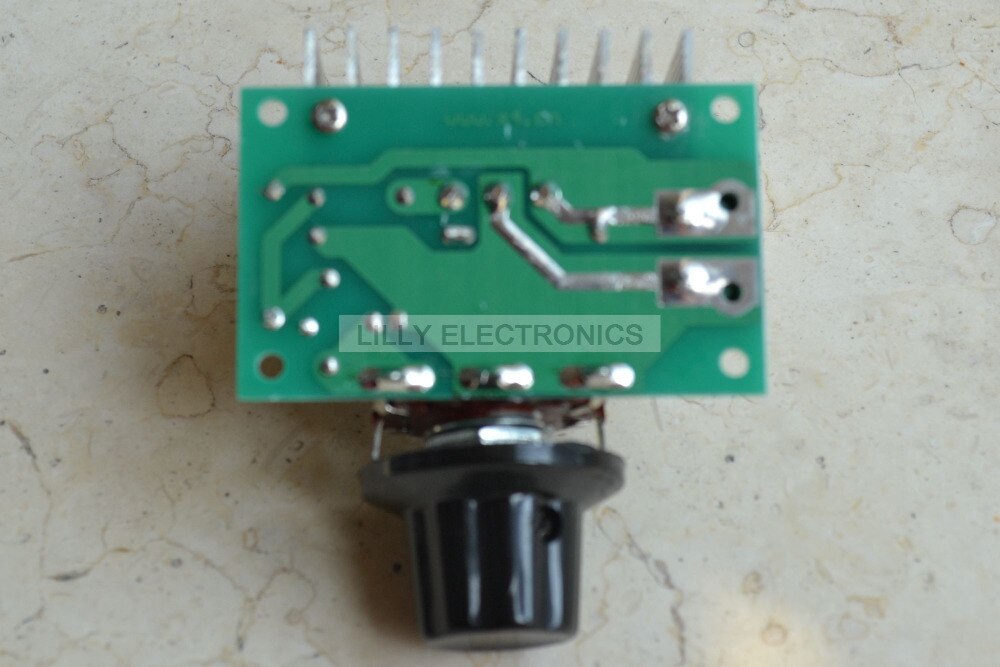

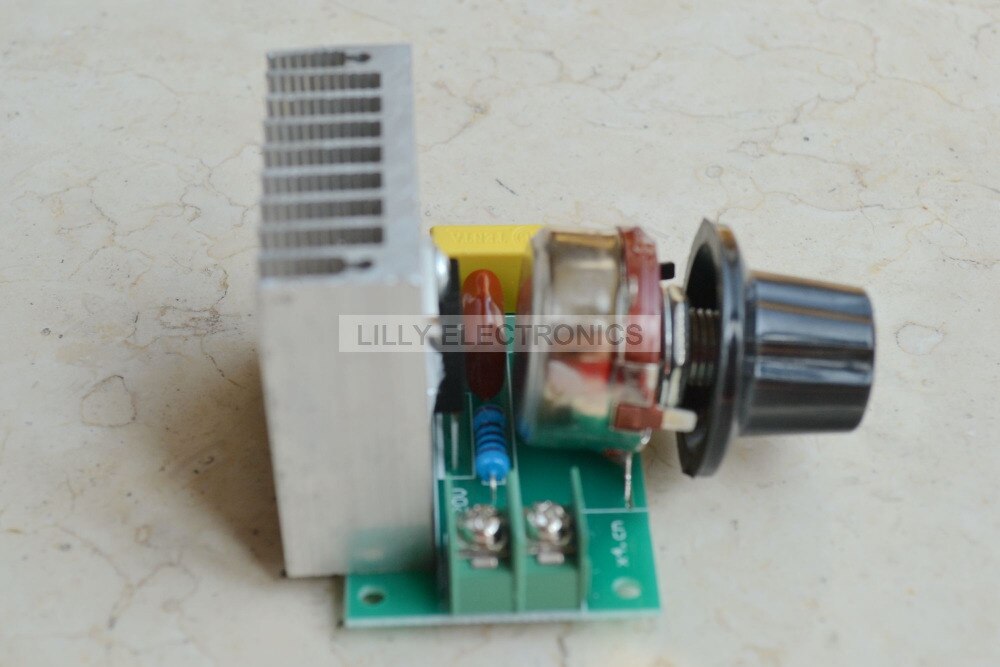

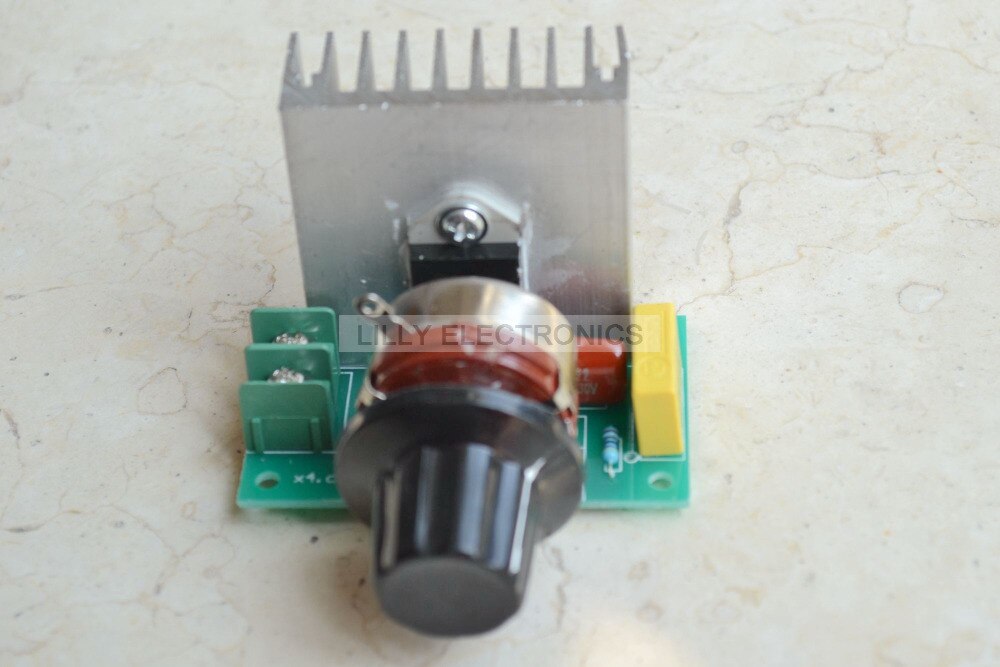

1pc 3800W SCR Voltage Regulator Module
