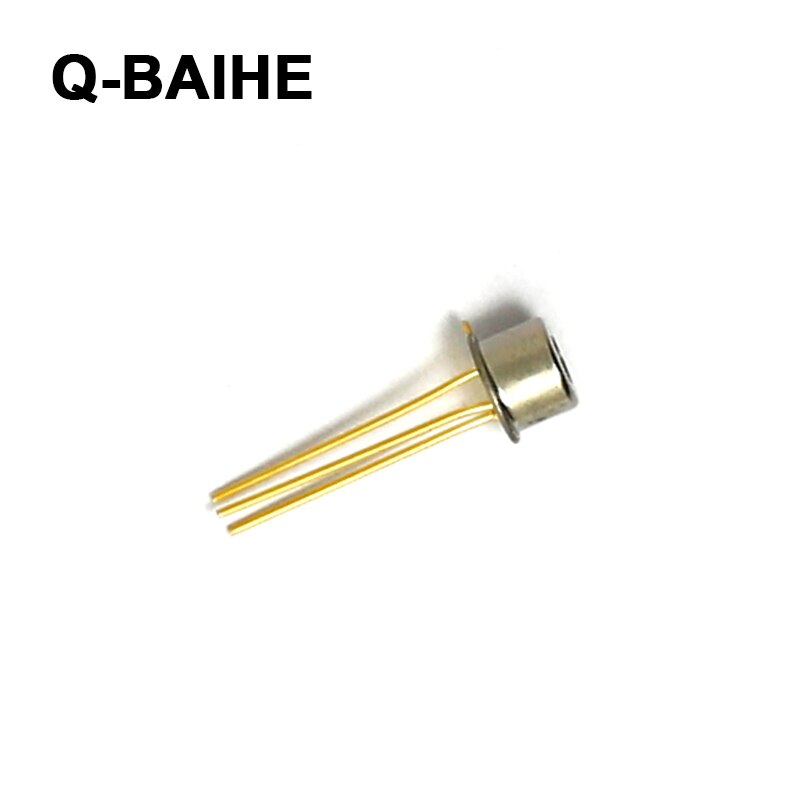

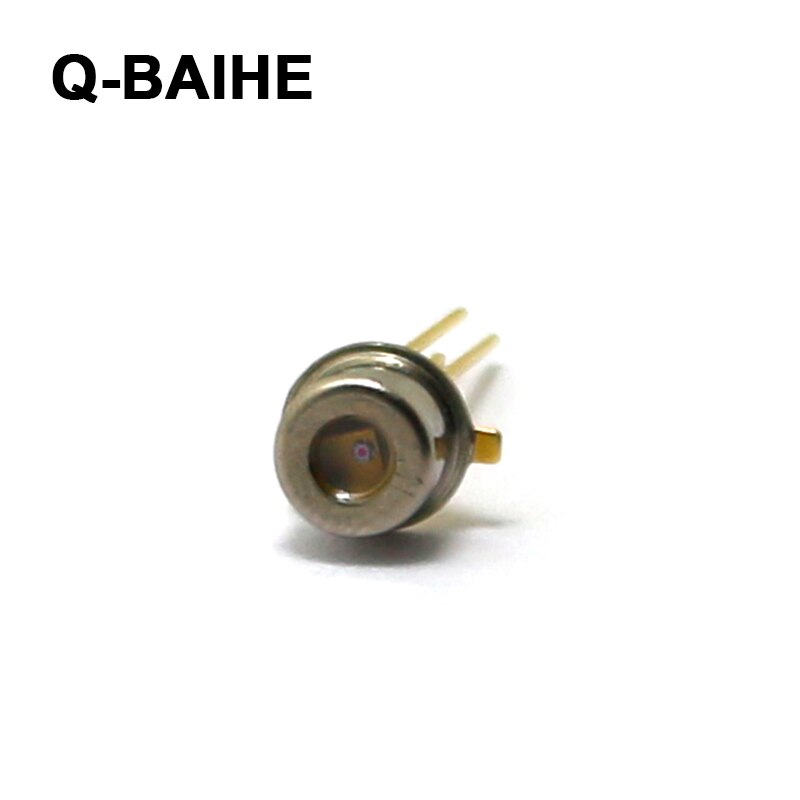

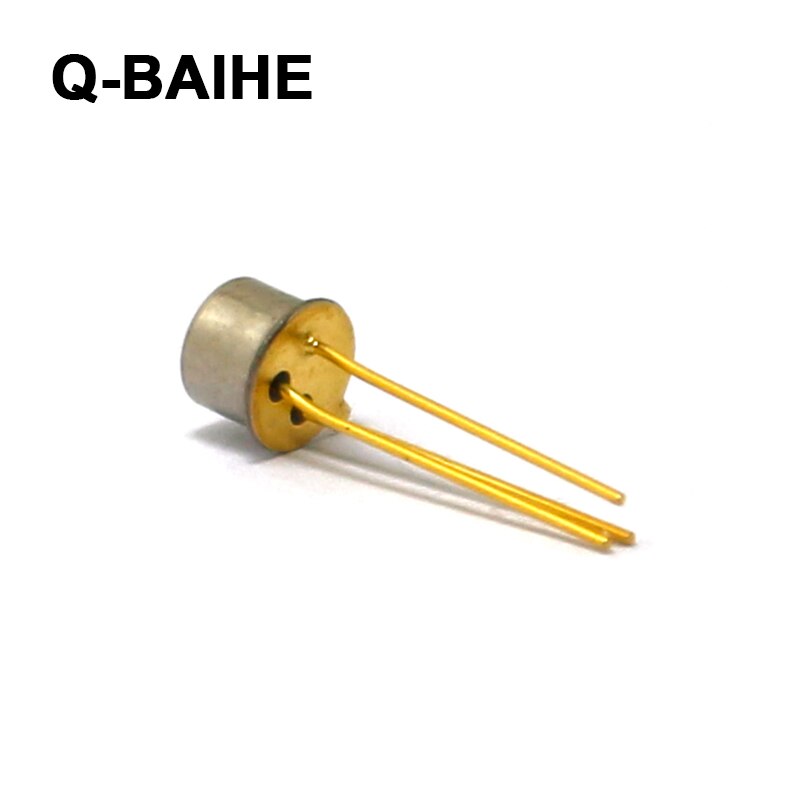

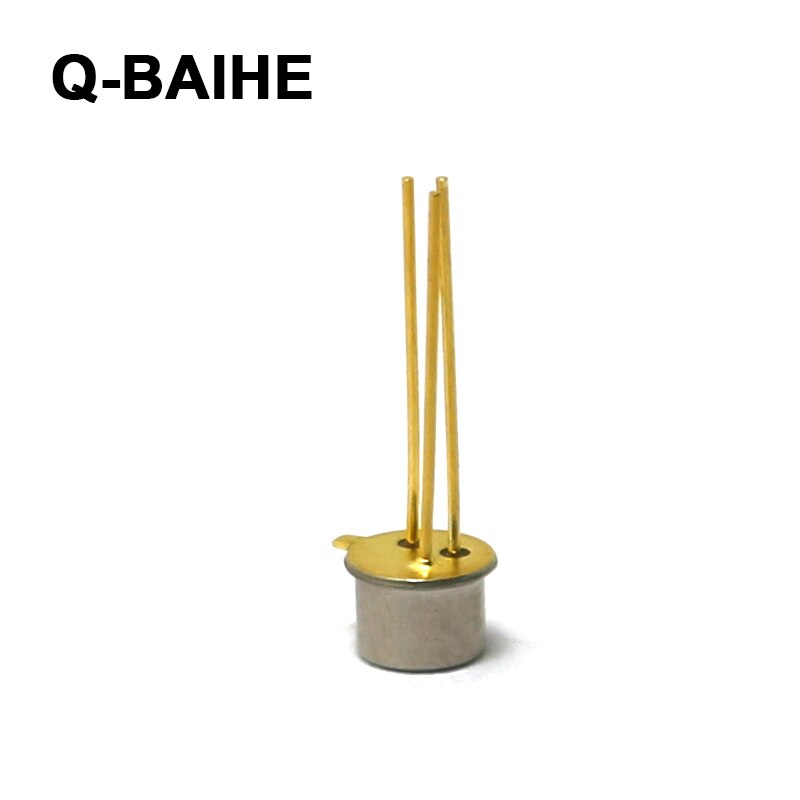

Name: 350-1050nm 2.5GHZ Fast Silicon PIN Photoddiode High responsivity Low dark current electronics TO-46 Package
SKU: 32834723123
Price: 99.00 USD
Availability: InStock

All Lasers Life & Industrial. Contact beamqlaser@gmail.com

Sale!

350-1050nm 2.5GHZ Fast Silicon PIN Photoddiode High responsivity Low dark current electronics TO-46 Package

$99.00

SKU: 32834723123 Category: Uncategorized Tag: Laser Applications

Description

Description

Product Description

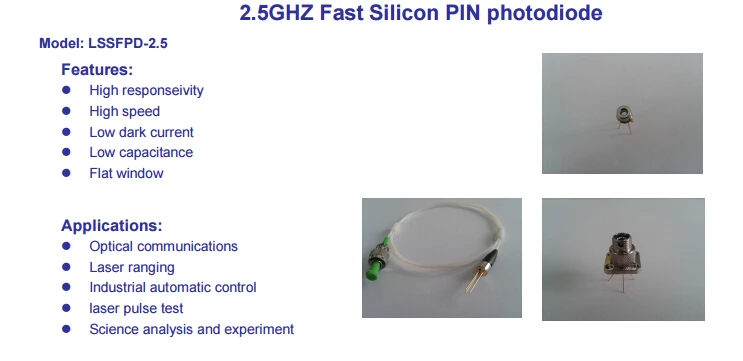

1. Model: LSSFPD-2.5

2. Photosensitive surface: 220um

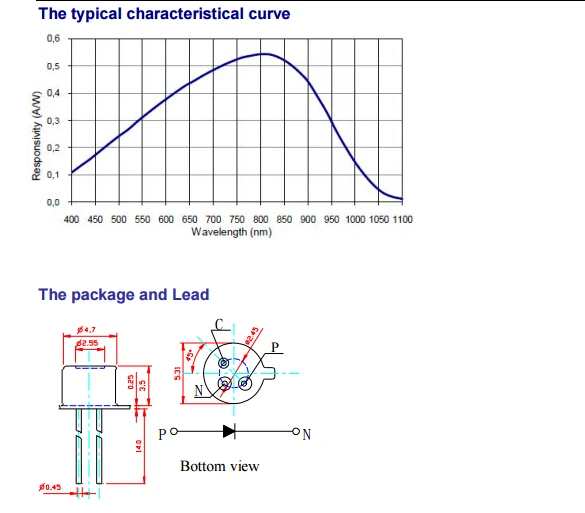

3. Response wavelength: 350-1050nm

4. Dark current: 20pA @ -10V

5. Rise time: 150ps (2.5GHZ) @ – 10V, 905nm

6. Package: TO-46 Can, fiber coupling or optical interface optional

Package:

1*200-1100nm 4mm violet silicon photodetector diode high responsivity low dark current electrons

(0)

350-1050nm 2.5GHZ Fast Silicon PIN Photoddiode High responsivity Low dark current electronics TO-46 Package

Description

Product Description

Package:

1*200-1100nm 4mm violet silicon photodetector diode high responsivity low dark current electrons
