Description

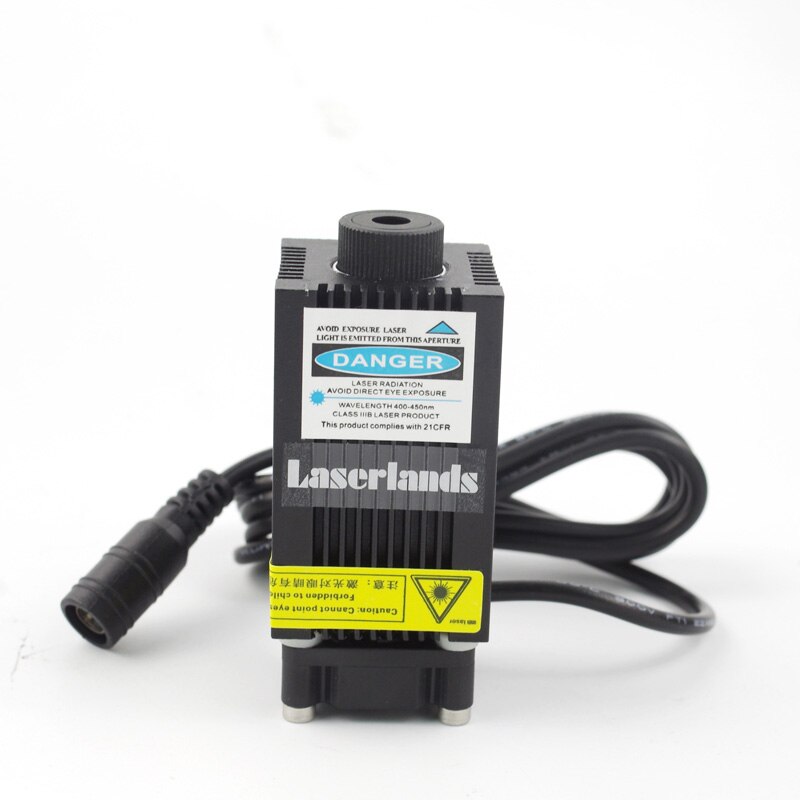

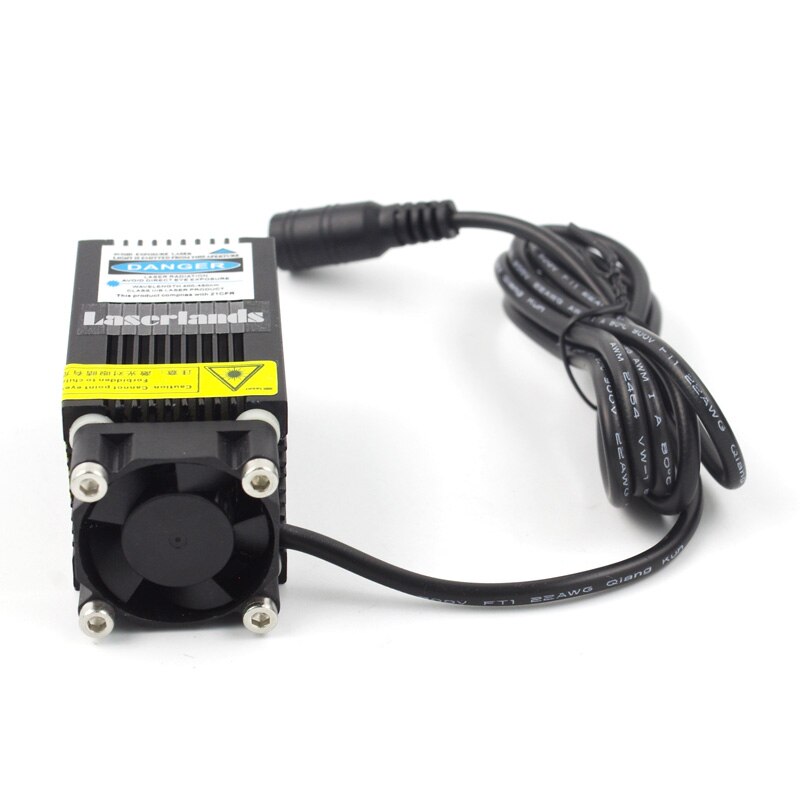

33*55mm 450nm 445nm 2.5W Blue Laser Diode Module for CNC Engraving Wood Cutting



Brand: Laserlands

Wavelength: 450nm

Output: 2.5w

Laser diode in: Nichia

Working voltage: 12VDC

Working current: <1.5A

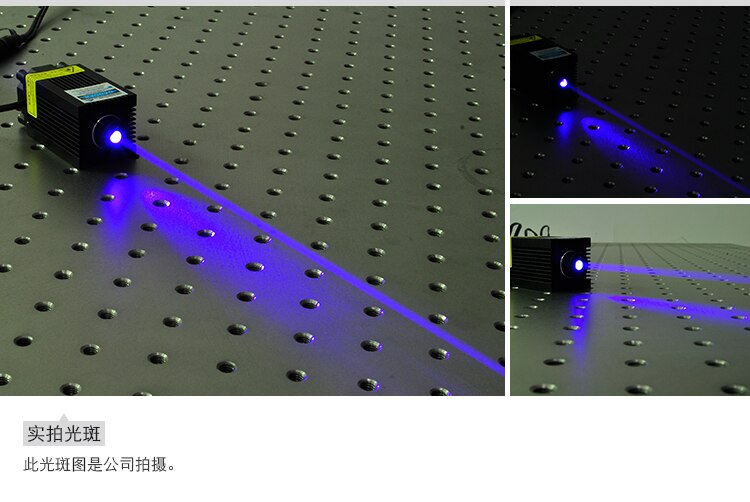

Laser dot: ellipse dot

Laser dot diameter: 0.5mm @ 0.5m

Focal lens: glass

Working temperature: -50~+50 centigrade

Working life: 8000hrs

Duty cycle: 2-4hr

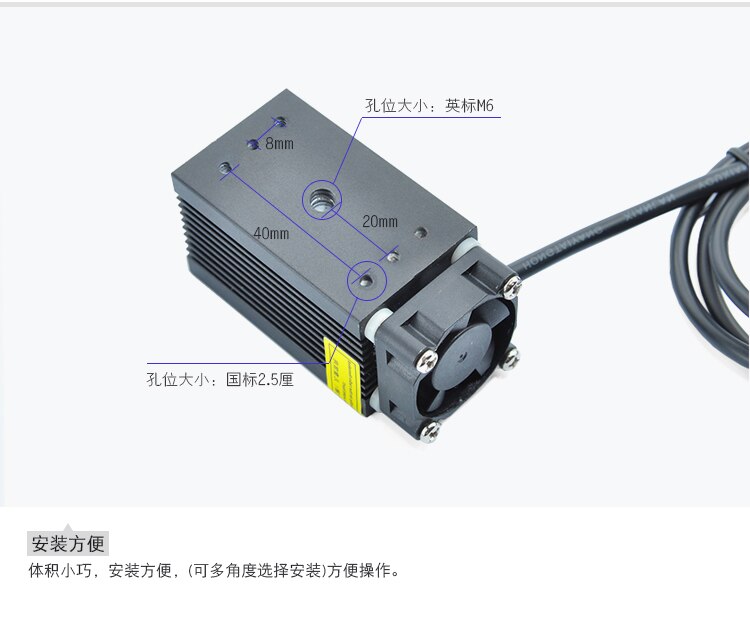

Dimension: 33*55mm

Net weight of the laser: 180g

APC circuit board in

Can engrave:

Wood, plastic, paper

Can cut:

Paper, thin leather

Cannot engrave:

Metal, glass, stone, etc

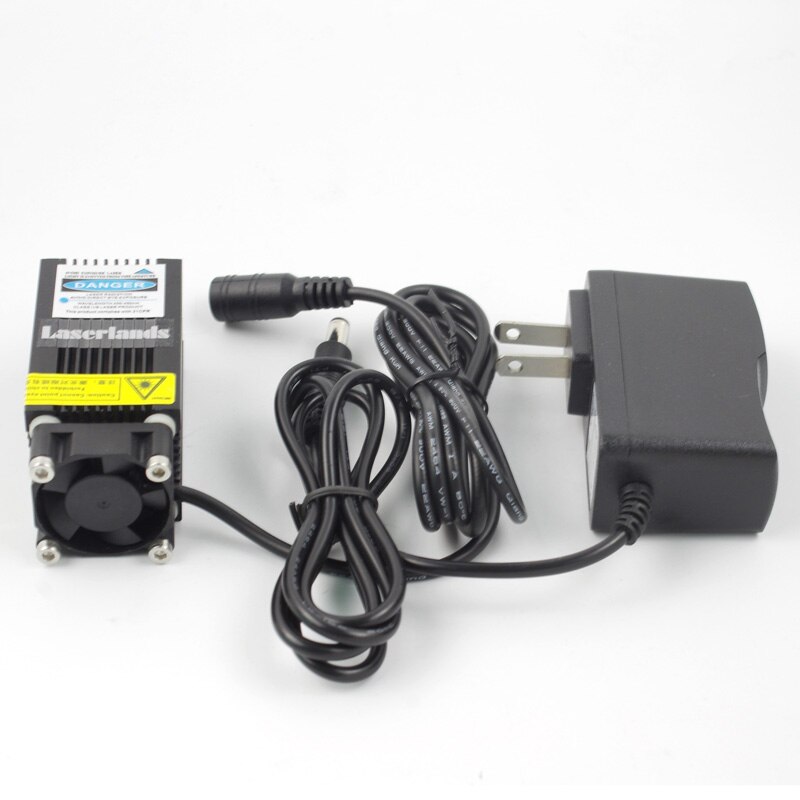

Note: the adapter only have US, EU standard. it is bonus for free. if it is not suitable, pls find a suitable one in your supermarket.



after our real test, the 2.5w one can cut 0.1mm stainless steel wire. the 1.6w can cut 0.2mm wood.
