Description
Specifics:
Engraving area: 300MM * 400MM
Laser power: 1000mw/2500mw/3000mw
Laser Power: 5V / 12V (random switching)
Input voltage: 12V
Number of axes: X axis dual Y-axis (Dashboard supports 3-axis)
Accuracy: 0.1MM
thick acrylic: Acrylic
Product Description:
Model：30*40CM
Control Board：Lasrexe
Communication Port：MircoUSB
Laser Quick Replace：Support
Stepper Motor：775motor
Power Input：AC100-240V
System Support：Win XP/7/8/10
Engrave Mode：Photo, Word, Scan, outline,Pixel Laser Engraving
Supported Formats：jpg, bmp, svg, G-code
Material：Stainless Steel and Acrylic
Working Voltage：DC 12V
Working Current：DC 2.5A
Control Software System：cnc software
Engraving Accuracy：0.01mm
Engraved object height limitatiion ：No Limitation
Product advantages:
1. the power transfer software that supports 100mw / 200mw / 300mw / 500mw / 1000mw / 1600mw / 2500mw
2. rapid of the laser head design + adjustable focal length of the upper and lower design
3. the maximum engraving area of 35 * 50CM
4. thick acrylic + aluminum material production, but also on the appearance of tall solid
5. the software is easy to use, free upgrades for life.
6. dual-motor design more compact and more precise
7. carving unlimited object height, can be placed directly on top of work * (such as directly on the table carving the desktop)
8. parts shipped ,after receipt of the goods need to be assembled before use on their own
Note:
Can Engrave
Wood, Plastic, PCB, Paper, Bamboo, Ox Horn, Leather,
Sponge Paper, etc.
Can not engrave
Metal(7w and 10w can), Stone, Ceramics, Glass, Reflective or Transparent Material
To avoid burn circuit boards, before shipment we will unplug the X, Y axes two lines. After receipt of the pro-marked in accordance with the wiring can be inserted.

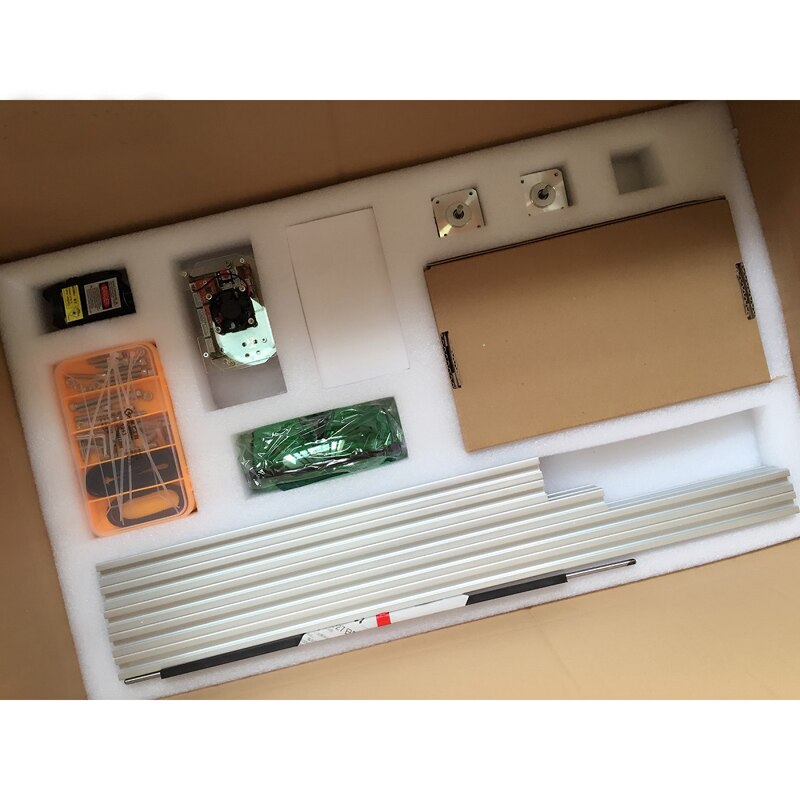

Shipping list:
1x Machine
1x power supply,
1x Data line
1x protective glasses
1x Hex wrench
Note:
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
2. This is a whole assemble set and needs to assemble by your own.
3. Please note that the laser module should work less than half an hour per time, and then work again after cooling down.
Note: Due to differences in light and screen, the color of the item may be slightly different from the picture. Due to manual measurements, differences of 1-3 cm are Allowed. Thank you.
