This is a kind of fine quality carving machine accessory, suitable for both single-arm engraver and desktop engraver. The focus-distance of 5.5W, 10W, 20W is adjustable, 30W fixed-focus, you can choose according to your demands. Recommended distance between carvinghead and carving item is 30-50mm. For protect carvinghead and prolong the service time, we recommended 5 min rest after 2 hours use. You can have a try.

Features:
Recommended distance between carvinghead and carving item is 30-50mm.
The focus-distance of 5.5W, 10W, 20W is adjustable, 30W fixed-focus, you can choose according to your demands.
Screw installtion, simple and can fixed tightly on the arm, help ensure smooth carving effect.
Strong and powerful, with fine engraving effect and low failure rate.
It can be sculpted very quickly, taking only a few minutes to complete a sculpture.
With strong compatibility, suitable for most engraving machine in the market.

Note:
Prohibit shoots directly on eyes, no matter human or animals.
Please wear protective glasses.

5.5W:
Suitable for engraving the material can be burned by fire, such as wood, bamboo, paper, plastics, leather, PU leather, PVC, rubber and etc..
Also can be used for cutting papers,leather, non-woven cloth, flocked fabric, and etc. which is no thicker than 1.5mm.

10W:
Suitable for engraving the material can be burned by fire, such as wood, bamboo, paper, plastics, leather, PU leather, PVC, rubber, colorful ceramics, colorful aluminum, cobblestone and etc..
Also can be used for cutting paper, leather, non-woven cloth, flocked fabric, and etc. which is no thick than 2mm.

20W:
Suitable for engraving the material can be burned by fire, such as wood, bamboo, paper, plastics, leather, PU leather, PVC, rubber, cobblestone, colorful ceramics, colorful aluminum, some stainless steel, phoneshell, baking varnish, electrophoretic-coated and etc..
Also can be used for cutting paper, leather, non-woven cloth, flocked fabric, and etc. which is no thicker than 3mm.
Light-tight plastics and black acrylic material is no thicker than 2mm.

30W:
Suitable for engraving the material can be burned by fire, such as wood, bamboo, paper, plastics, leather, PU leather, PVC, rubber, colorful ceramics, colorful aluminum, cobblestone, some stainless steel, phoneshell, baking varnish, electrophoretic-coated and etc..
Also can be used for cutting paper, leather, non-woven cloth, flocked fabric, and etc.. which is no thicker than 3mm.
Light-tight plastics and black acrylic material is no thicker than 2mm.

Specifications:
Name: Engravinghead
Input voltage: 12 V
Operation temperature: 0-70℃
Storage temperature: -40℃ to 80℃
Wavelength: 448-462nm
OutPut: continuous(CW)
Classification: class 4
Power: 5.5W, 10W, 20W, 30W (optional)
Item size:
5.5W: 30 * 30 * 100mm / 1.18 * 1.18 * 3.94in
10W: 30 * 30 * 100mm / 1.18 * 1.18 * 3.94in
20W: 40 * 40 * 103mm / 1.57 * 1.57 * 4.06in
30W: 40 * 40 * 107mm / 1.57 * 1.57 * 4.21in
Engravinghead weight:
5.5W: 165g / 5.82ounce
10W: 170g / 6.00ounce
20W: 182g / 6.42ounce
30W: 222g / 7.83ounce
Package size: 175 * 120 * 60mm / 6.89 * 4.72 * 2.36in
Package weight:
5.5W: 230g / 8.11ounce
10W: 245g / 8.64ounce
20W: 310g / 10.93ounce
30W: 315g / 11.11ounce

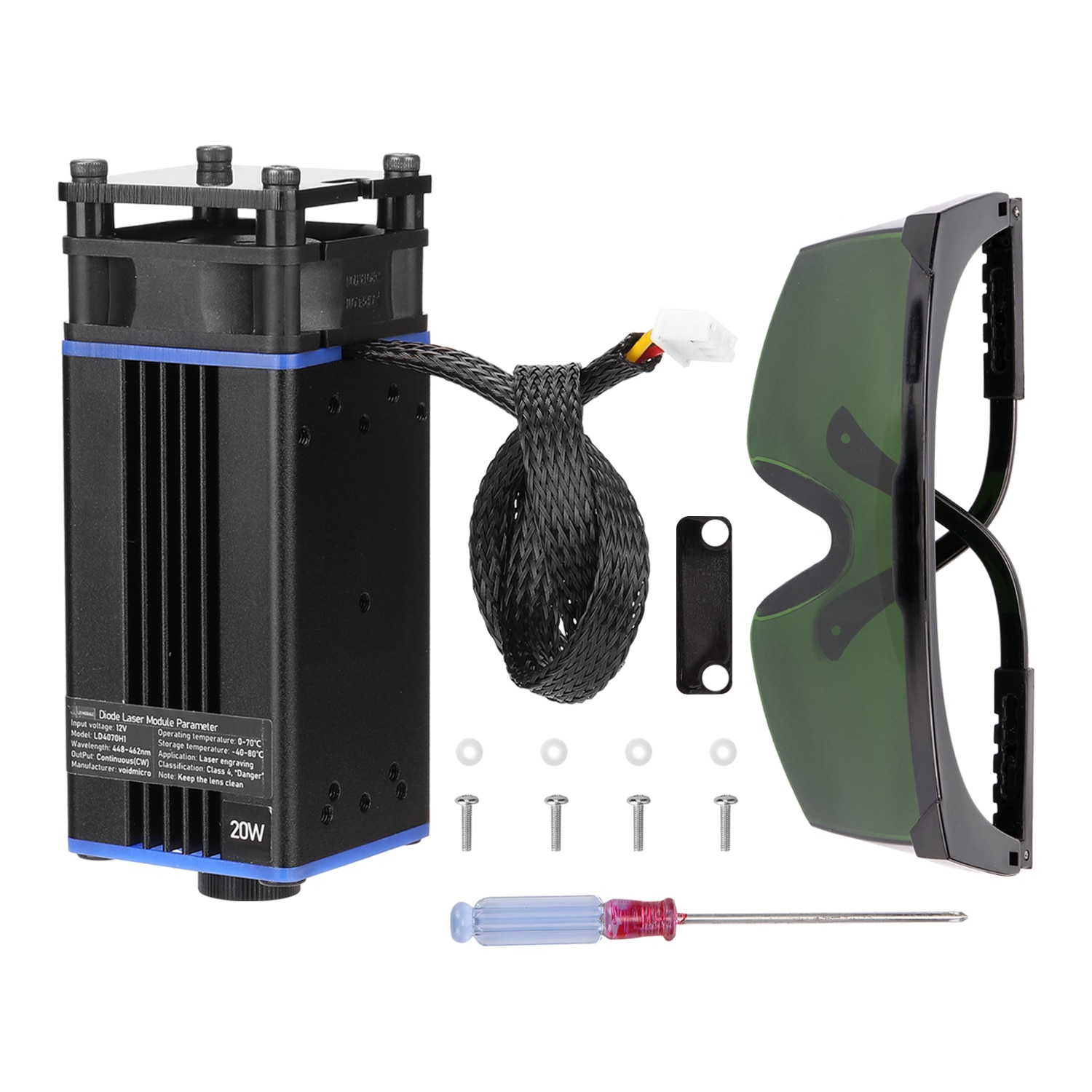

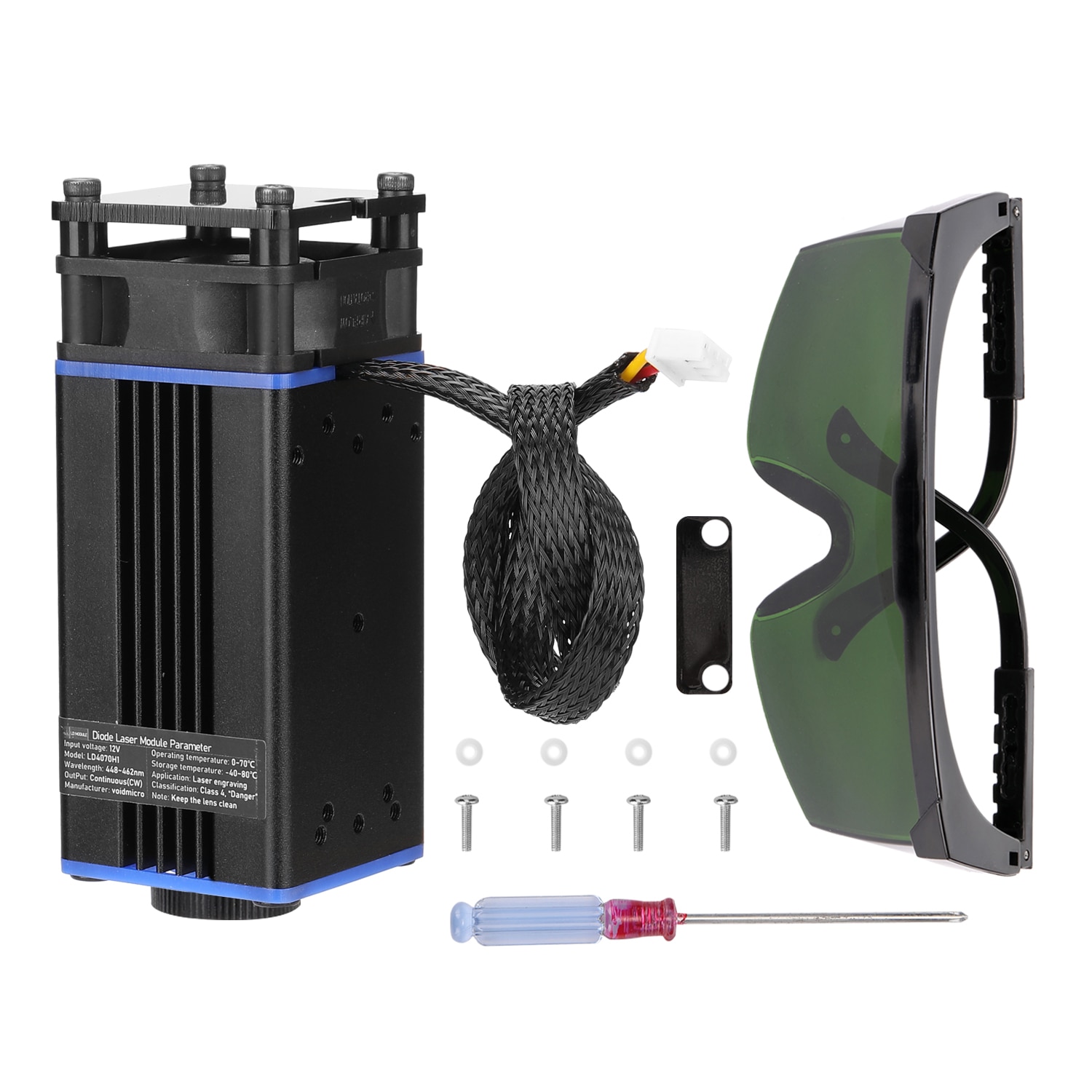

Packing List(5.5W, 10W, 20W):
1 * Engravinghead
1 * Protective Goggles
1 * Screwdriver
7 * Kraft Paper
2 * Screw
2 * Gasket
OR
Packing List(30W):
1 * Engravinghead
1 * Protective Goggles
1 * Screwdriver
7 * Kraft Paper
2 * Screw
2 * Gasket
1 * 13mm Fixed Focus-Pillar
