Description

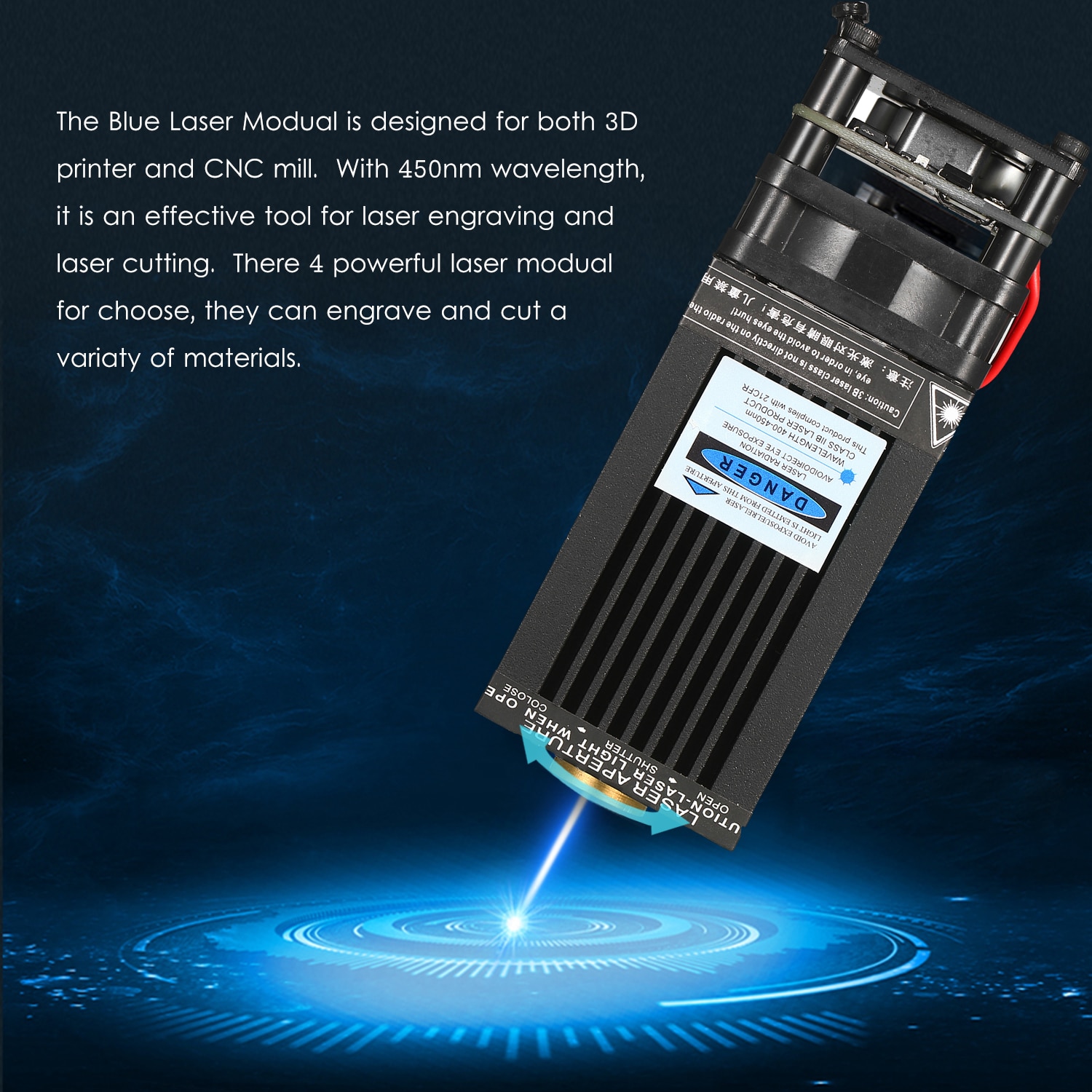

The Blue Laser Modual is designed for both 3D printer and CNC mill. With 450nm wavelength, it is an effective tool for laser engraving and laser cutting. There 4 powerful laser modual for choose, they can engrave and cut a variaty of materials.
Features:
Blue Laser Modual — Professional laser head with high speed and high stability. Bright blue-violet light, easy for locating when engraving.
More Powerful and Clean — 30W with more powerful in engraving and carving, provide a neat and clear image. High power also ensure a fast carving and cutting. ( focuse distance from carving objects keep 1.8cm)
Easy to Assemble — Small and compact, convenient and easy to install.
30W Carving Material — Wood type, some plastics, paper, bamboo, horn, thin leather (wallet), rubber stamp, tooth, PU, Printing paper, PVC, horn, crab shell, lobster, mammoth, ivory, linden root, resin, spectacle lens, metal painted surface,those kinds of flammable materials. And colored ceramics, colored aluminum, pebbles, etc. Part of stainless steel, anodized, dark electroplating, swimming paint, baking paint, wood grain transfer aluminum. Coke cans, mobile phone back shell, etc.
30W Cutting Material — Within 3mm thick paper, leather, non-woven fabrics, flocking fabrics, aircraft wood, stickers, etc. Non-transparent plastic sheet within 2mm Black acrylic sheet within 2mm
Specifications:

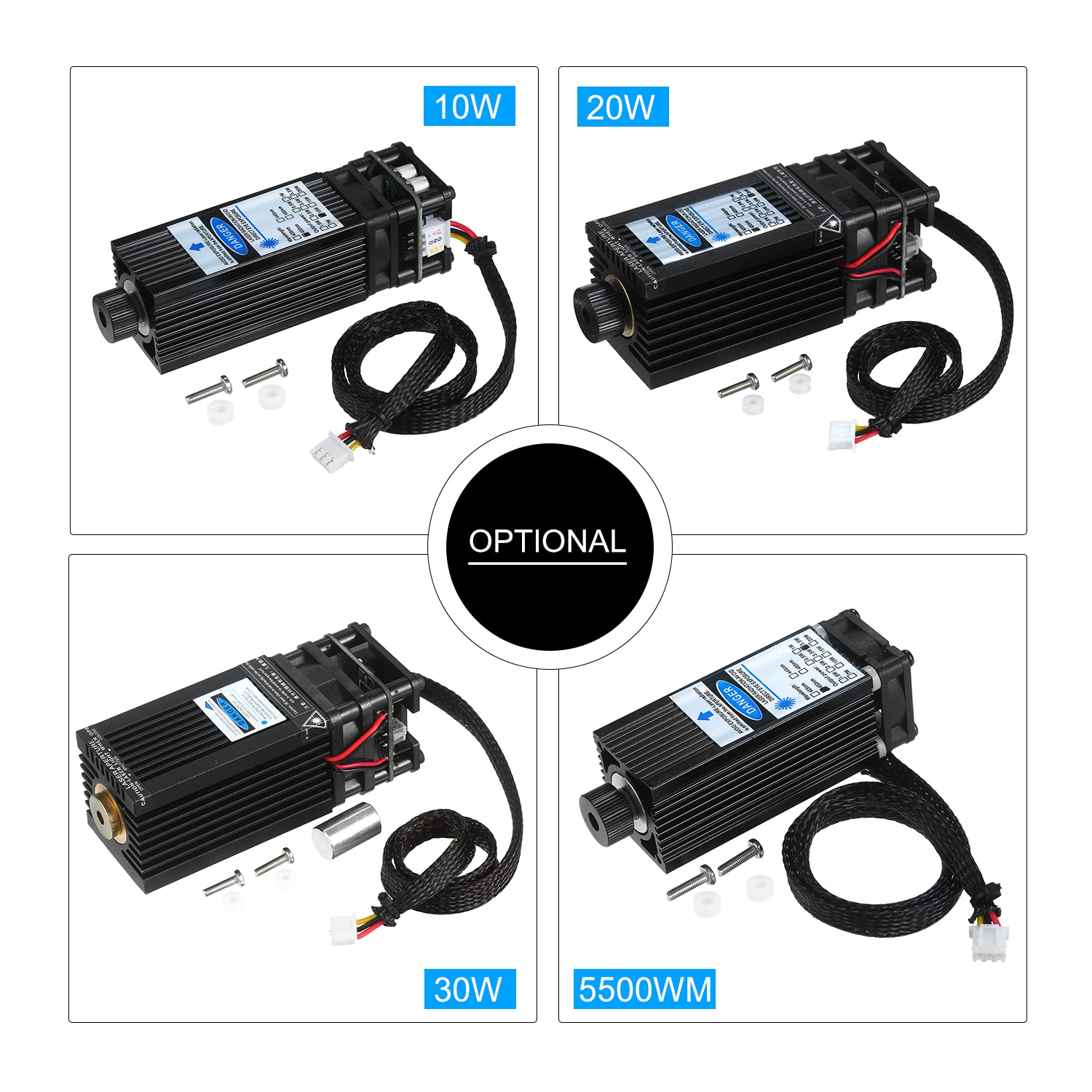

Laser Power: 5500mW/10W/20W/30W (Optional)
Material: Aluminum Alloy+Plastic
Light Color: Blue-violet
Wave Length: 450nm
Facula Form: Punctiform, Adjustable Focus(30W can not adjust focuse)
Input Voltage: 12V 2A

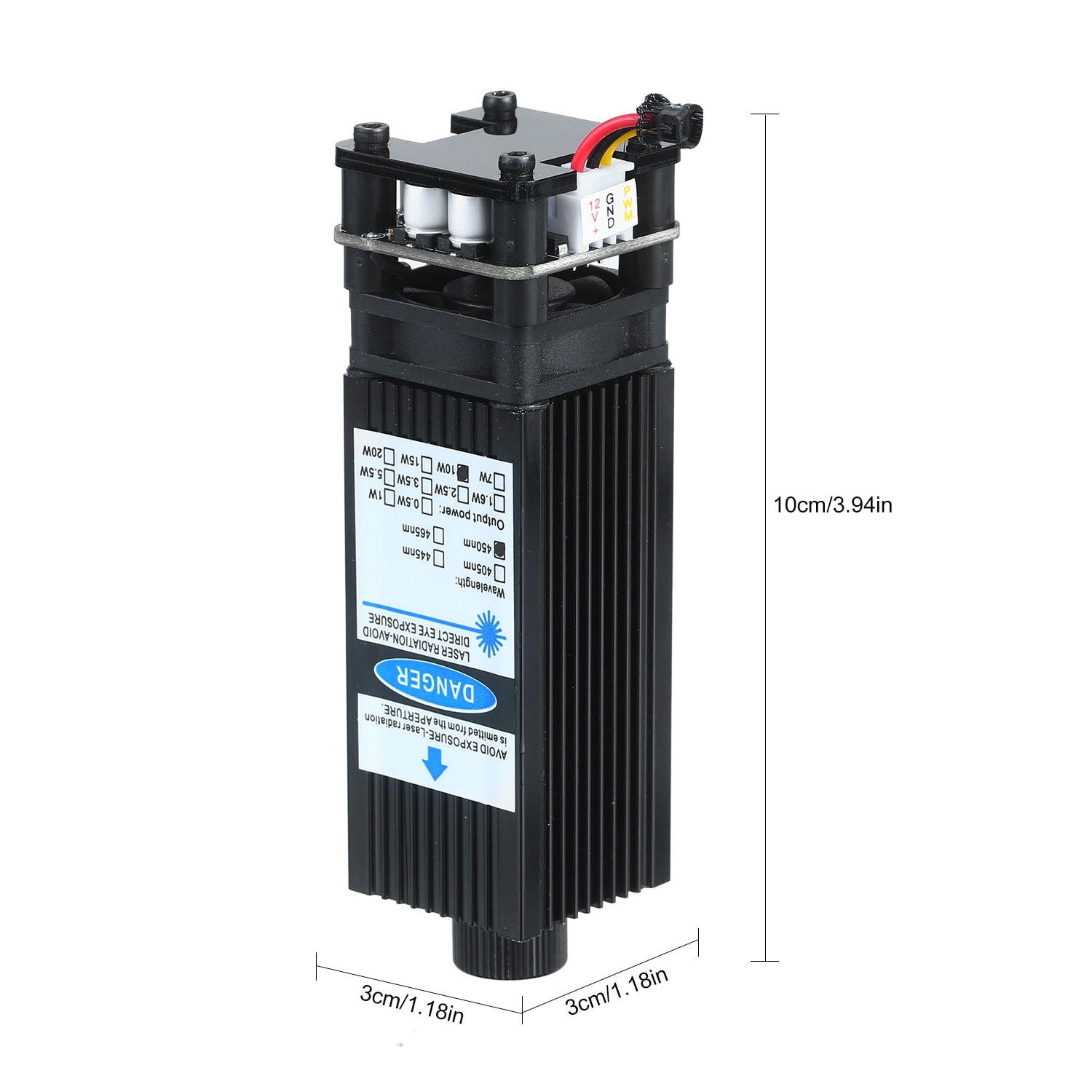

Item Size: 11*4*4cm / 4.33*1.57*1.57in
Package Size: 15*15*5cm / 5.9*5.9*1.96in
Item Weight: 281g / 9.91oz
Package List:
1 * Laser Head
<
| LASER MODEL & WORKING POWER | ||||
| MODULE INPUT | OPTICAL OUTPUT | WAVELENGTH | CARVING MATERIAL | CUTTING MATERIALI |
| 5500mw | 2500mw | 450nm | wood, banboom, paper, plastic, leather,tooth.PU. rubber. PVC. horn, crab shell, lobsto.rnammoth, Ivory, linden root, resin.spectacle ler, metal painted surface,those kinds of flammable materials. | Within 1.5mm thick paper, leather, non-woven labrics, flocking fabrics, aircraft wood,stickers. etc. |
| 10W | 3500mw | 450nm | wood, banboom, paper. plastic, leather. tooth, PU, rubber, PVC. horn, crab shell. lobstai’, mammoth, ivory, linden root, resin, spectacle lens, metal painted surface,those kinds of flammable materials. And colored ceramics, colored alumnum, pebbles. etc. | Within 2mm thick paper, leather, non-woven fabncs, flocking fabrics, aircraft wood. stickers, etc. |
| 20W-30W | 7000—8000mw | 450nm | wood, banboom, paper, plastic. leather. tooth.PU, rubber, PVC, horn, crab shell. lobstar,mammolh, ivory, linden root, resin, spectacle leis, metal painted surface,those kinds of flammable materials. And colored ceramics,colored aluminum, pebbles, etcPart of stainless steel, anodized, dark eleclroptating.swimming paint, bakir paint. wood grain transfer aluminum. Coke cans, mobile phone back shell, etc. | Within 3mm thick paper, leather, non-woven fabrics, flocking fabrics, aircraft wood, stickers, etc. Non-transparent plastic sheet within 2mm Black acrylic sheet within 2mm |
| NOTE: |
v:* {behavior:url(#default#VML);}
o:* {behavior:url(#default#VML);}
x:* {behavior:url(#default#VML);}
.shape {behavior:url(#default#VML);}
1.Special materials such as ceramics, glass, stone, crystal, jade, jade, etc.can use laser engraving paper (referred to as color paper) for auxiliary engraving, and the laser model can be selected as lOW or 20W)
2.Pure aluminum plate without surface treatment, brass, silver decoration, iron plate and galvanized plate, etc.
