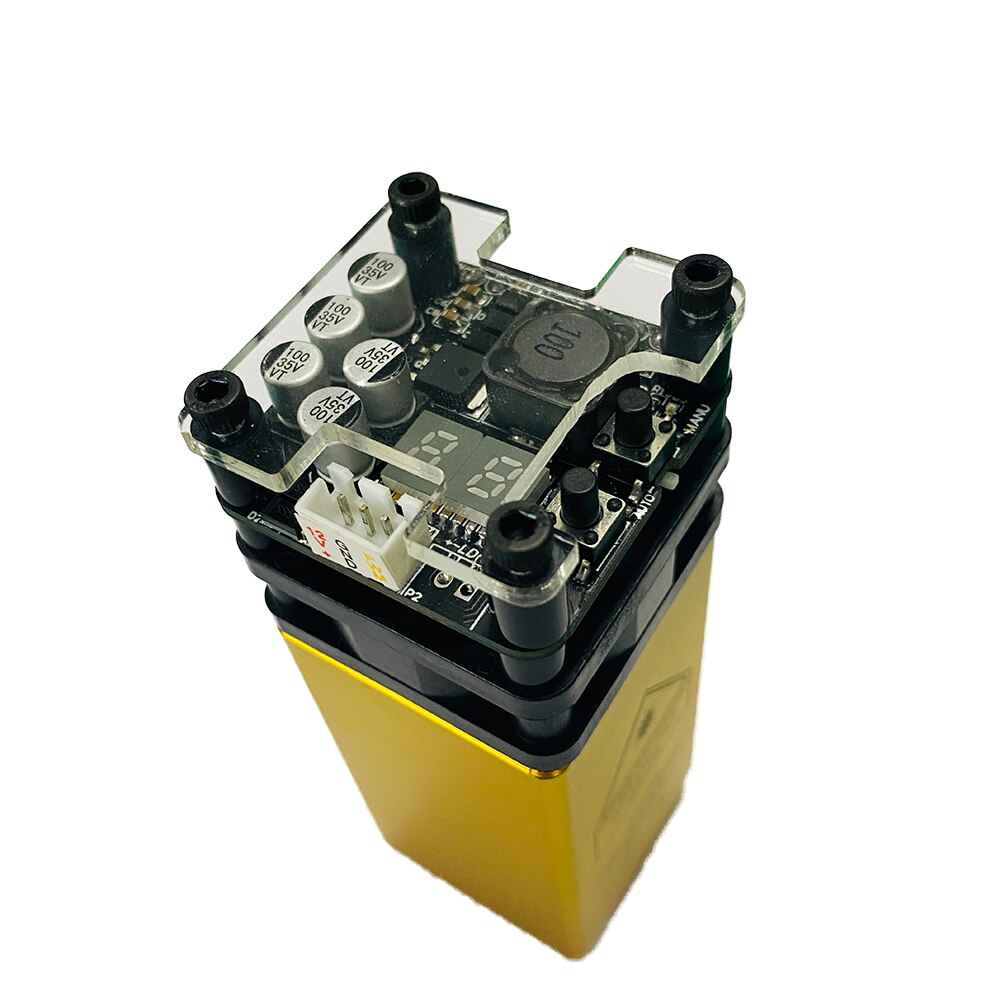

The Blue Laser Modual is designed for both 3D printer and CNC mill.  With 445nm wavelength, it is an effective tool for laser engraving and laser cutting.





Material: Copper + Aluminum

Power: 30W（output power about 10W)

Wave Length: 445nm

Input power:12V 5a

Accuracy： 0.02mm

Drive Position: Behind



• Is the Power Adjustable: PWM can be adjusted/software can control to adjust
• Drive Protection: Surge protection, overvoltage protection
• Control Line Installation Method: Pluggable 3pin （Red: 12V, Black: GND, Yellow: PWM)
• Focus Range: 2cm
• Power can be adjusted manually
• Can display temperature/power
•
•
• Lifetime: 10000-20000H

  Warranty Period: 1-year, during that time, if it has problem or broken, we can resend !!!

•

•

•



1*30W laser

1*glasses

1* 3pin-3pin cable

1* 3pin-4pin cable

1*   Focusing column（2cm)
