Description

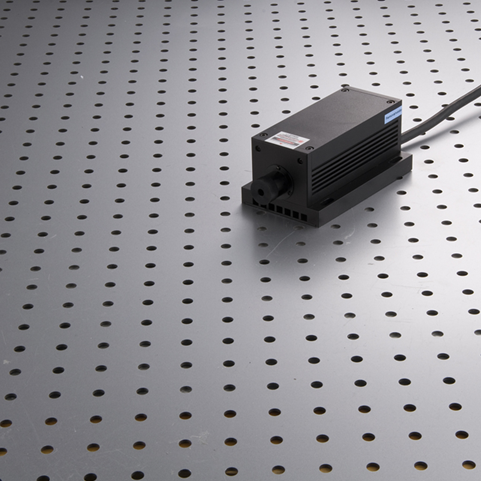

303nm 300nm CW UV Laser Solid State DPSS Source Laser solution

There are 2 types, Water cooled or air cooled.

Wavelength (nm)：303+-1
Output power (mW)：1-5
Power stability (rms, over 4 hours) ：<10%,
Transverse mode：Near TEM00
Operating mode :CW
M2 factor :<2.0
Beam diameter at the aperture (1/e 2 , mm) :<1.5
Beam divergence, full angle (mrad) :<6.0
Polarization Ratio :>50:1, Vertical (Horizontal Optional)
Warm-up time (minutes) :<10
Pointing stability after warm-up (mrad) :<0.05
Beam height from base plate (mm) :27.4
Operating Temperature (C): 10-35
Modulation option：TTL on/off, 1Hz-1kHz, 1kHz-10kHz, 10kHz-30kHz; and Analog modulation optional

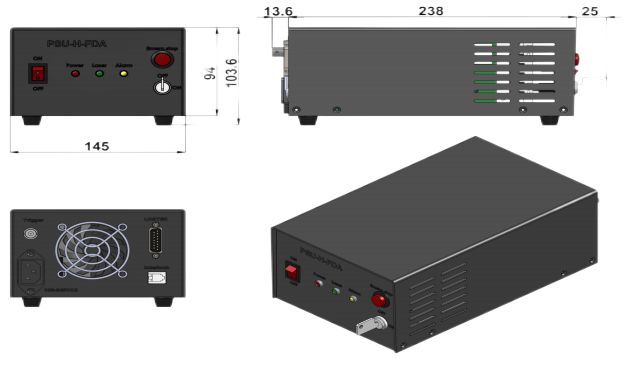

Power supply (90-264VAC) :PSU-H-LED/PSU-H-FDA/PSU-SR
Expected lifetime (hours) :10000
Warranty :1 year
