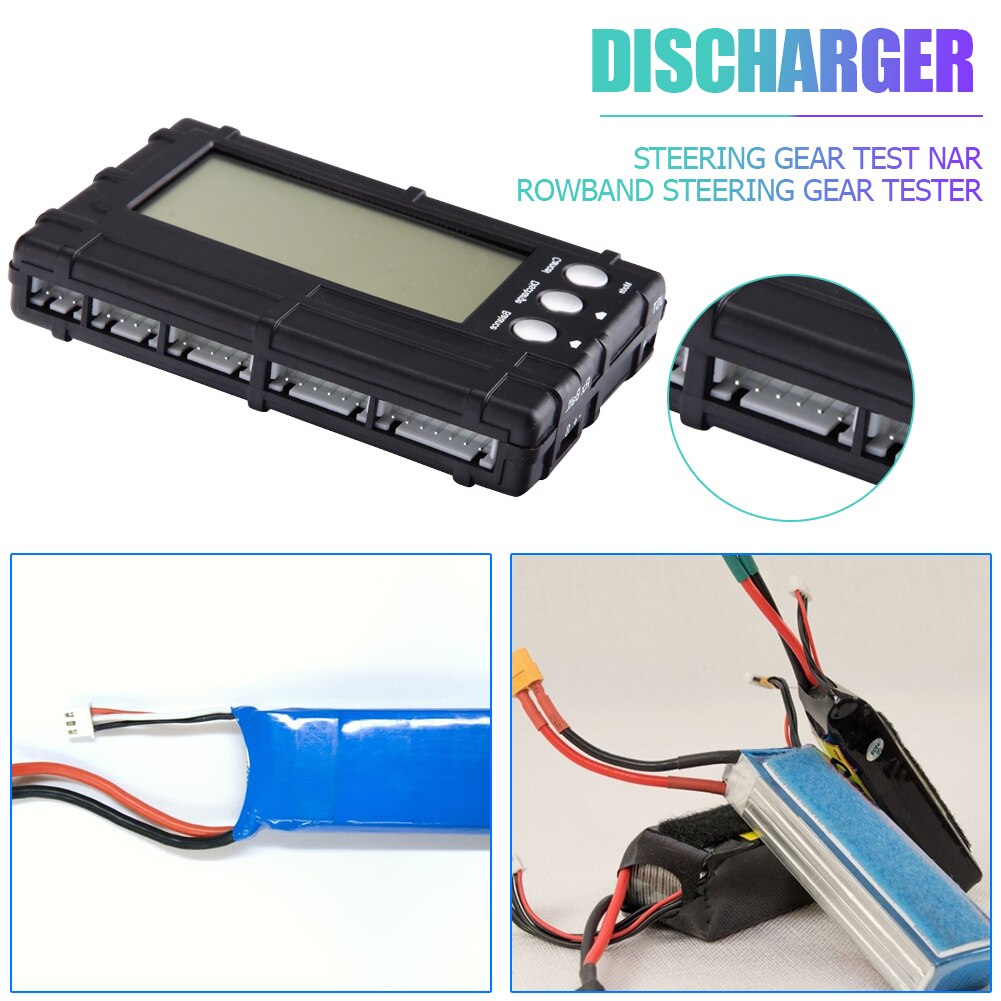

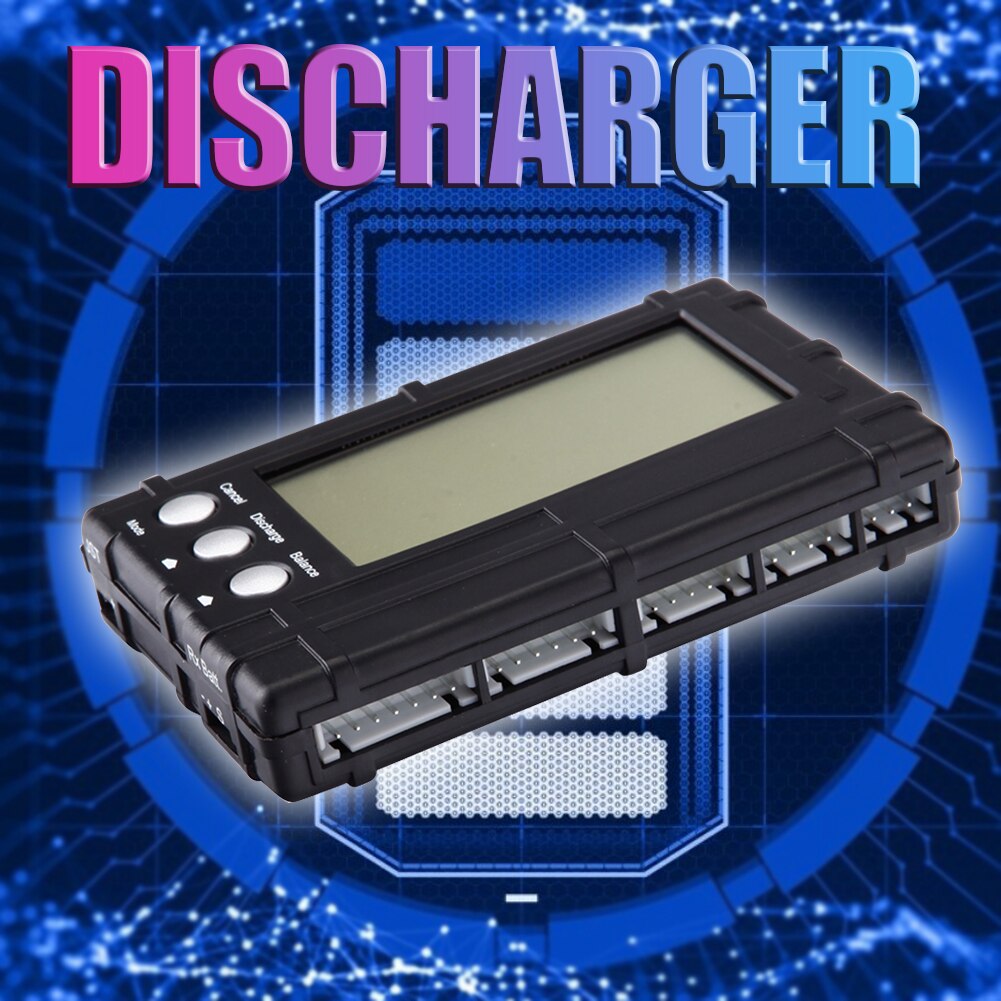

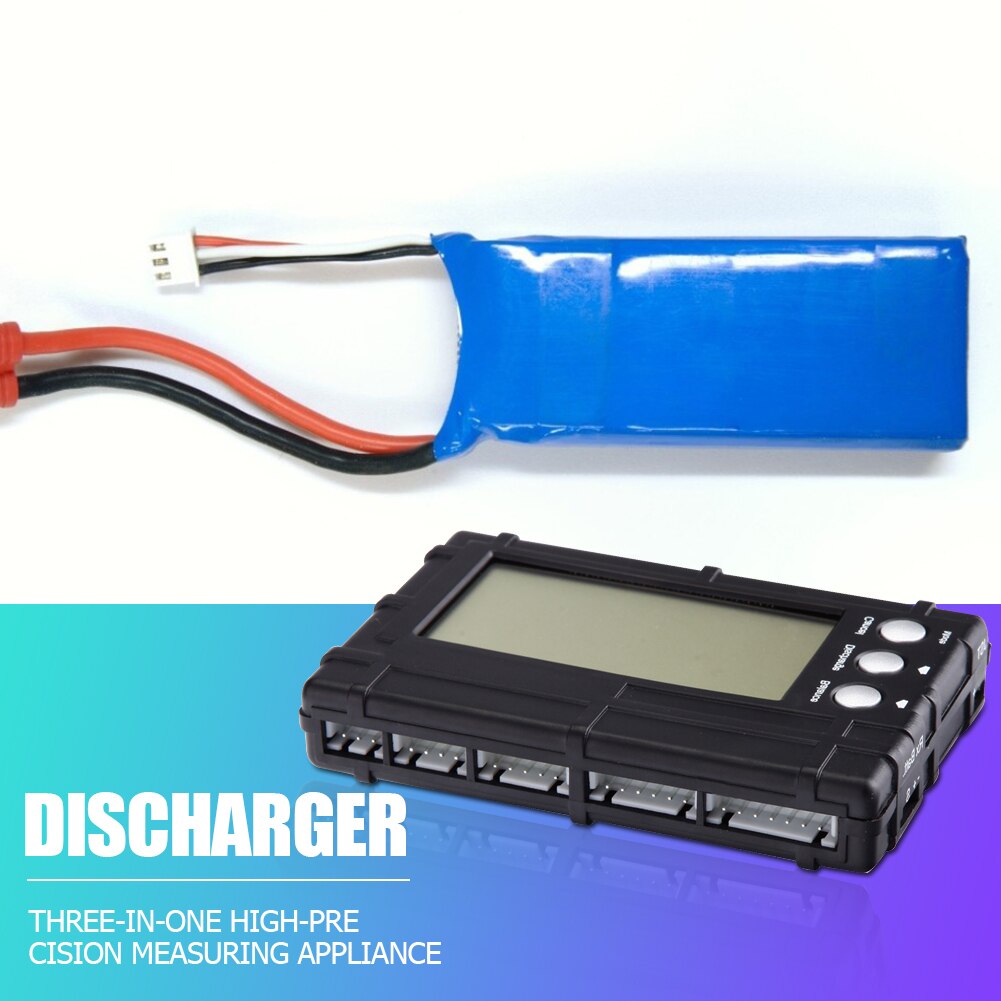

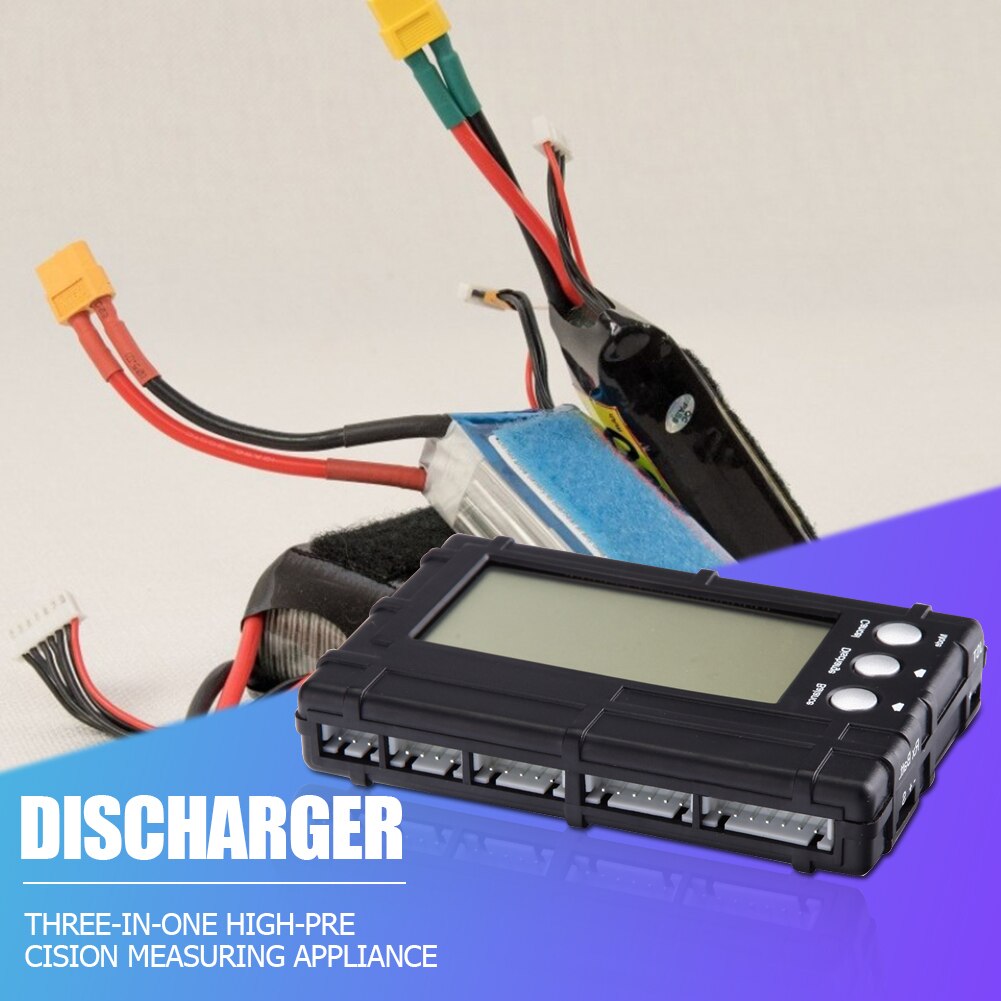

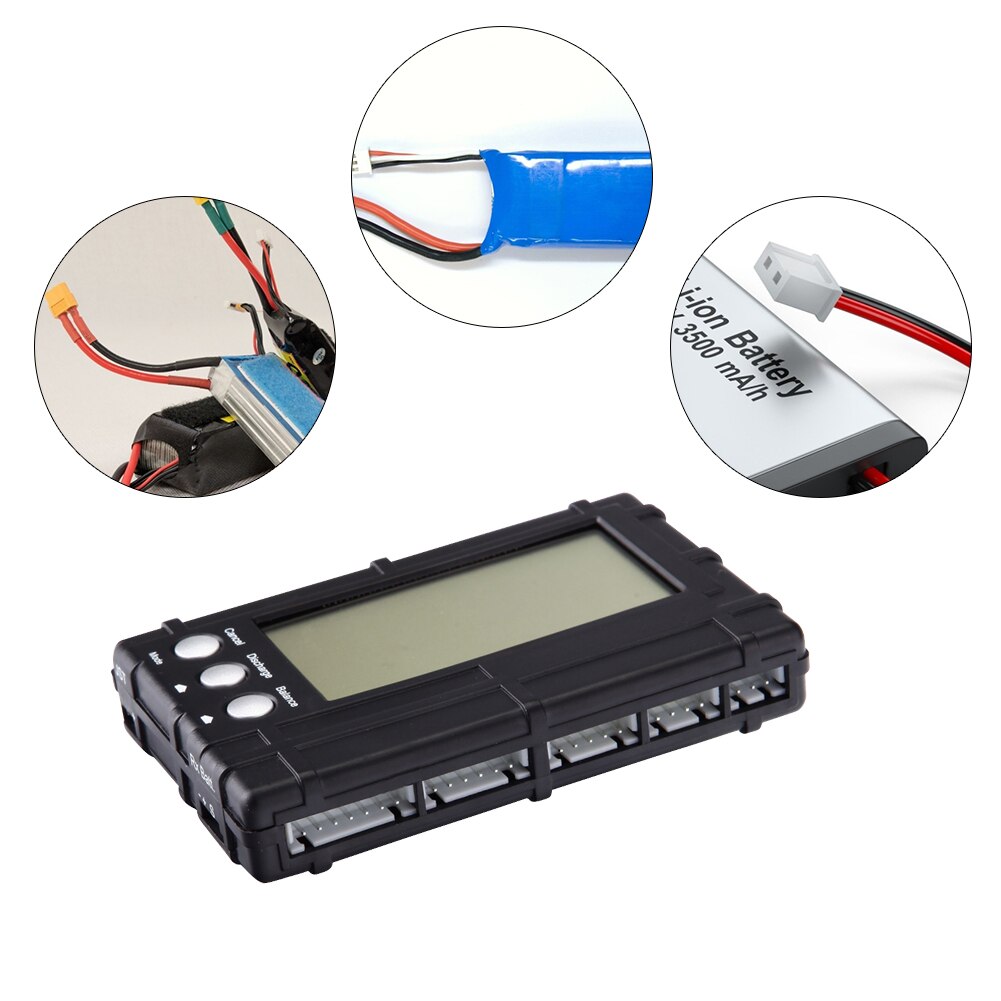

3 in 1 LCD RC Battery Discharger Balancer Meter Tester for 2-6s Lipo Li-Fe Battery Voltage Meter

Feature:

Balaner: The balance function can be executed before/after battery charged or during battery charging process, to ensure battery pack keeping in excellent condition.

Convenient to use: it supplies instant voltage reading and indicates abnormal cell immediately.

Application: Allow Li-Polymer/Li-Fe 2-6 cell balancing and discharging.

Practical: With its JST connector for external power,the balancer measures voltage of receiver battery.

Specification:

Measurable battery type and amount:

Li-Polymer/Li-Fe 2-6 Cell (standard voltage 7.4V-22.2V using divided voltage connector)

Receiver battery: 1.2V-8.5V DC (Not battery type limit, but need external power 7.4V-11.1V, use JST connector)

Balance voltage setting range (lower limit): 2.0V-3.9V

(pre-setting value 3.3 V)

Discharge voltage setting range (lower limit): 3.0V-4.2V

(pre-setting value 3.9V)

Discharge current (4.0V/cell): approx. 450mA

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.
