Specification parameter:

Host size: long 69mm* wide 30mm* high 30mm

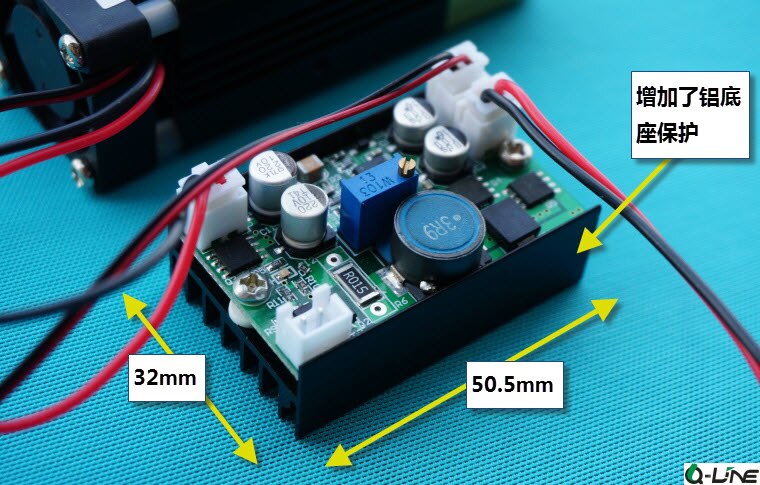

Circuit size: long 47.5mm* wide 31.5mm* high 16mm (aluminum base reference image above)

Output wavelength: 445 NM

Output power: 2000mW 3500mW 4000mW 1500mW optional

Cooling mode: aluminum cooling

Modulation frequency: can be modulated (0-20kHz)

Job characteristics: continuous work

Surface treatment: Black

Shell material: Aluminum

Circuit control: constant current

Reverse protection: with automatic recognition of positive and negative poles

Working voltage: DC=12V

Working current: I<4A

Preheating time: no

Start setting: slow start 1 second

Working temperature: -10 degrees C ~ 40

Storage temperature: -10 ~ 40 C

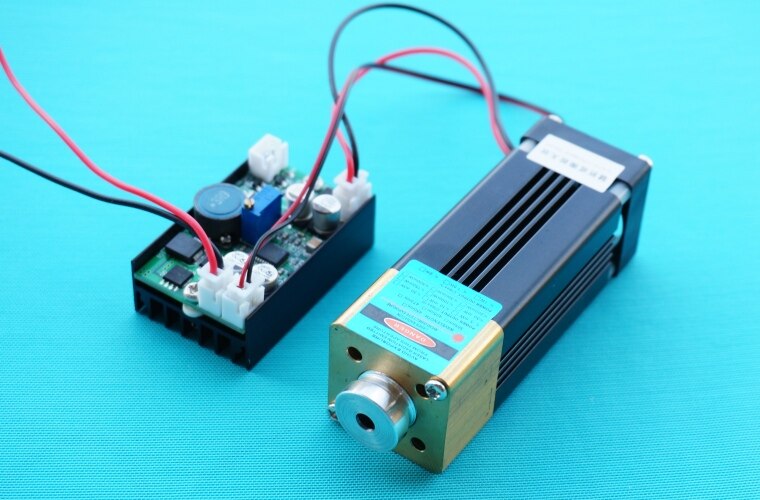

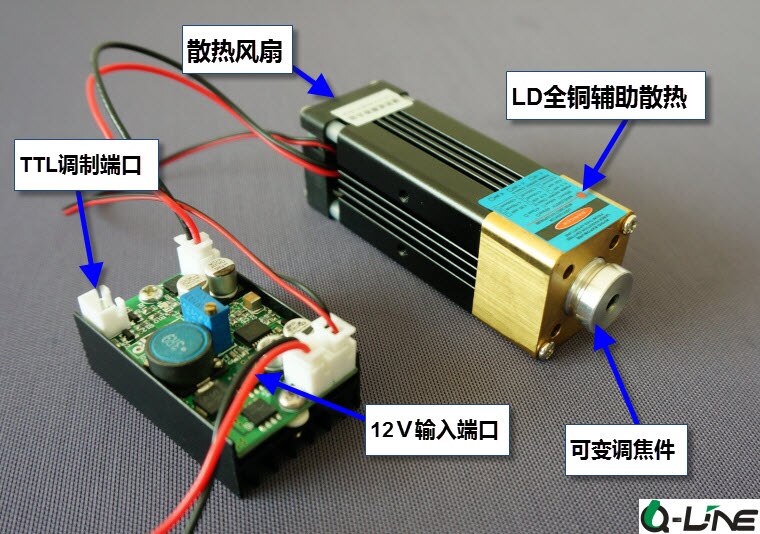

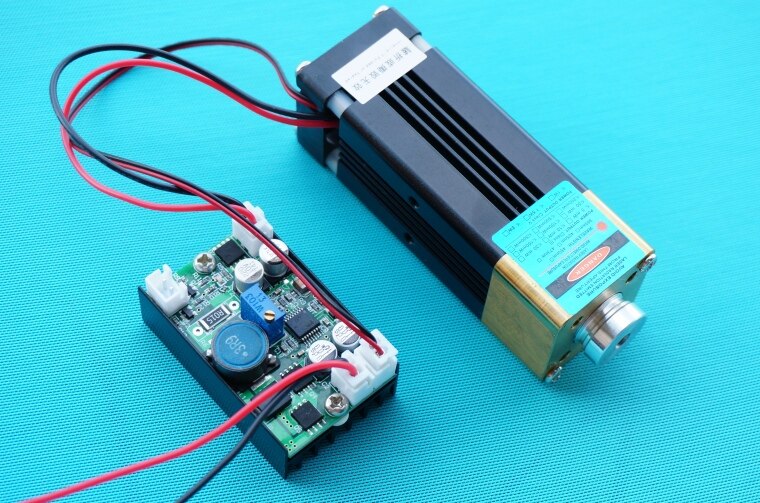

Structure features: laser tube + lens + heat sink

Note: the power is external.

Special note: the input voltage is 12-14V, the overpressure will cause the circuit and module instant damage, if you have any technical problems, please consult, thank you!
