Description
- Brand Name: JCCON
- Origin: CN(Origin)
- Application: Hight Voltage
- Package Type: Through Hole
- Rated Voltage: 250V
- is_customized: Yes
- Model Number: E003-A003-250V-Set
- Structure: Fixed Capacitor
- Type: Aluminum Electrolytic Capacitor
- Operating Temperature: 105℃
- Brand: JCCON
- Series: Horn Type Capacitor
- Model: 220UF 330UF 470UF 680UF 1000UF 1500UF 2200UF

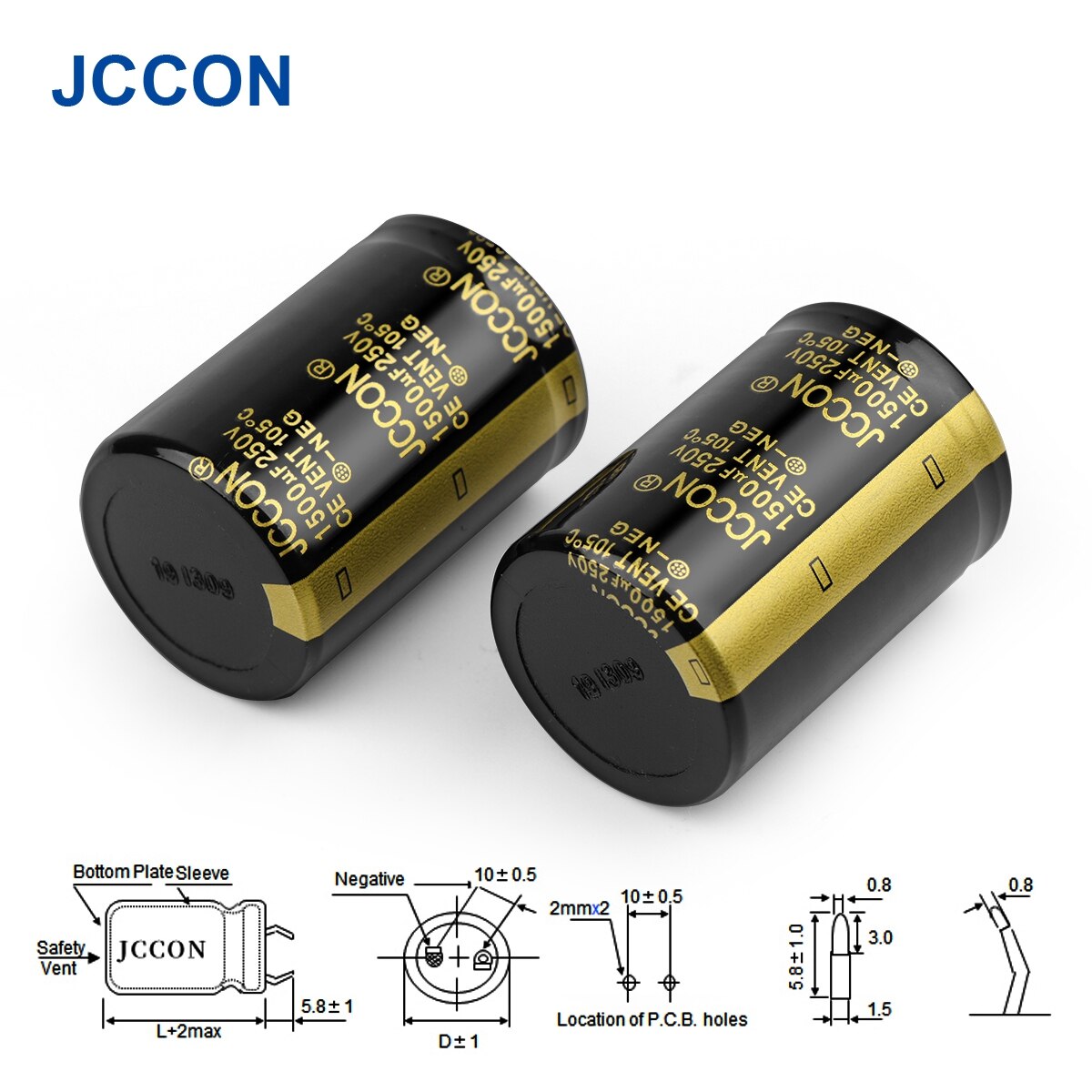

- Foot distance: 10mm
- Shape: Radial lead wire
- Adjustment method: Fixed
- Temperature Resistance: 105 ℃
|
Series |
Horn Type Capacitor |
|
Brand |
JCCON
|
|
Model |
250V220UF 250V330UF 250V470UF 250V680UF 250V1000UF 250V1500UF 250V2200UF
|
|
Foot distance
|
10mm
|
|
Lead type
|
Radial lead wire
|
|
Shape
|
Cylindrical
|
|
Adjustment method
|
Fixed
|
|
Temperature Resistance
|
105 ℃
|
|
Characteristic
|

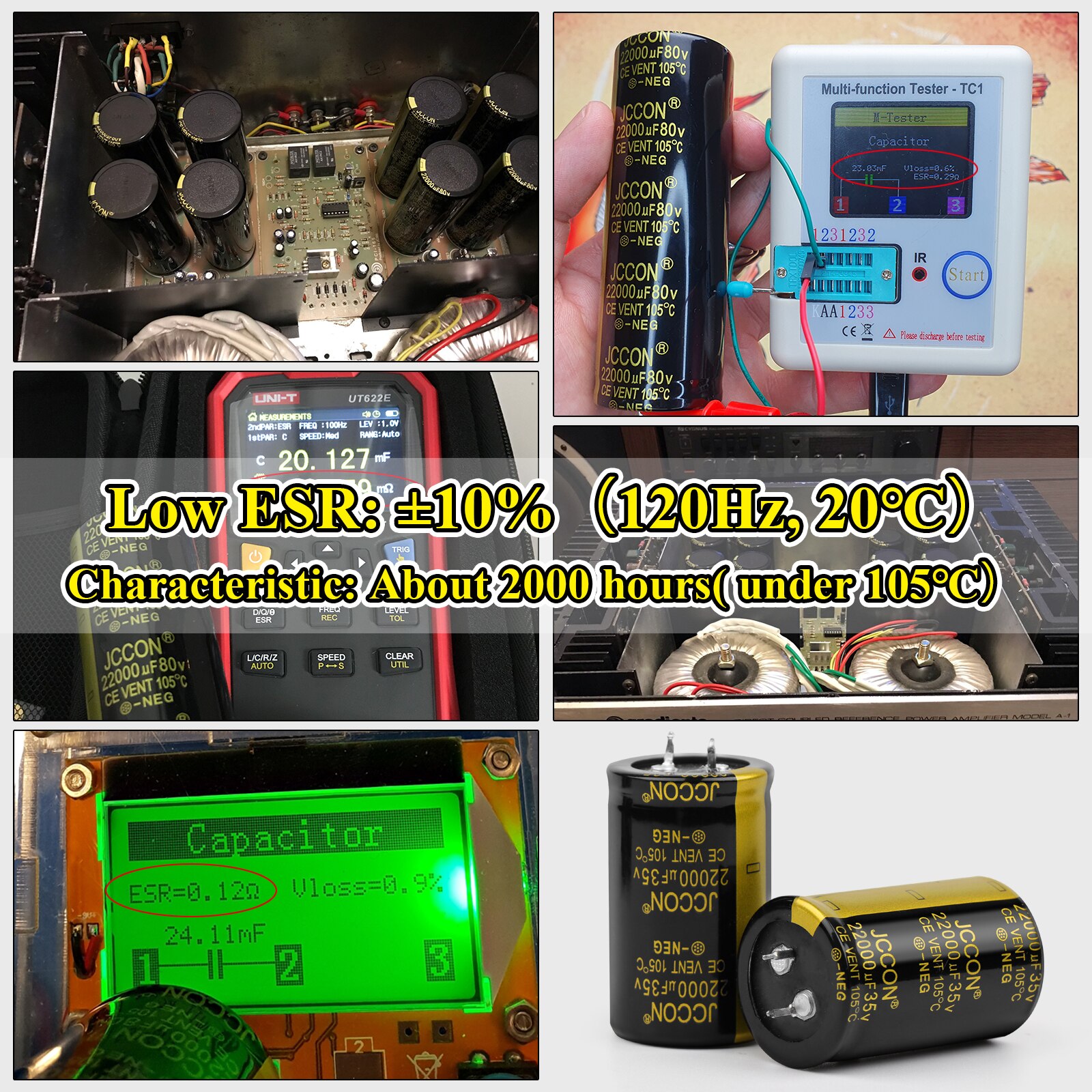

About 2000 hours( under 105℃）
|
|
Electrostatic capacity error |
±20%（120Hz, 20℃）
|
JCCON Series:
Product Features:
Attention please:
Package Includes:
2Pcs/Lot Horn Electrolytic Capacitor
Model: As your choise!
Quantity: As your choise!

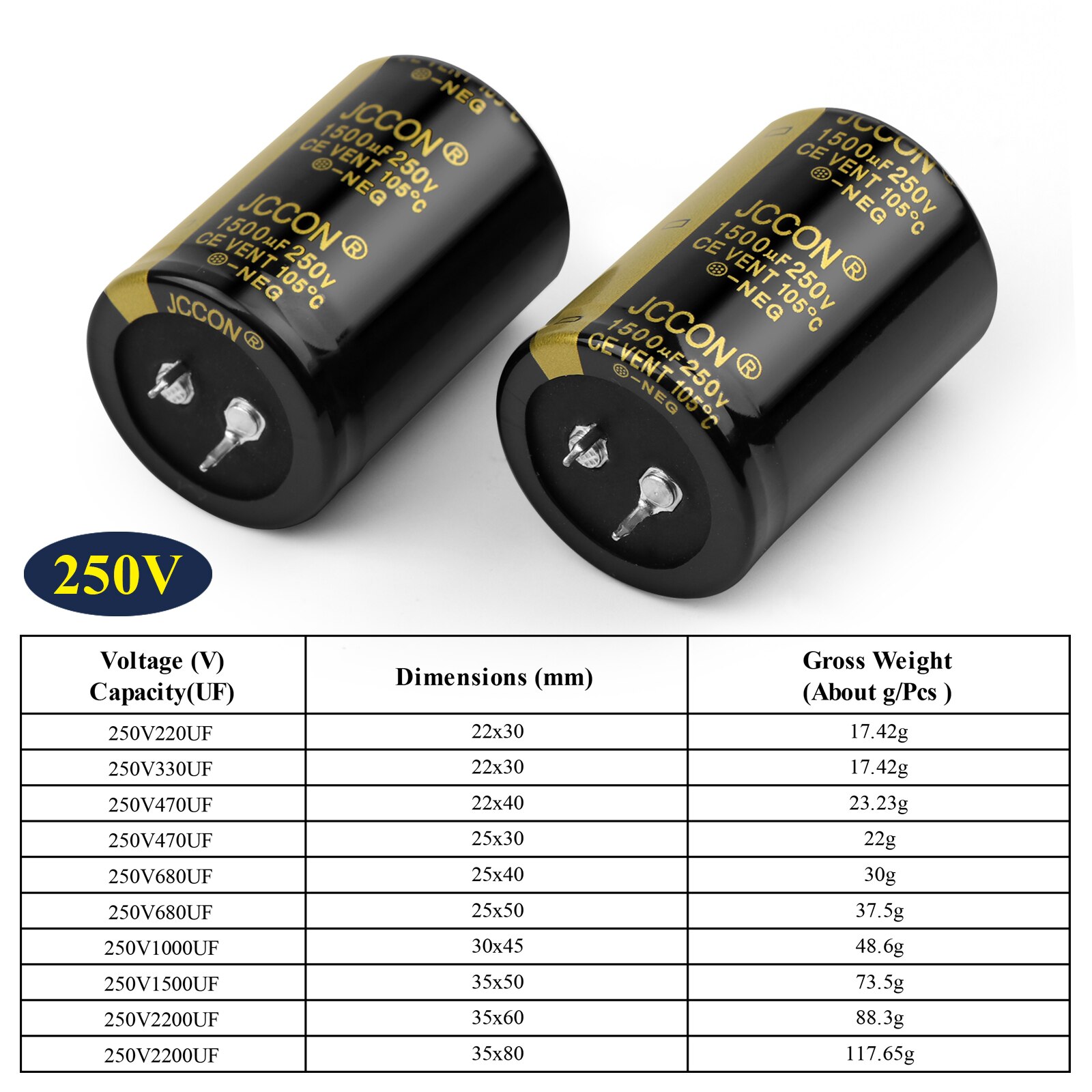

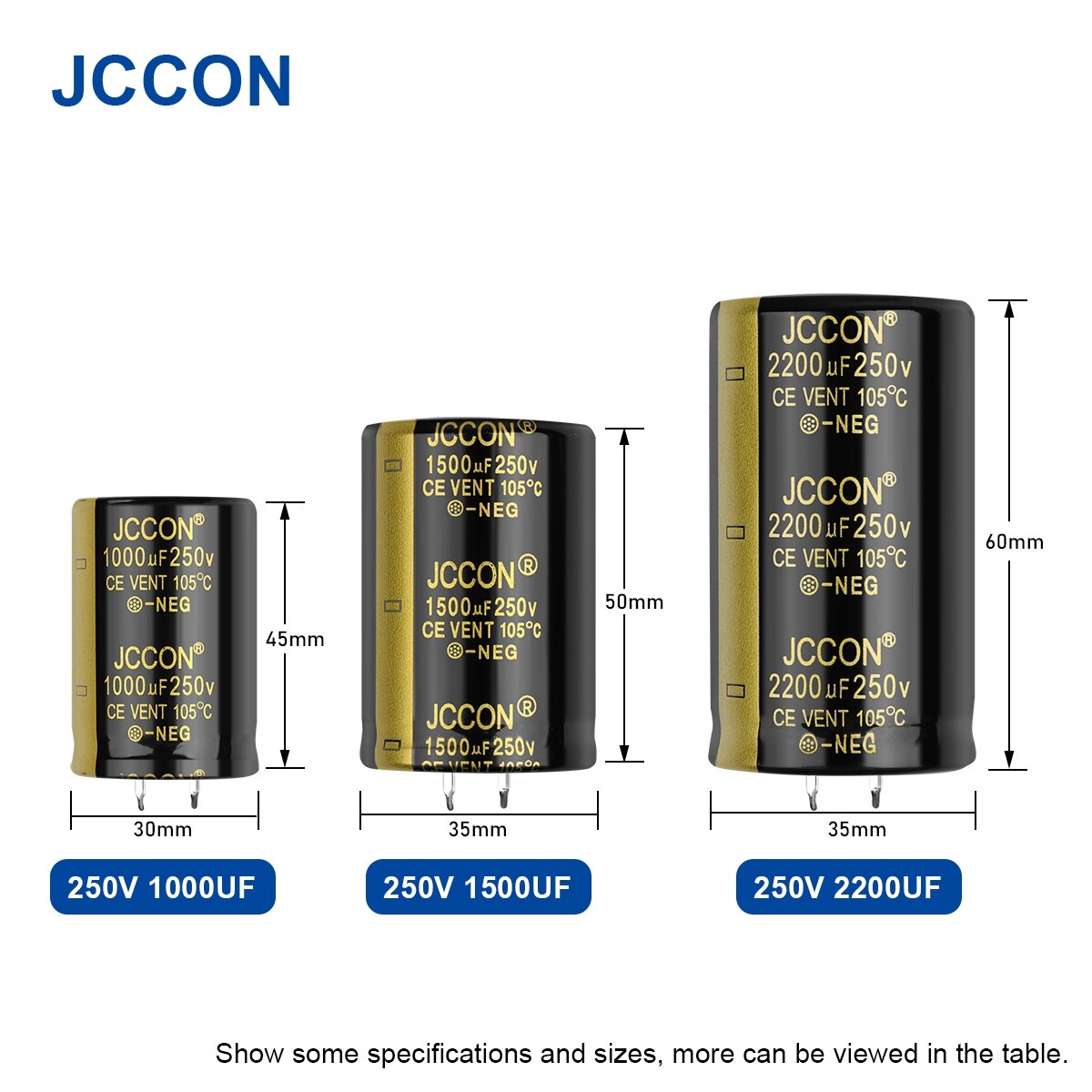

250V220UF 22x30mm
250V330UF 22x30mm
250V470UF 22x40mm
250V470UF 25x30mm
250V680UF 25x40mm
250V680UF 25x50mm
250V1000UF 30x45mm
250V1500UF 35x50mm
250V2200UF 35x60mm 2Pin
250V2200UF 35x80mm 4Pin
