Description
- Brand Name: Eiechip
- Origin: CN(Origin)
- Condition: New
- Type: Voltage Regulator
- Model Number: Motor Speed Controller Drive Module
- Application: Computer
- Operating Temperature: 0-100
- Supply Voltage: 3V 5V 6V 12V 24V 35V
- Dissipation Power: 2A 3A 5A
- Package: SMD
- Dimming: Dimming controller
- Dimming 1: motor DC-DC
- Dimming 2: LED dimmer 2A 3A 5A
- Dimming 3: Governor Switch
- Dimming 4: speed controller
- Dimming 5: led dimmers
Note:
· The input of the DC-DC motor speed controller is direct current, and cannot be directly connected to alternating current (for example: household 220V alternating current), otherwise it will burn out! ! !
· Do not reverse the positive and negative terminals of the DC power supply, otherwise the governor may be damaged.
· The motor can be positive or negative. When the running direction is inconsistent with the expectation, the direction can be changed by adjusting the line sequence.
· Adjusting the potentiometer knob can change the duty cycle of the governor output and the motor speed.

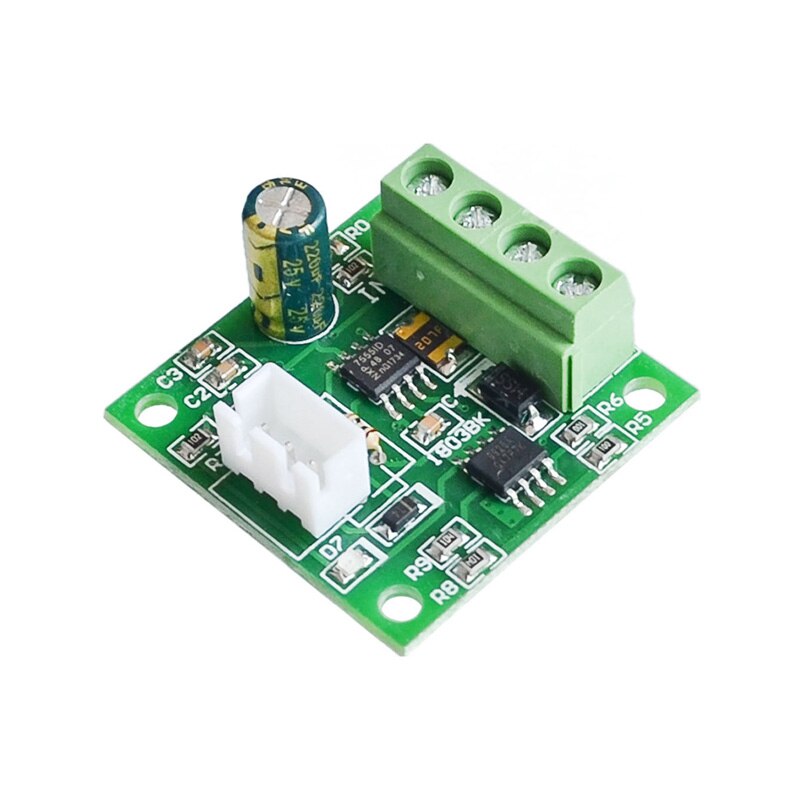

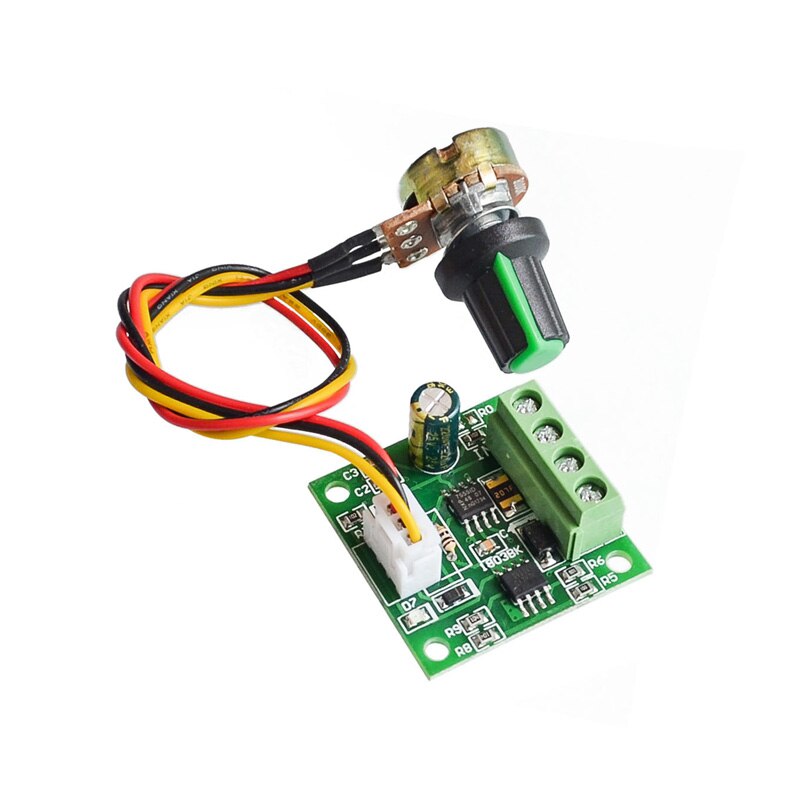

PWM DC-DC motor speed controller 1.8V 3V 5V 6V 12V 2A speed control module 1803BW

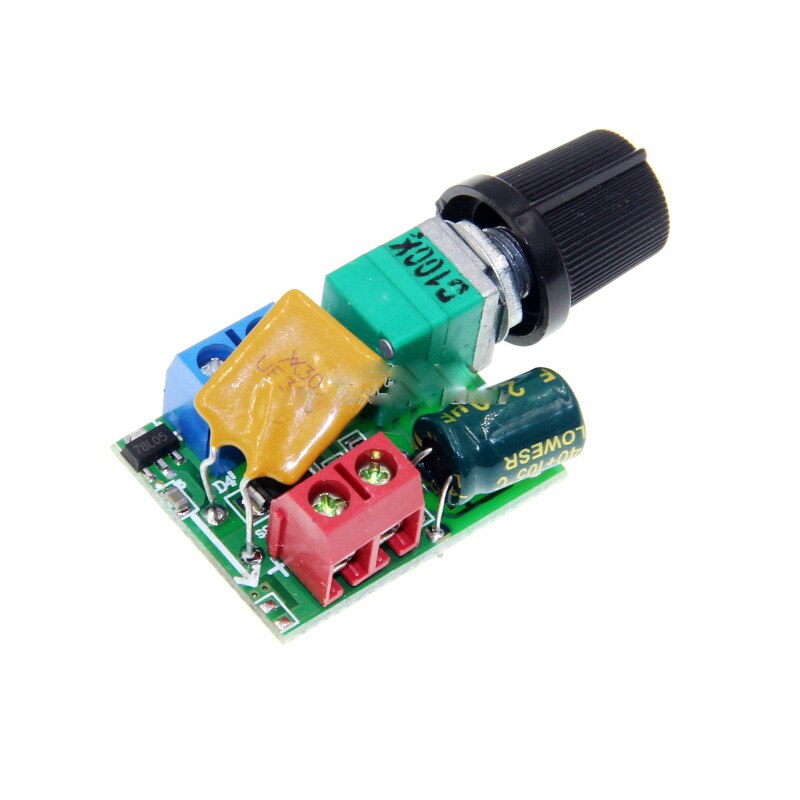

Mini DC-DC motor PWM speed controller 3V6 12 24 35V speed control switch Super small LED dimmer 5A
(1) Working voltage: DC5V-35V
(2) Control power: 90W (maximum)
(3) Quiescent current: 0.015A (standby state)
(4) PWM duty cycle: 1%-100%
(5) PWM frequency: 10khz
Shell size: 30MMx width 24MM (without handle) total height 15MM

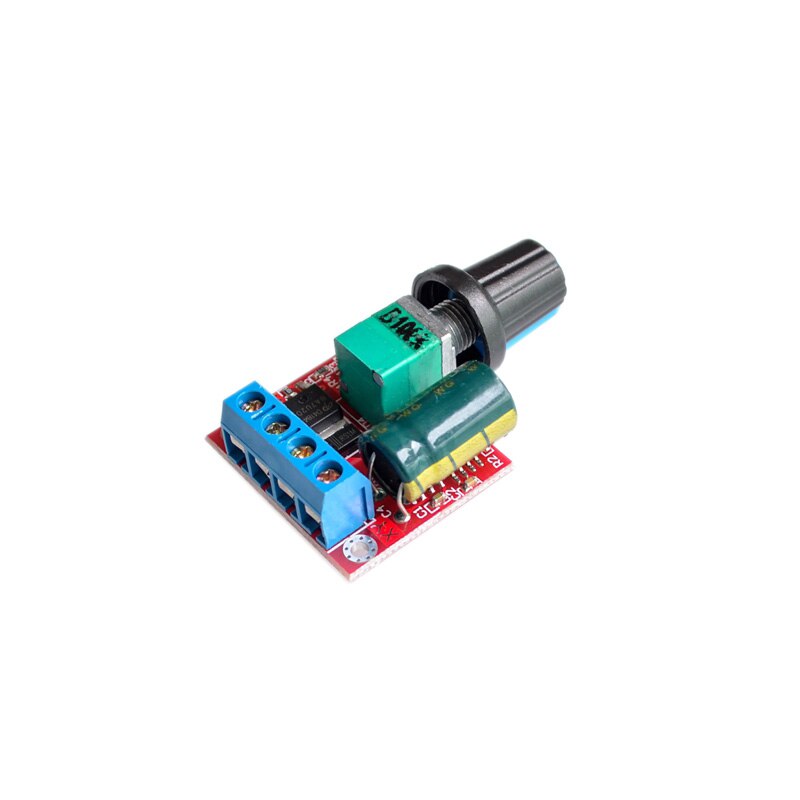

PWM DC-DC motor speed controller 5V-35V speed control switch 5A switch function LED dimmer
1. Working voltage: DC4.5V-35V
2. Output current: 0-5A
3. Output power: 90W (maximum)
4. Quiescent current: 7u A (standby state)
5. PWM duty cycle: 1%-100%
6. PWM frequency: 20khz
7. Dimensions: length 30MMx width 26MM (without handle) x height 14MM

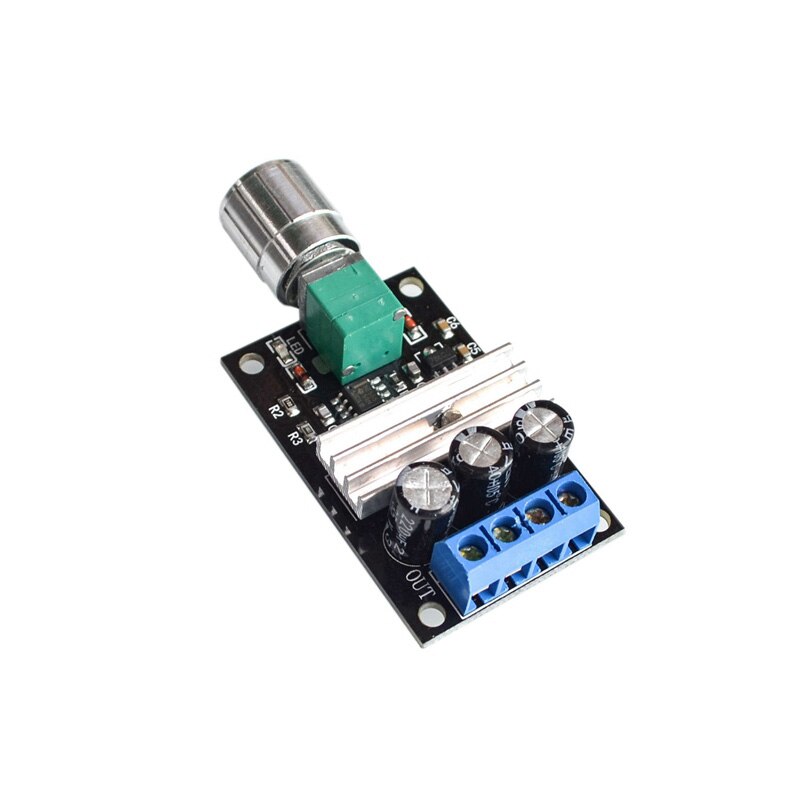

PWM DC-DC motor speed controller 6V12V24V28V 3A speed control switch 1203BK
