Description

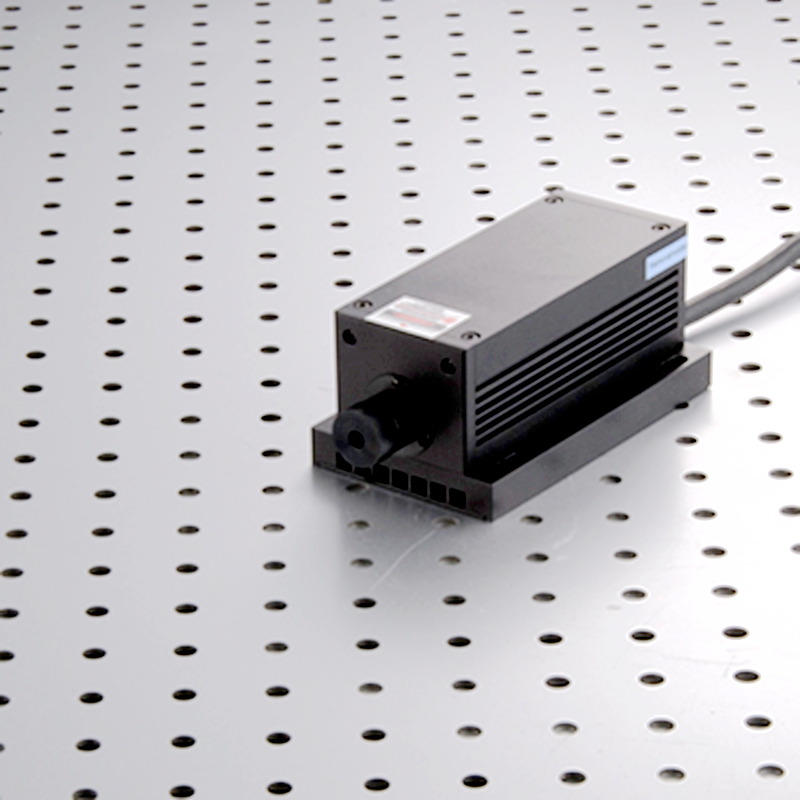

266nm DPSS Diode Pumped Pulsed Ultraviolet Laser with energy 50mj-80 mj Deep UV Laser
Wavelength ( nm ) : 266
Energy （mj）: 80
Energy Stability : ＜3%
Pulse width (ns): ＜10
Frequency (Hz): 1-20
Diameter（mm）: ≈7mm
Divergence (mrad) (1/e2): <2
Pointing stability(μrad): < 50
Beam roundness: 90%
Polarization ratio: 500:1
Cooling: Air cooling
Operation Temp（℃）: 0-40

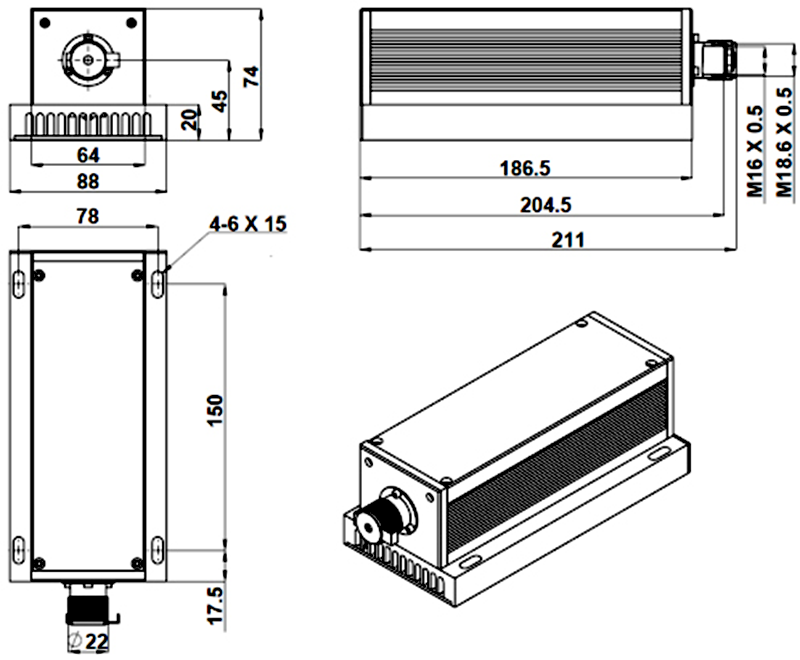

Laser head （mm）: 350*150*100
Laser weight (kg): 4
Power （mm） : 300*300*120
Power weight（kg） : 10
CW UV Laser at 266 nm on request,you can choose these features:
Passively Q-switched UV Laser
Actively Q-switched UV Laser
Picosecond Pulsed UV Laser
Fiber Laser
We also have other deep UV laser with the similar wavelengths:
