25Kpps High Speed galvo scanner for laser show lighting/RGB Laser system Scanner

$139.00

SKU: 4000036111432 Category:

Description



  • Brand Name: DYUE
  • Model Number: GT25
  • Style: DMX Stage Light
  • Power: 10W
  • Occasion: Professional Stage & DJ
  • Voltage: 90-240V
  • Product Name: Galvo Gcanner
  • Scanning Speed: 25Kpps
  • Scanning Angle: 40 Degrees
  • Power Supply: DV15V
  • Feature: Laser Galvanometer

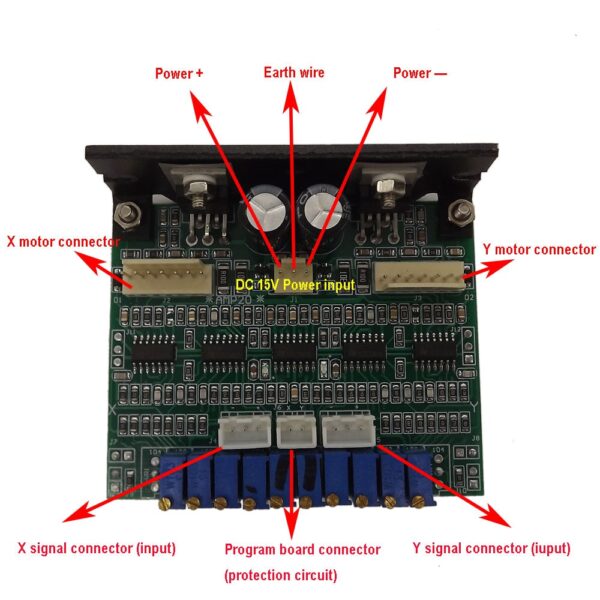

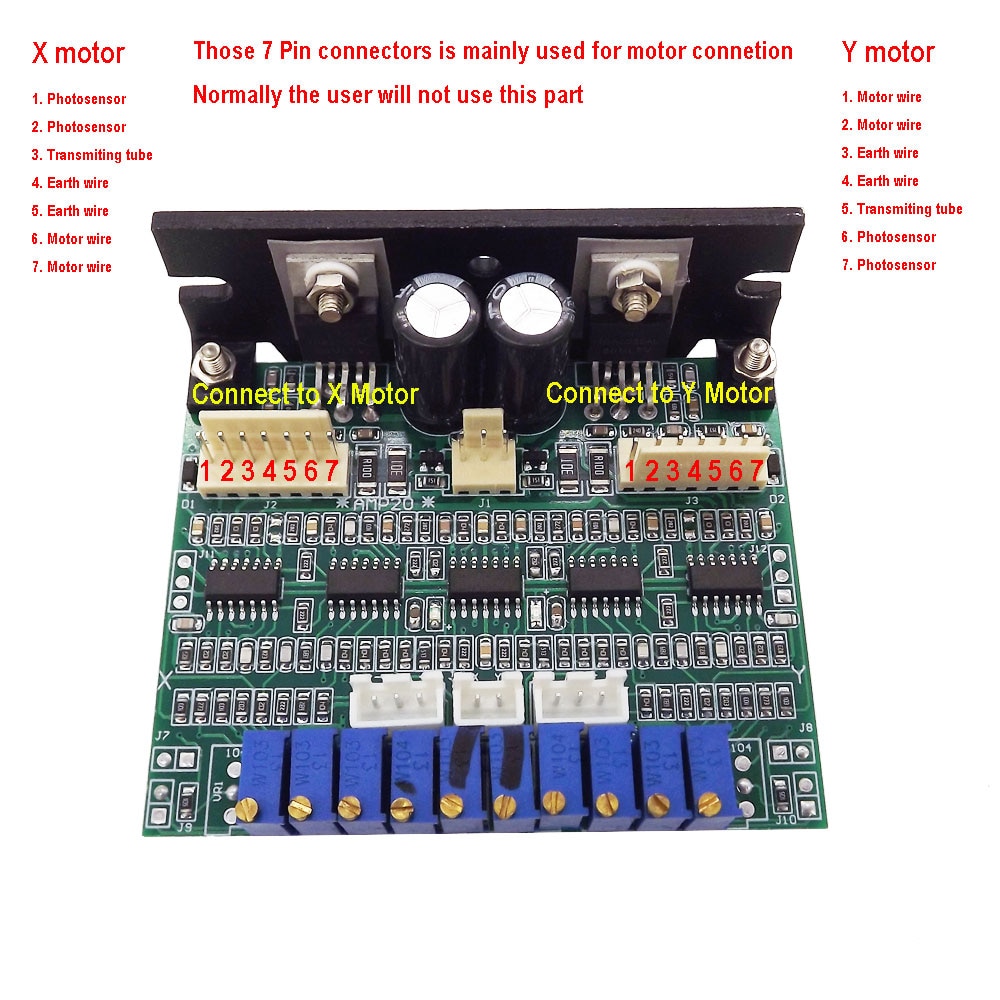

  • The power connector is 7-pin

Technical data(Scanner):
AC power: Autoswitching 100V 240V 50/60Hz
Power Supply: ±15VDC @1A each,
Input: Analog ±5V,

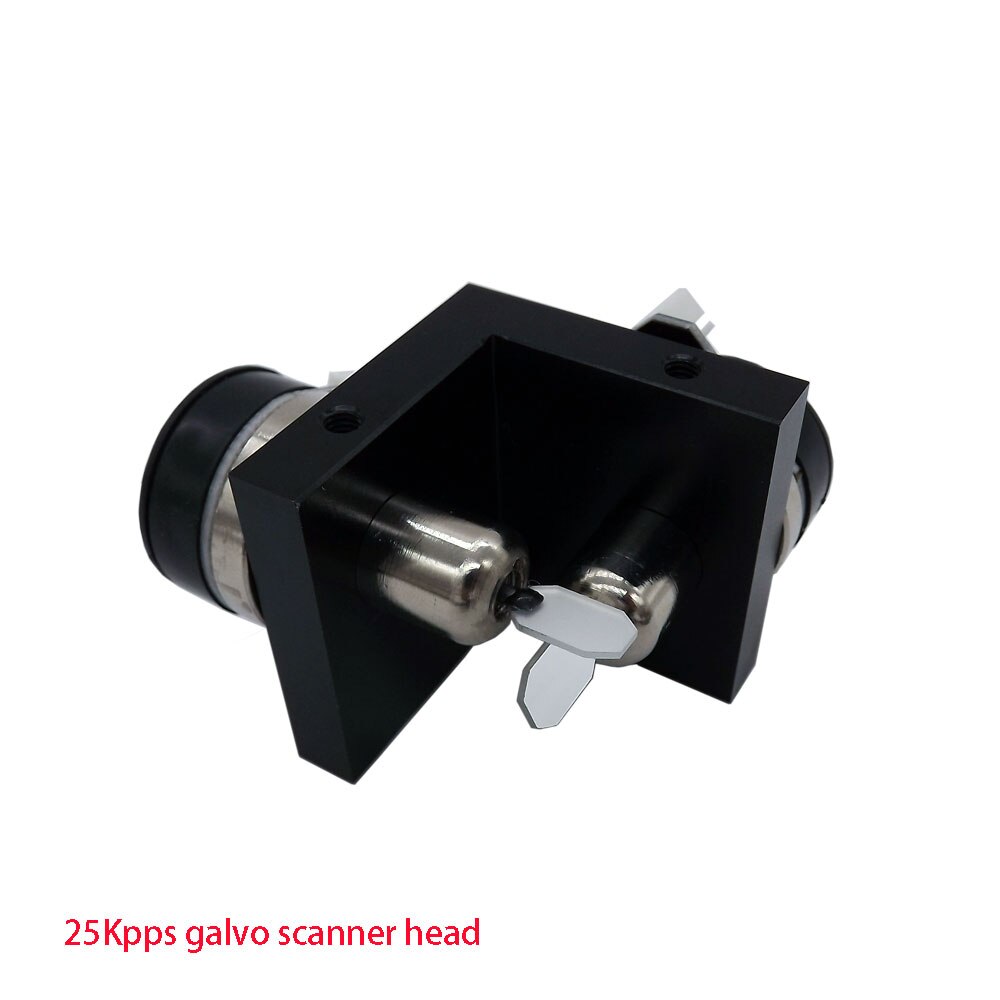

Mirror Aperture: 7mm*12mm*0.8mm,
Mirror coating: High quality dielectric film,
Reflectivity: >99.3% @45°incidence(400nm-700nm),
Speed: 25Kpps@±20°(ILDA30K Test Frame)
Deflection angle: max 70° optical (factory calibration @±25°)

Deflection angle

Operating voltage

Speed

20 optical deflection

+/-15V

>25.000pps

15 optical deflection

+/-15V

>28.000pps

10 optical deflection

+/-15V

>30.000pps

8 optical deflection

+/-15V

>33.000pps

5 optical deflection

+/-15V

>35.0pps

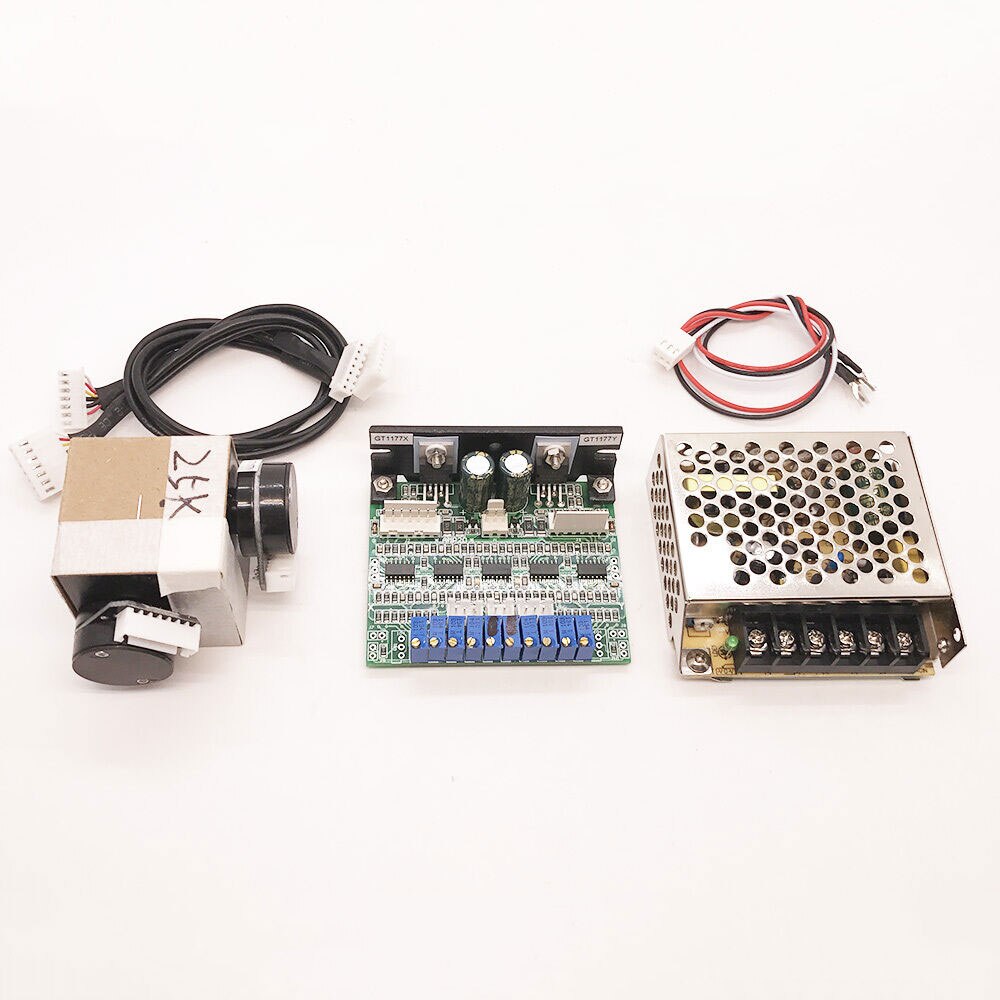

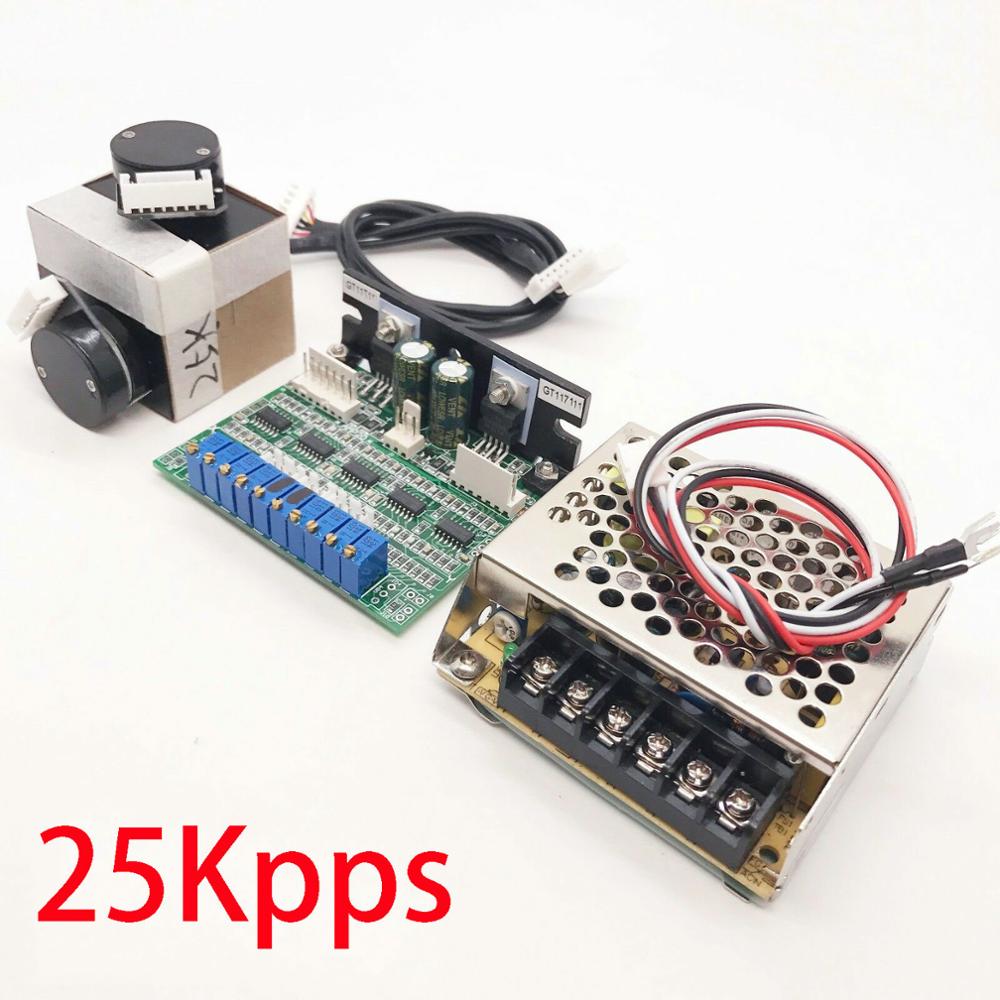

What is included (all as-shown in the picture)

1). 1 drivers ( X and Y)

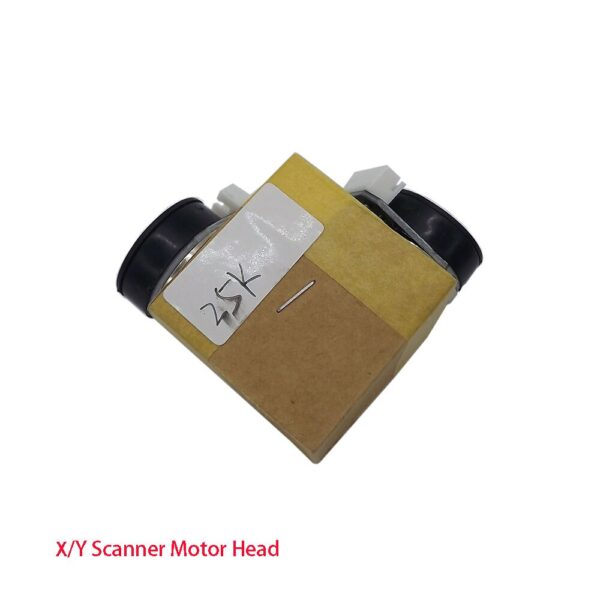

2). two galvo engines ( X and Y )
3). two cables from the drivers to the galvo engines
4). two signal cables input
5). one power supplier ( PSU )
6). one cable from the PSU to the drivers
