Description



Model No.	LSR635NL
Wavelength	635±5 nm
Spatial Mode	Multimode
Output Power	100,200…,500 mW
Operation Mode	CW or Modulation
Modulation	Analog or TTL 0~30Khz (Optional, please note to us which one you need, we will ship Analog one as defult)
Polarization	TM
Pointing Stability	<0.05 mrad
Beam Diameter(1/e2)	<4mm
Beam Divergence	<2.5x1mrad
Power Stability	<±3% per 2 hrs
Temperature Stabilizing	TEC
Warm Up Time	<2 minutes
MTTF	5,000 hrs
Modulation	0~30khz Analog or TTL
Dimensions	100(L)x40(W)x50(H) mm

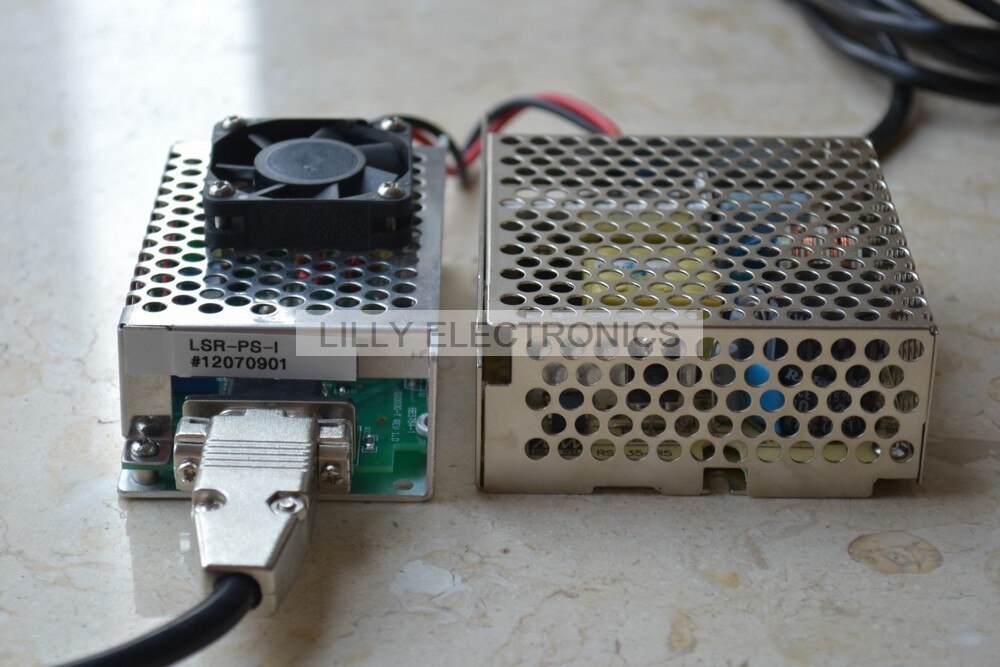

Power Supply (Optional, note to us which one you need, choose B or C type for addtional cost as below. We will ship Power supply A type as default)	A. OEM type LSR-PS-I: 100(L)x58(W)x32(H)mm3 AC/DC PSU: 85~265V 50/60Hz input
	B. Lab type LSR-PS-IIS: 104(W)x128(D)x89(H)mm3  85~265V 50/60Hz input
	C.   Lab Adjustable type LSR-PS-IIS: 179(W)x148(D)x56(H)mm3 85~265V 50/60Hz input

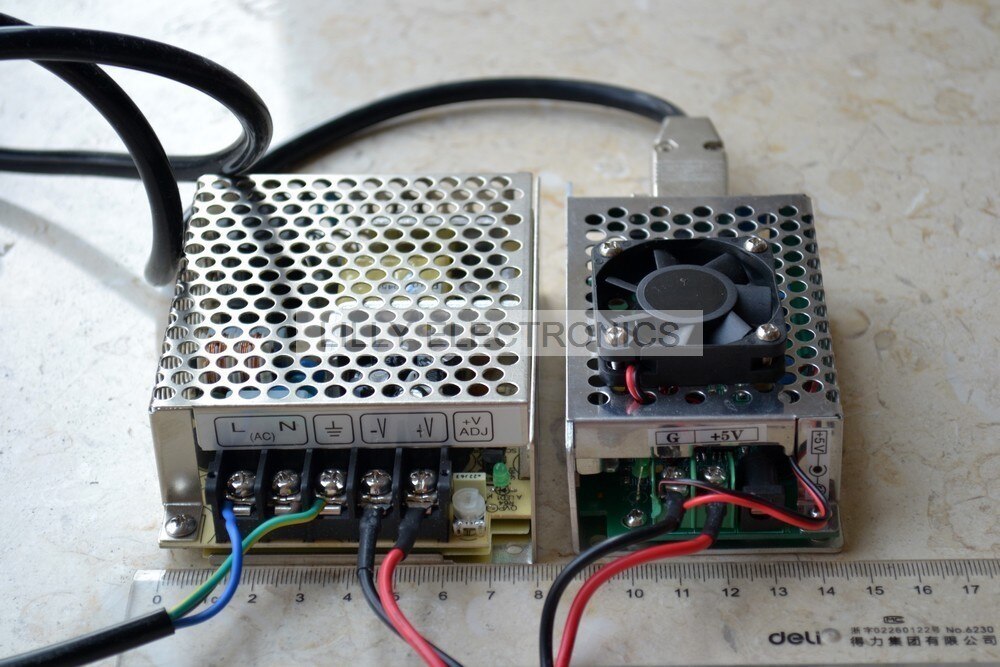

Pleae let us know which kind of power supply do you need, we have 3 different kinds of power supply with pictures shown as below, we will send you the power supply instruction manual.

B. Lab type power supply LSR-PS-IIS (For additional cost of $35)

C. Lab Adjustable power supply LSR-PS-II (For additional cost of $65)





Pakage:

1 X 250mW 635nm Red Laser Dot Module + TTL/Analog 0-30KHZ + TEC Cooling + 85-265V
