Description

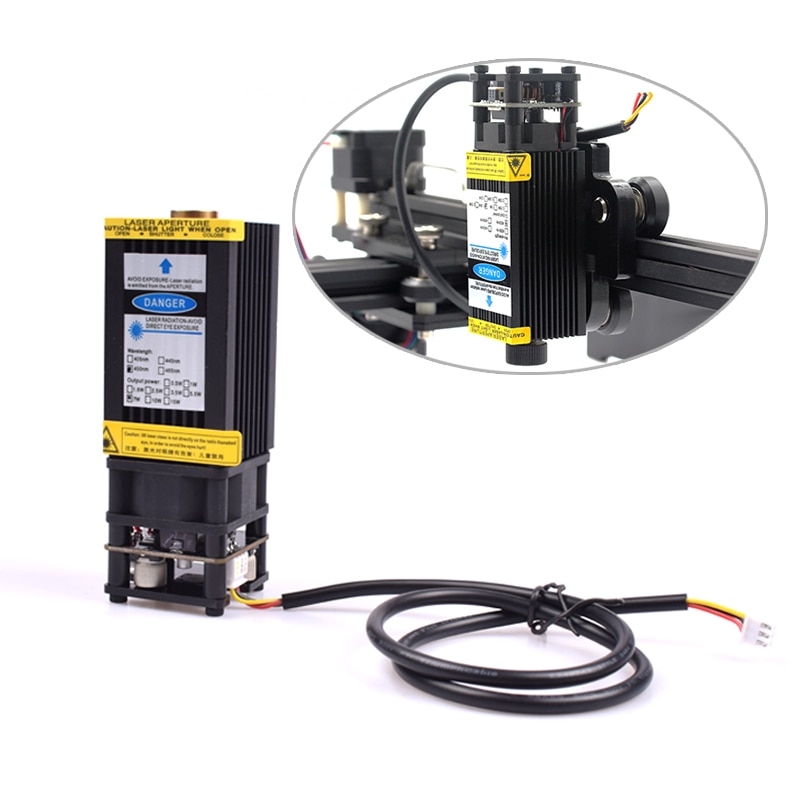

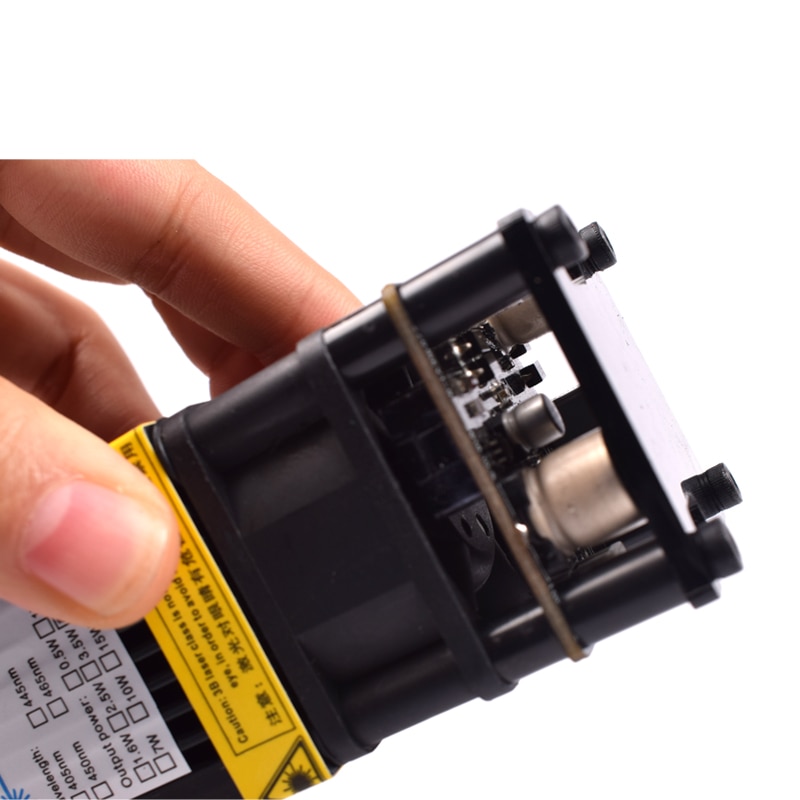

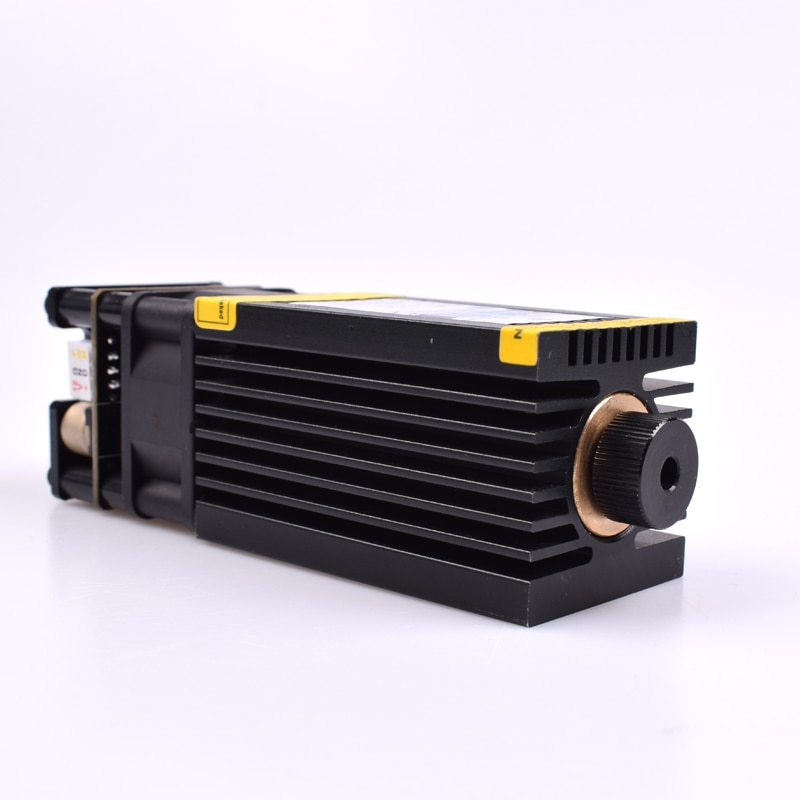

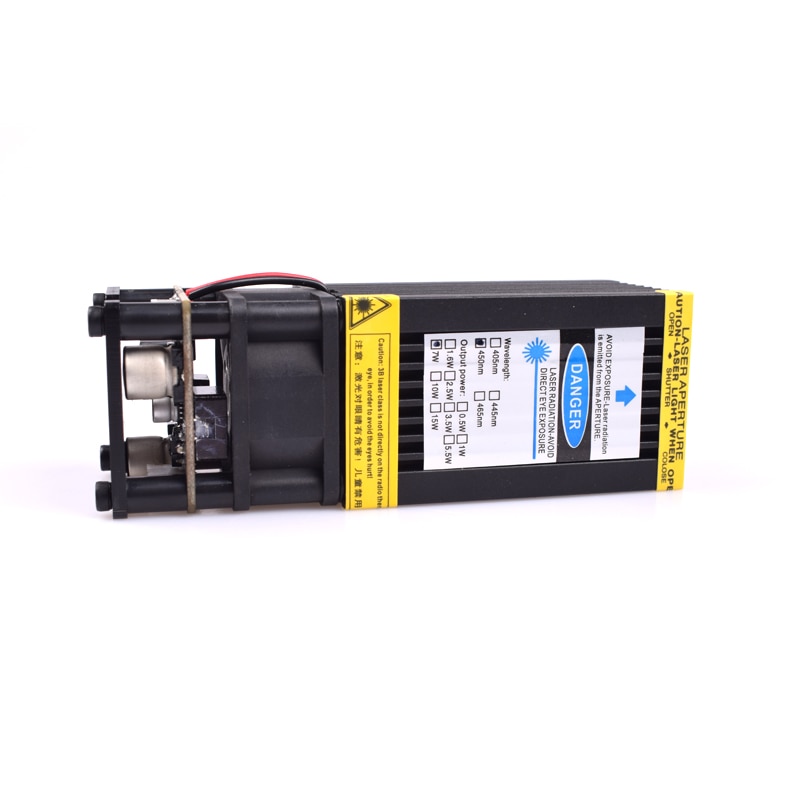

Product Show
FAQ:
1. Where is the TTL port? I can only see the PWM?
TTL and PWM is compatible and you can only choose one of them. It means that you can connect this module’s PWM port
to the PWM (or TTL) port on the control board of your engraver. But make sure the voltage supply of that port is DC 5V.
2. How can I connect this module to the my engraver?
If you don’t need the PWM function, you can directly connect the power port to Motor Port (12V, GND) on Eleksmaker board
and leave the PWM port unconnected.
User must read:
1. Laser module power is relatively large, only for industrial use, to prohibit the exposure of the
eye, otherwise it will cause permanent blindness, the consequences at your own risk.
2. Do not use in flammable and gas atmospheres to avoid fire and explosion.
3. Prohibit children from exposure to this laser product.
4. Do not open the module to avoid damage.
Can not processed metals, glass, stone, ceramics, jewelry, silver, reflective material, translucent material.
Carving wood / bamboo / paper / plastic / leather / rubber / horn.
Can cut paper-thin / light wood / sponge paper / felt / fabric / sticker.
After-sales service process:
1/ After-sales service contains:
a. Machine installation and adjustment
b. Software Settings and using (not include G code programming)
c. Machine quality problem
d. the machine using problem
2/ When the machine have problem:
a. Machine problem pictures or video is asked.
b. General problem solve way will be supplied in 1~2 days,
Complex problem solve way will be supplied in 2~3 days.
3/ General problem solve way: (Machine warranty is 1 year, Cutters don’t have warranty, they are consumables)
a. Machine operation and installation problem, we will supply video or pictures to show you.
b. Machine quality problem, machine parts will be resent free.
We have our engineer team can support after-sales service, please be assured to purchase from us:
