Product information:

Rated voltage: 24V

Operating voltage: DC 9V-24V

No load rated current: 1.2A ± 10%

No load spit: 4.5 Lmin ±10%

Pressure: 4 kg ±10%

Rated current: 1.5A ± 10% (at 1KG load)

Rated water discharge: 4.5Lmin ±10% (at 1KG load)

Suction stroke: 1 m

Noise: 55 decibels (within 0.5M)

Use fluid: tap water, ground water

Water temperature: 0 ° C ~ 100 ° C

Ambient humidity: 45% ~ 85%

Motor: brush motor

Inlet and outlet: 9.5 mm

Weight : 500 g

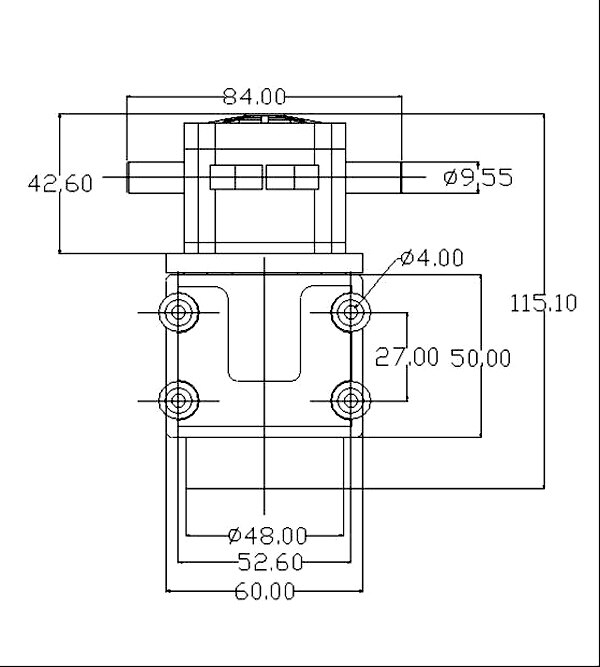

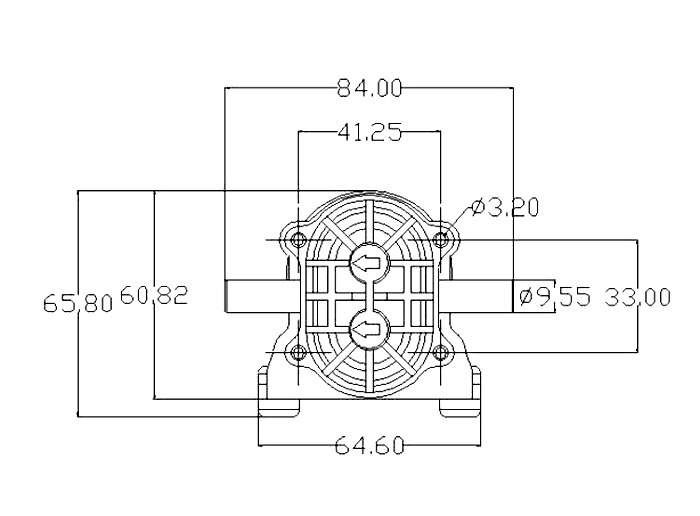

Pump size: 12.5 * 8.5 * 6.5 mm

Note:

The high temperature of the pump cannot be used continuously for a long time. It is best to install a filter on the inlet of the pump line.

Package:

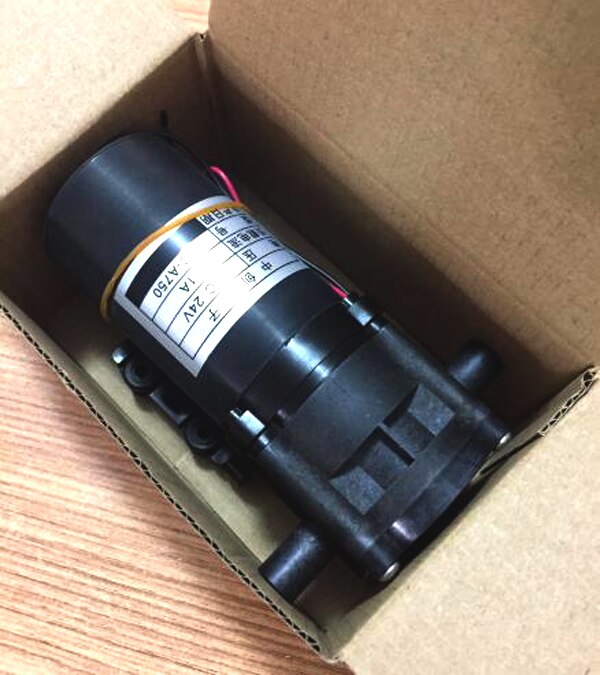

1*24V miniature gear pump
