Description
General Specification

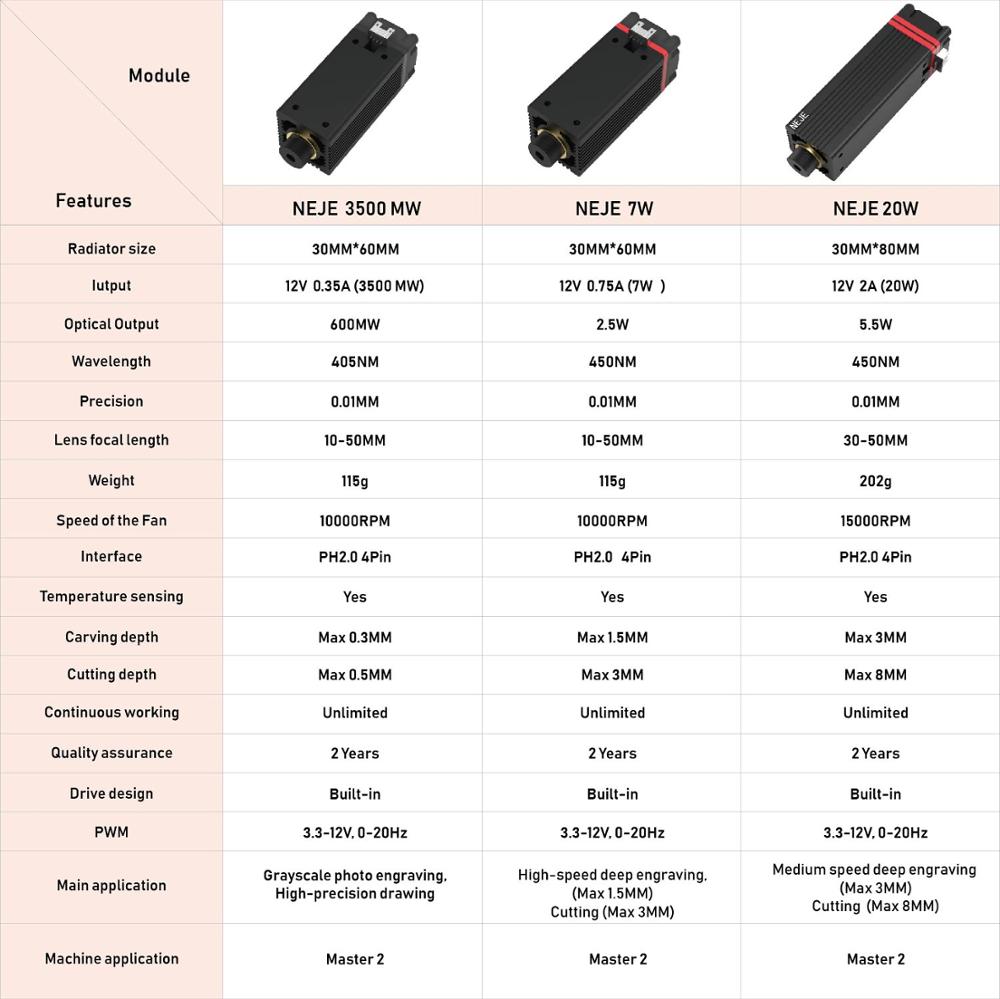

20W Laser Module ：
Model：NEJE Module 5.5W (INPUT about 20W)
Heatsink Material：Aircraft Aluminum + Brass Shell
Luminous Color：Blue
Section Size：30mm x 30mm

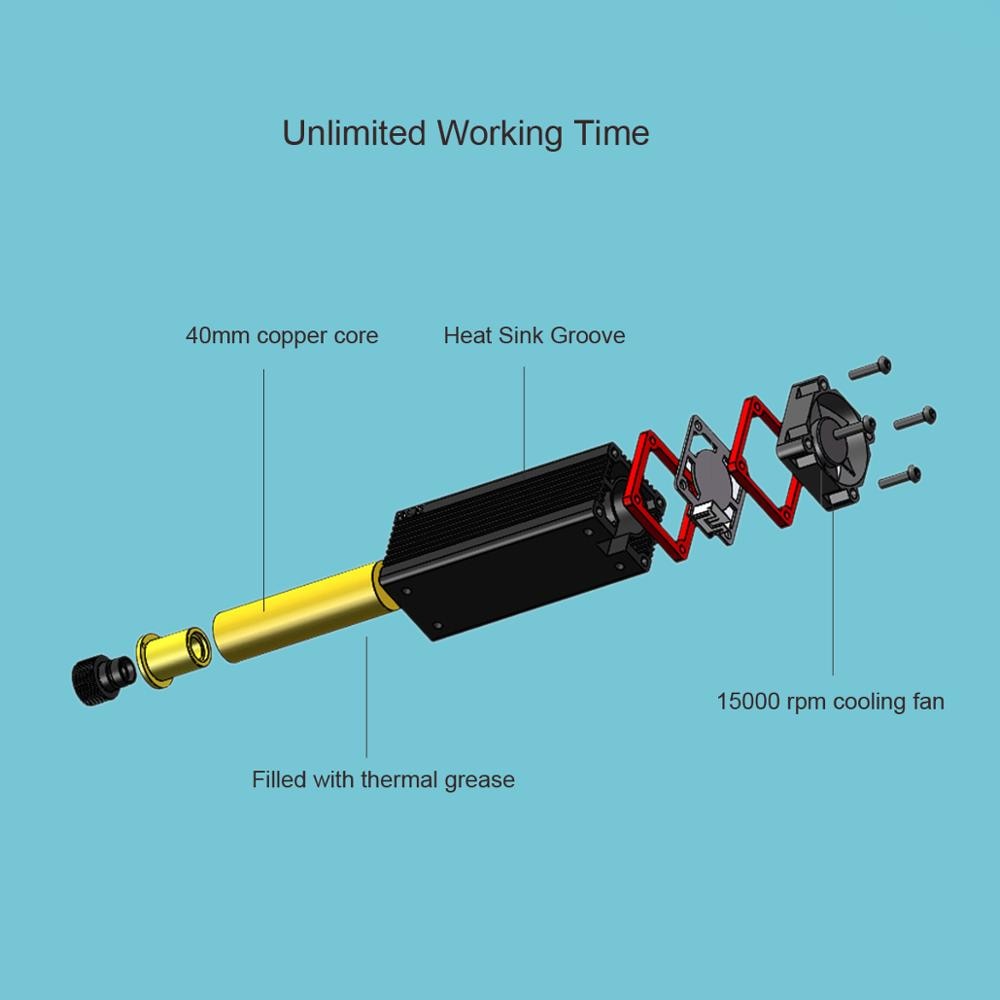

Cooling Mode：40mm copper core + Heat Sink Groove+ Thermal silicone grease + 15000 rpm cooling fan
Dimension：80 * 30 * 30mm
Adapter Plug：US Plug
Adapter Input Voltage：AC 100-240V UL certification high quality
Adapter Output Voltage：DC 12V 2A
Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave：Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters：
Module Input：18-20W

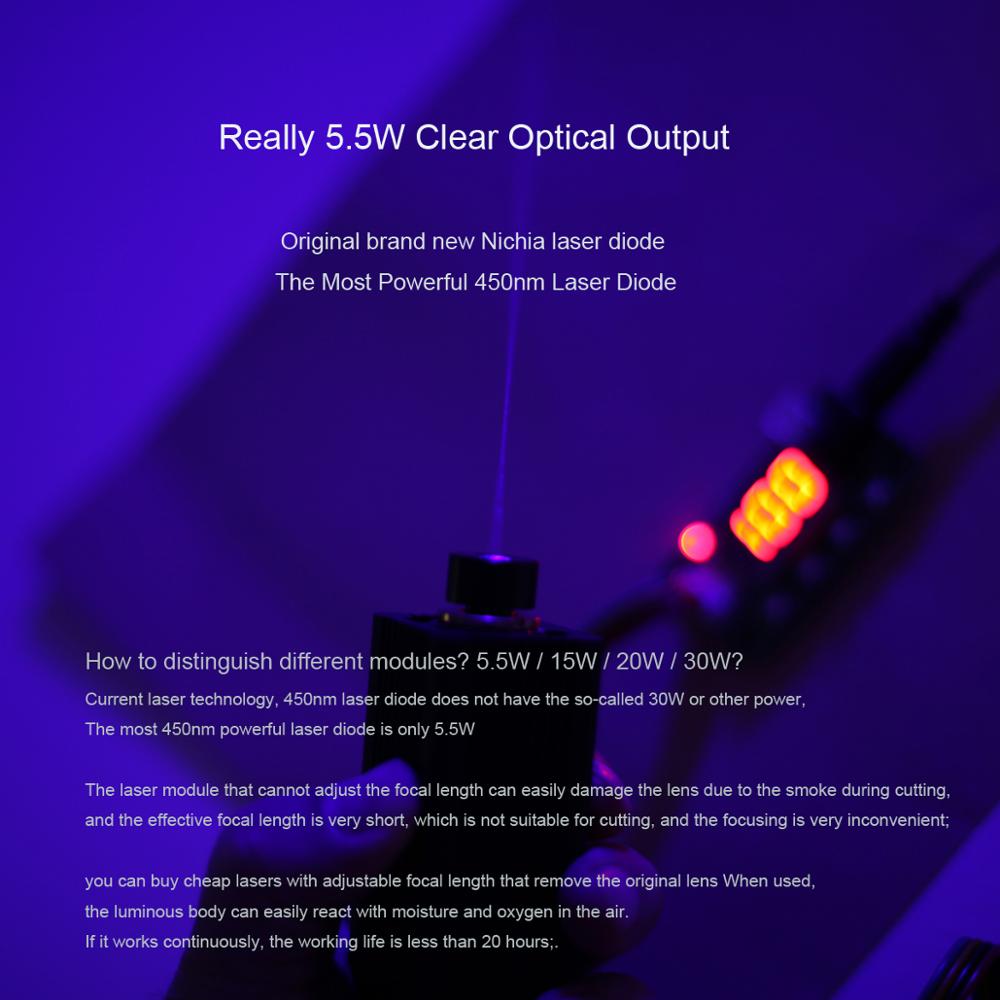

Laser Output Power：5.5W (5500mW)
Wavelength：445-450nm
Beam Shape：Dot (Focusable)
Working Voltage：DC 12V
TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
Input Voltage：DC12V
PWM/TTL Input：DC3.3V-12V

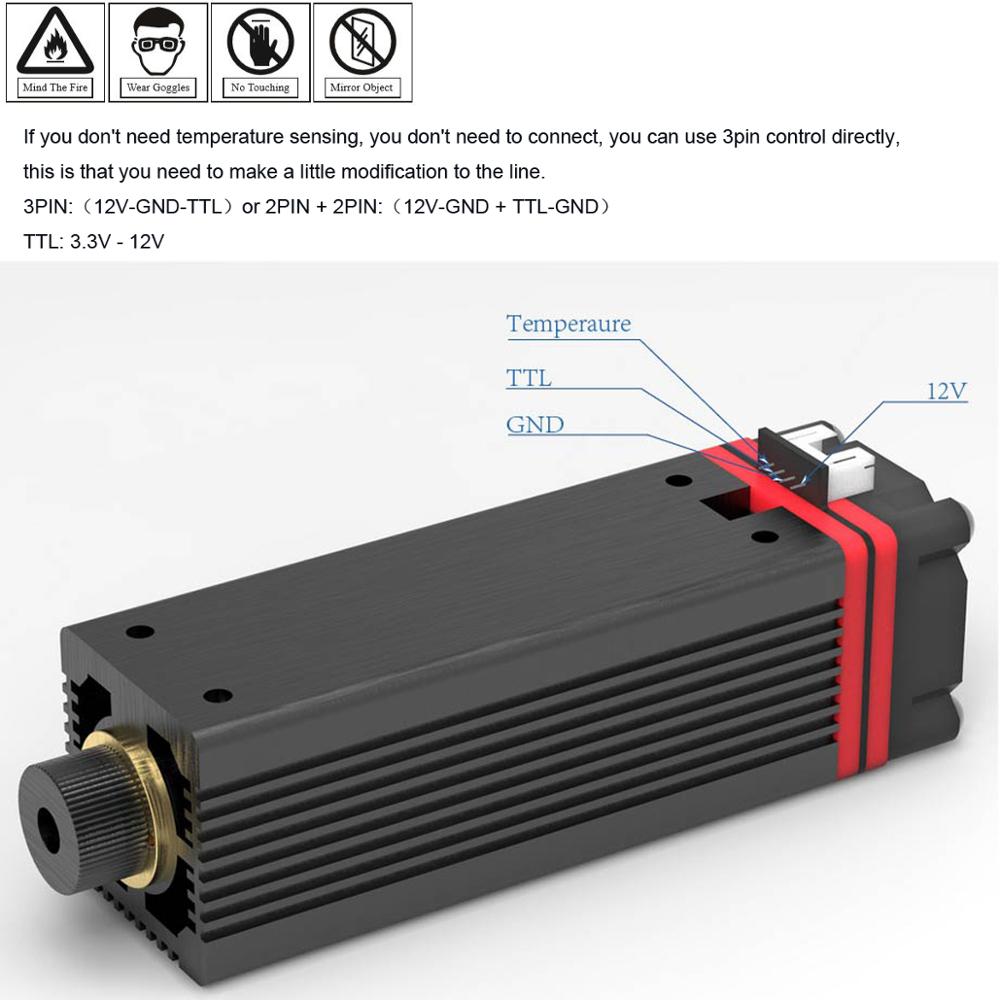

Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode：External ACC
Safe temperature range：<70 ℃
Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time：20,000 hours
7W Laser Module：
Model：NEJE Module 2.5W (INPUT about 10W)
Heatsink Material：Aircraft Aluminum + Brass Shell
Luminous Color：Blue
Laser diode：Osram 2.2W 5.6mm (The maximum power 5.6mm laser diode)
LD Current：1.6A
Section Size：30mm x 30mm
Cooling Mode：20mm copper core + Heat Sink Groove+ Thermal silicone grease + 10000 rpm cooling fan
Dimension：60 * 30 * 30mm
Adapter Output Voltage：DC 12V 2A
Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave：Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters：
Module Input：10W
Laser Output Power：2.5W (2500mW)
Wavelength：445-450nm
Beam Shape：Dot (Focusable)
Input Voltage：DC 12V
TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
Input Voltage：DC12V
PWM/TTL Input：DC3.3V-12V
Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode：External ACC
Safe temperature range：<70 ℃
Module weight：115g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time：20,000 hours
3500mW Laser Module：
Model：NEJE Module 500MW (INPUT about 3500MW)
Heatsink Material：Aircraft Aluminum + Brass Shell
Laser diode：sharp 350mw 5.6mm laser diode (The maximum power 405nm 5.6mm laser diode)
(Real 500mw continuous work,The other seller 500mw is Nichia 3.8mm laser with a power of only 200mw)
LD current：350mA
Luminous Color：Blue
Section Size：30mm x 30mm
Cooling Mode：20mm copper core + Heat Sink Groove+ Thermal silicone grease + 10000 rpm cooling fan
Dimension：60 * 30 * 30mm
Adapter Output Voltage：DC 12V 2A
Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave：Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters：
Module Input：3500MW
Laser Output Power：500MW
Wavelength：405nm
Beam Shape：Dot (Focusable)
Working Voltage：DC 12V
TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
Input Voltage：DC12V
PWM/TTL Input：DC3.3V-12V
Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode：External ACC
Safe temperature range：<70 ℃
Module weight：115g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time：20,000 hours
PWM/Temperature tester board Specification
Power input: DC 12V
Output: PH2.0 4pin (12v,GND,PWM/TTL,Temperature)
mode: 3 modes (off, manual pwm, pwm / ttl in)
temperature display: YES
pwm display: yes
Manual PWM control: YES

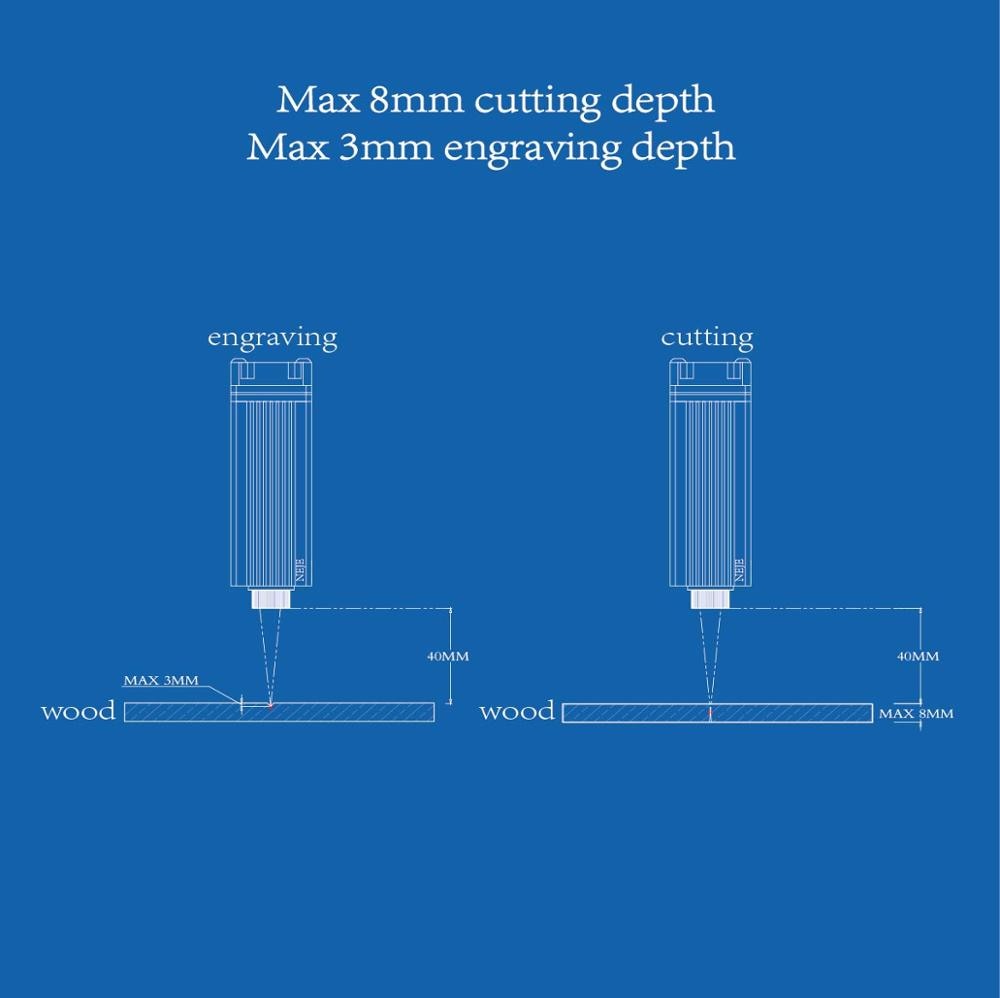

Module Test：
Material: Plywood, thickness 3mm
Speed 330, cutting 3 times, each cutting 1.0mm
Speed 200, cut 2 times, each cut 1.5mm
Speed 100, cut once, cut 3mm each time
Features（Unique technology）:
1. Can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.
2. Original laser diodes, High-quality LD capping technology, Ensure service life！
3. Built-in driver board, 40mm threaded copper core with thermal grease compound, Temperature sensor，NEJE factory 48 hour 100% power aging test, Ensure long time working！
4. New lens, Clear focus, Not stray light, Adjustable focal length.
5. Can carving / Cutting MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum, etc.(Not suitable for iron or other metal)
Note(Please pay attention):
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
2. Do not engrave mirror objects，Pay attention to fire，Pay attention to pets when working！
3. Smoke will be generated when burned, please pay attention to smoke exhaust indoors.
4. The warranty period of laser module is one year. If you have any quality problem(Except individual situation like using the laser module more than 30 minutes per time and casue the damage ), please feel free to ask our customer service for a help.
5. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.
6. If you have any quality problem about the machine, please feel free to contact us. Many operative problem can be solved according to your video and problem description. Thank you in advance.
7. This laser module is compatible with our NEJE machine .
Package Included:
20W Laser Module Kit：
1 x 5.5W Laser Engraving Module
1 x Laser Module Sliding fixture
1 x 4 Pin Cable(1000mm)
1 x NEJE PWM/Temperature tester board
1 x 110V-240V 12V2A UL certified power supply
1 x Euro adapter
1 x 2.5mm L-shaped wrench
1 x 5mm L-shaped wrench
1 x goggle
7W Laser Module Kit：
1 x 2.5W Laser Engraving Module
1 x Laser Module Sliding fixture
1 x 4 Pin Cable(1000mm)
1 x NEJE PWM/Temperature tester board
1 x 110V-240V 12V2A UL certified power supply
1 x Euro adapter
1 x 2.5mm L-shaped wrench
1 x 5mm L-shaped wrench
1 x goggle
3500mW Laser Module Kit：
1 x 500mW Laser Engraving Module
1 x Laser Module Sliding fixture
1 x 4 Pin Cable(1000mm)
1 x NEJE PWM/Temperature tester board
1 x 110V-240V 12V2A UL certified power supply
1 x Euro adapter
1 x 2.5mm L-shaped wrench
1 x 5mm L-shaped wrench
1 x goggle
