Description
This item is a necessary accessory for Master series DIY engraving machine. It is a professional laser head with high speed and high stability.
Features:
Professional laser head with high speed, high precision and high stability.
Bright violet light, easy for locating when engraving.

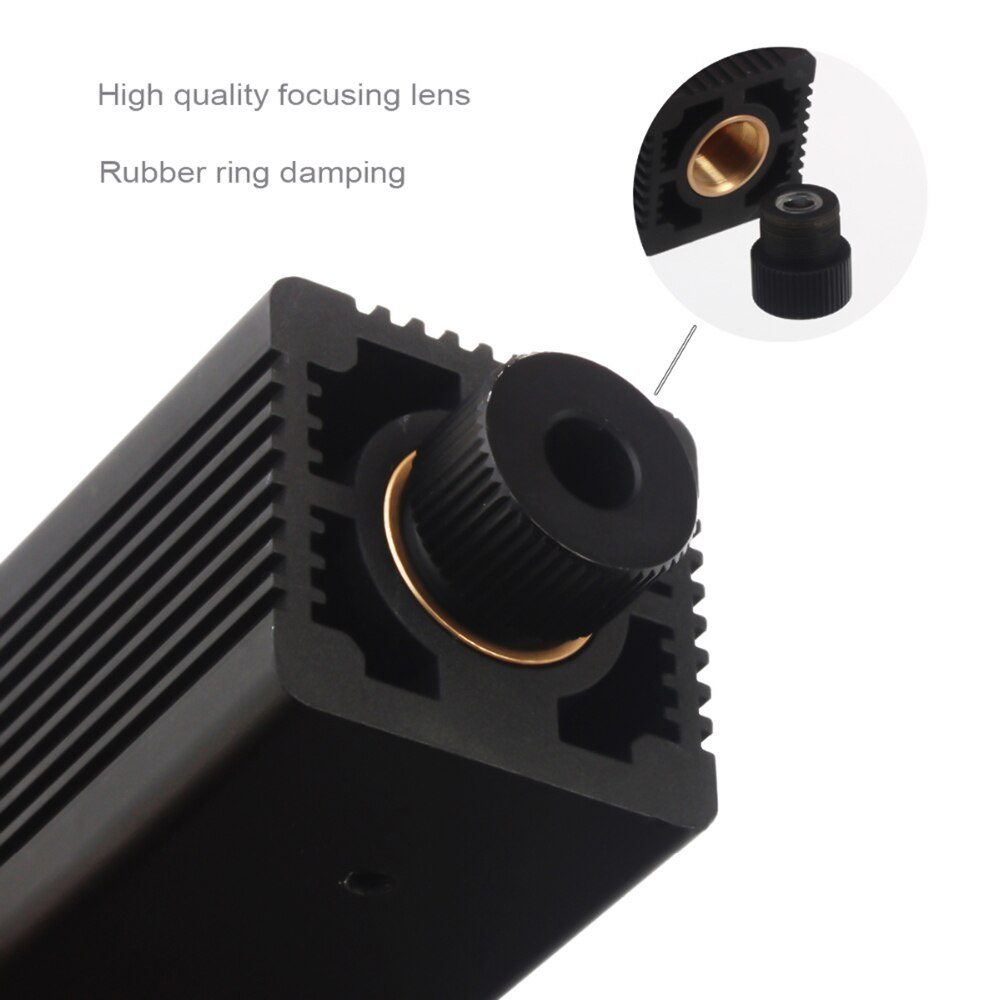

Adjustable laser head, easy to adjust, ensure engraving with good quality and high efficiency.
Laser head is more durable and stable after high temperature and long time aging.
Suitable for Master series DIY engraving machine, easy to install.
Suitable for Master series DIY engraving machine, easy to install.
Main applications: grayscale engraving, drawing, simple depth engraving, simple cutting, etc.Especially good at grayscale engraving, depth of engraving 0.5-1mm, cutting 0.5mm, unable to engrave metal and glass. Supported engraving materials: Wood, gray paper, leather, bamboo, blackening plastics, rubber, pcb, etc.
Specifications:

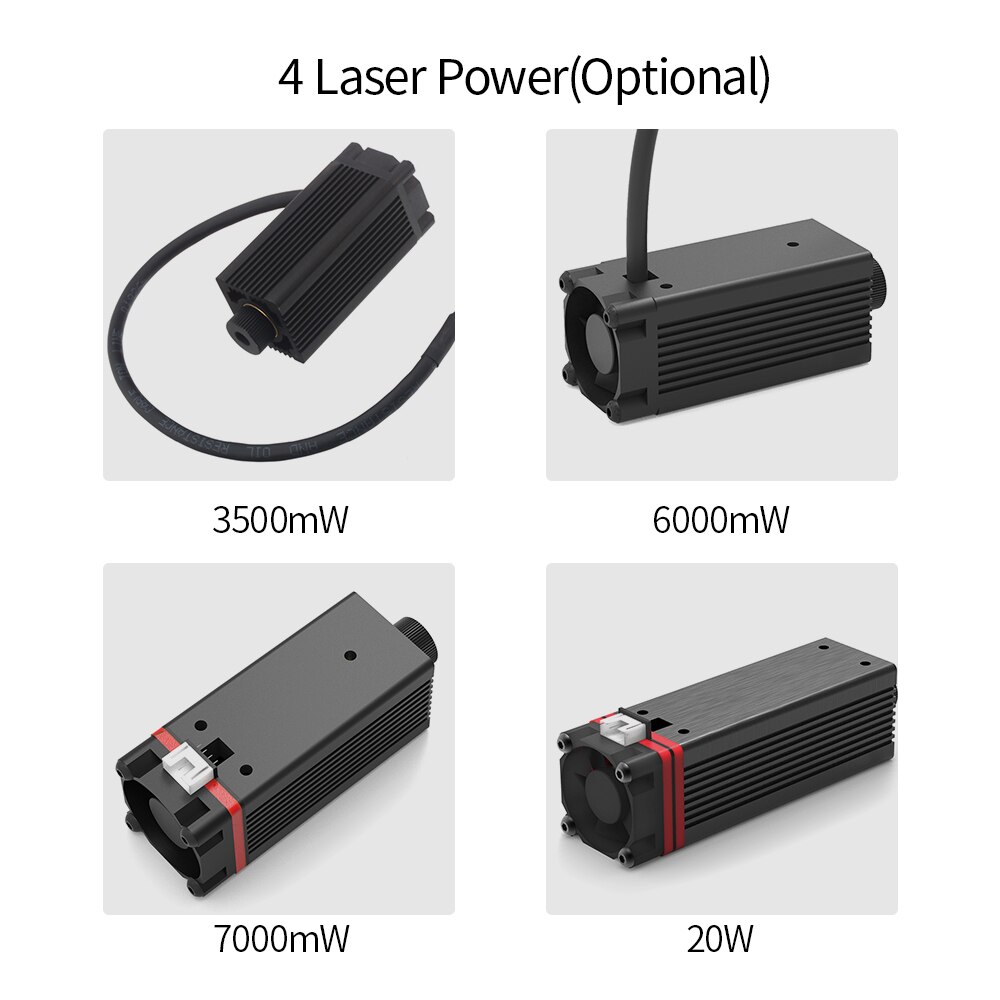

Laser Power: 3500mW / 6000mW / 7000mW / 20W (Optional)
Laser Power: 3500mW / 6000mW / 7000mW / 20W (Optional)
Material: Copper + Aluminum
Light Color: Violet
Power: 3500mW
Wave Length: 405nm
Input power: approx. 12V 280mA (without fan power)
Drive Position: Built-in
Is the Power Adjustable: PWM can be adjusted
Drive Protection: Surge protection, overvoltage protection
Line Length: 300mm

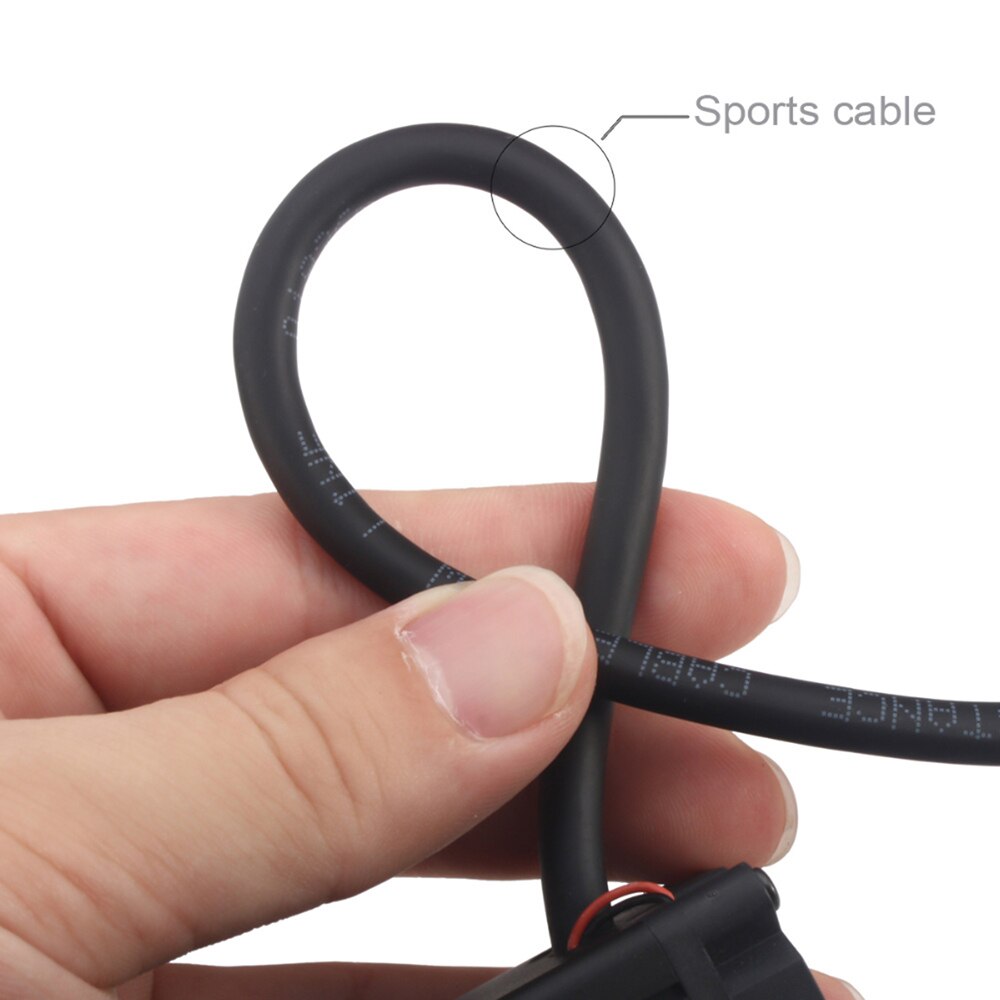

Line Length Material: Sports silicone
Control Line Installation Method: Integrated

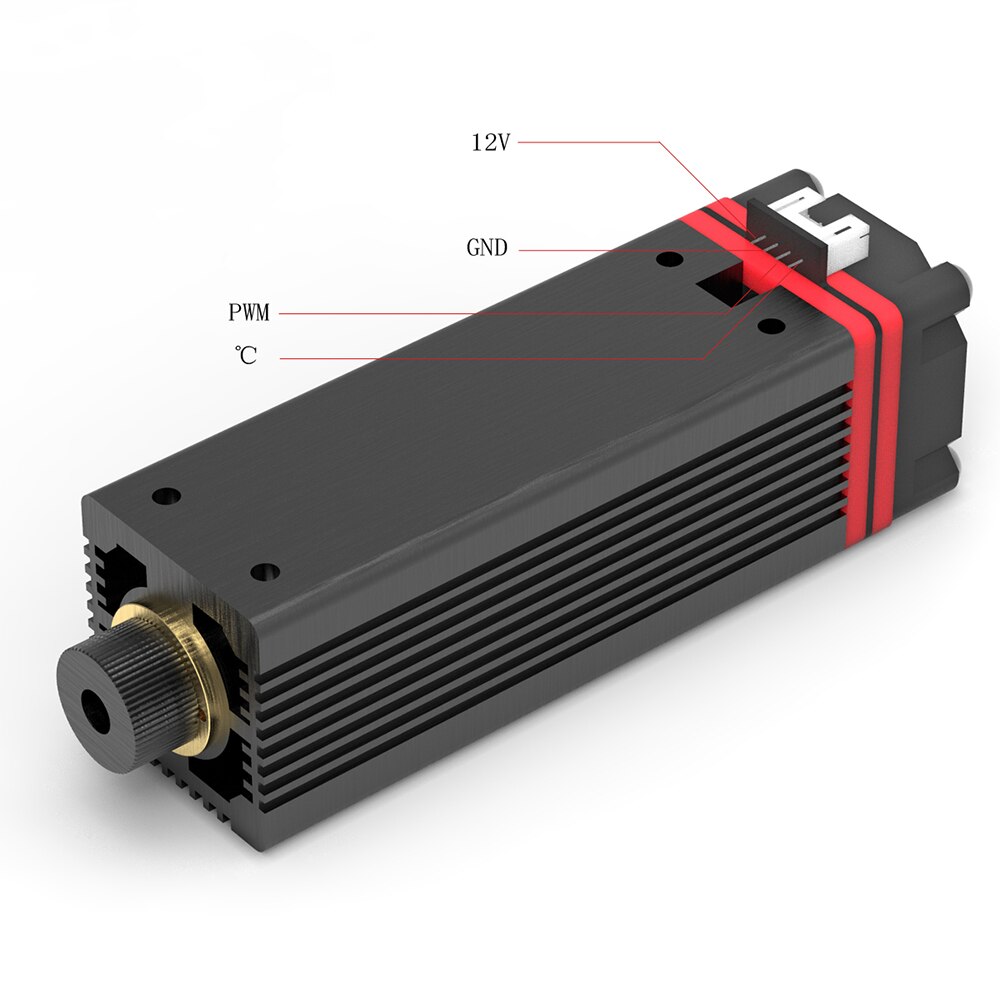

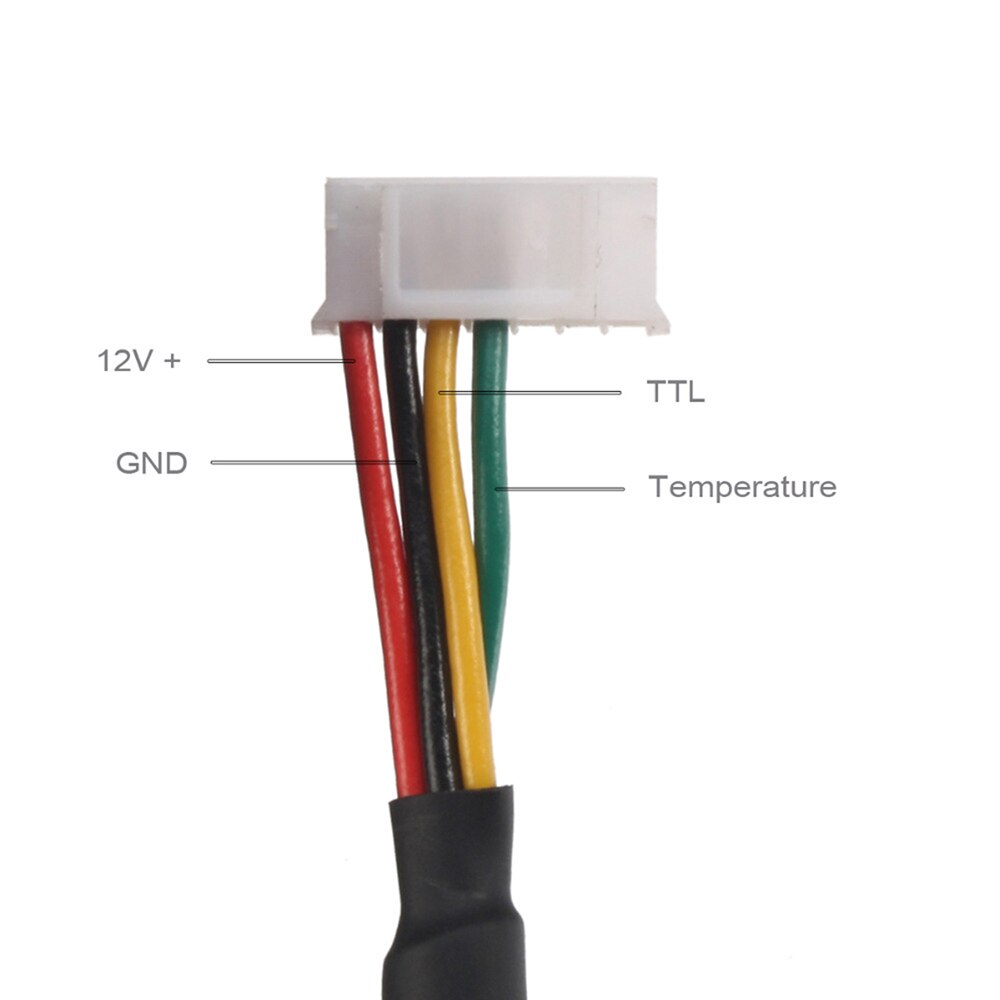

Interface Specification: 4pin PH2.0 (red: 12V, black: GND, yellow: PWM, green: temperature signal)
Radiator Size: 30 * 60mm
Fan Size: 30 * 10mm
Fan Speed: 10,000 rpm
Controllable Temperature: Less than 60 degrees Celsius
Focus Range: 10 ~ 100mm (best focus: 50mm from the light exit)
Item Size: Approx. 80 * 30 * 30mm / 3.15 * 1.18 * 1.18in
Item Weight: Approx. 128g / 4.52oz
Package Size: Approx. 20 * 15 * 3cm / 7.88 * 5.91 * 1.18in
Package Weight: Approx. 134g / 4.73oz
Package List:
1 * Module
1 * Wrench
2 * Screw
2 * Gasket
