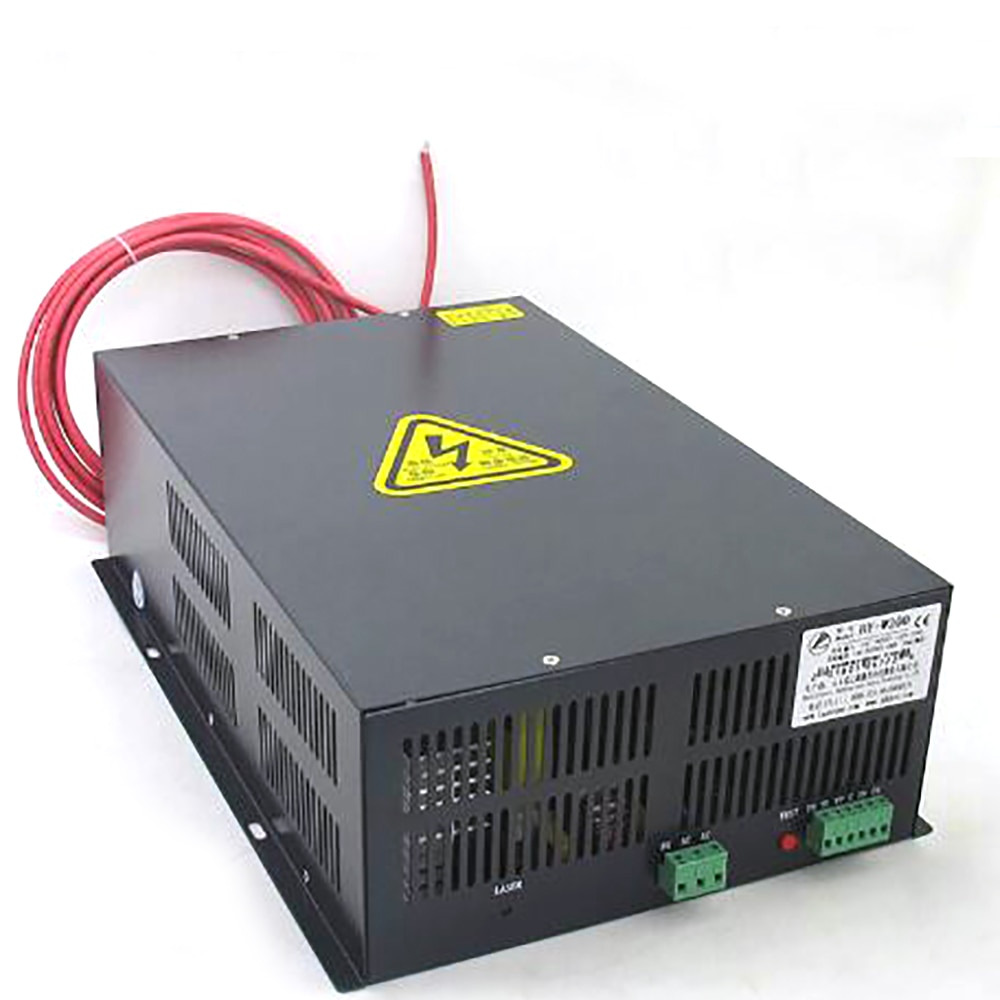

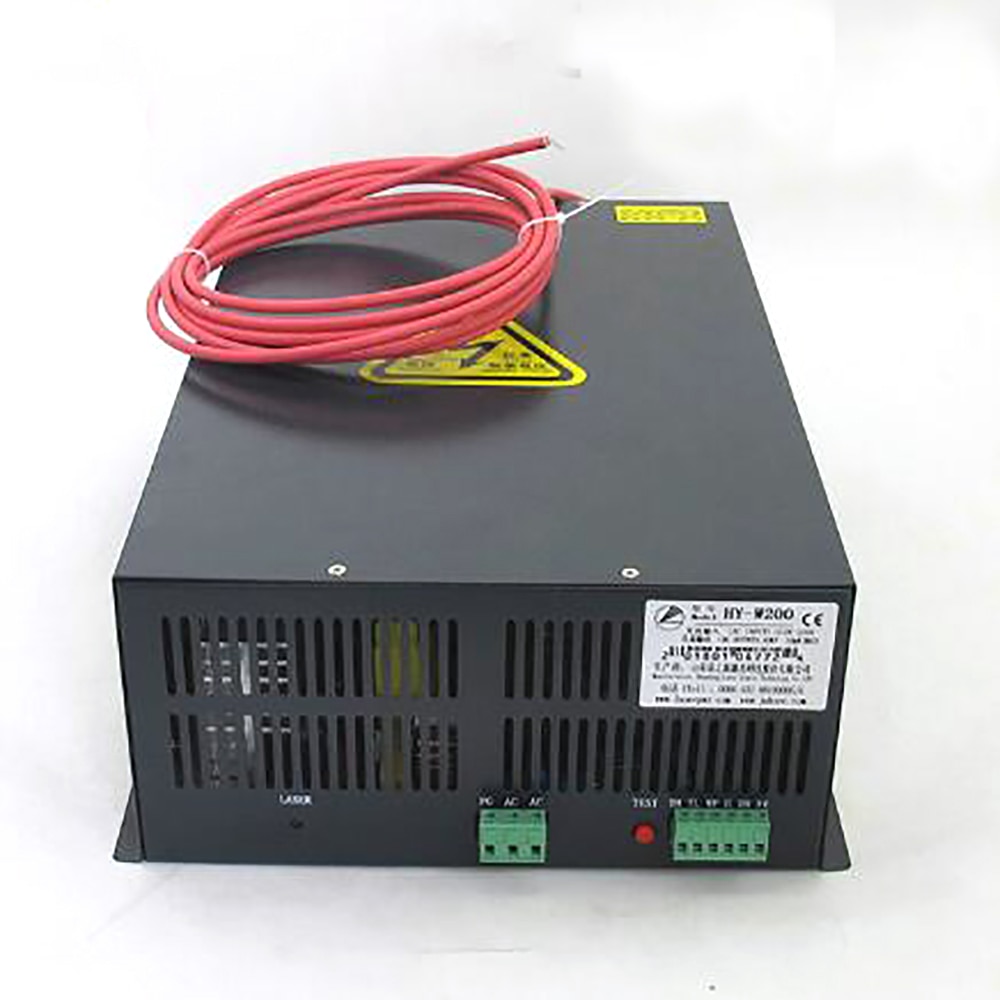

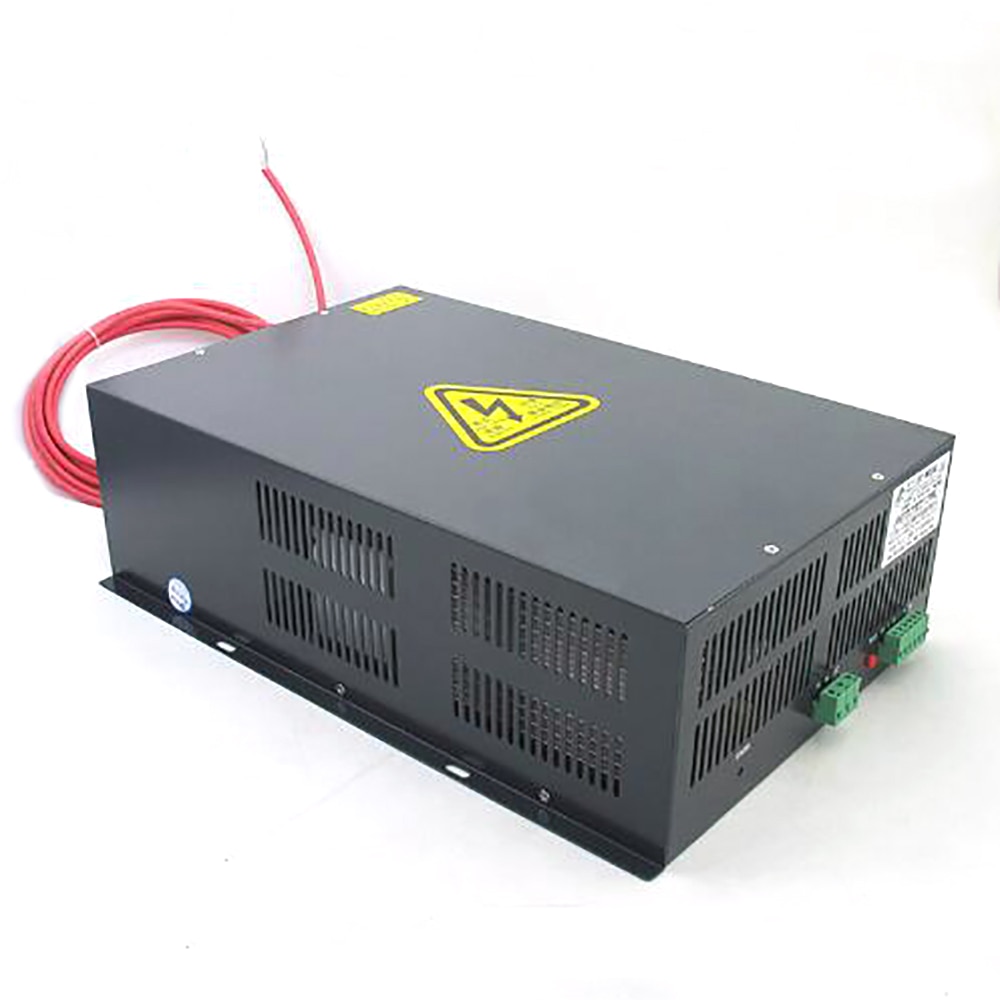

200W CO2 Laser Power Supply HY-W200 for 180W-200W CO2 Laser Engraving Cutting Machine

Model: HY-W200 laser power supply for 180w-200w laser tubes on laser cutting machine.



200w co2 power supply HY-W200 Main Feature

1. Very wide range of Input Voltage: AC110-AC220V

2. Current has high stability: when the input voltage is unstable, current change rate less than 1%.

3. Good compatibility: It can be applicable to 180w-200w EFR/RECI/YONGLI,WEEGAINT/SP ect brands co2 laser tubes manufactured by different factories.

4. This Power Supply has the”TEST” button which can test output laser manually.

5. The Laser Power Supply has high Output Power, good stability; this can prolong laser tube’s service life

6. HY-W200 Application: 180w-200w co2 laser tube cutter and engraver for cutting and engaraving non metal materals asSculpture and cut acrylic, fabric, double color sheet ,rubber etc.

HY-W200 co2 laser power supply Specification

Input	Input Voltage	AC110V-AC220V
	AC frequency	50Hz/60Hz
	Max input power	1000w
	Max output current	8A
Output	Max Output Voltage	DC 45KV
	Max Output Current	DC 35mA(can adjust higher if you need it)
Efficiency	≥90 percent (full load)
MeanTime Between Failure (MTBF)	≥10000 hour
Response Speed	≤1ms(from the switch Signal is given to the output current up to 90% of the setting current)
Withstand Voltage	Input-Output, Input-Shell: AC1500V 10MA 60S; Output negative is connected with machine shell.
Environment	Operating Temperature:-10~40°C),Relative Humidity (RH)≤90 percent
Cooling Way	Force-Air Cooling (FAC)
Dimension	L×W×H=363*251*112 (mm)
Color	Black



1. HY-W200 power supply and co2 laser tube Connection diagram

High voltage terminal (HV+) of HY-W200 power supply should be connected to the positive pole of CO2 laser device. Current circuit of the power supply shall be connected to negative pole (laser output terminal) of laser device, through an ampere meter or directly.
