Description
200W-300L Air Cooling Fiber Lasers
Fiber lasers have developed rapidly in recent years because of their excellent beam quality, ease of system integration, reliability and maintenance-free advantages. Laser is committed to providing high quality laser products for laser processing applications such as cutting, welding, marking and 3D printing. its power can be?continuously adjustable, excellent beam quality, high power stability, electri-optical conversion efficiency, small size, reliability and maintenance-free.it is the ideal laser device for 3D printing.
Product features
■Adjustable power continuously, fast switching response
■High reliability, excellent beam quality
■High power stability
■High electro – optical conversion
Product parameters
Optical Characteristic Parameters
| Characteristics | Min. | Max. | Unit |
| Operation mode | |||
| Polarization | |||
| Nominal Output power（MFSC-200W ） | 200 | W | |
| Nominal Output power（MFSC-300L ） | 250 | W | |
| Tuning range ofoutput power | 10 | 100 | % |
| Emission wavelength | 1070 | 1090 | nm |
| Spectrum width(3dB) | 4 | nm | |
| Short-term power instability | 3 | % | |
| Long-term power instability | 5 | % | |
| Beam quality M2 | 1.2 | ||
| Laser switching ON time | 80 | us | |
| Laser switching OFF time | 50 | us | |
| Modulation rate | 50 | KHz | |
| Red guide laser power | 150 | uw | |
| Feeding fiber cable length | m | ||
| Feeding fiber core size | um | ||
| Feeding fiber cable bending radius | 200 | mm | |
| Output form | |||
| Characteristics | Min. | Max. | Unit |
| Operating voltage | 180 | 240 | VAC |
| Normal power consumption（MFSC-200W） | 1.2 | kw | |
| Operating Environment humidity | 1.5 | kw | |
| Operating ambient temperature range | 0 | 35 | ℃ |
| Operating ambient relative humidity | 10 | 90 | % |
| Cooling method | |||
| Storage tem. | -10 | 60 | ℃ |

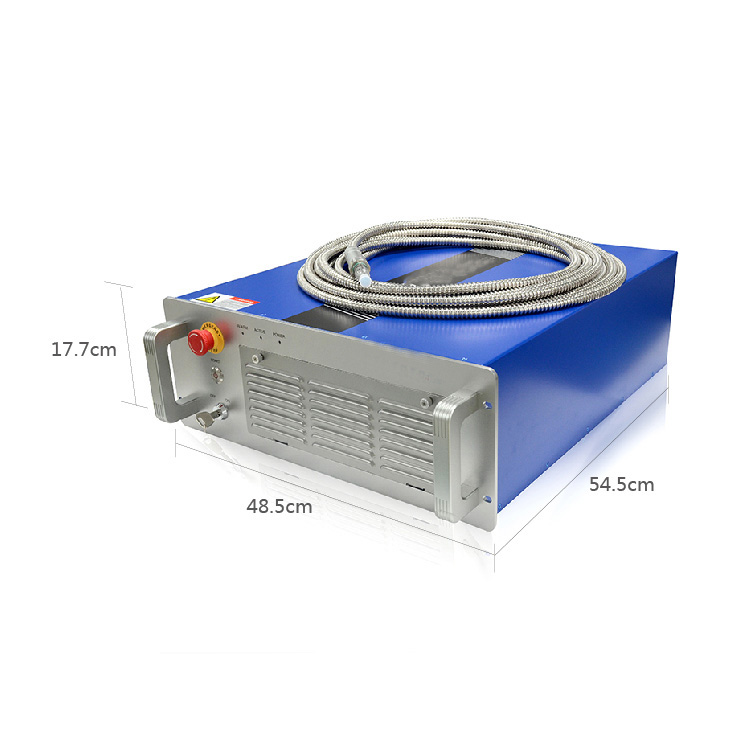

| Dimensions | mm | ||
| Weight | 35 | kg | |
