Description

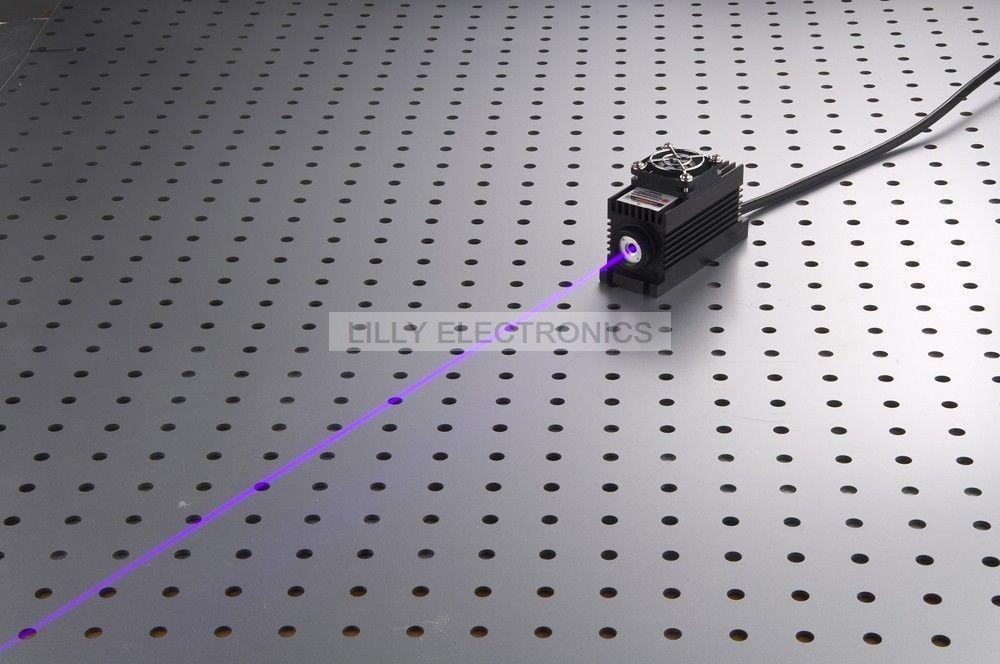

200mW 405nm Violet Laser Dot Module + TEC Cooling + 85-265V
TTL/Analog 0-30KHZ
Detailed Description of Laser Diode
|
Model No. |
LSR405NL |
|
Wavelength |
405±5 nm |
|
Spatial Mode |
TEM00 |
|
Output Power |
200mW |
|
Operation Mode |
CW or Modulation |
|
Modulation |
0~30khz Analog or TTL(Optional, note to us which one you need, we will ship Analog one as default) |
|
Pointing Stability |
<0.05 mrad |
|
Height |
25mm |
|
Beam Diameter(1/e2) |
4 mm |
|
Beam Divergence(full angle) |
0.5 mrad |
|
Power Stability |
<3% over 4 hrs |
|
Cooing Method |
TEC (can work long time ) |
|
Warm Up Time |
<2 minute |
|
MTTF |
10,000 hrs |
|
Working Temp |
20-30 degree |
|

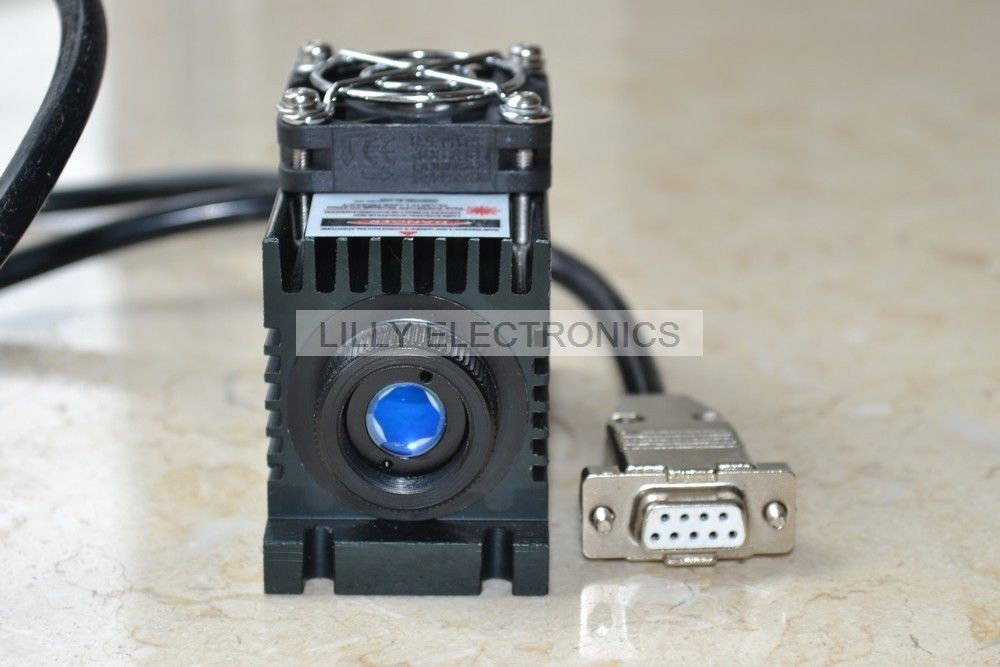

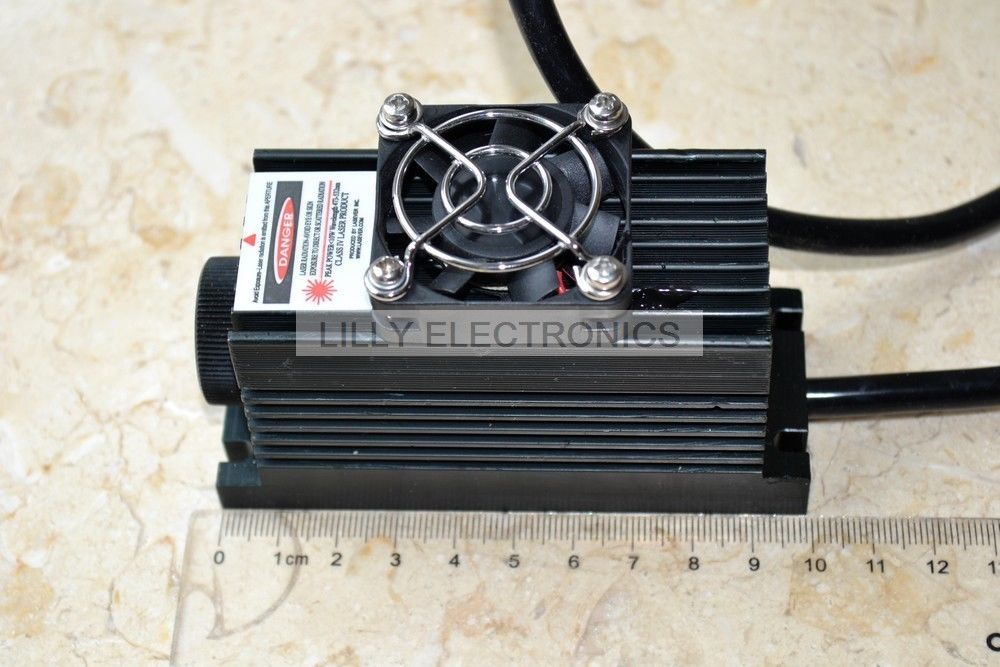

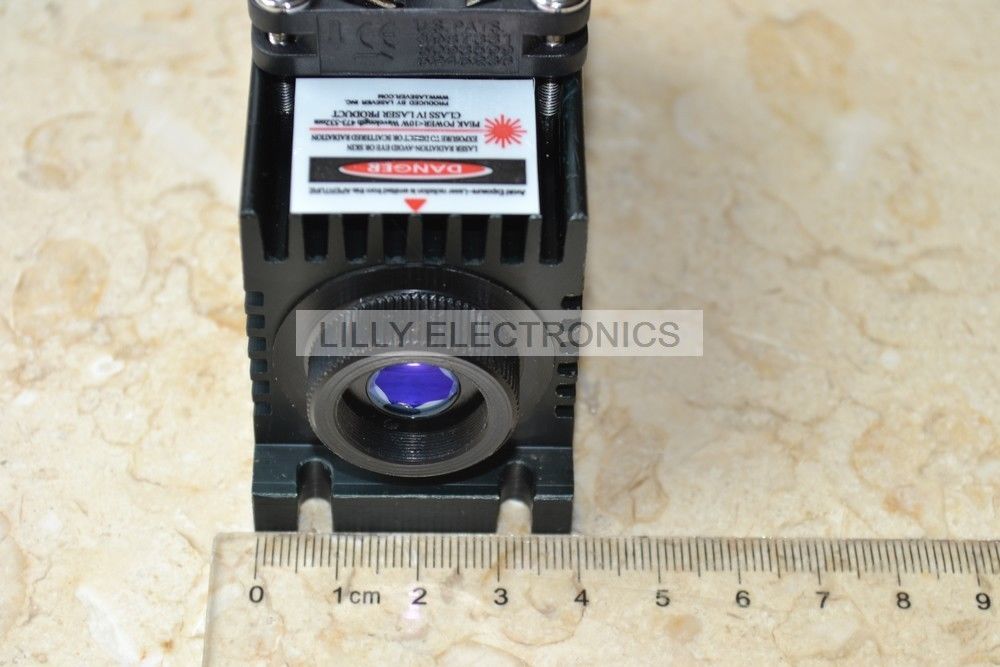

Laser head dimensions |
100(L)x40(W)x50(H)mm3 (fan adds 15mm height) |
|

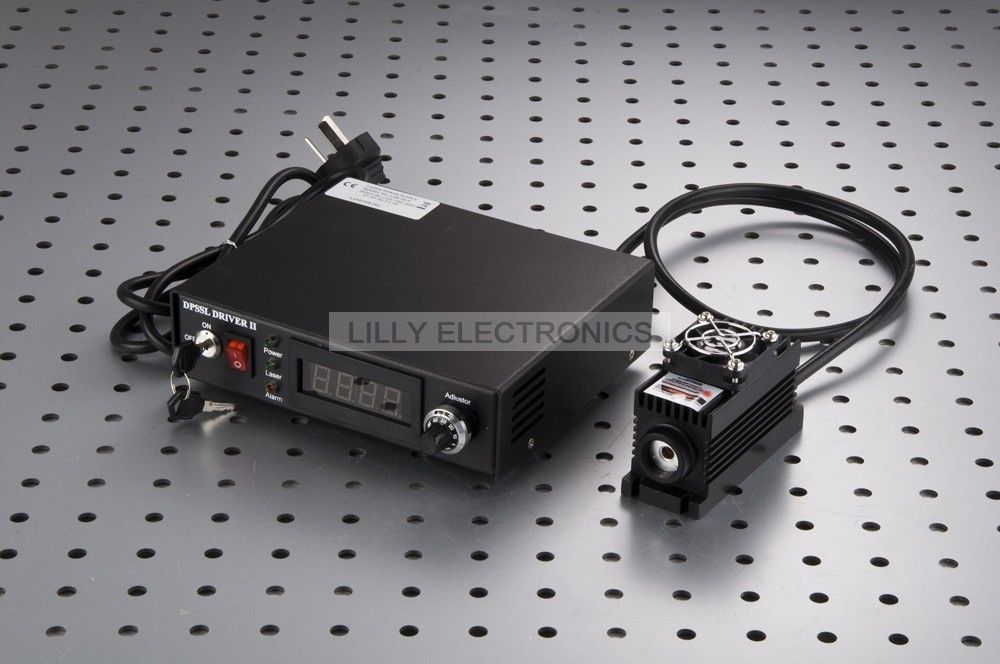

Power Supply (Optional, note to us which one you need) |
A. OEM type LSR-PS-I: 100(L)x58(W)x32(H)mm3 AC/DC PSU: 85~265V 50/60Hz input |
|
B. Lab type LSR-PS-IIS: 104(W)x128(D)x89(H)mm3 85~265V 50/60Hz input |
|
|
C. Lab Adjustable type LSR-PS-IIS: 179(W)x148(D)x56(H)mm3 85~265V 50/60Hz input |
