CNC2418 110-240VAC CNC Engraving Machine/ Laser Engraving Machine 240*180*40mm for Plastics/Wood/Acrylic/PVC/PCB



Package Included:  (Please select according to attributes.)

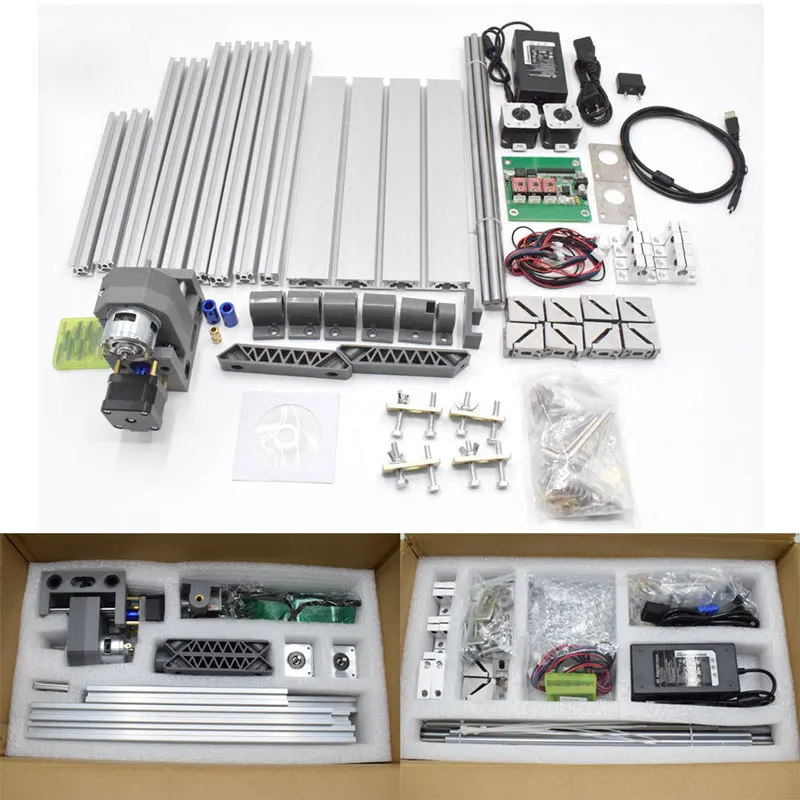

Package 1: All parts of the machine+4pcs plates+1pcs Brass chuck+ free 12pcs pcb cutter+Adapter+ Install CD (Without Laser)

Package 2: All parts of the machine with 12v 500mw laser and glasses+4pcs plates+1pcs Brass chuck+12pcs pcb cutter+Adapter+ Install CD

Package 3: All parts of the machine with 12v 2500mw laser and glasses+4pcs plates+1pcs Brass chuck+12pcs pcb cutter+Adapter+ Install CD

Package 4: All parts of the machine with 12v 5500mw laser and glasses+4pcs plates+1pcs Brass chuck+ 12pcs pcb cutter+Adapter+ Install CD



Please note:

1. All products are shipped in bulk,Some components and core components have been assembled, simply hand assembled according to the installation instructions, you can use the rack

2. If you need laser engraving function, please select according to attributes.



Features :

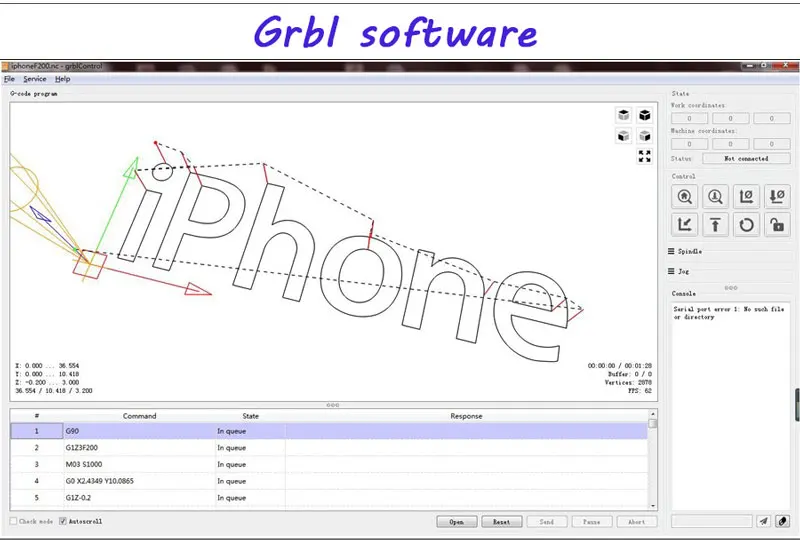

Control software: GRBL Control

Material: Aluminum + Plastic

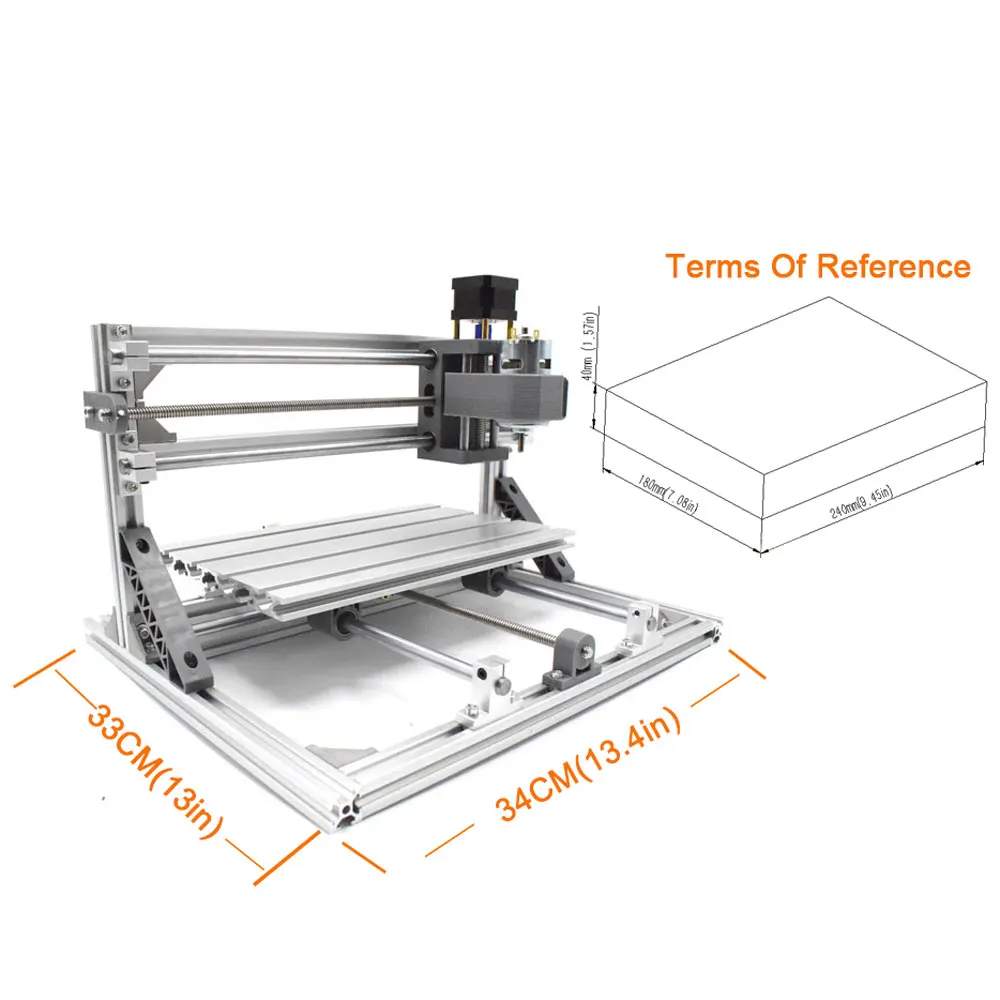

Scope of work: 240*180*40mm

Frame size: 330*340*240mm(Excluding XYZ motor salient parts)

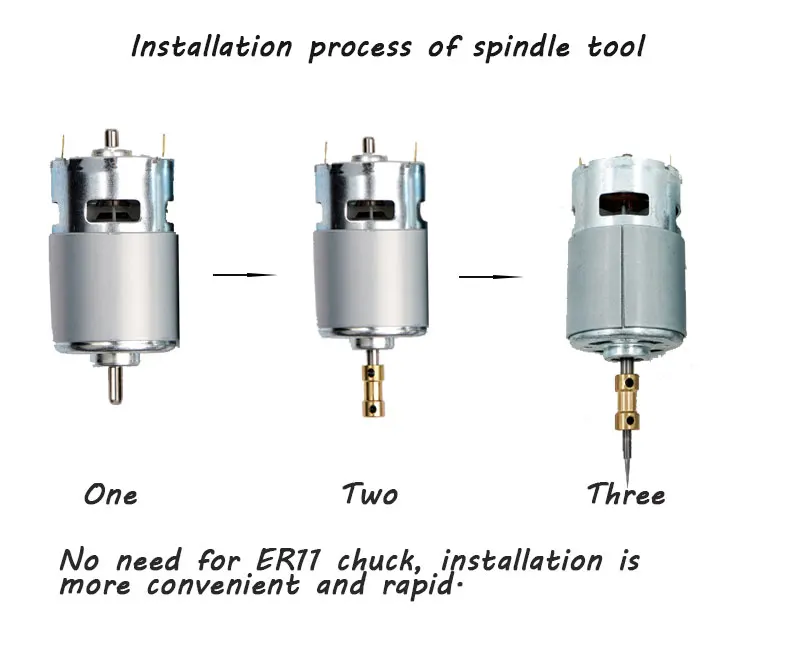

Spindle: 775 spindle motor (12-36V) 24V: 7000r/min,36V:9000r/min

Stepping motor: 2-phase 4-wire stepping motor. 1.3A 0.25NM

Screw rod: T8 screw rod

Adapter power supply: 110VAC-240VAC

Equipment needs power supply: 24VDC

Support System: Windows XP/Win 7/Win 8/Linux





Sculpture materials:

Equipment can engrave plastics, wood, acrylic, PVC, PCB and other soft materials.

Note: Workpiece materials need standard shape materials, cylindrical, curved surface, non-isotropic materials can not be engraved.

The equipment can use laser to burn cardboard, wood, acrylic, PVC, EVA and other materials. Laser power is different, the color and depth of burning will be different, the power will be deeper.



Attention:

1.This machine does not work on metal.  Mainly used to engrave wood. Please contact us for further information.

2. Laser, please don’t look in the eye

3. Do not irradiate human skin for a long time after laser is emitted.



Frequently Asked Questions:

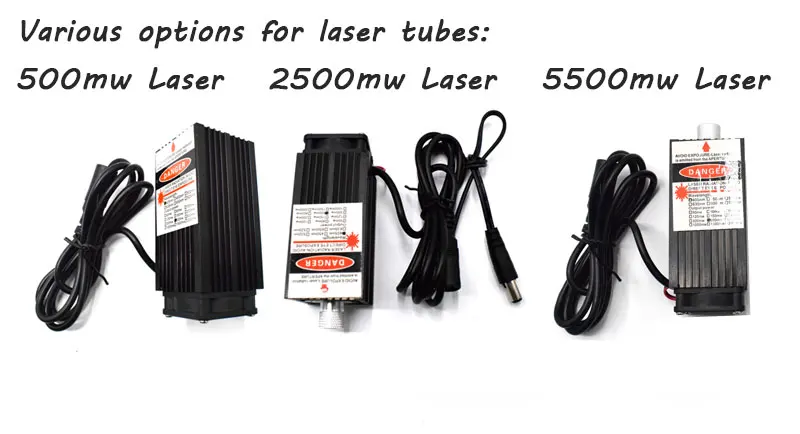

Q: Whats the different between 500mw laser, 2500mw laser, 5500mw laser

A: All these lasers can not engrave/mark on any metal, they are mainly used on engraving wood.

2500mw laser can cut about 1mm normal wood.

5500mw laser can cut about 2mm normal wood, engrave on leather and soft plastic.



Advantage:

   Compact and compact products，Plastic body with a profile, small size, light weight, USB interface, GRBL control systems, learn to use the preferred entry. Either by inscribing, and can be carved with lasers. The frame and worktable are made of aluminium alloy. Light and strong.

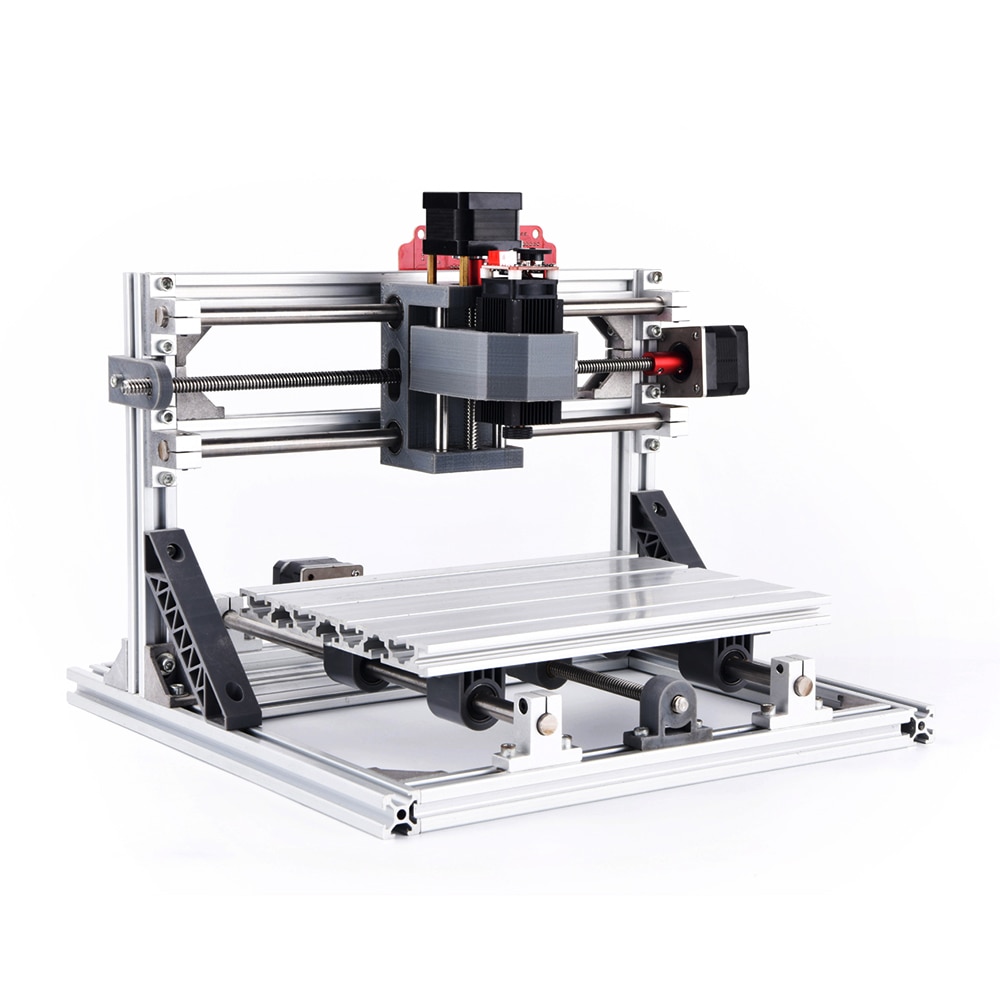

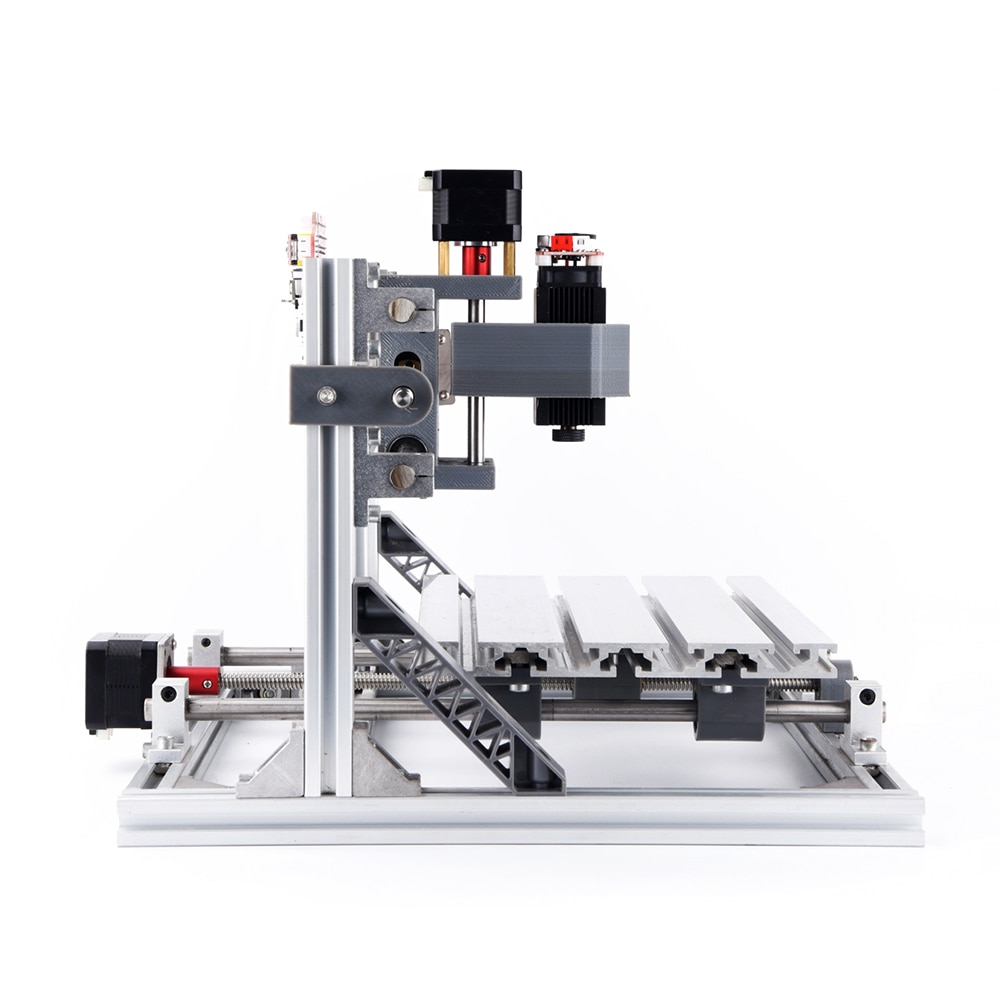

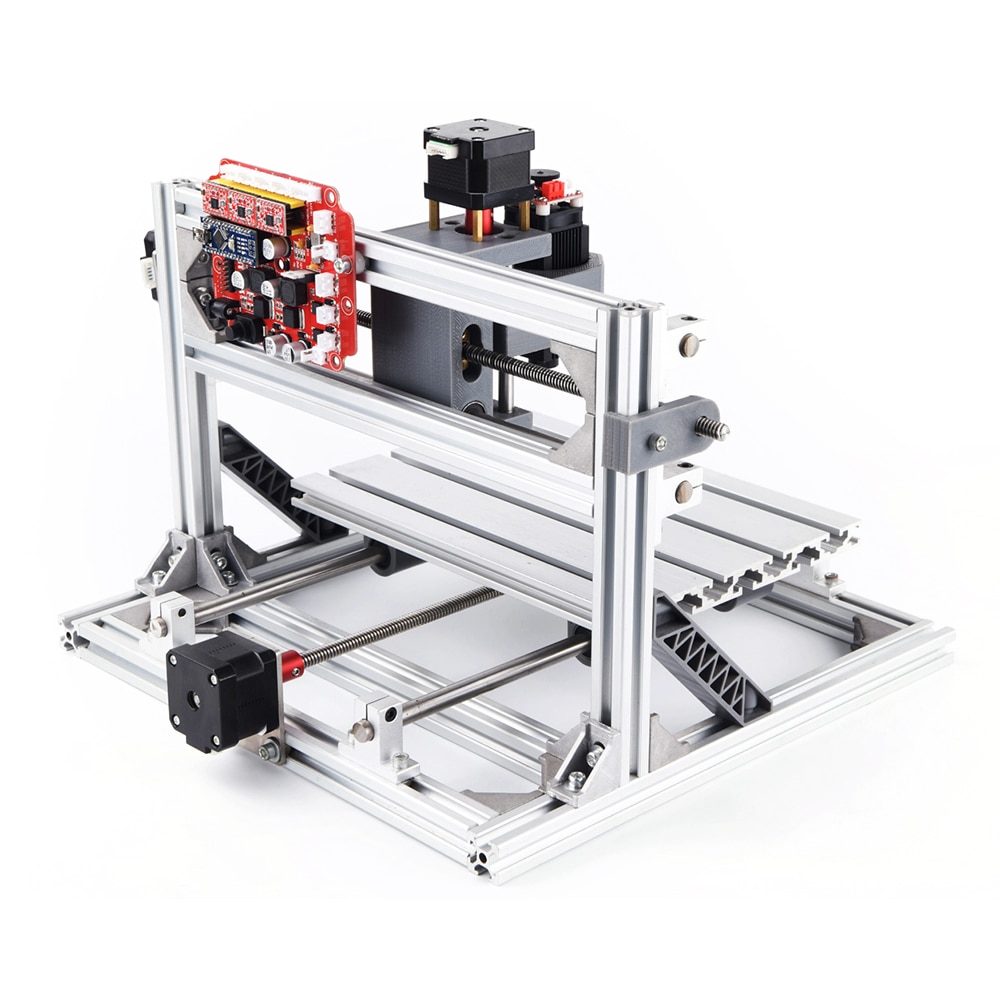

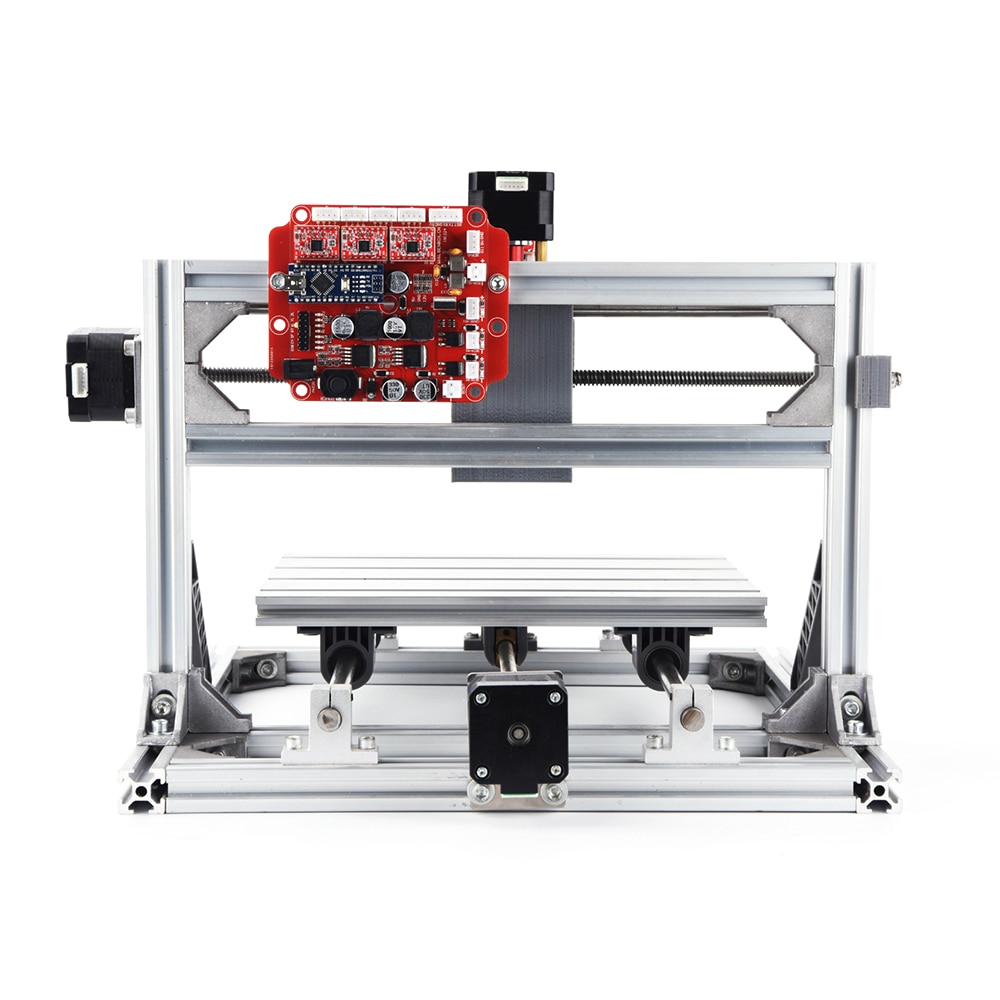

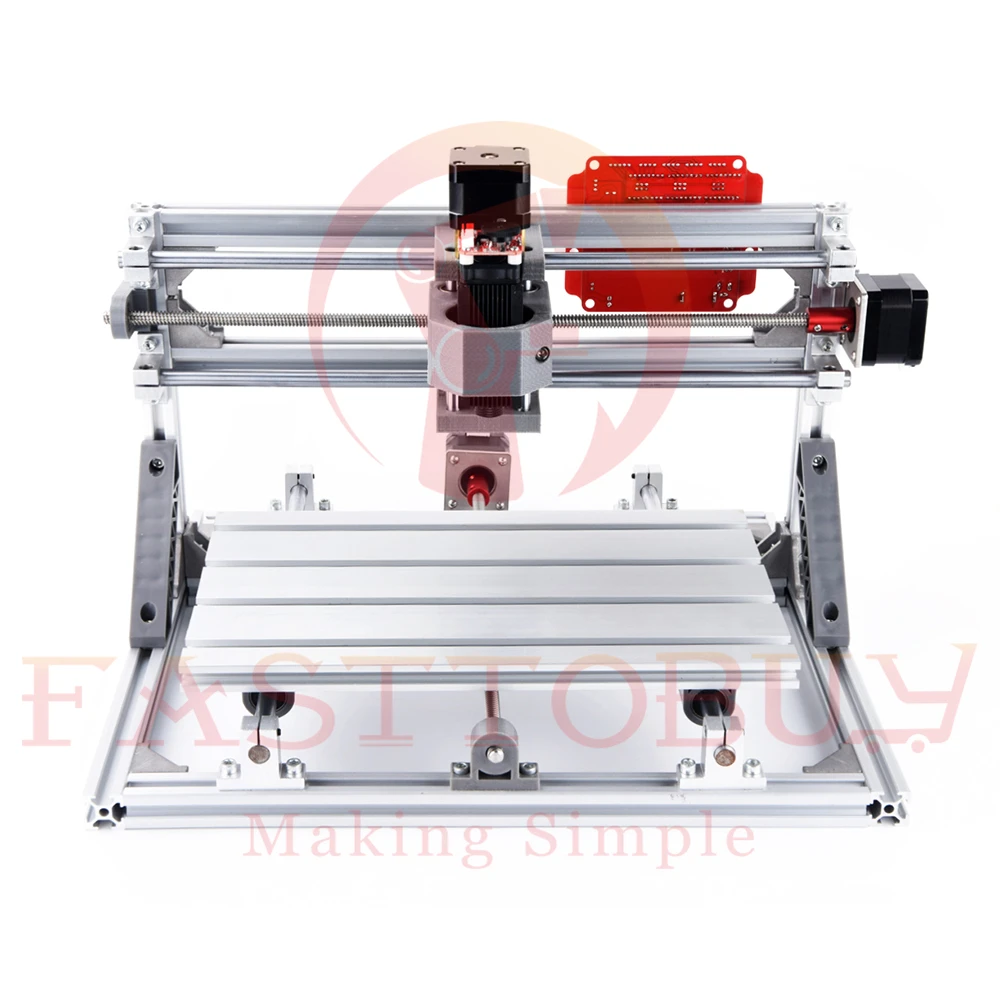

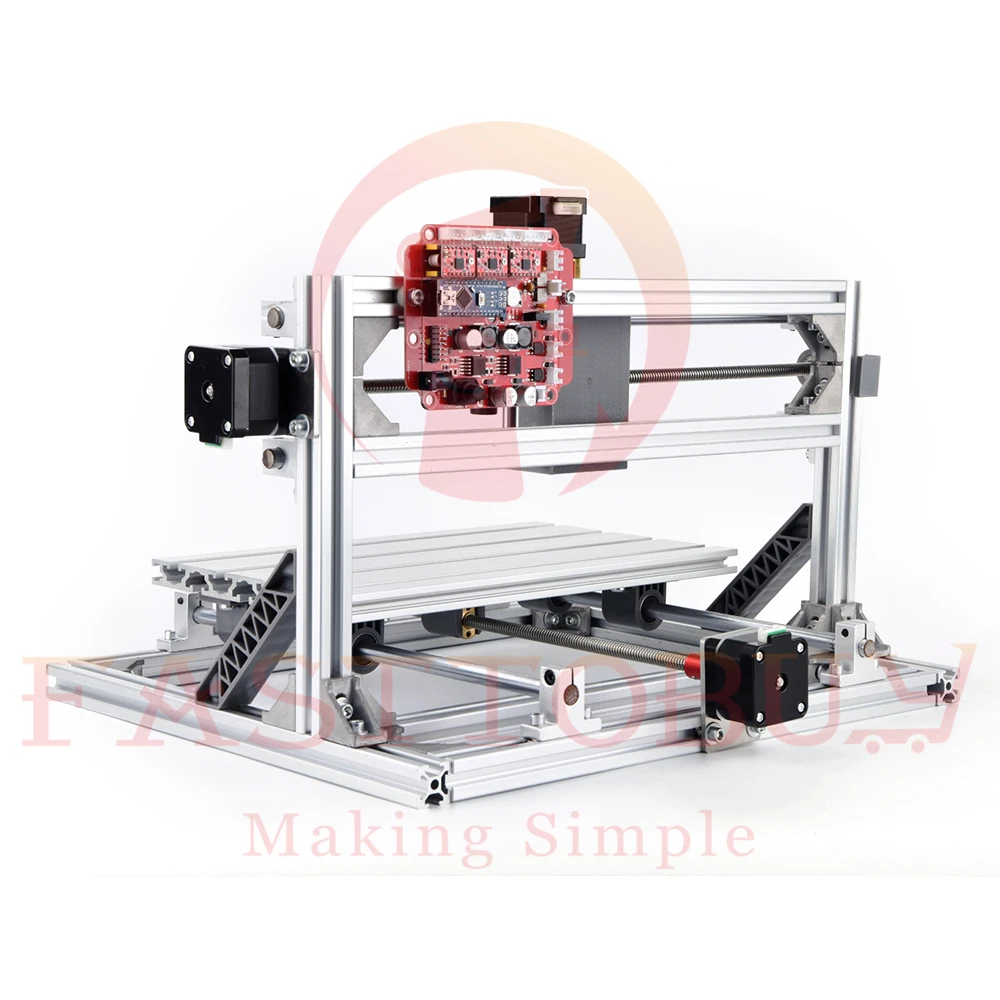

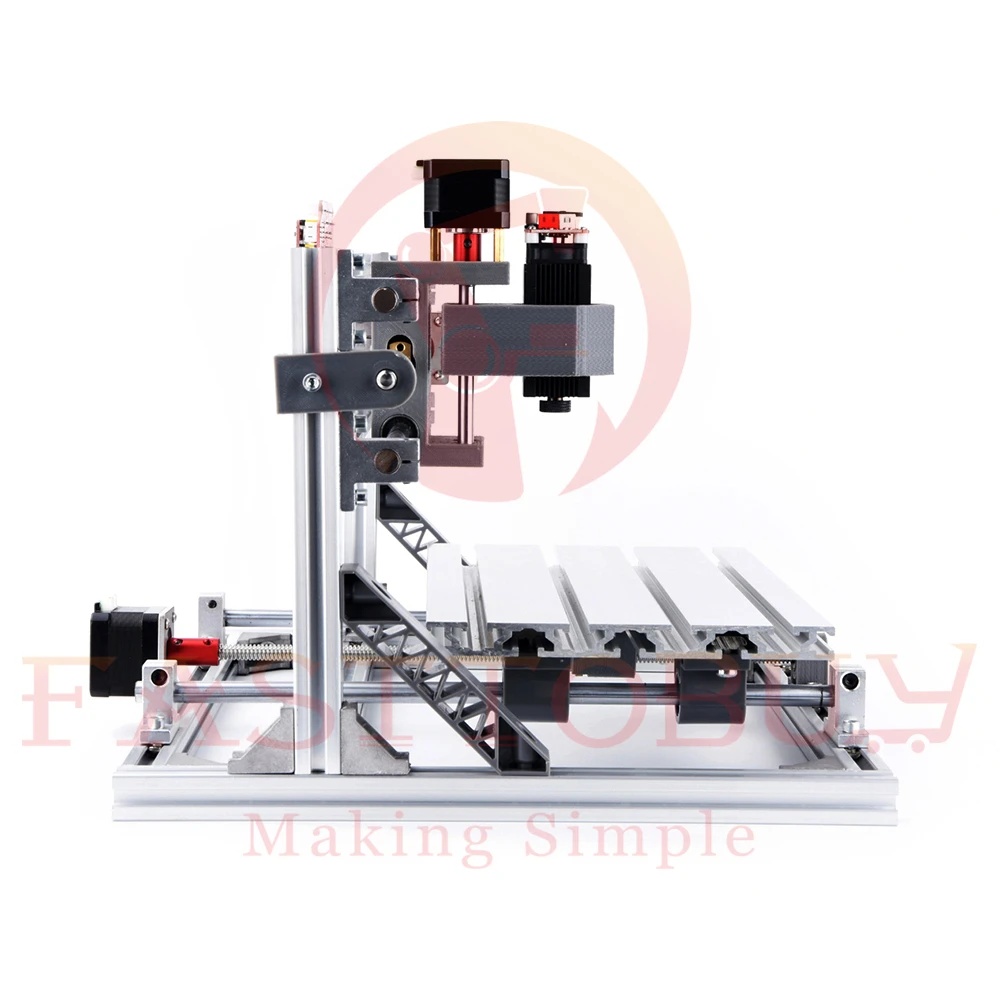

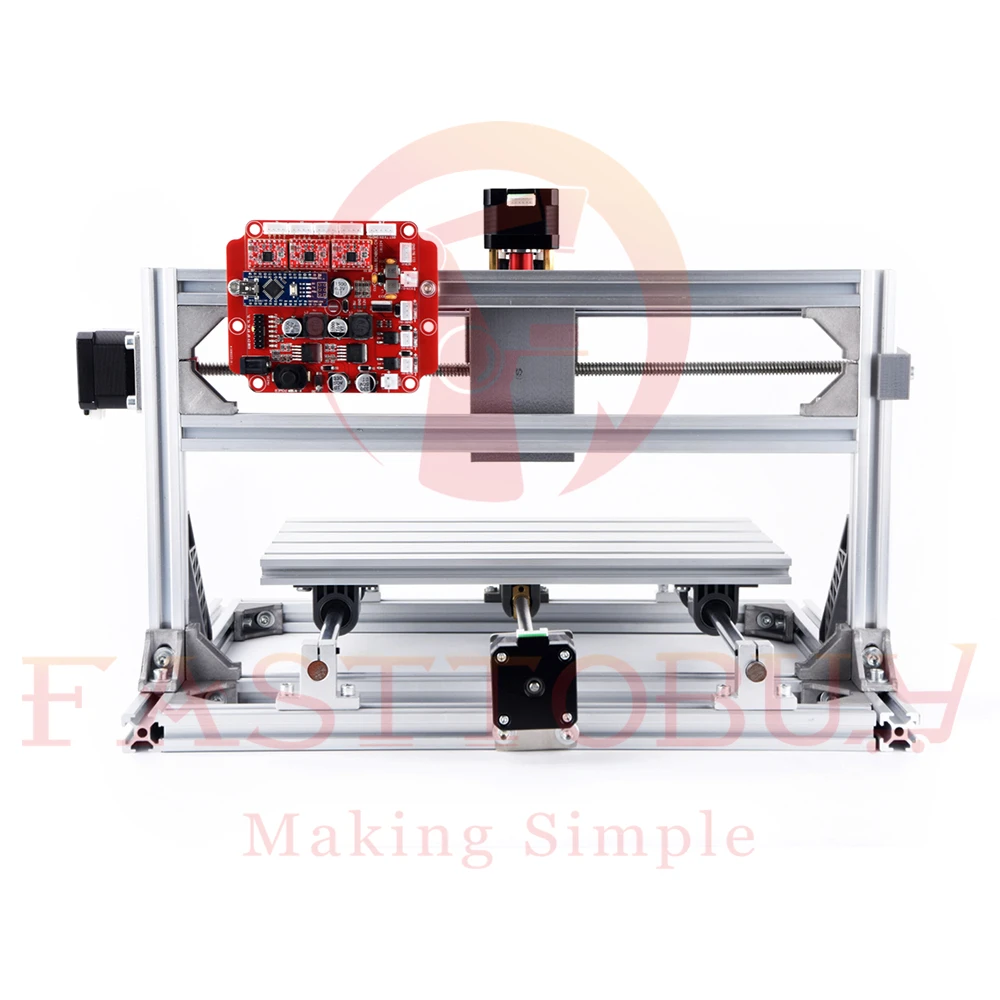

Detail preview：
