Description
- Brand Name: diymore
- Condition: New
- Origin: CN(Origin)
- Resistance Tolerance: 20
- Technology: Metal Alloy
- Type: Metal Film Potentiometer
- Operating Temperature: standard
- is_customized: Yes
- Max. Operating Voltage: standard
- Model Number: Electric Joystick Potentiometer
2-Axis JH-D202X-R2 5K Joystick Potentiometer 4-Axis JH-D400X-R4 10K Joystick Potentiometer 2D/4D Monitor Keyboard Auto Control
Note: only Joystick Potentiometer

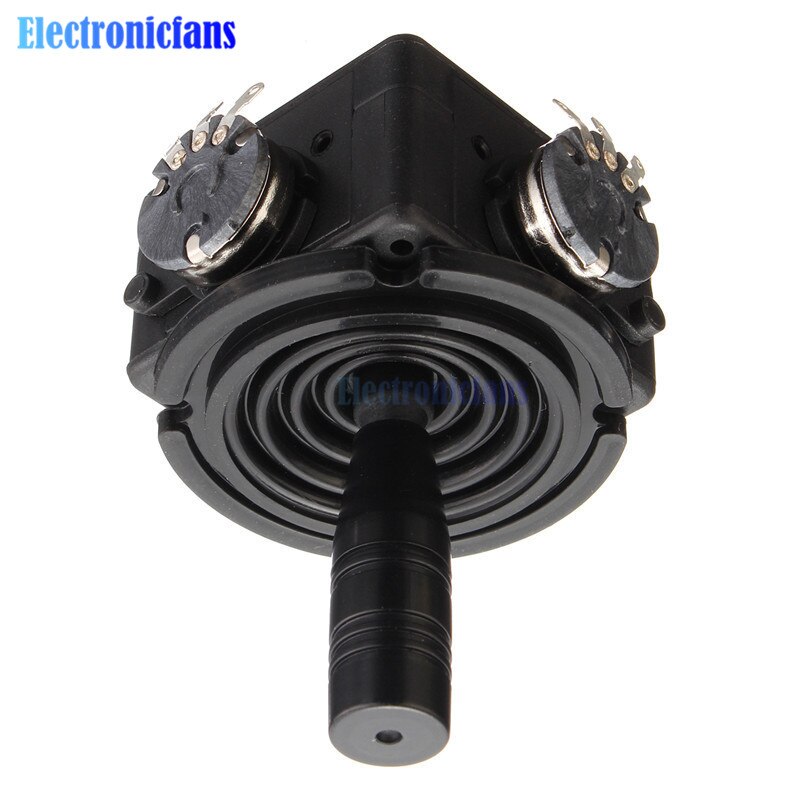

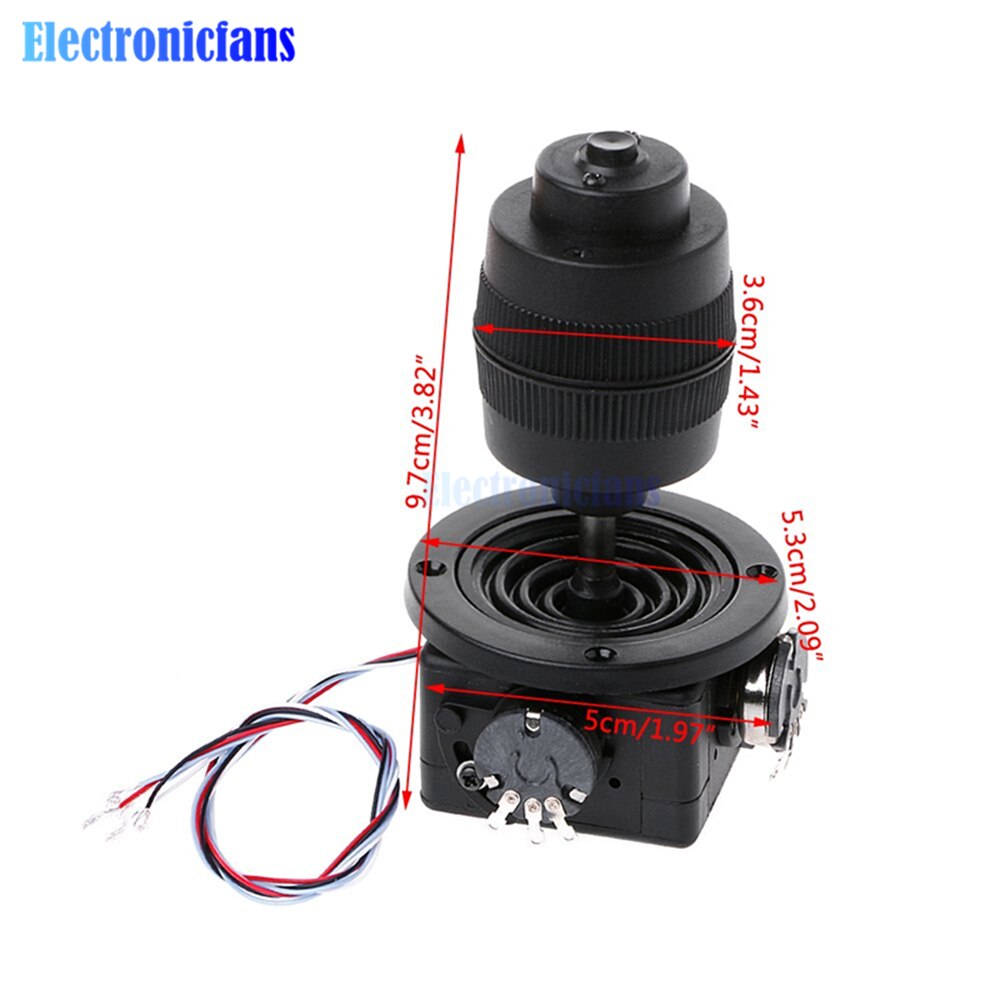

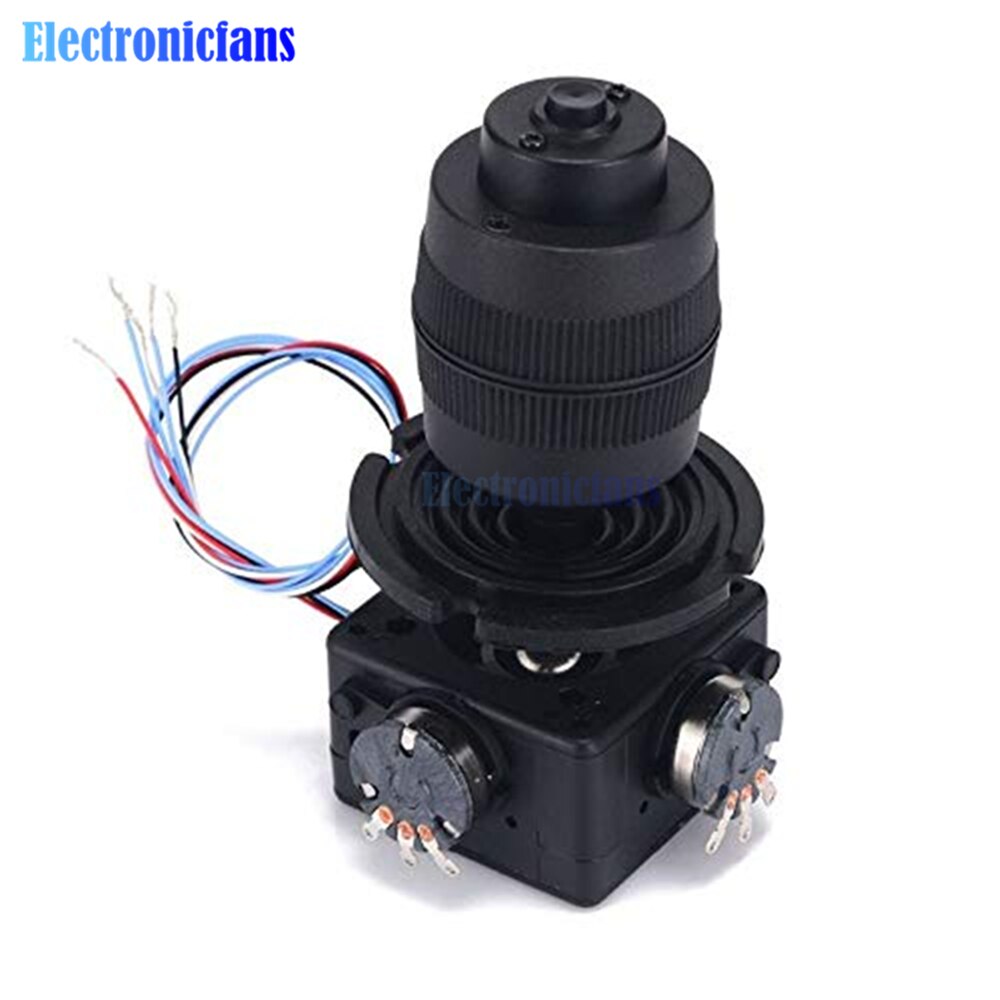

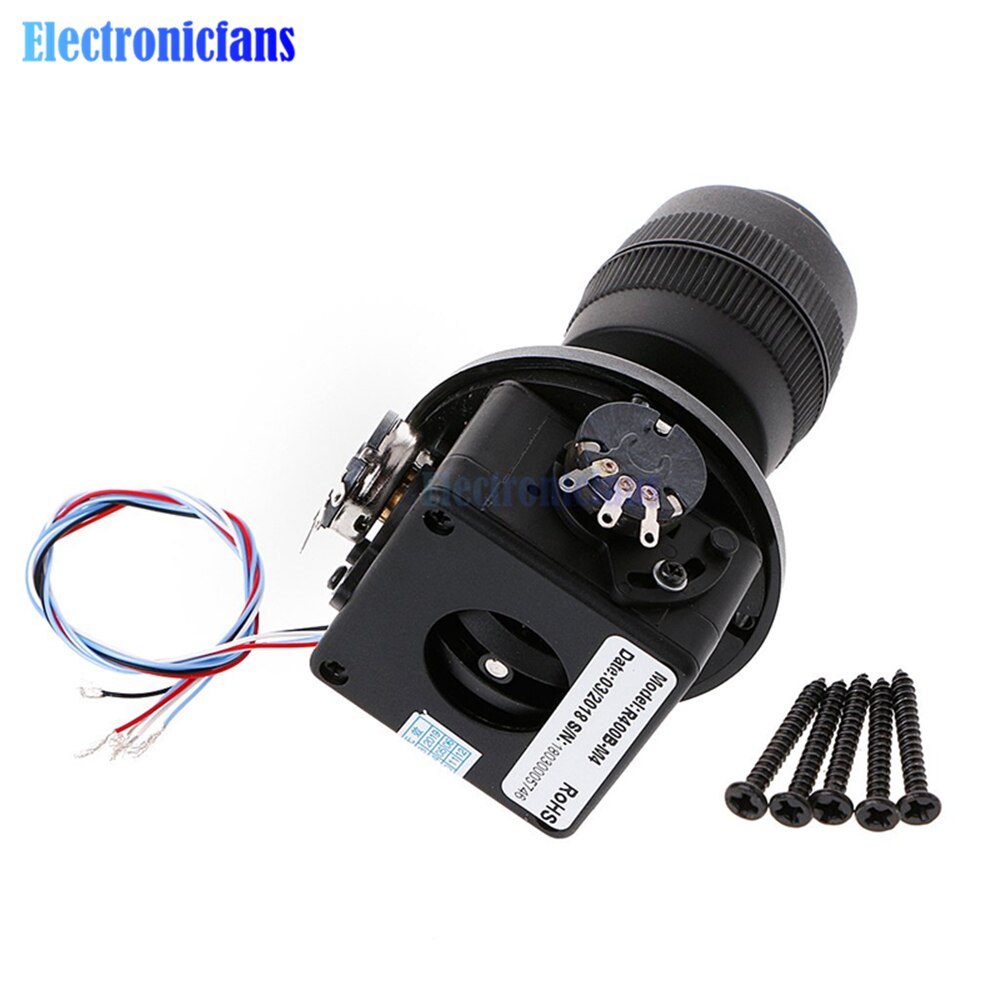

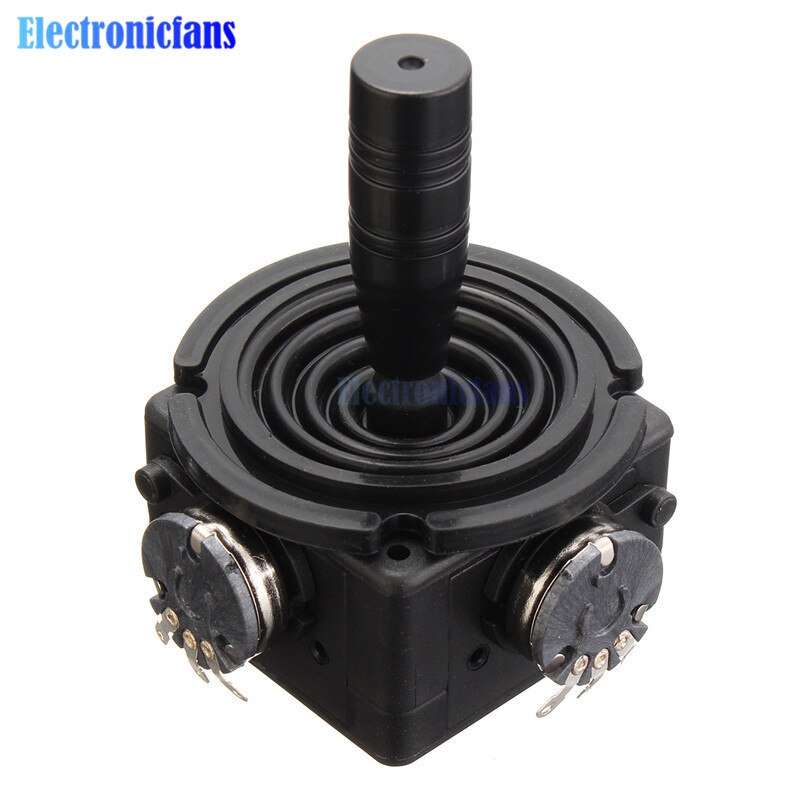

4-Axis JH-D400X-R4 10K Joystick Potentiometer
Descripion:
Color:Black
Material:Plastic
Module Number:JH-D400X-R4
Resditance Value:Standard 10KΩ
Resditance Tolerance:±20%
Independent Linearity:±1%
Resolution: Essentially Infinite
Outpoot Smoothness:0.5% maximum
Scope of application:
1. Move photography and television control system
2. Curative imaging system
3. Film frequency compile and produce equipment
4. Automatization machine control
5. Instruments for industrial and scientific us
Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
2-Axis JH-D202X-R2 5K Joystick Potentiometer
Description:
Color: Black
Resditance Value: Standard 5KΩ
Resditance Tolerance: ±20%
Independent Linearity: ±1%
Resolution: Essentially Infinite
Temperature Coefficient Resistance: ±400 ppm/°C
Outpoot Smoothness: 0.5% maximum
X& Y Axis Electricity Corner: ±25°
Z Axis Electricity Corner: ±45°
R300Z Axis Potentiometer, R400Z Axis Potentiometer And Button Switch Lead: AWG28 Color Coded, Silver Plated, PTFE inslatedlead wires standard length 100mm other lengths on request.
Insulation Resistance: 50MΩ @ 500VDC, 60 sec.
Specification:
Operate Torque: X& Y axis 90gf and 250gf, Z axis 330gf.
Restoration Error Rate: ±0.03KΩ
Prolepsis Mechanical Lifecycle: 500,000 cycle
Operating Temperature Range: -10~ 80°C
Scope of application:
1. Move photography and television control system
2. Curative imaging system
3. Film frequency compile and produce equipment
4. Automatization machine control
5. Instruments for industrial and scientific
Package included:
1 × 2-Axis JH-D202X-R2 5K Joystick Potentiometer /4-Axis JH-D400X-R4 10K Joystick Potentiometer
