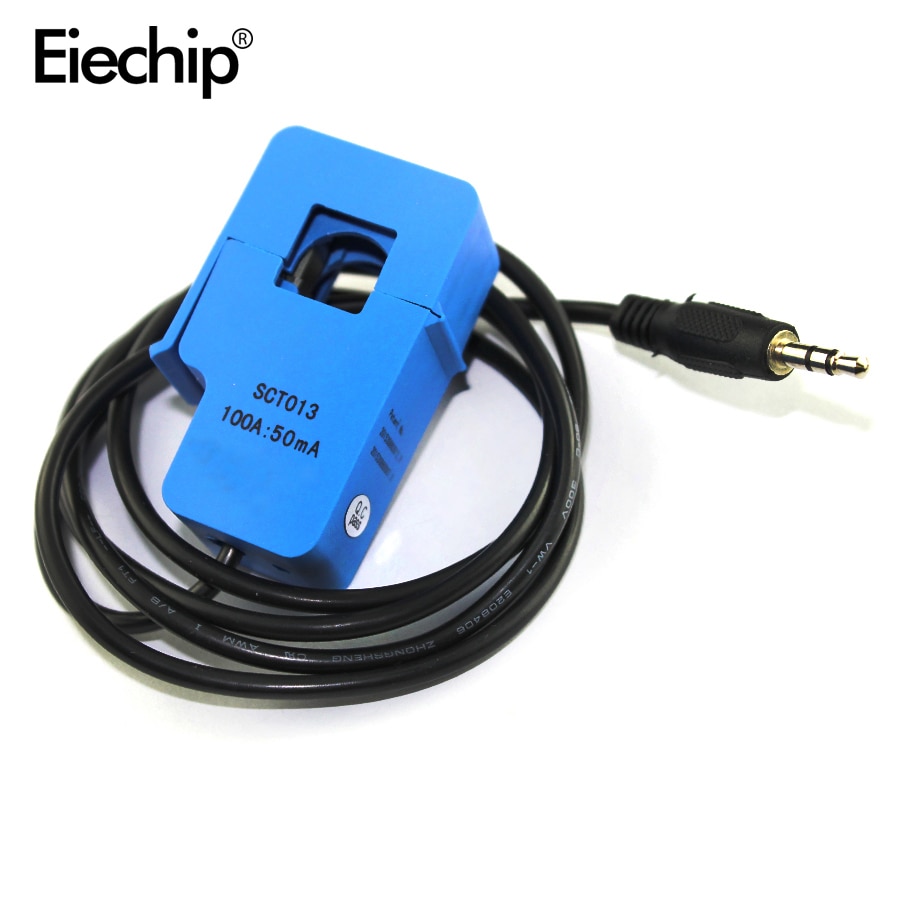

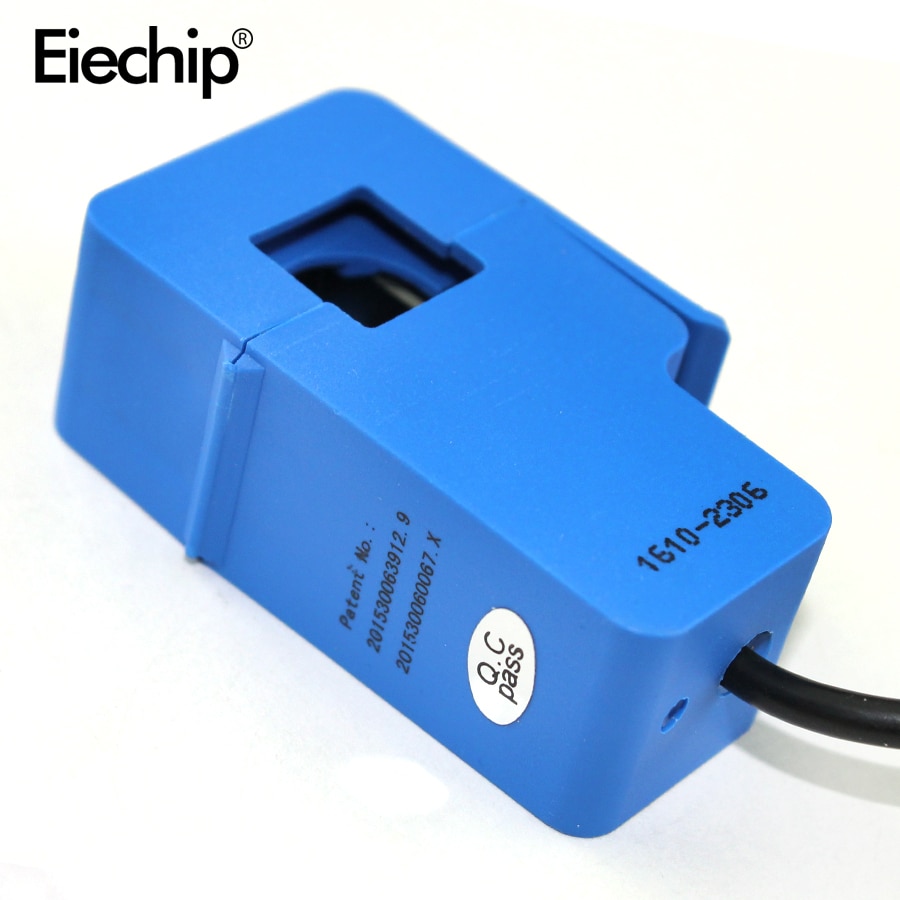

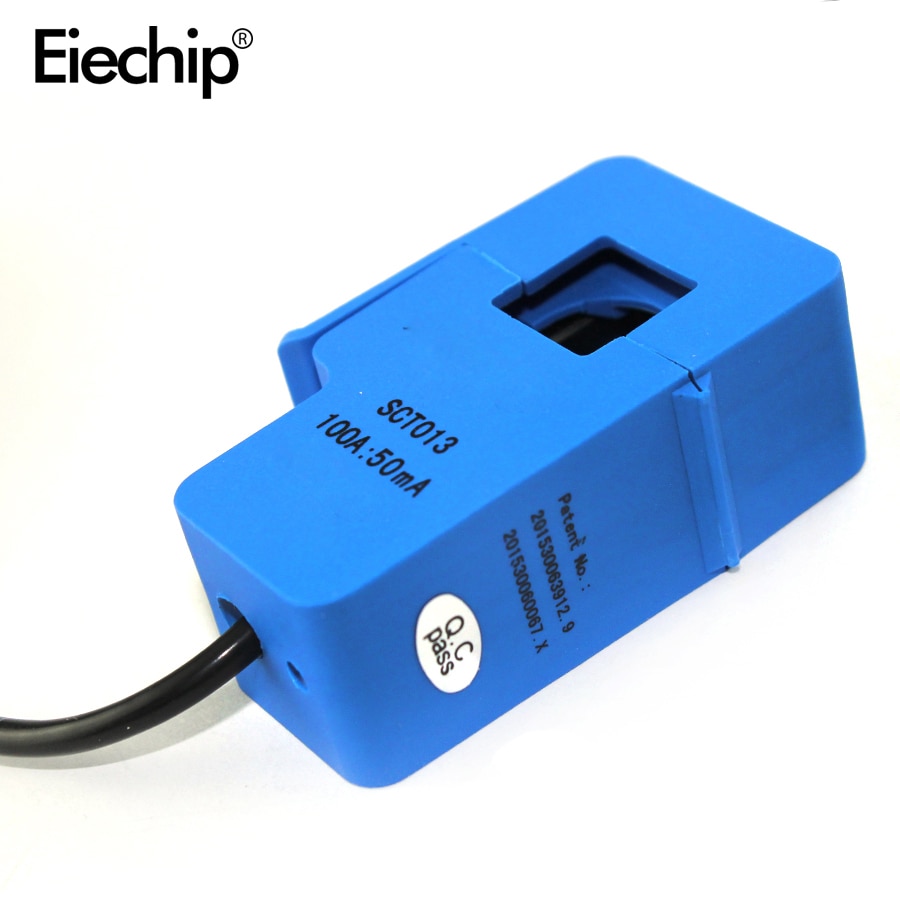

1pcs Non-invasive Split Core Current Transformer AC current sensor 100A SCT-013-000

Specifications:

Opening size:13mmx13mm

Non-linearity 3%(10%-120% rated input current)

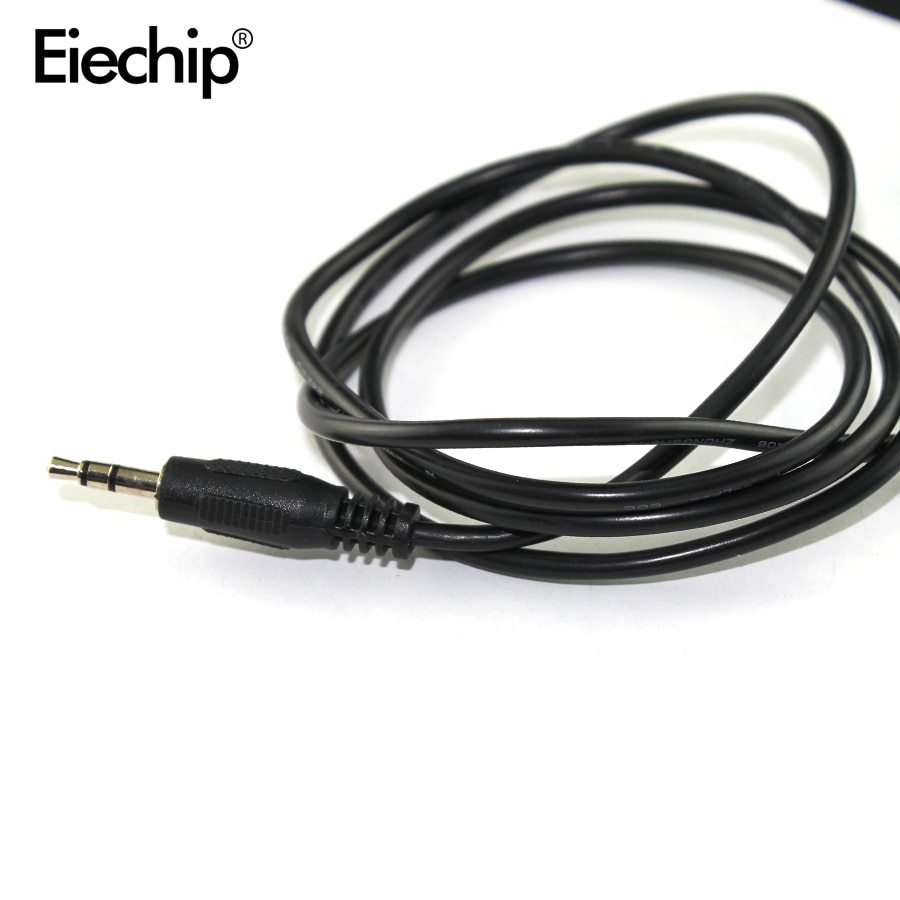

1.5m leading wire,3.5 3 core plug standard output.

Two form of output current, voltage (voltage output built-in the sampling resistor).

Core material: ferrite

Mechanical strength: opening and closing times, no less than 1000 times (20 C

Safety indicators: Dielectric strength 6000V AC/1min

Meet UL94-V0 flame retardant properties

Operating Temperature: -25 C ~ +70 C

Applications:

for AC motors, lighting equipment, air compressors

and other current measurement,monitoring and protection.

Package include:

1 x Split Core Current Transformer SCT-013-000
