Description
- Brand Name: QDHWOEL
- Structure: Other
- Material: Other
- Usage: Optical
- Shape: Other
- Model Number: 30mm
- Diameter: 30mm
- Function: Co2 Laser Spare Parts
- Material: Mo (Molybdenum)
- Laser type: Co2
- Packaging: 1pcs

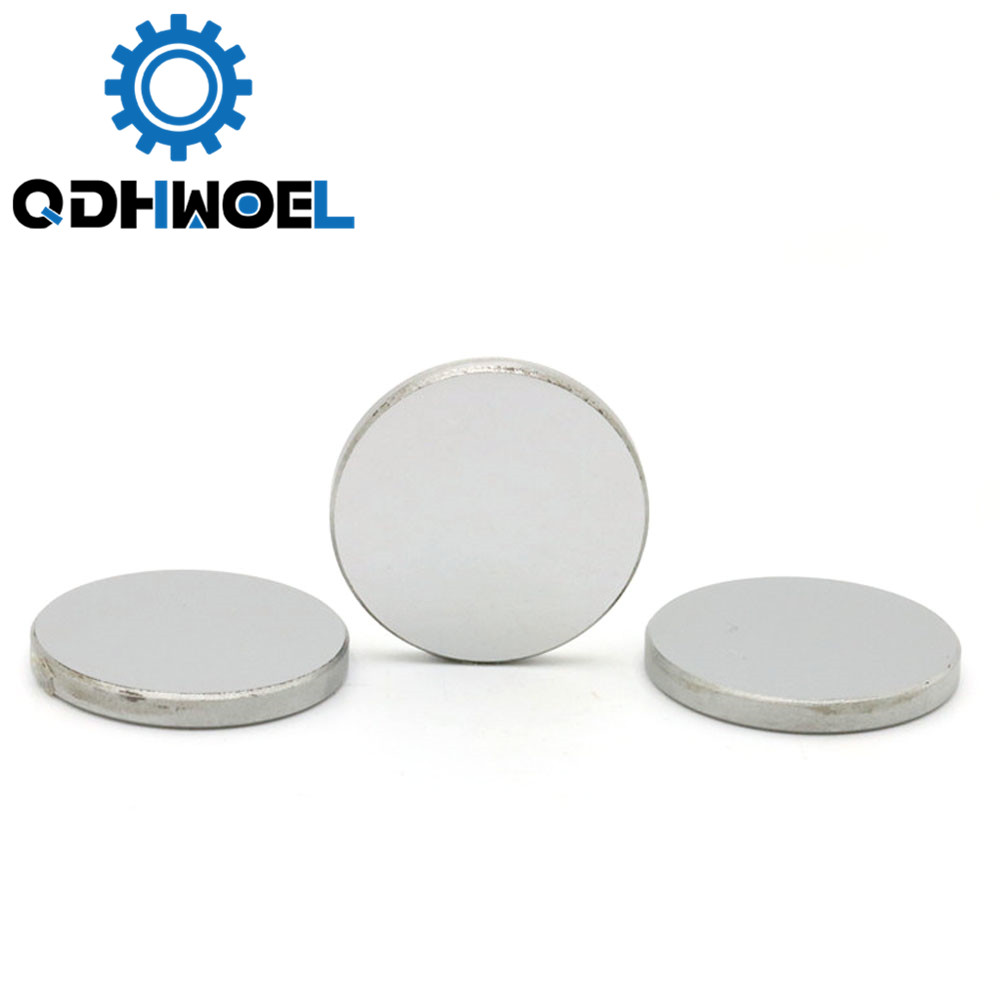

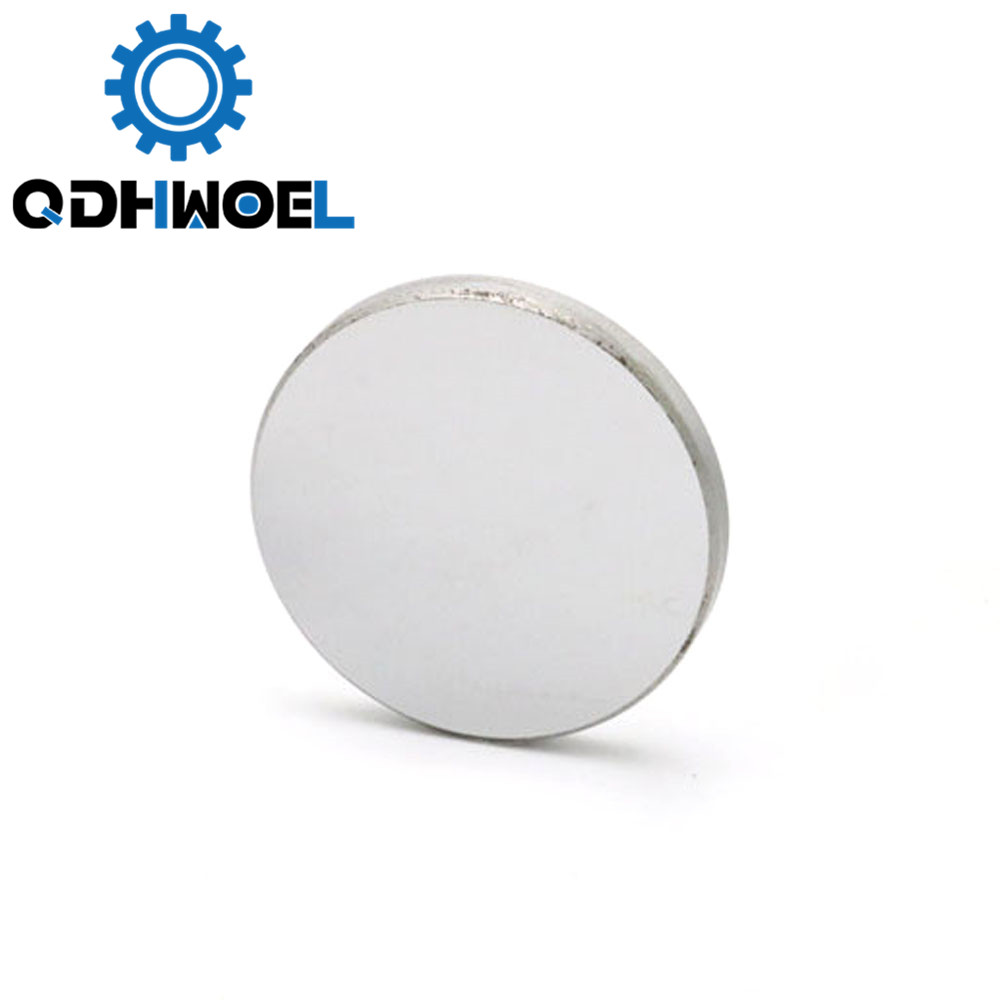

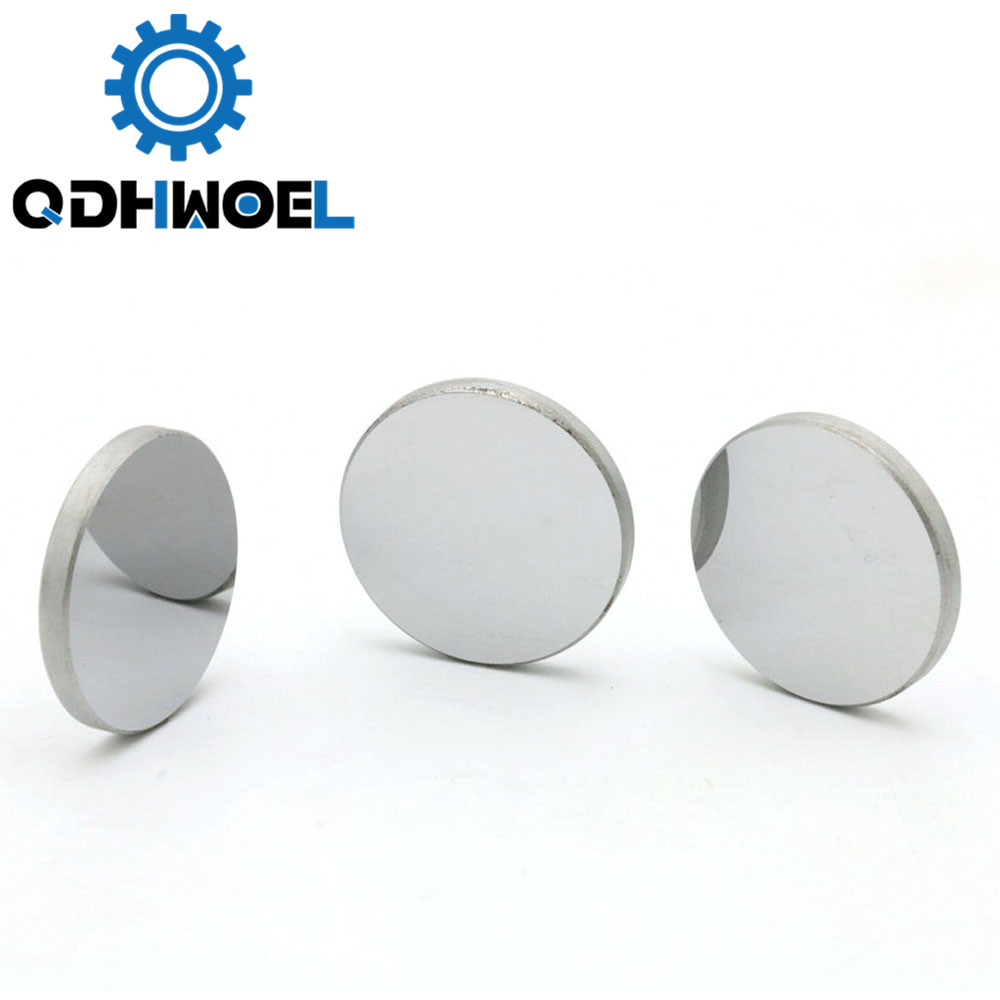

1pcs Mo Co2 Laser Reflect Mirror 30mm Diameter 3mm Thickness For Co2 Laser Engraving And Cutting Machine

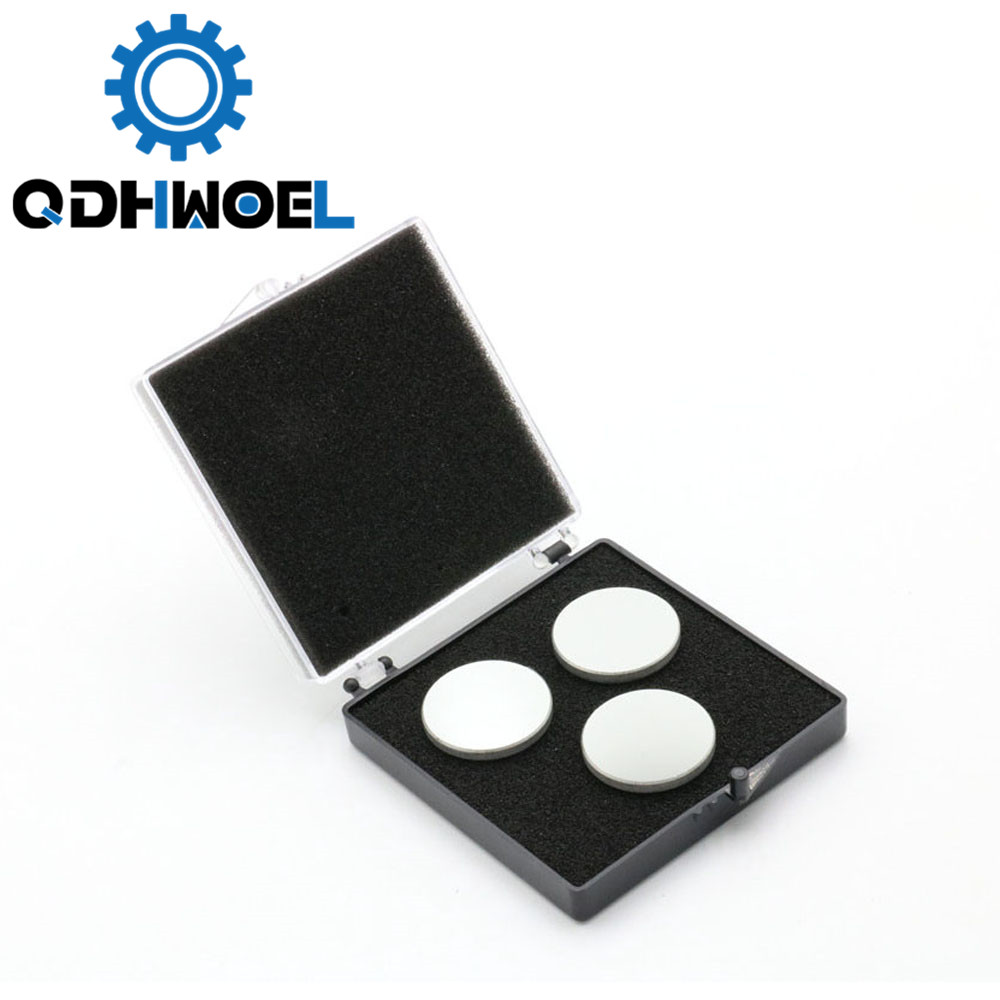

Mo (Molybdenum) Laser Reflecting Mirror 30mm—-Packaing list 1pcs
|
Material |
Silicon mirror reflecting |
|
|
Diameter Tolerance |
+0.0/-0.1mm |
|
|
Thickness Tolerance |
±0.1mm |
|
|
Clear Aperture |
>= 90% Diameter |
|
|
Surface Flatness |
lamda/4 at 632.8nm |
|
|
Scratch/Dig |
S1:40-20,S2: |
|
|
Parallelism |
<1′ |
|
|
Bevelling |
<0.2×45° |
|
P/N |
Diameter |
E.T. |
Material |
Coating |
Speciality |
|
mm |
mm |
||||
|
19-3 |
19 |
3 |
Silicon |
Gold-plated |
Highly reflective coating |
|
20-3 |
20 |
3 |
|||
|
25-3 |
25 |
3 |
|||
|
30-3 |
30 |
3 |
|||
|
38.1-3 |
38.1 |
3 |
|||
|
38.1-5 |
38.1 |
5 |
|||
|
50.8-5 |
50.8 |
5 |
|||
|
50.8-10 |
50.8 |
10 |
|||
|
19-3 |
19 |
3 |
Silicon |
Dielectric-plated |
High power, Highly reflective coating |
|
20-3 |
20 |
3 |
|||
|
25-3 |
25 |
3 |
|||
|
30-3 |
30 |
3 |
|||
|
38.1-3 |
38.1 |
3 |
|||
|
38.1-5 |
38.1 |
5 |
|||
|
50.8-5 |
50.8 |
5 |
|||
|
50.8-5 |
50.8 |
10 |
