Description
- Brand Name: diymore
- Condition: New
- Origin: CN(Origin)
- Resistance Tolerance: ±10%
- Technology: Carbon Film
- Type: Rotary Potentiometer
- Operating Temperature: Please Check Description
- is_customized: Yes
- Max. Operating Voltage: Please Check Description
- Model Number: WH148
- Rated Power: 1/2 W
Feature:
Durable product
Convenient and practical
Easy to adjust voltage and electric current with Cap
Parameter:
Tolerance: ±10%
Resistance: 1K Ohm, 2K Ohm, 5K Ohm, 10K Ohm, 20K Ohm, 50K Ohm, 100K Ohm, 250K Ohm, 500K Ohm, 1M Ohm
Specification:

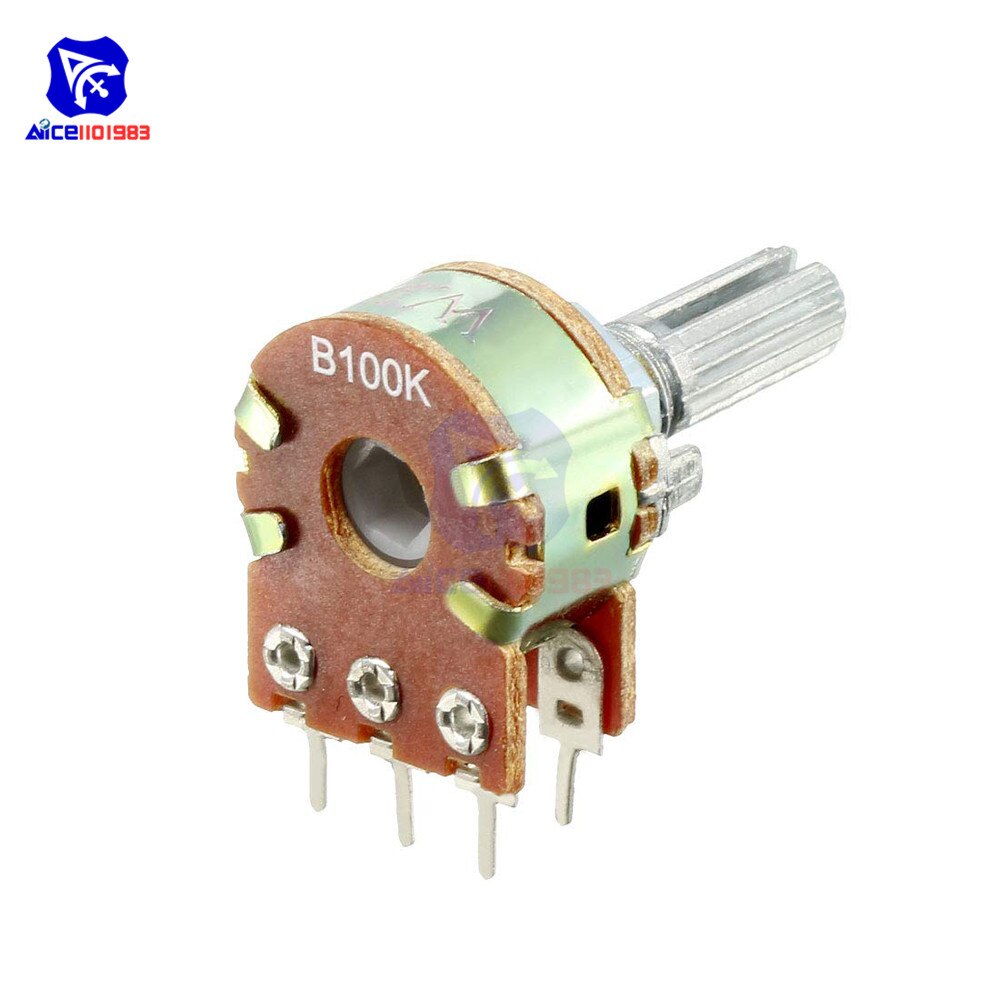

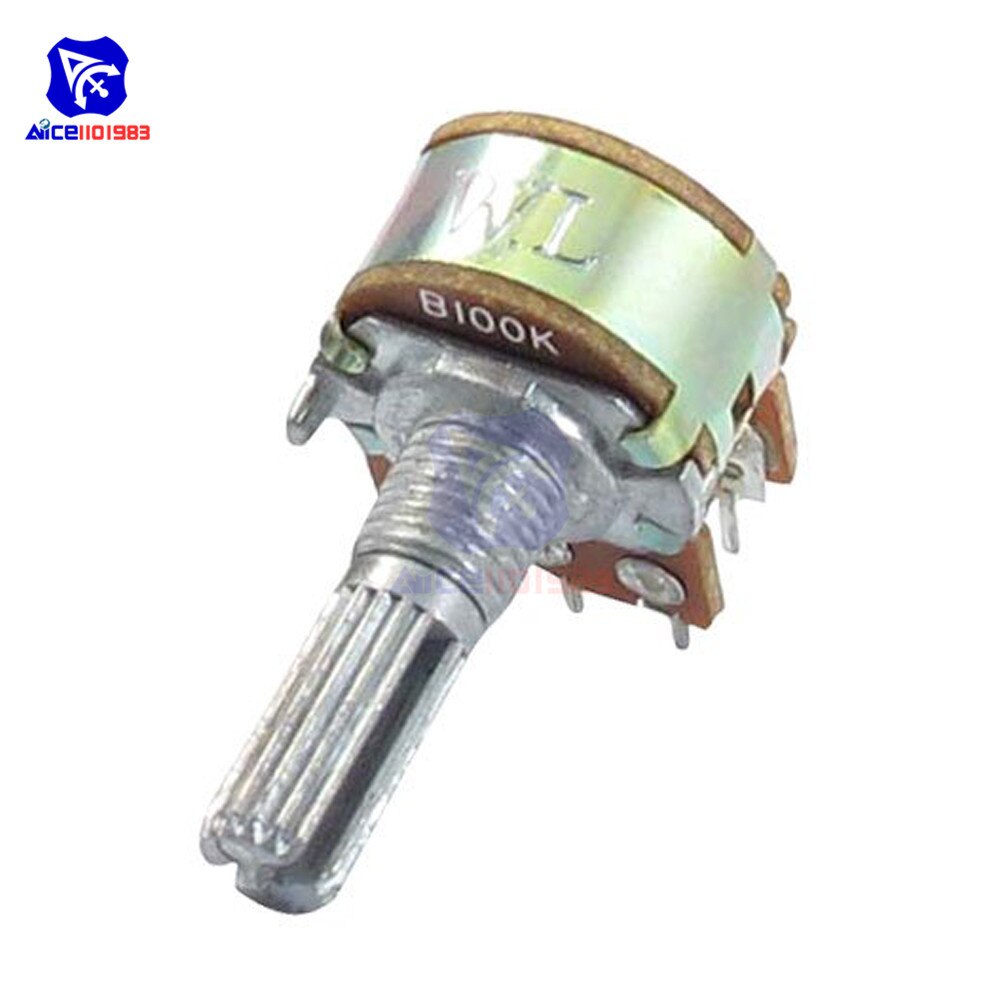

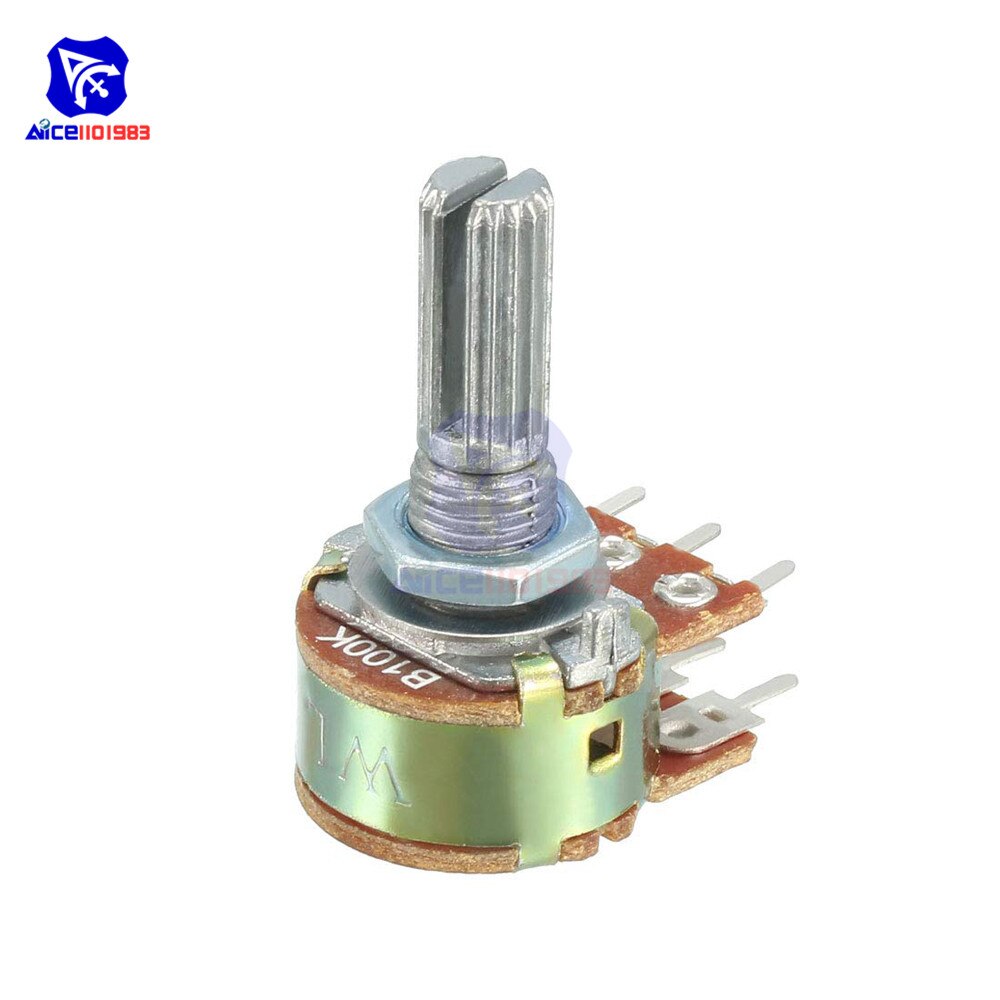

Model: WH148
Type: Rotary Potentiometer
Type: single Linear (Type B)
Knurled shaft diameter: 6 mm / 0. 2″
Shaft Length: 15mm / 0. 6″
Mounting thread diameter: 7 mm / 0. 28″
Base diameter: 16 mm / 0. 63″
Total height: 24 mm / 0. 94″

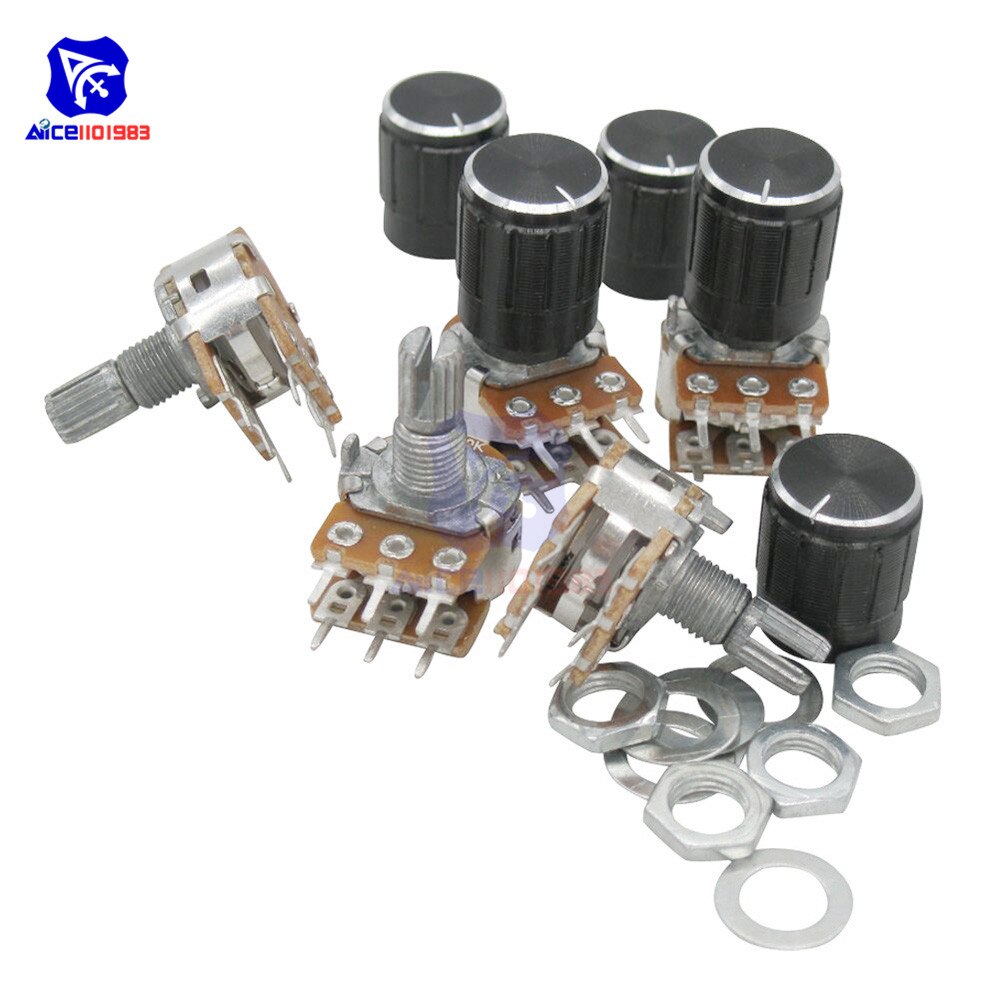

You could choose the following items as you wanted:
1 * B1K Potentiometer
1 * B2K Potentiometer
1 * B5K Potentiometer
1 * B10K Potentiometer
1 * B20K Potentiometer
1 * B50K Potentiometer
1 * B100K Potentiometer
1 * B250K Potentiometer
1 * B500K Potentiometer
1 * B1M Potentiometer
