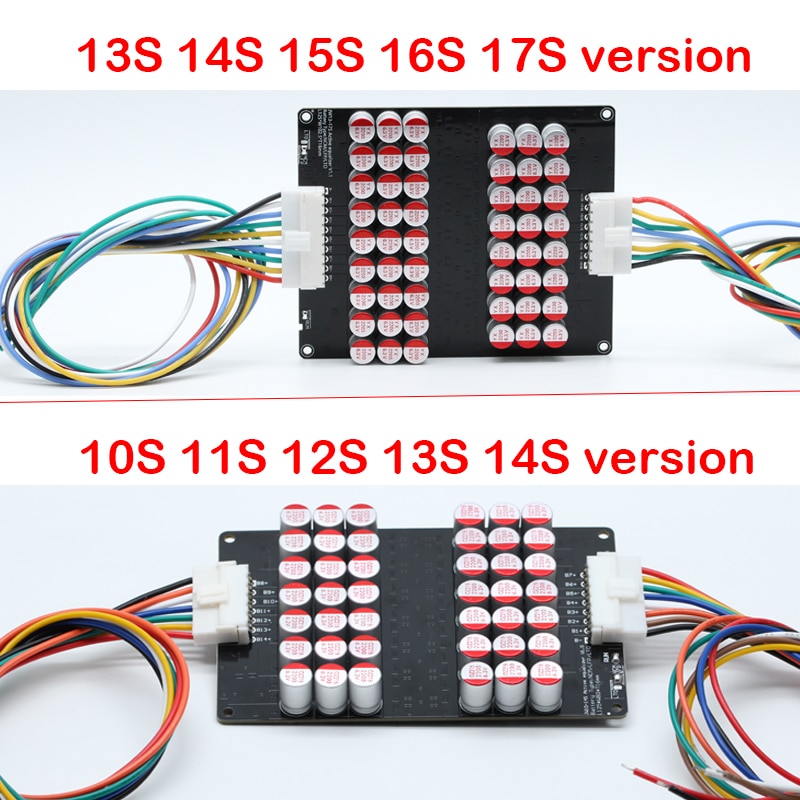

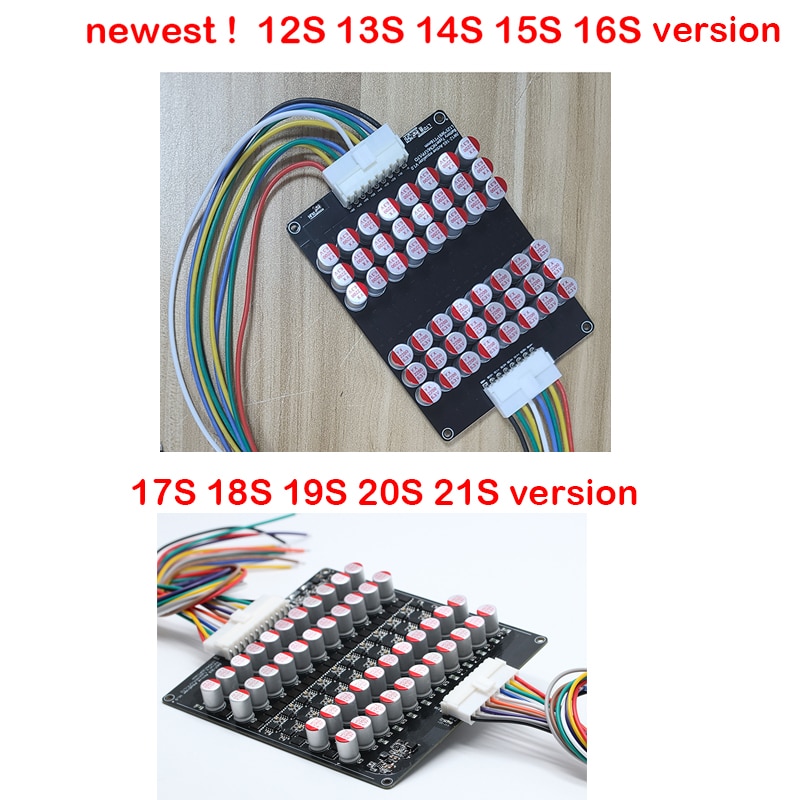

“17S 18S 19S 20S 21S version ”and “10S 11S 12S 13S 14S version” and “12S 13S 14S 15S 16S ” and “13S 14S 15S 16S 17S version ” can use for NCM/Li-ion/Lifepo4/LTO

🙂

All version can switch between Lifepo4/Li-ion and LTO , just changing welding point

If you need its diagram , contact us ~

Li-ion/Lifepo4 /Lipo version

Balance start voltage: 3.0V-4.2V
Balance termination voltage: 2.9V (into undervoltage sleep state)
Maximum Balance current: The whole group error is 0.1V1A; 0.5V3.5A; 1.0V5.5A (18awg 30CM cable test)

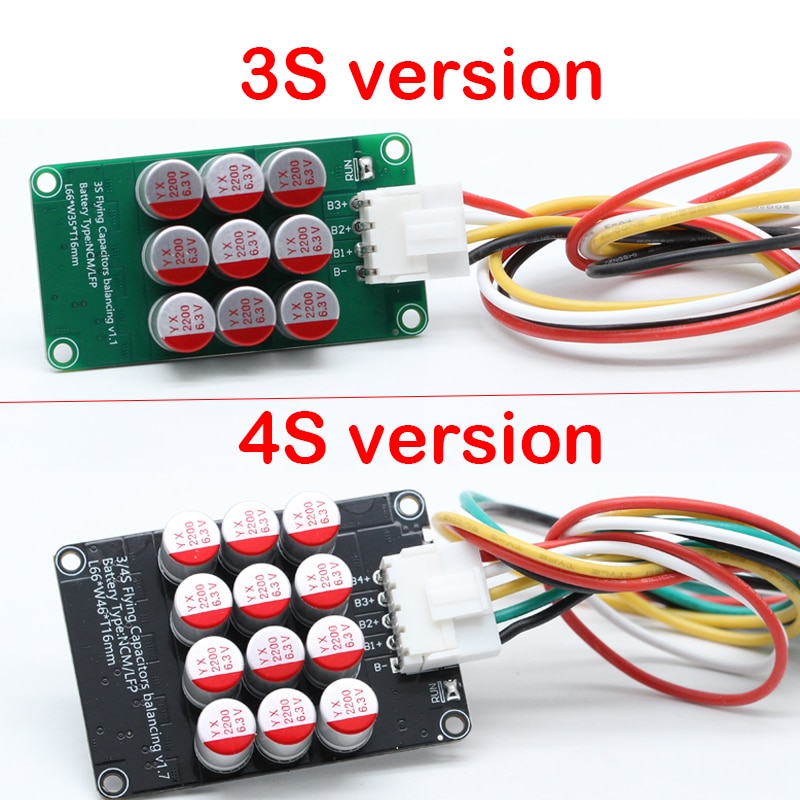

3S quiescent current Full state: (4.2v*3cell) 12.6V 12mA
4S quiescent current Full state: (4.2v*4cell) 16.5V 15mA

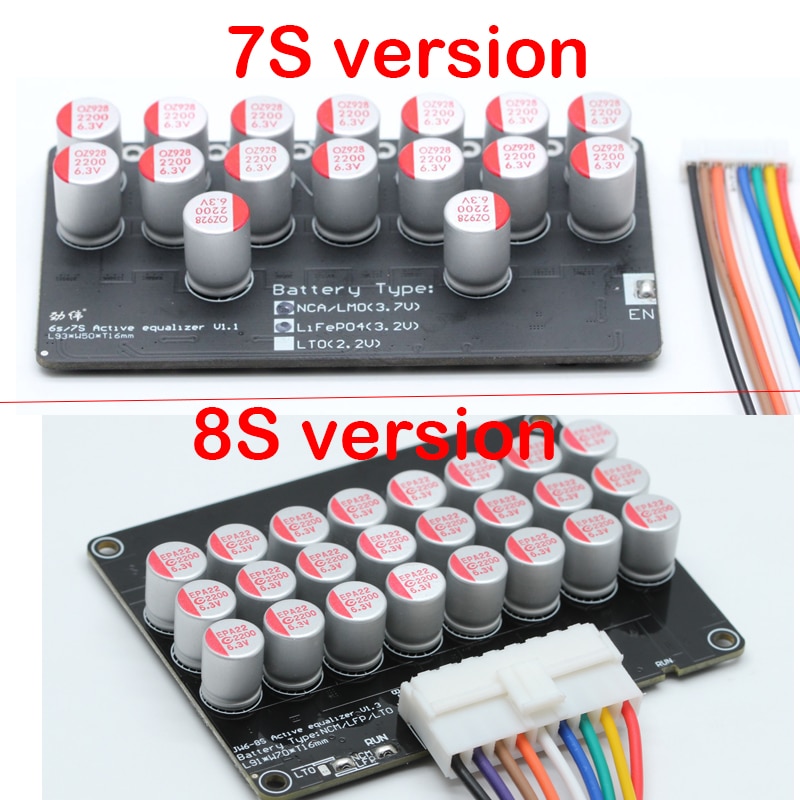

7S quiescent current Full power state: (4.2v*7cell) 29.4V 15mA
8S quiescent current Full power state: (4.2v*7cell) 33.6V 14mA
Whether external power supply is required: no external power supply is required, and the internal energy transfer of the battery is used to transfer and the entire set batteries pack in balance .
Working environment temperature: 0-60 degrees

LTO version

Balance start voltage: 2.0V-2.8V
Balance termination voltage: 1.9V (into undervoltage sleep state)
Maximum Balance current: The whole group error is 0.1V1A; 0.5V3.5A; 1.0V5.5A (18awg 30CM cable test)

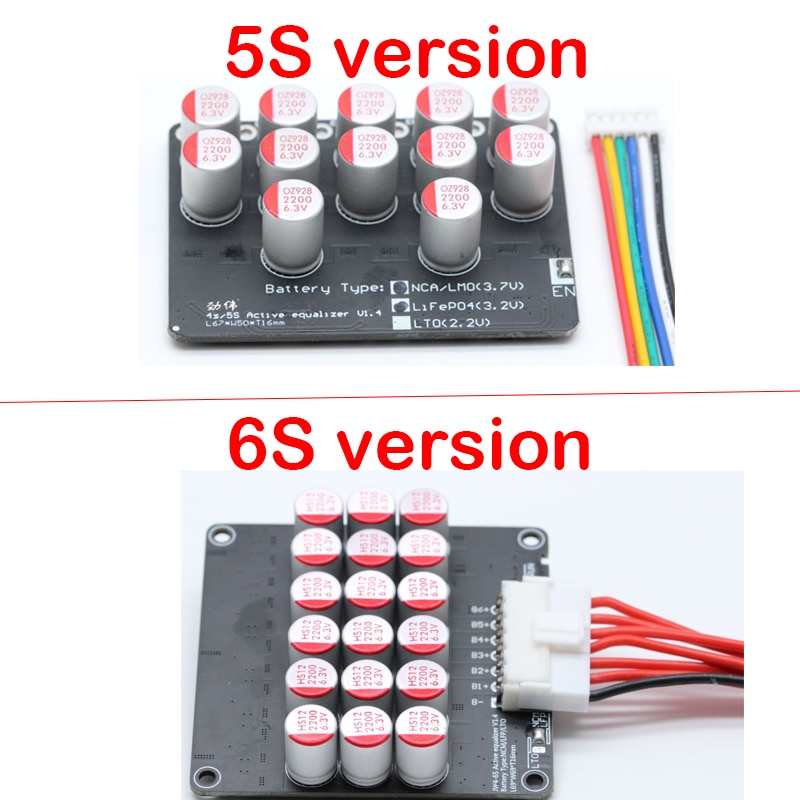

5S LTO quiescent current Full state: 2.8v*5cell） 14V 12mA
6S LTO quiescent current Full state: 2.8v*6cell） 16.8V 15mA
Whether external power supply is required: no external power supply is required, and the internal energy transfer of the battery is used to transfer and the entire set batteries pack in balance .
Working environment temperature: 0-60 degrees

Support balanced cascading for battery packs, for exsample , it can cascade for 11S , 24S ,36S , 48S….and so on
