If you need its English documents, contact us ,provide your e-mail and we will send you there ~ !!!!~

Active, efficient, energy transfer balance
Continuous 1A/2A balance current, independent of single cell differential voltage

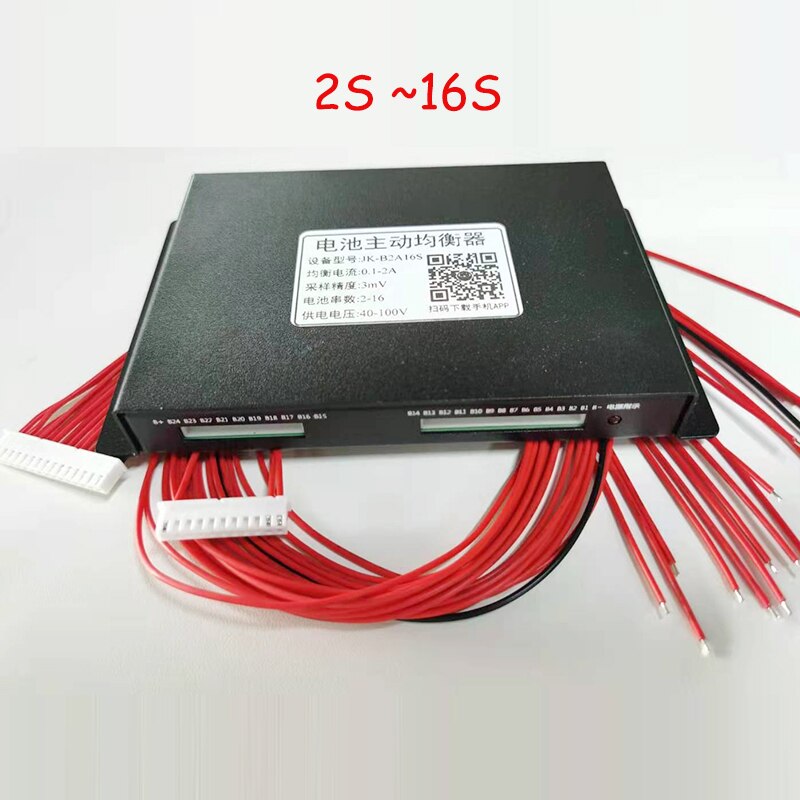

for 2S – 16S universal battery
40V-100V power supply, standby power consumption 6mA, low power automatic shutdown

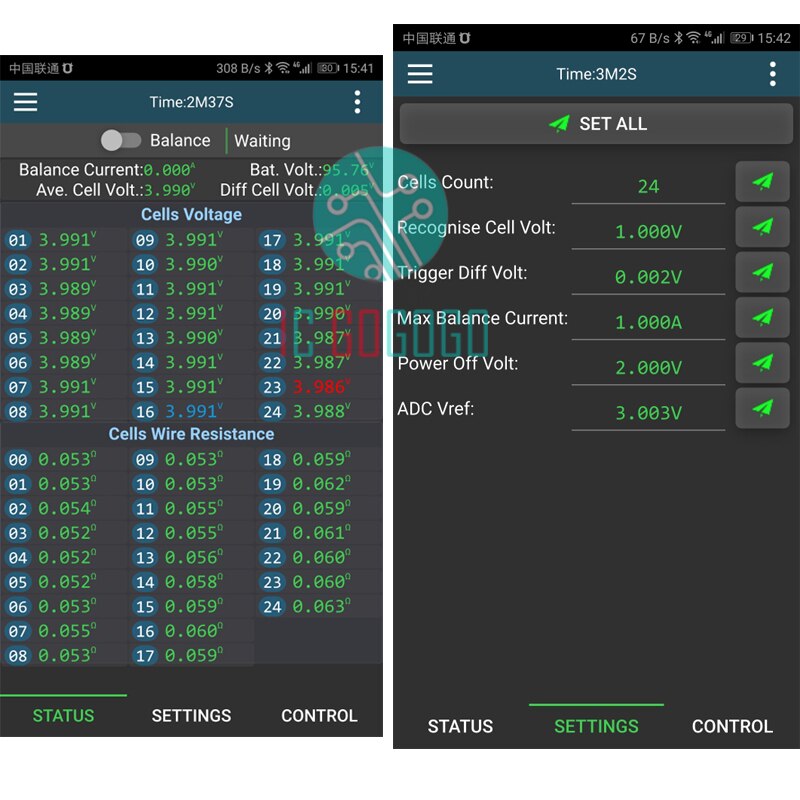

Bluetooth APP connection for mobile phone, real-time monitor battery status
Support: Li-ion, Lipo, Lifepo4, LTO, super capacitors and other batteries

Real-time, active, energy transfer equalization, after the balance, the monomer voltage difference ≤ 3mV

Monomer voltage range 1V-5V, accuracy ±5mV

Support balanced cascading for more battery packs, for exsample , it can cascade for 32S , 48S….and so on

Bluetooth communication function, English version of APP, real-time view of battery status
Balanced line resistance detection, abnormality found in advance
No external power supply required, direct battery pack power supply, 40V-100V
Low voltage shutdown function to prevent battery damage
size :157*98.2*18.7

It is only balancer , it is not protection board
