Description

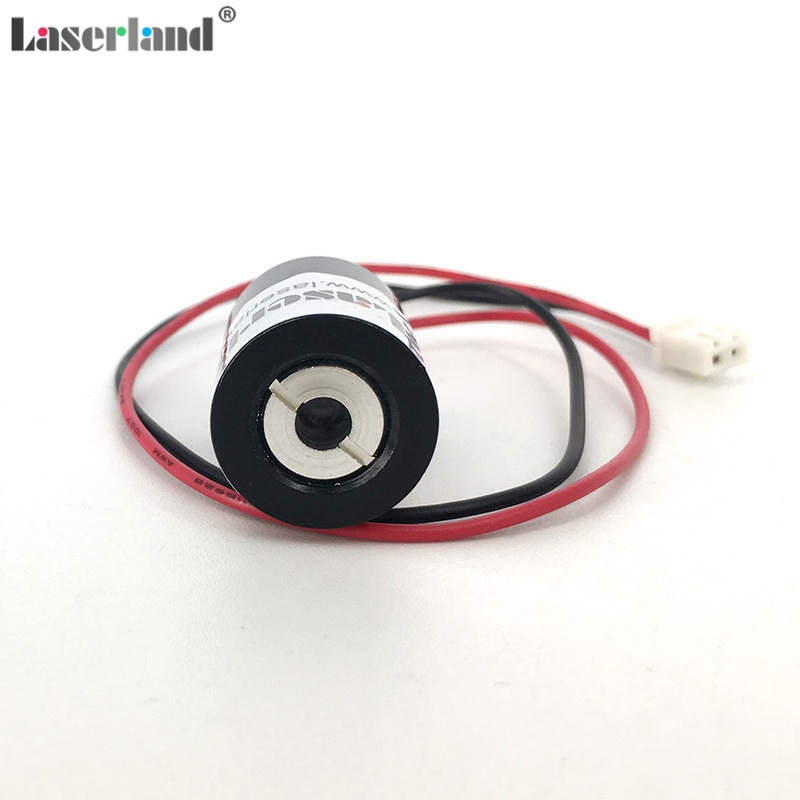

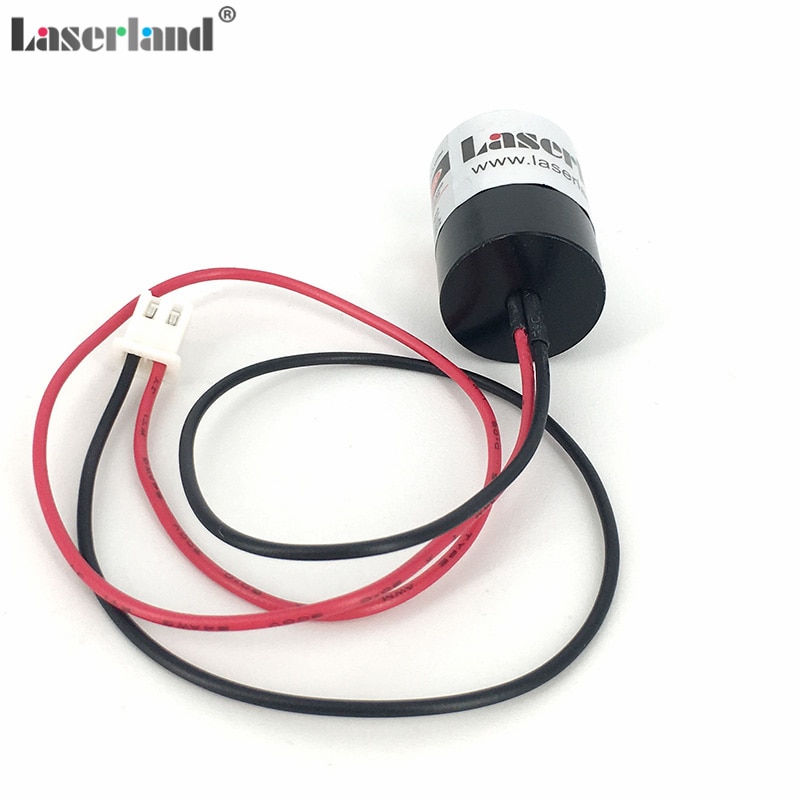

18*25mm 650nm 100mW Red Laser Diode Module no Driver Stage Lighting
Specification
wavelength: 650nm
output: 100mw
laser mode： red laser TEM01
laser beam output at the beginning： <1.5mm
degree: <1.5mrad
working temperature: 12-32 centigrade
TTL: NO
working voltage: DC3.3V
working current: 160-180mA
stability: +- 5%
working mode: CW
working life: 5000hr
size: 18x25mm
NOTE: not brand new LD in. it is LD removed from new machine.

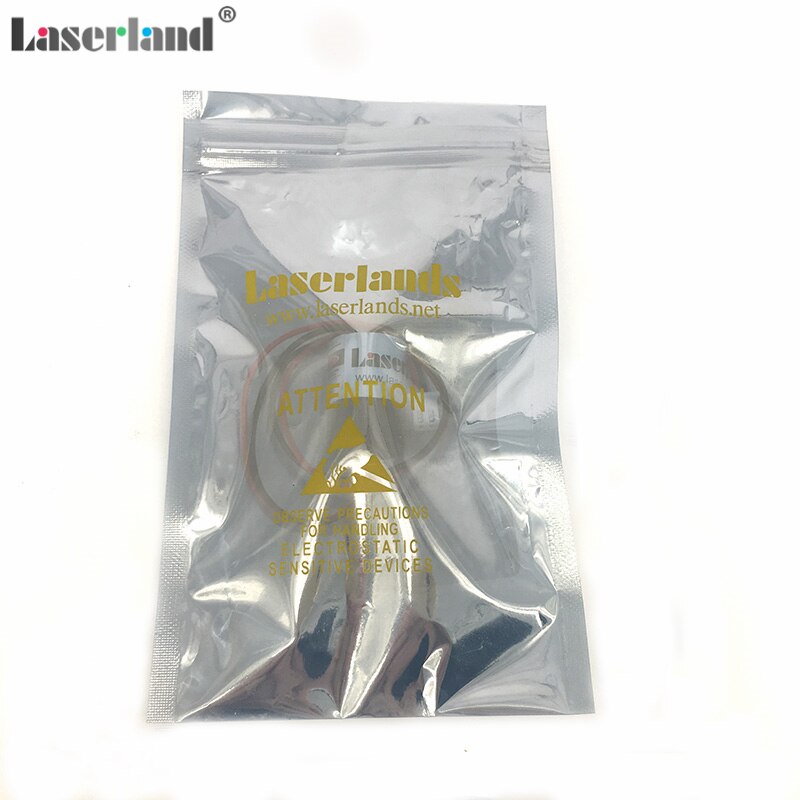

package: 650nm 100mW Red Laser Module no Driver 18*35mm
