Description

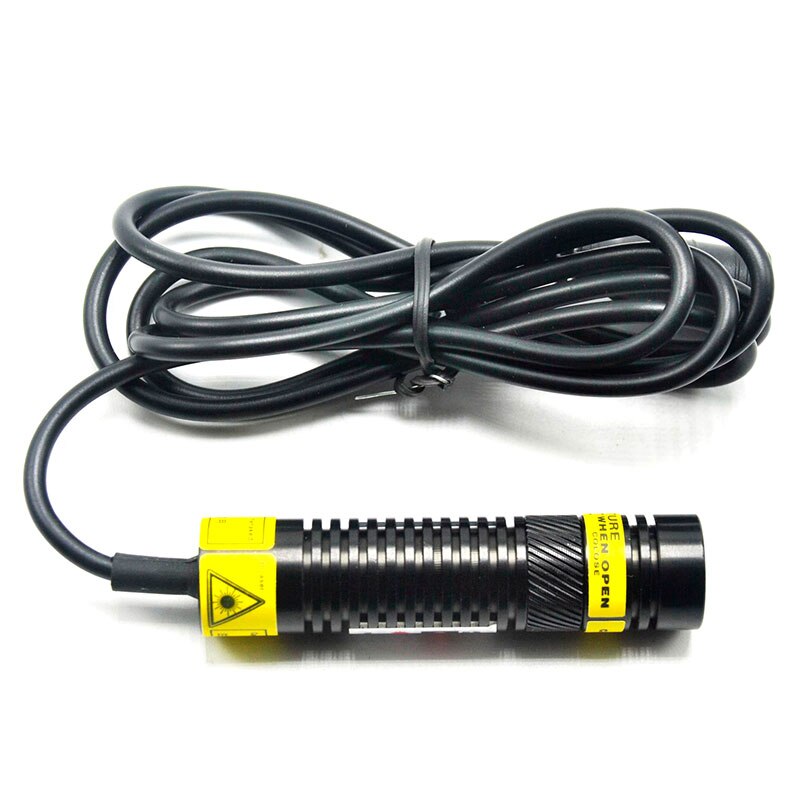

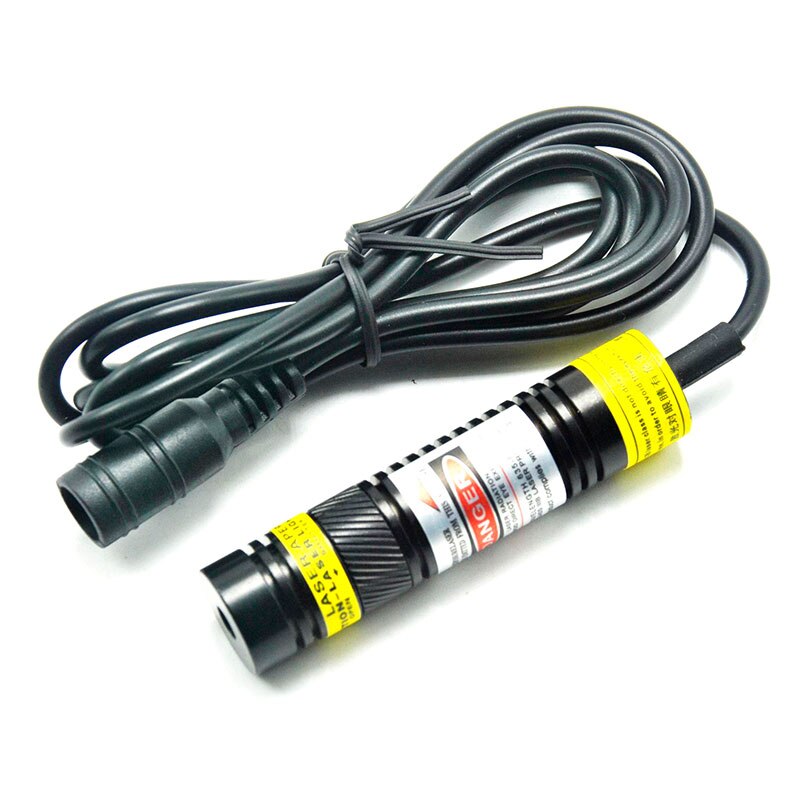

16mm*68mm 780nm 100mW Infrared IR Dot Line Cross Laser Module Mitsubishi Diode+ Adapter
Parameters
Core device:Mitsubishi
Wavelength:780nm
Output Power:100mW
Power supply:DC5V
Working current:80mA
Spot mode:Dot/Line/Cross
Output wave band:The visible light
Material:Aerospace aluminum
Optical portion:Focus Lens
Lens Material:pvc Focus Lens
Operating temperature:-40℃~75℃
Best working distance:3 meters
Working life:10000 hours
Dimensions:∮16*68MM DC cable length 1.2 m (adjustable focus)
Structural features:Aluminum shell+ Imported laser diode+ K9 glass lenses+ Constant current driver board
Features
This laser locator/module has is widely used in clothes cutting, wood cutting, mechanical positioning.
Please keep the lens clean to make the laser beam clear and bright. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.
Package
1pc Focusable Dot/Line/Cross Infrared IR Laser Module 780nm 100mW Laser Lighting 16mmx68mm
1pc US/EU/UK/AU 5V 1A Adapter
