Description

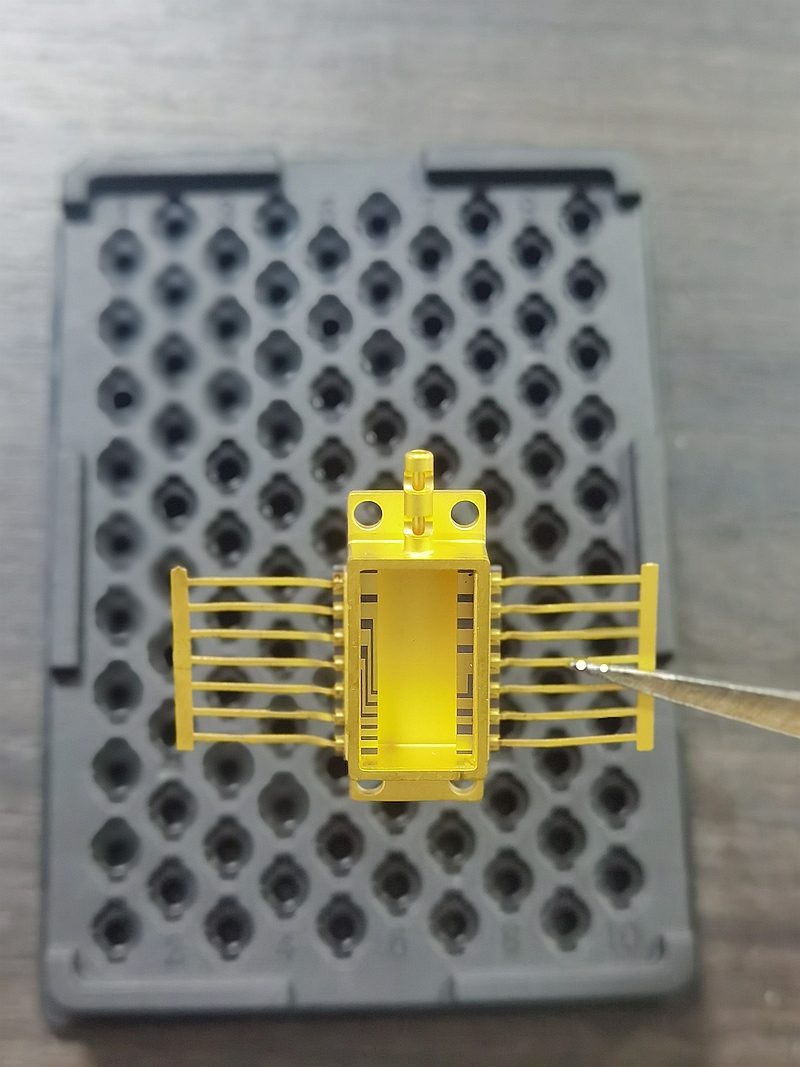

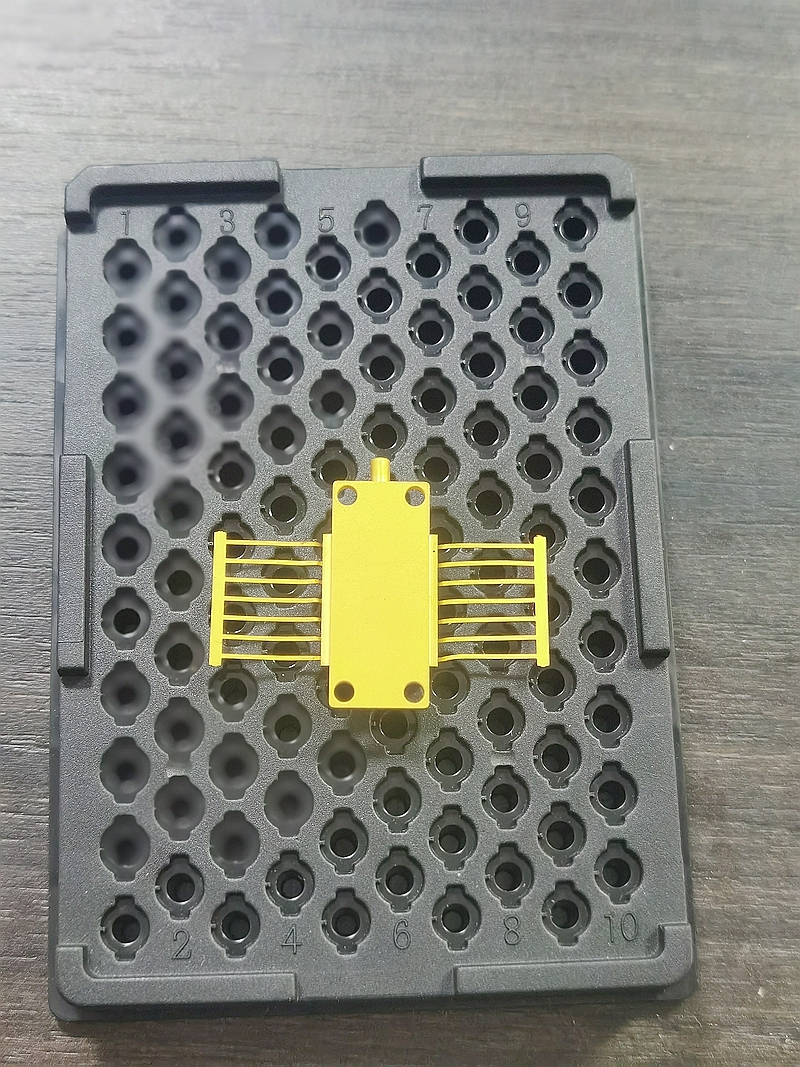

1653nm DFB Butterfly Laser Modules
Key Features
DFB Laser Chip, Butterfly Package
High Stabilization
Telecordia GR-468-CORE Compliant
RoHS Compliant
Applications
Sensor
Light Source
Recommended Operating Conditions
Case Operating Temperature Range: 65C
Relative Humidity: 85%

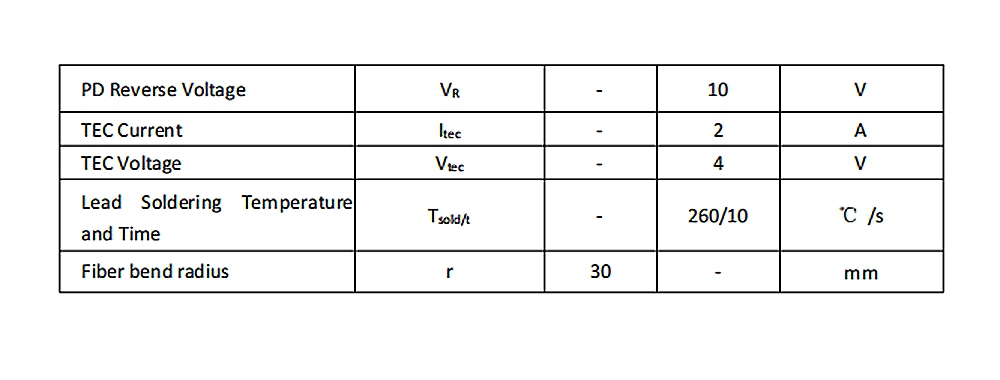

Absolute Maximum Ratings
Storage Temperature: 85C
Relative Humidity: 85%
LD Forward Current: 120mA
LD Reverse Voltage: 1V
PD Reverse Voltage: 10V
TEC Current: 2A
TEC Voltage: 4V
Lead Soldering Temperature and Time: 260/10 C/s

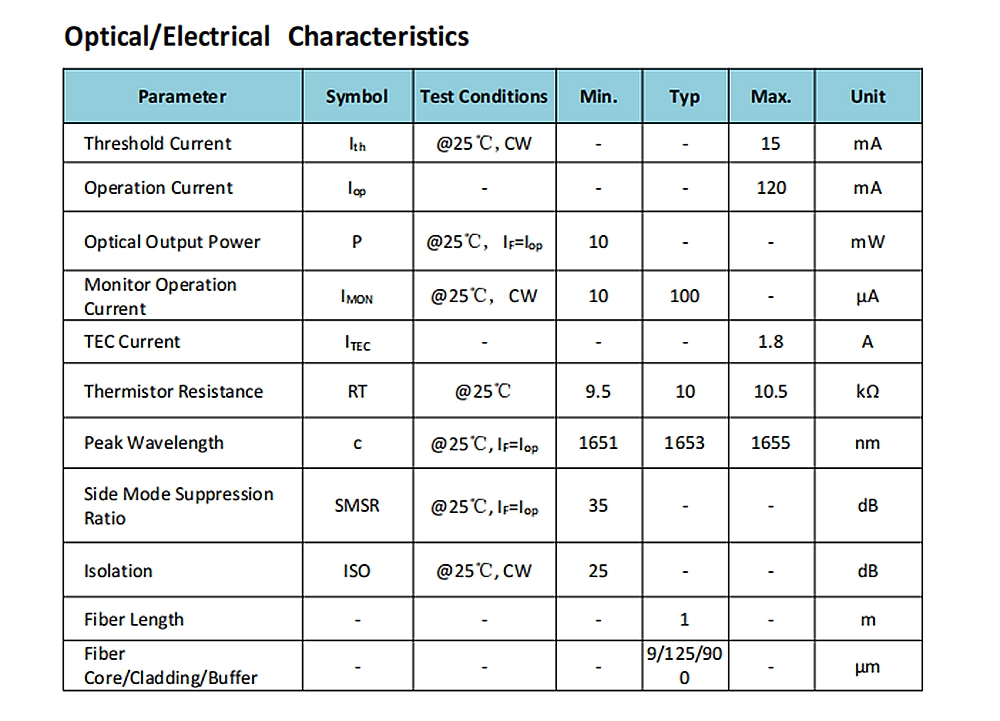

Optical/Electrical Characteristics
Threshold Current: 15mA
Operation Current: 120mA
TEC Current: 1.8A
Thermistor Resistance 10.5
Peak Wavelength: 1655nm
