16*120 650nm 100mW Red Diode Laser Module Cross Hair line Focusable w/Adapter and Mount 24vdc

Operating Voltage   24V

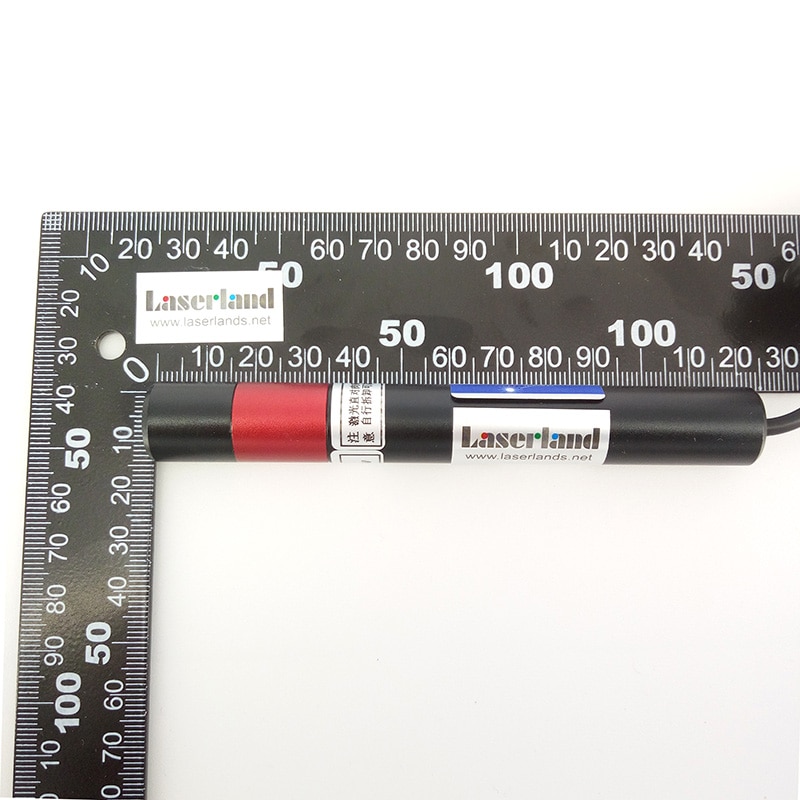

Size   16 x 120mm

Output Power   100 mW

Wavelength   648 nm (MITSUBISHI LD in)

Radian   Length     1~3m at 1m; Width <2mm at 1m

Working Temperature    -15 ~+35 centigrade

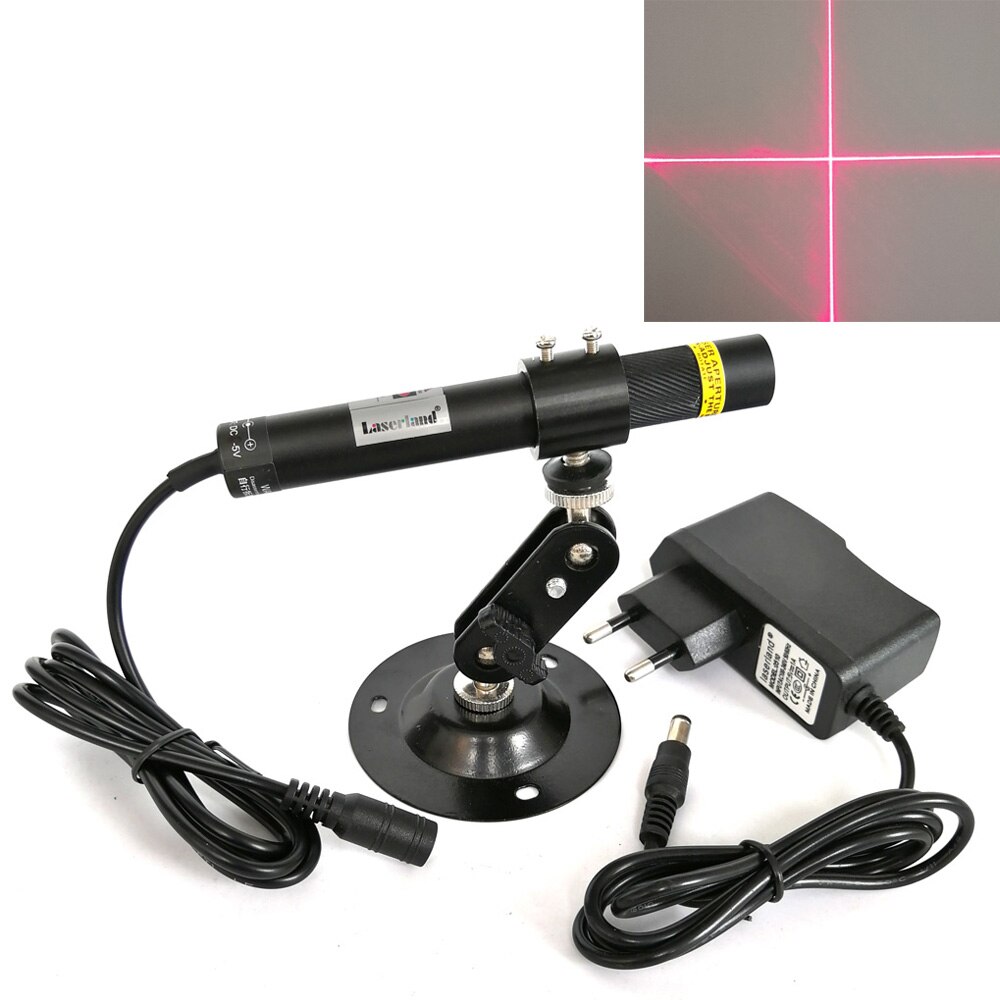

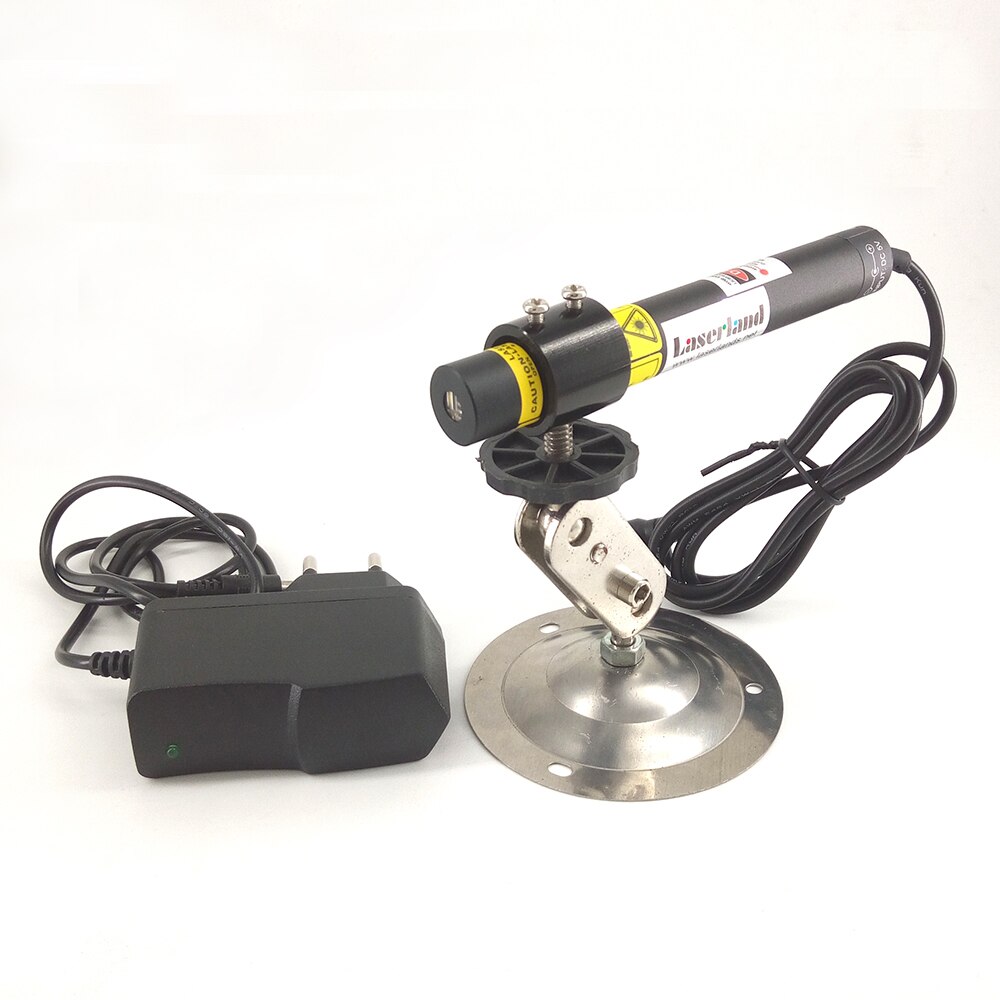

Package   1 x 650nm red module, 1X adapter, 1x mount

Working Method

The best working method is 30 minuts conntinuously working and 5 minutes resting. when you use it with the mount, you can fix it on wall and the duty cycle can be prolonged to 2-4hrs. Otherwise the laser may be burnt. Please read the using tips on the back of the warranty card. We will not take any responsibility for the incorrect use.

Note:
The modules are tested and the output power are measured by laser power meter before sending out.
Please don’t compare the power of this one with a none-measured laser.
If you doubt the output, please have the laser you recieved checked by laser power meter.
If there is any problem, please feel free to contact us. We will solve the problem asap.
