Description

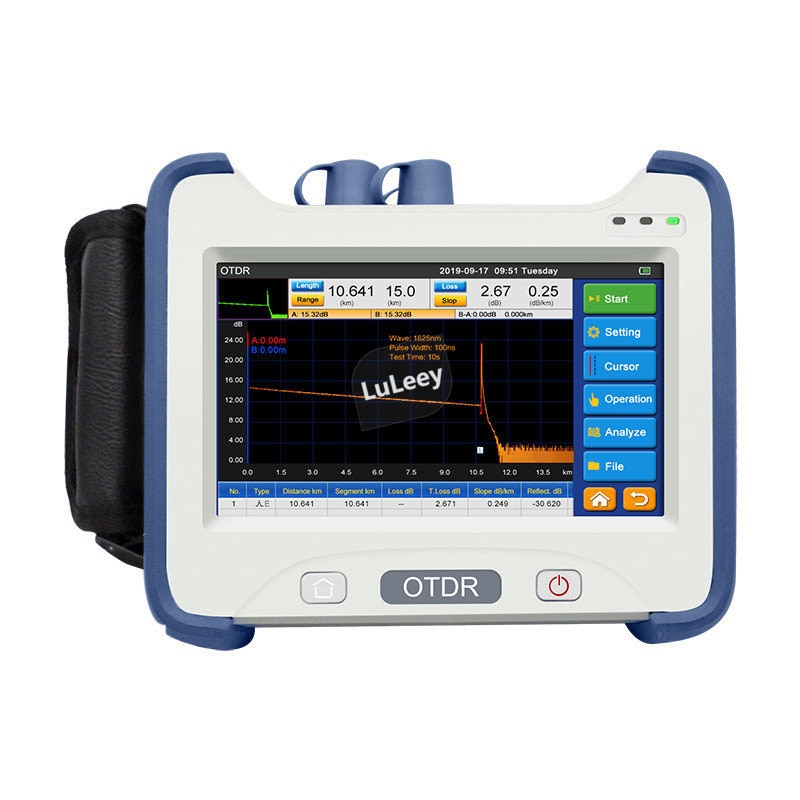

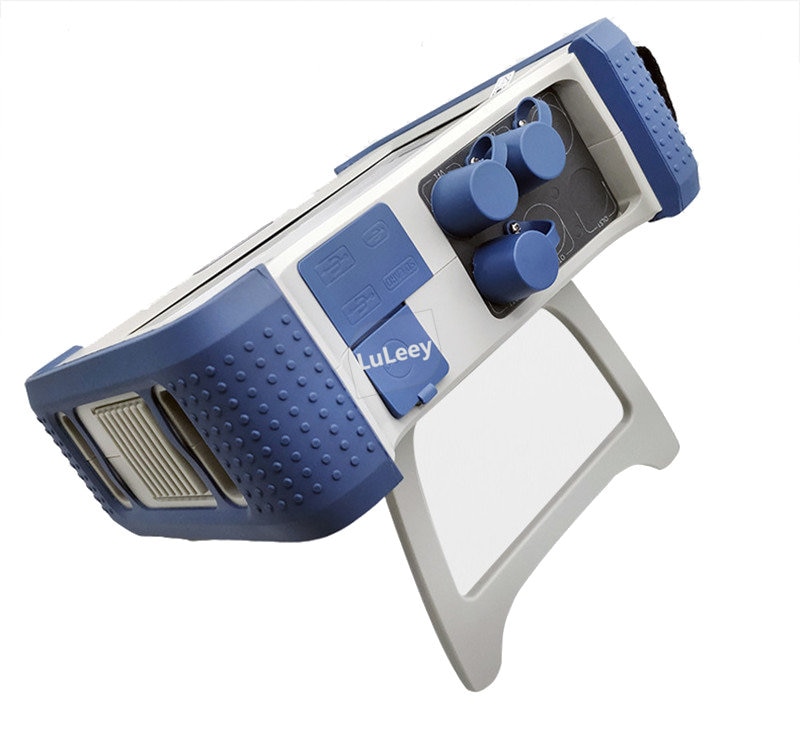

160km 4in1 Single Mode Multimode Multi-language OTDR 1625nm 7 Inch Screen 8G Memory VFL OPM Optical Time Domain Reflectometer
- Fiber Type: Multimode
- Connector Type: SC/FC/ST
- Model Number: LL350
- Compatible: Ubiquiti,QSFPTEK,Mikrotik,Transition Networks,Zyxel,Ericsson,Enterasys,Brocade,Mellanox,Alcatel-lucent,Customized Brands,Cisco,Arista,FOUNDRY,TP-link,Allied,Extreme,Dell Force10,Juniper,D-Link,Linksys,Netgear,HP,IBM,Intel,Trendnet,Open Switch,Dell,F5 Networks,Hirschmann,Moxa,planet,Supermicro,AVAGO,Avaya,Ciena,Finisar,H3C,SMC,Huawei,Aruba
- Certification: CE,FCC,RoHS
- Type of equipment: Optical time domain reflectometer
- The supply voltage.: 7.4(V)
- Weight: 1.5kg
- size: 230*185*170mm
- Power supply: lithium battery
OPM:850/1300/1310/1490/1550/1625nm; -70~+10db(default) or -50~+26db(if you need ,tell us)
SLS: 1310/1550nm
VFL:10mW,650nm
|
Type |
Testing wavelength |
Dynamic range |
|
350-S-A32 |
1310/1550 |
32/30 |
|
350-S-A35 |
1310/1550 |
35/33 |
|
350-S-A37 |
1310/1550 |
37/35 |
|
350-S-A40 |
1310/1550 |
40/38 |
|
350-S-A42 |
1310/1550 |
42/40 |
|
350-S–B33 |
1625 |
33 |
|
350-S-C26 |
1650 |
26 |
|
350-S-C33 |
1650 |
33 |
|
350-S–D35 |
1490 |
35 |
|
350-S-AB35 |
1310/1550/1625 |
35/33/33 |
|
350-S-AB38 |
1310/1550/1625 |
38/35/36 |
|
350-S-AB43 |
1310/1550/1625 |
43/41/41 |
|
350-S-AC35 |
1310/1550/1650 |
35/33/32 |
|
350-S–AD38 |
1310/1490/1550 |
38/35/36 |
|
350-M26 |
850/1300 |
20/26 |
|
350-SM32 |
1310/1550/850/1300 |
32/30/20/26 |
|
350-SM35 |
1310/1550/850/1300 |
35/33/20/26 |
|
350-SM42 |
1310/1550/850/1300 |
42/40/20/26 |
Product Features
- Pulse Width:3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs,20μs.
- Testing Distance:500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km.
- Measurement Time: Use defined (smart link) ; with real time measurement function.
- Linearity:<0 05dB/dB.
- Loss Threshold:0.01dB.
- Loss Resolution:0.001dB.
- Distance Resolution:0.01m.
- Sampling Resolution:minimum 0.25m.
- Sampling Point:Maximum 128,000 points.
- Distance Accuracy:+/-(1m+measuring distancex3x 105+sampling resolution ).
- Intermnal visual source:10mw, CW/2Hz .
- Stable laser source:>- 5dBm.
- DataStorage :80000 groups of curve.
- Interface:3 USB port.
- Display:7 inch capacitive touching screen.Battery:7.4V/66Ah lithium battery, continuous 8 10 hours.
- Working Temp:-10C~ +50 degrees Celsius.
- Storage Temp :-20C~ +75 degrees Celsius.
- Relative Humidity:≤90%, non-den.
- Dimension :230*185*70mm/ 1.5kg.
- Option:SC/ST, Bare fiber adapter.

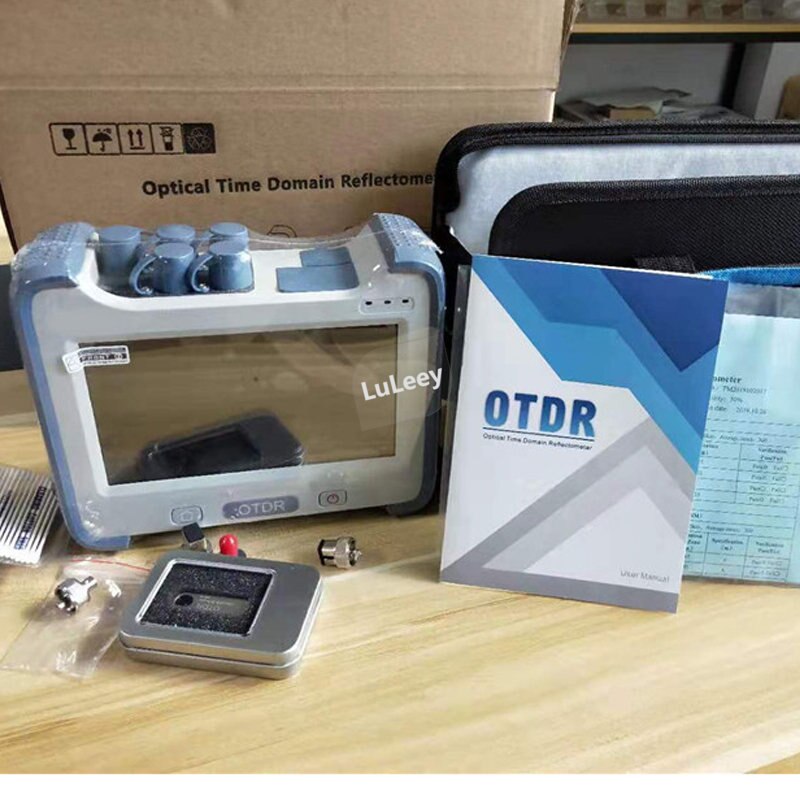

Package Include
