Description

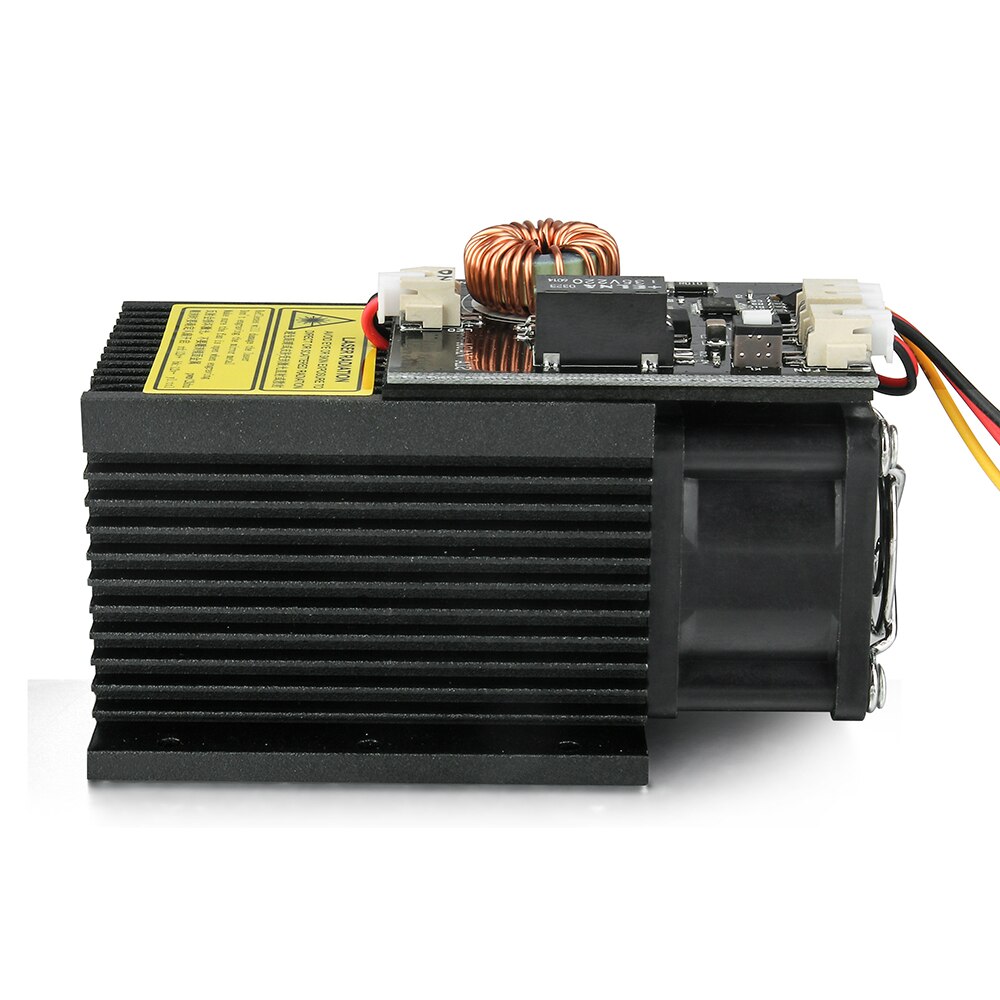

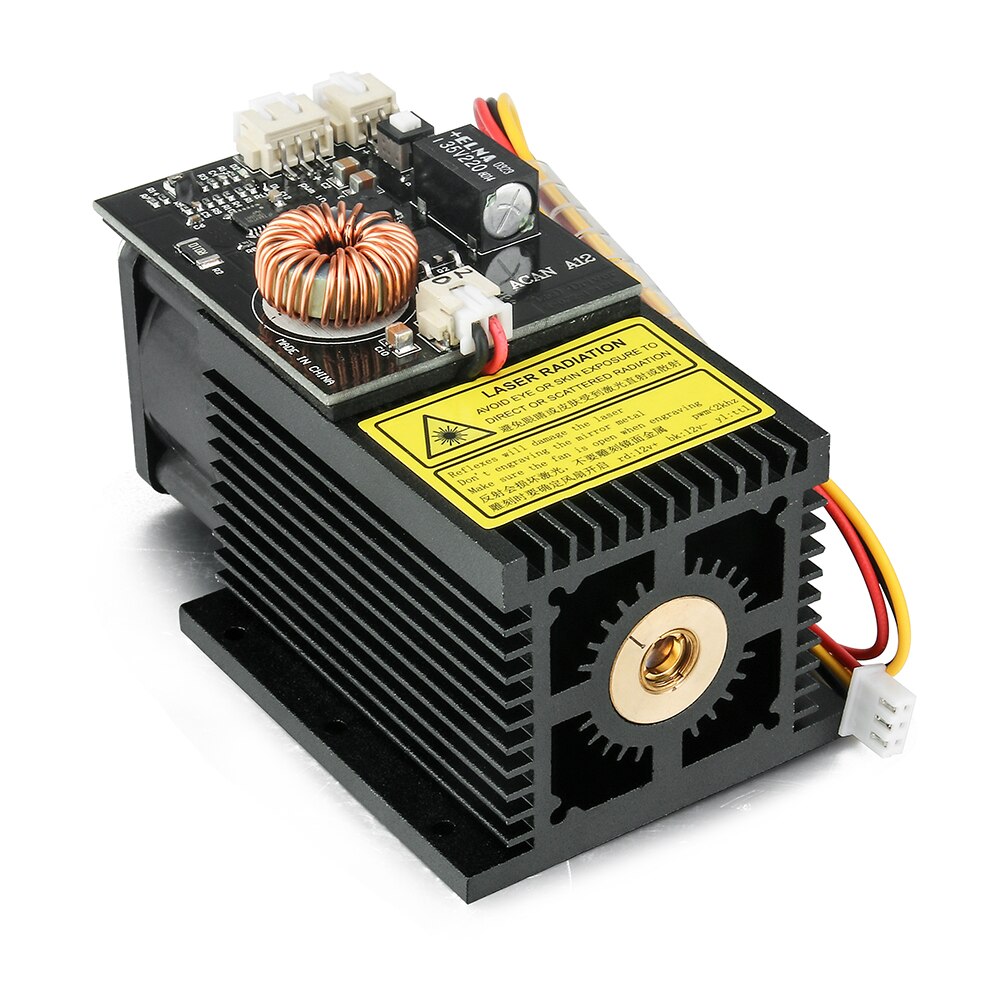

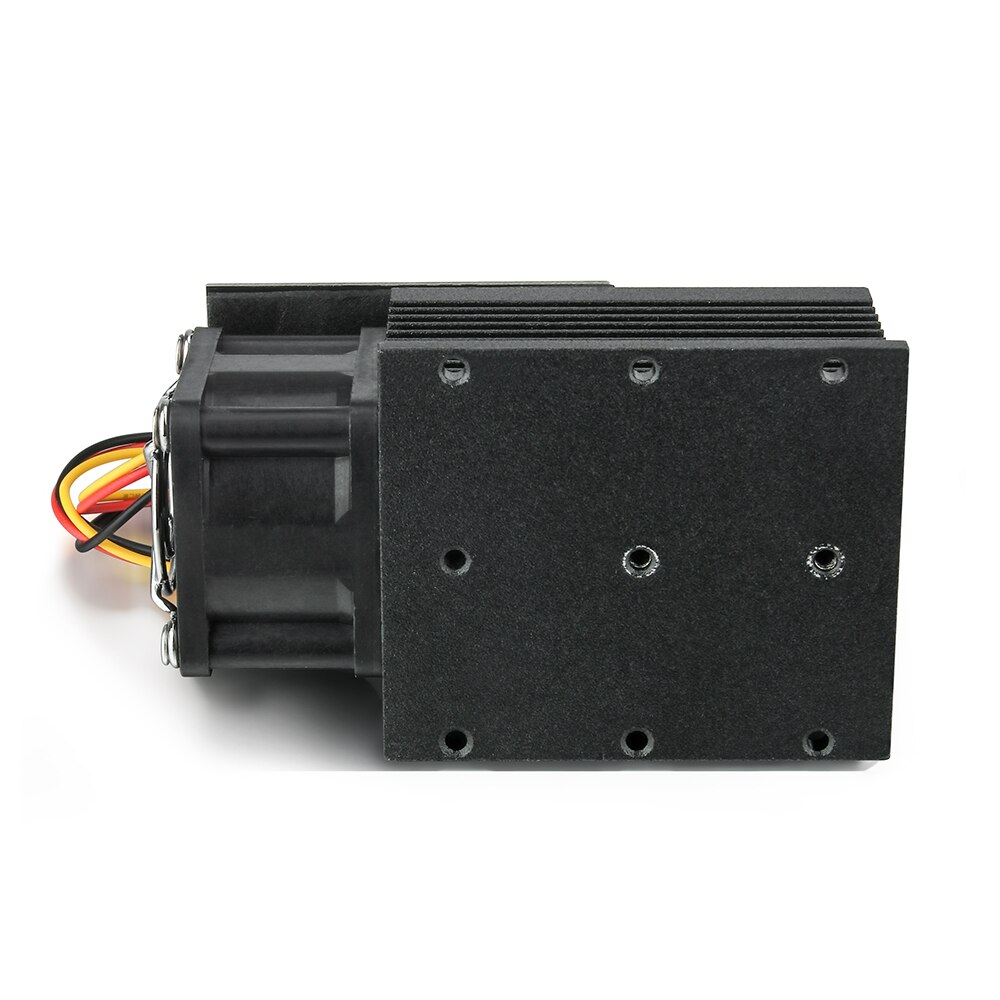

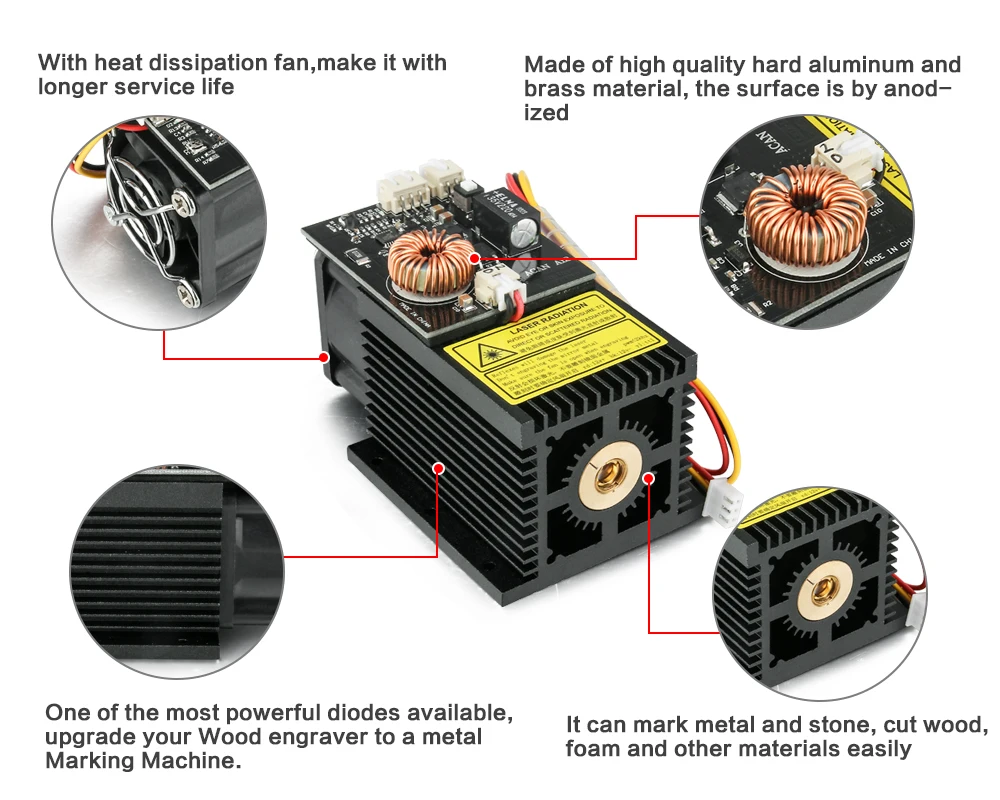

15W High Power Laser Module 12V 445-450nm Blue Laser Head Fixed Focus Laser Engraving For DIY CNC Laser Engraving Machine
Package Includes:
1 x Laser Head
1 x 3-Pin Connector Wire
Laser parameter:
Working Current:4-5A

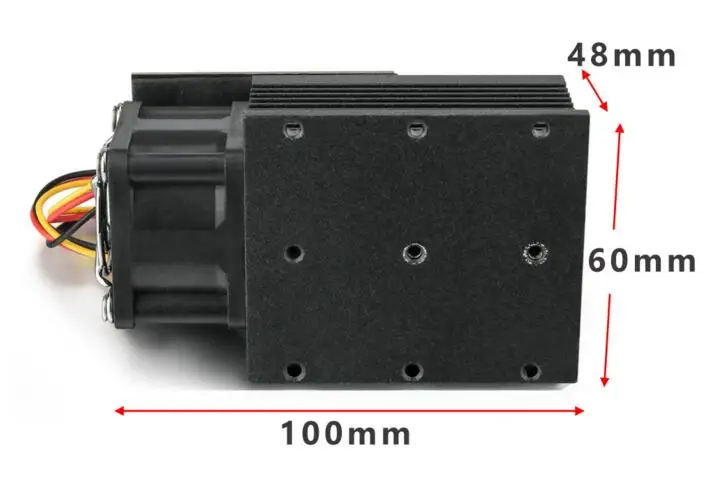

Size:10*6*4.8cm
Operating Voltage :DC 12V
Output Power:pulse 15W average 8W
Wavelength:445-450nm (Blue-ray)
Focal length:16mm( can’t be adjusted)
Operating temperature:15 C ~ 45 C
Usage:Carving stainless steel, anodized aluminum,ceramics, stone, wood, bamboo, leather, plastics, etc.
Can Engrave:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum/Ceramics/Stone/Stainless steel
Can’t Engrave:Metal/Glass/PCB/Reflective Material/Transparent Material
Please Note:
-Please wear the protective glass when you use the laser module.
-Don’t use for more than 60 minutes in a row, otherwise the life of the LD will be affected by overheating.
-Don’t touching the laser light directly in case that hurt the body and skin.
-Keep children and pets away from the laser module when it working.
-The Laser dot could not be adjusted, please make sure the distance between bottom of the
laser module and engraving material is 16mm(Use the plastic column to do it).Or it will influence the result.

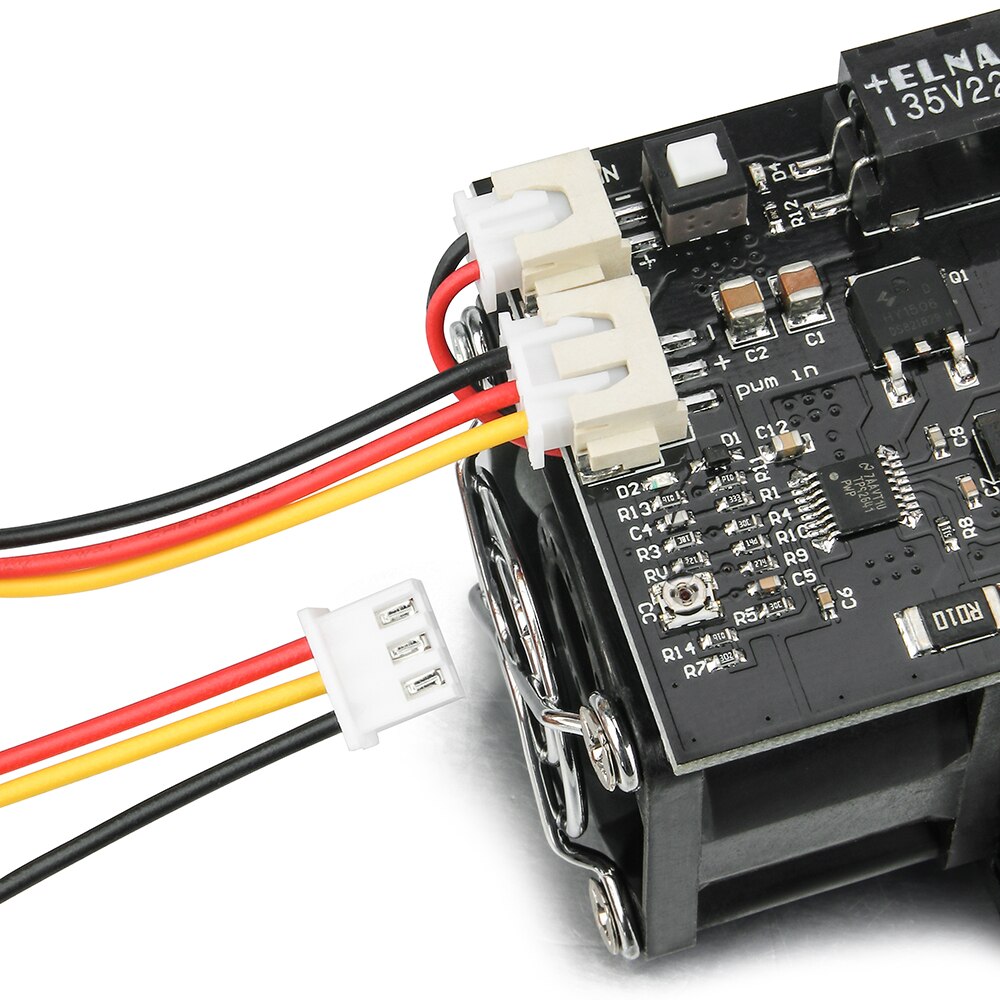

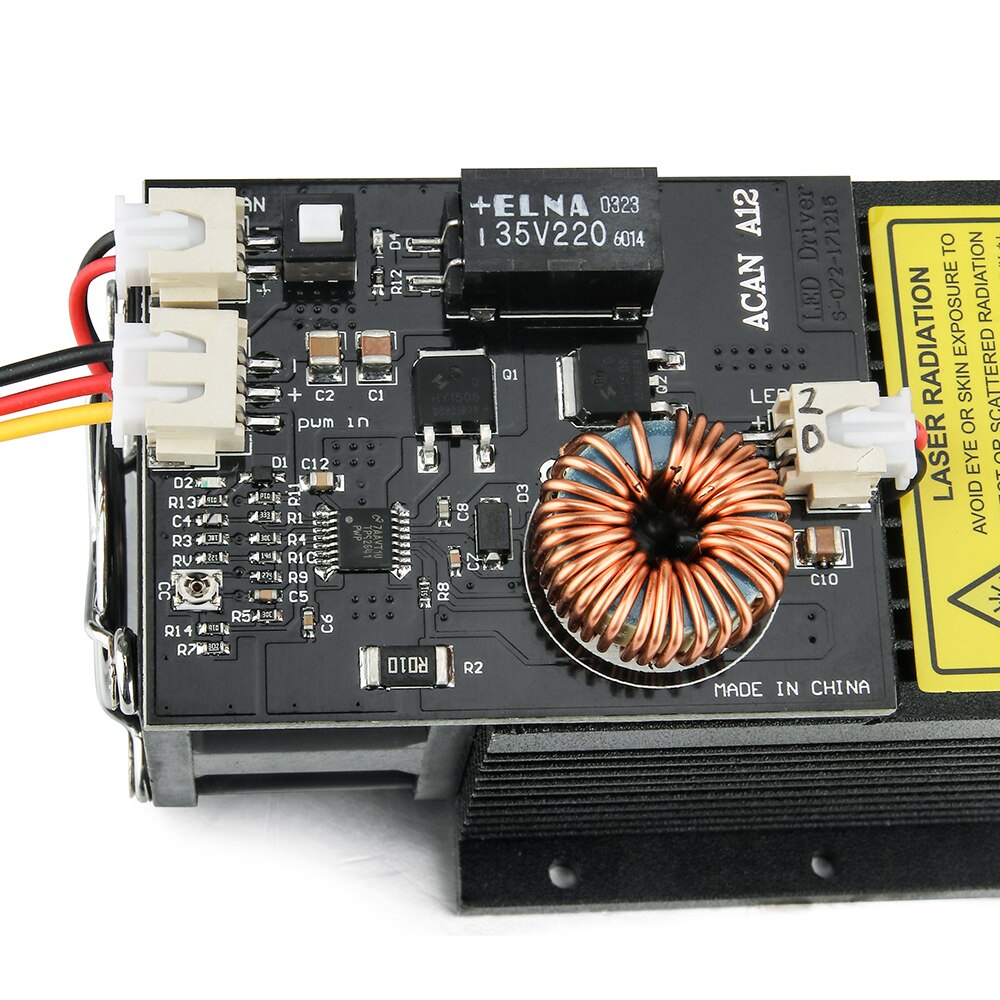

-Please connect to the driver board carefully! The Red cord is 12V+, the black cord is GND-,the yellow cord is Signal(S).
-Please make sure you know how to connect it.Or it might damage the laser module!
-Any quality problem, please send a detailed video to us with a problem description.
-Without our permission, please DO NOT disassemble the laser module，or it might cause the damage. Thank you.
